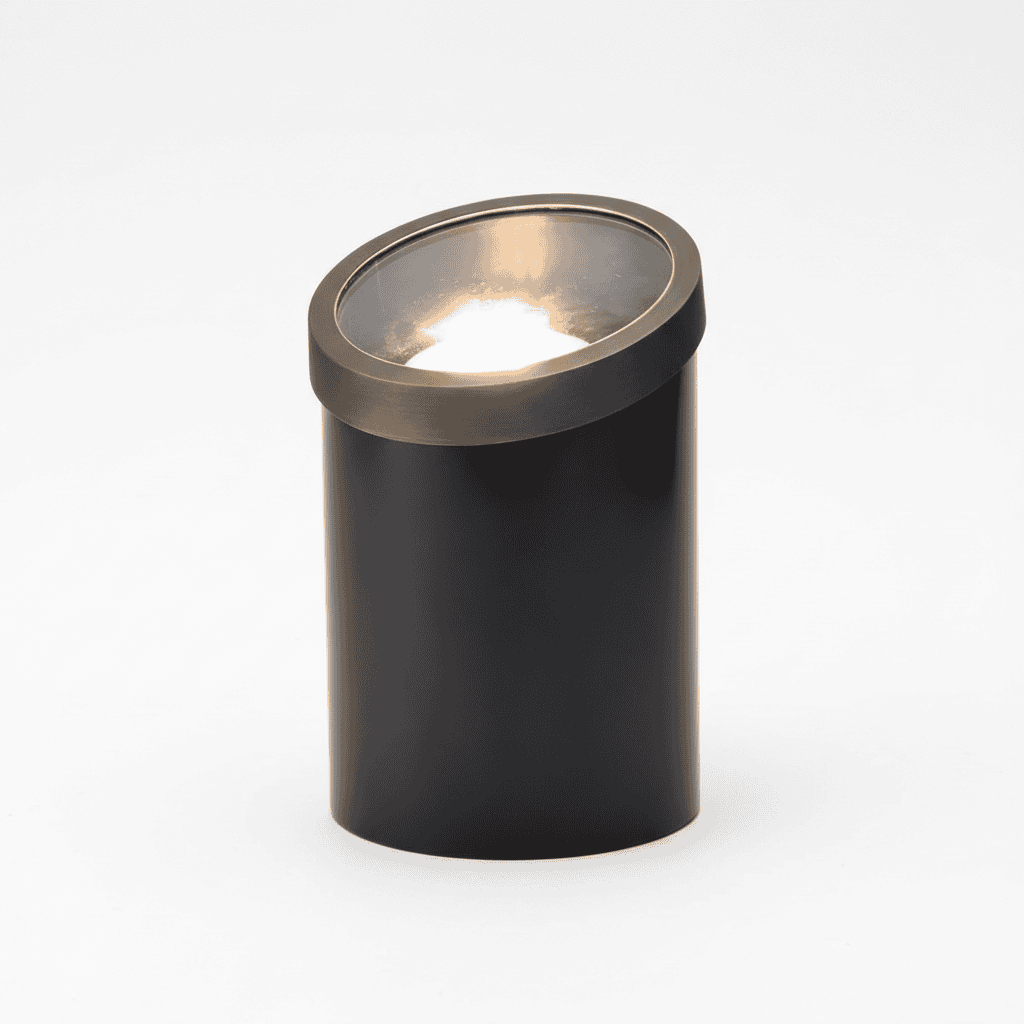

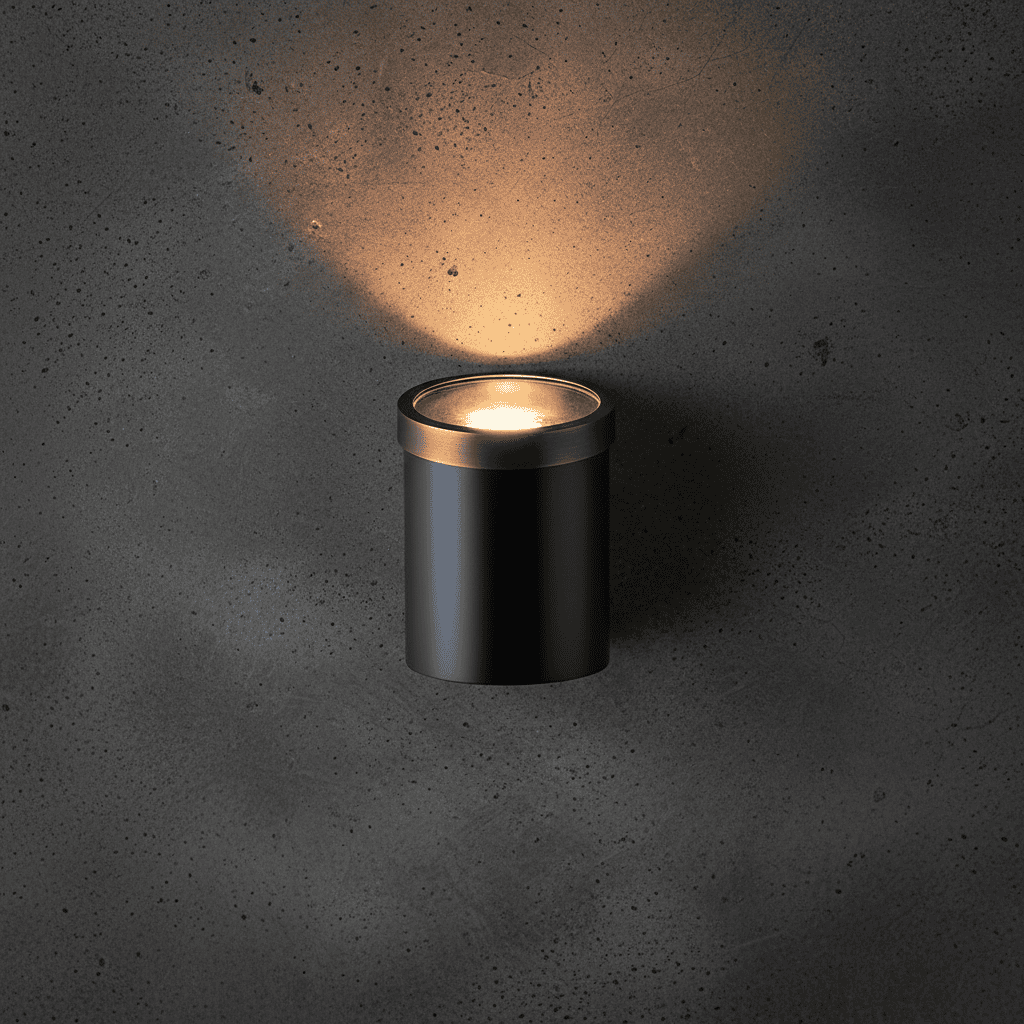

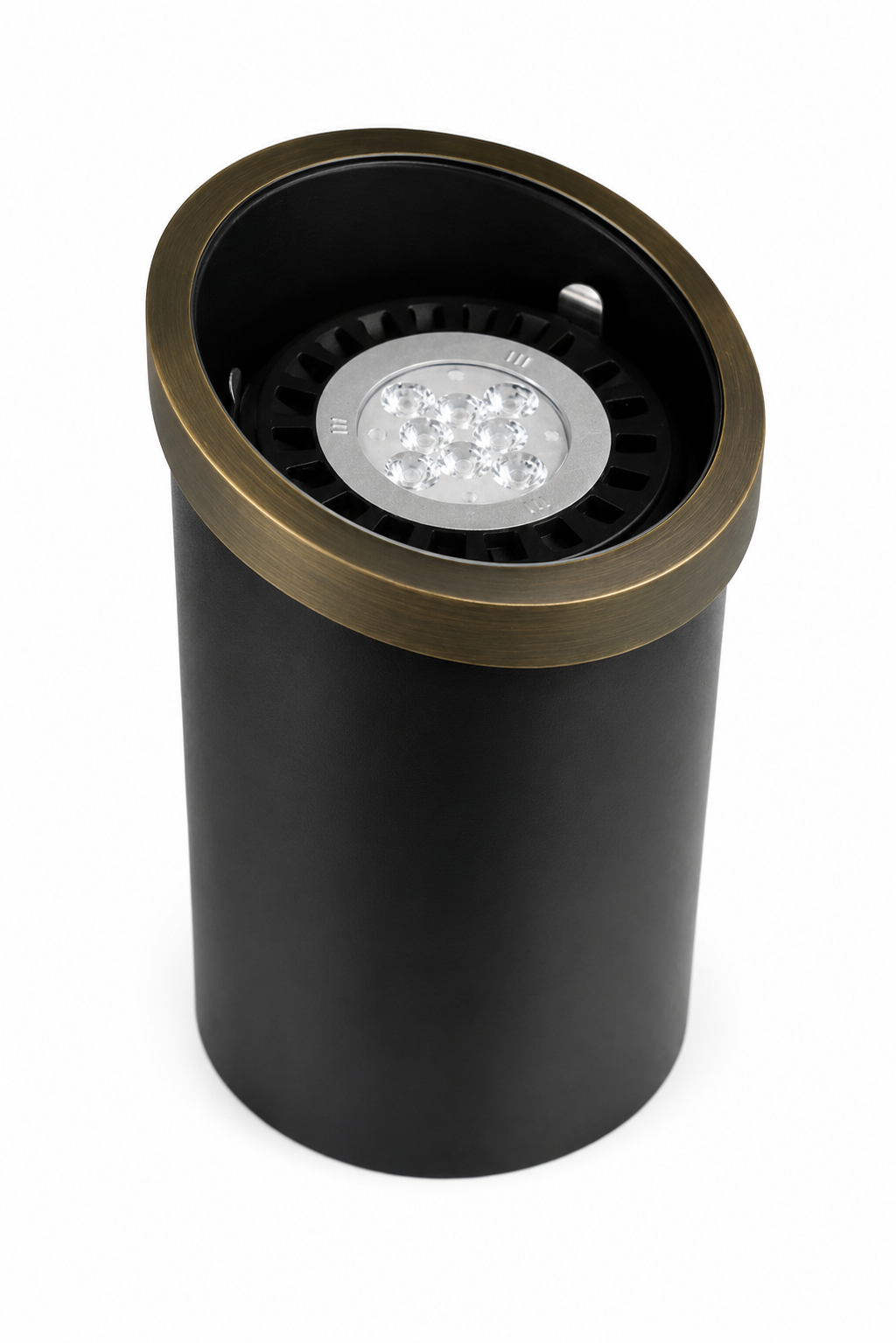

WellFlood - w/ Brass/Glass Front Cover

WellFlood - w/ Brass/Glass Front Cover

Versatile well fixtures for uplighting, wall washing, and architecture.

Retail Pricing $198.95
Color: ArchBronze
Bulb size

Part Number: LW510-AR10-RGB

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

In-ground flood lighting, built to perform

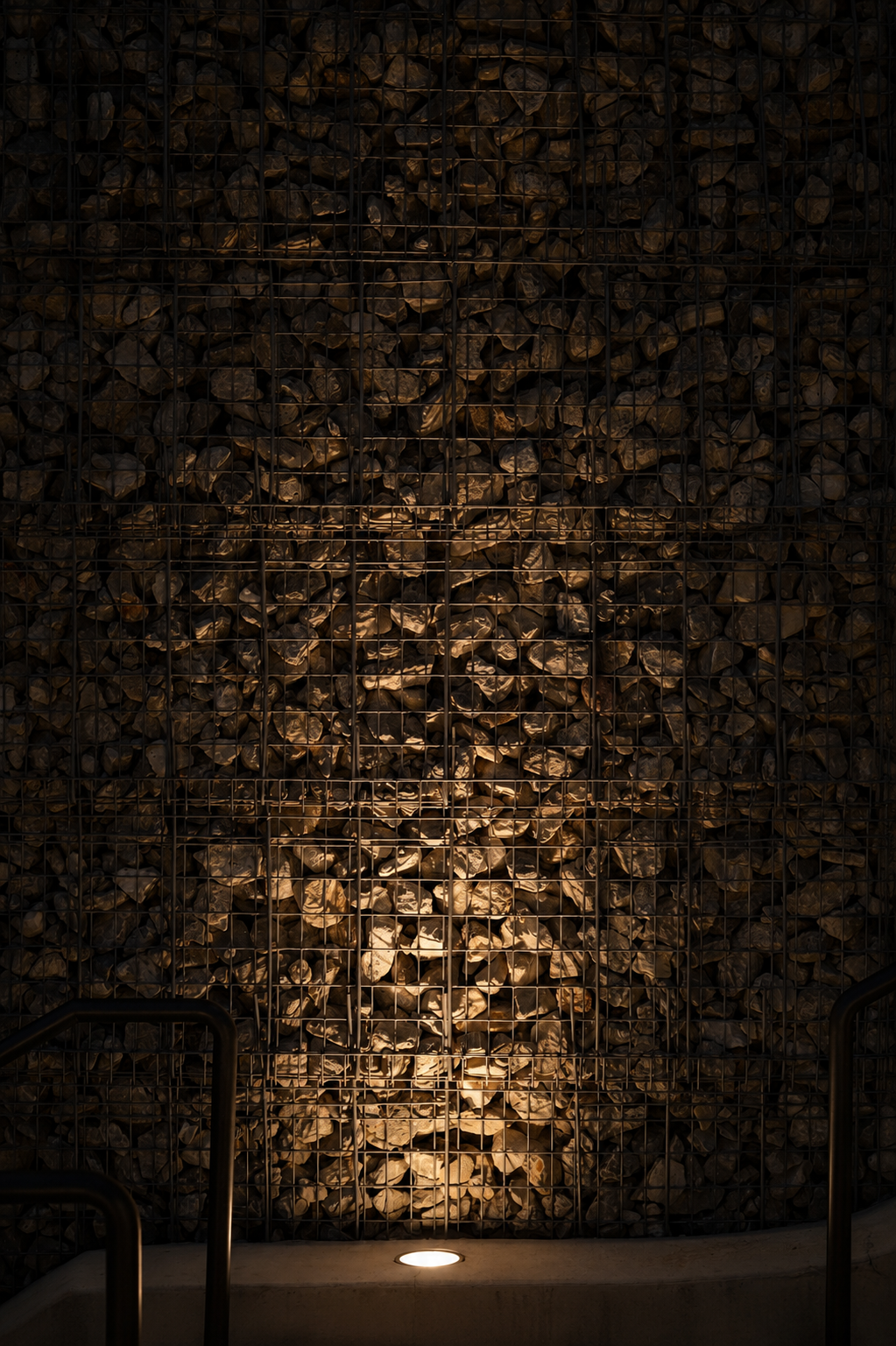

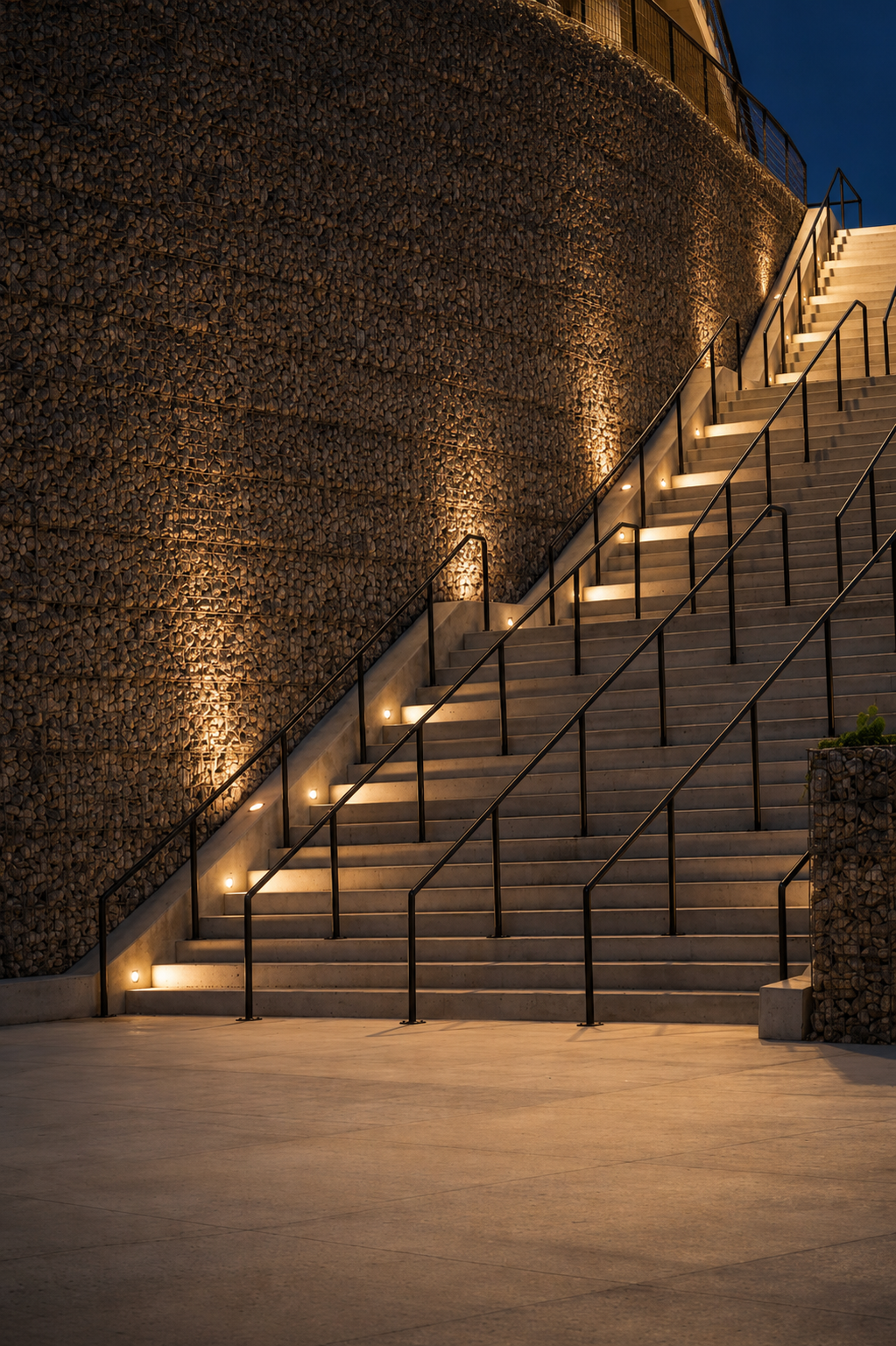

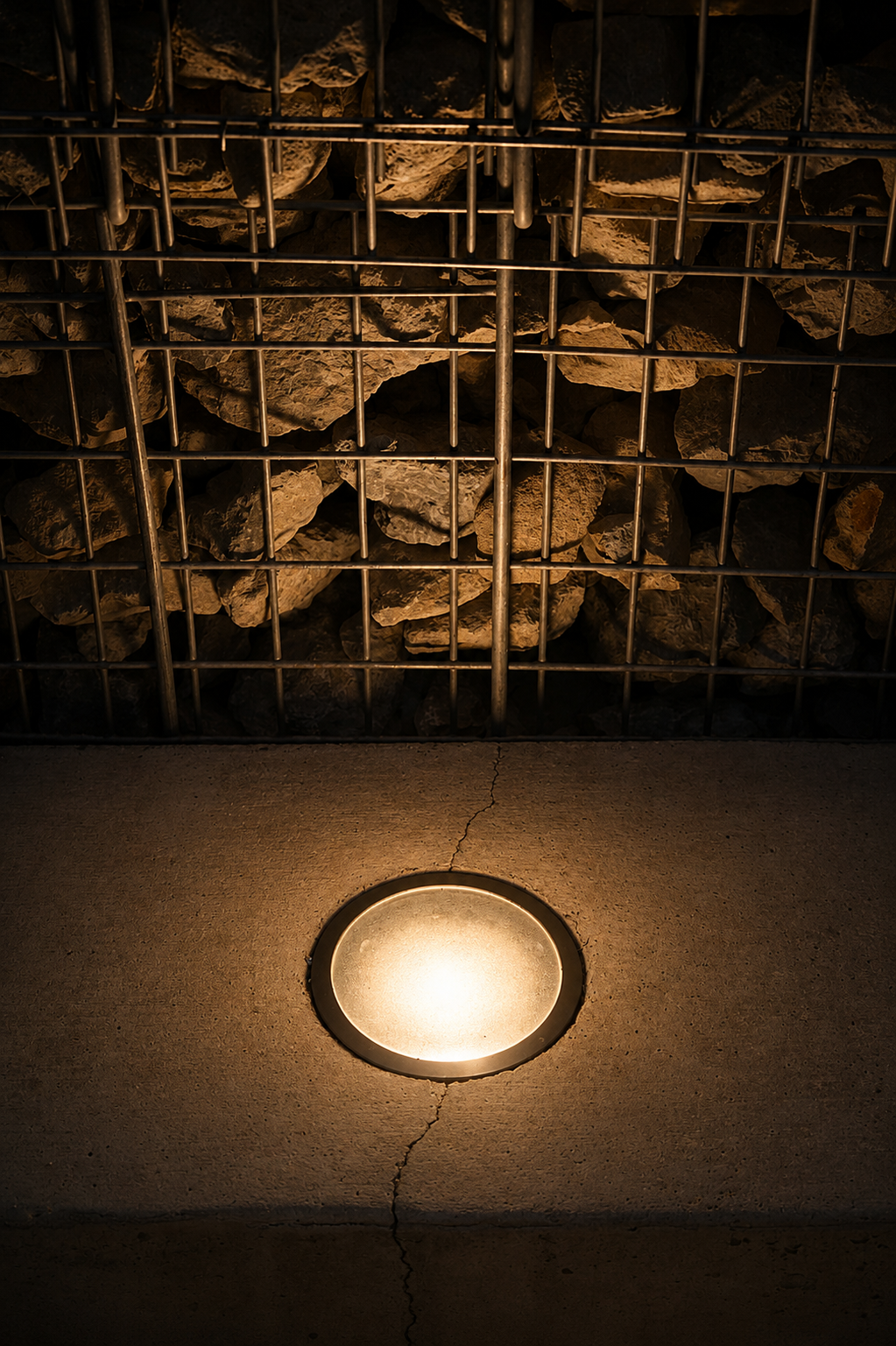

The WELL series fixtures allow for a variety of vertical and horizontal lighting techniques — wall washing, walkway washing, architectural grazing, and uplighting trees, flags, driveways, and sculptures. The brass-and-glass front cover adds a refined trim detail flush with grade, while a removable fixture body and hardscape mounting kit make installation, lamp swaps, and service straightforward. Interchangeable LEDs deliver maximum nighttime effects and design flexibility.

The interchangeable MR16 (or PAR36) platform keeps it dialed-in: run 7–17W lamps in 2700K through 6000K, with beam angles from 15° to 100° to tune everything from a tight tree-uplight to a wide wall wash. A raw brass housing, stainless-steel fasteners, silicone gaskets, rubber expansion ring collar, and IP67 wet-location rating make it ready for buried, submerged, and high-traffic in-grade installations.

Ideal applications:

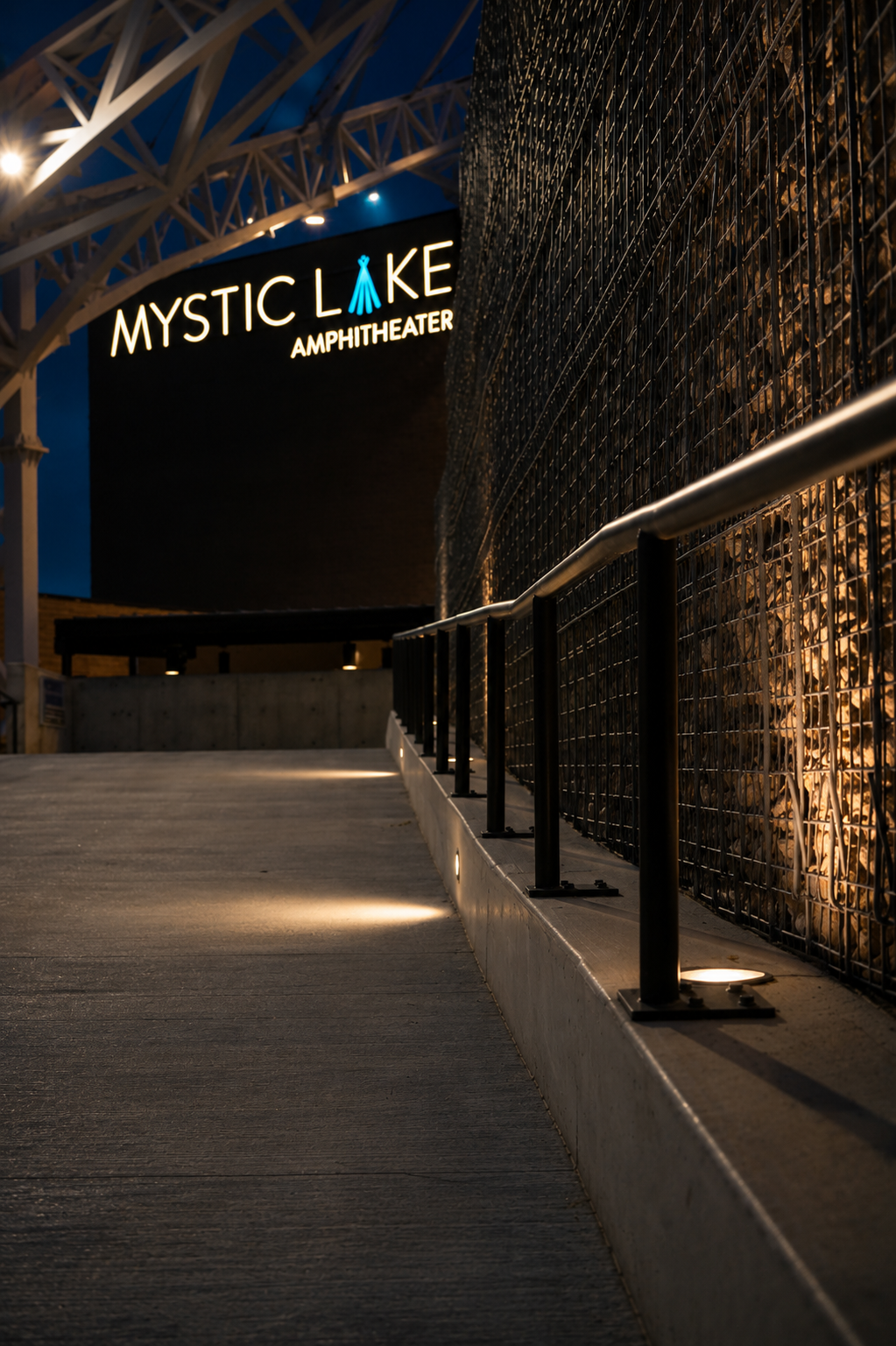

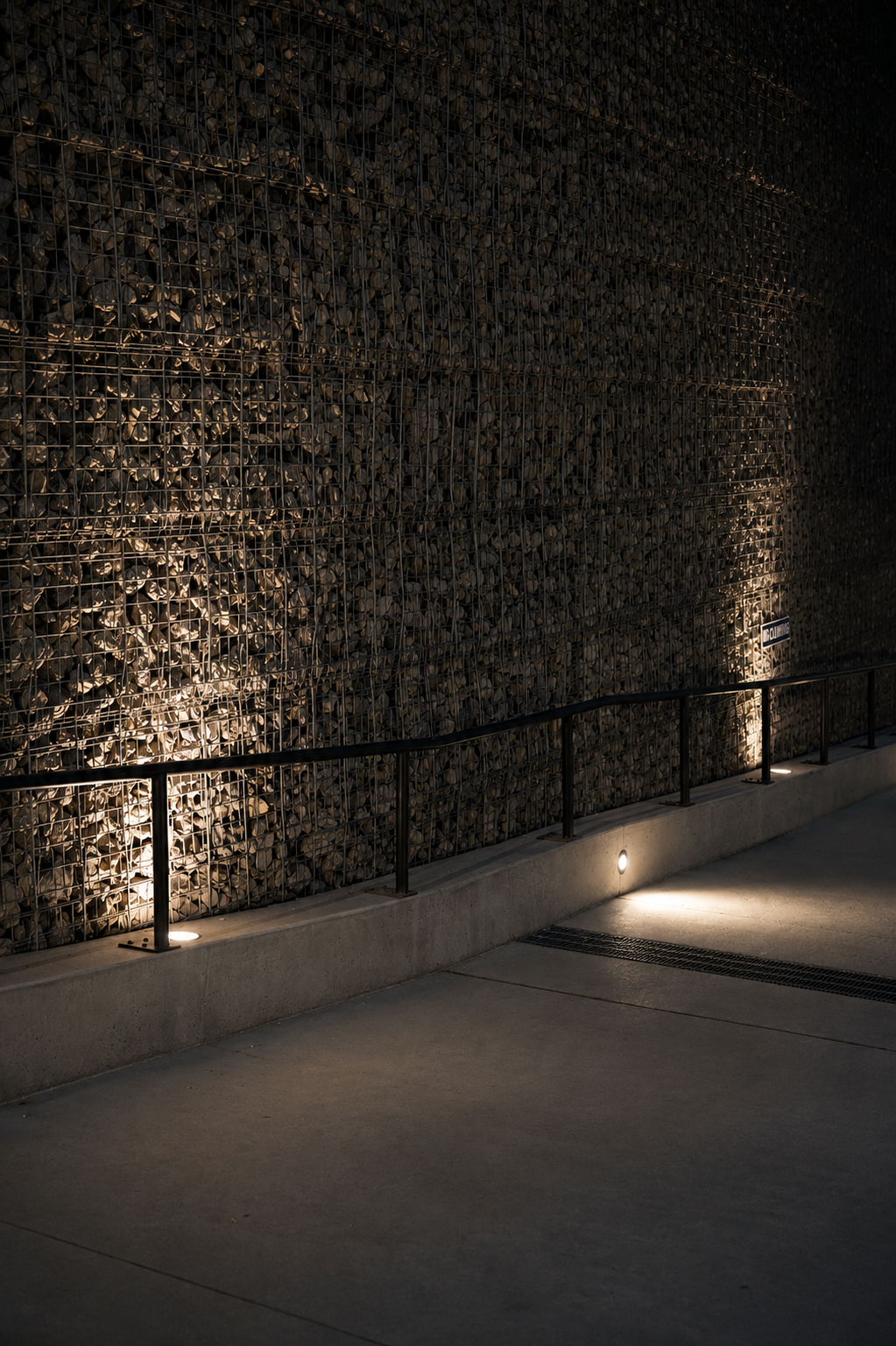

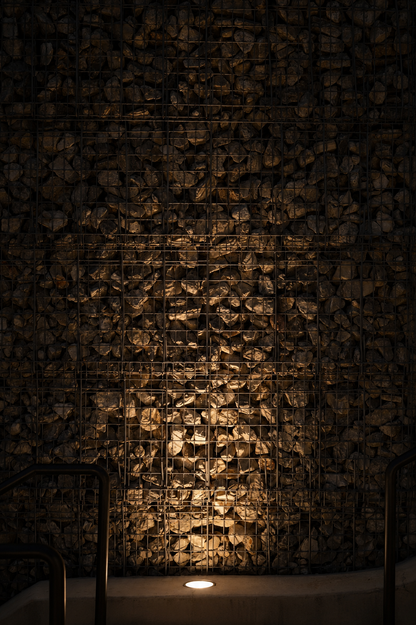

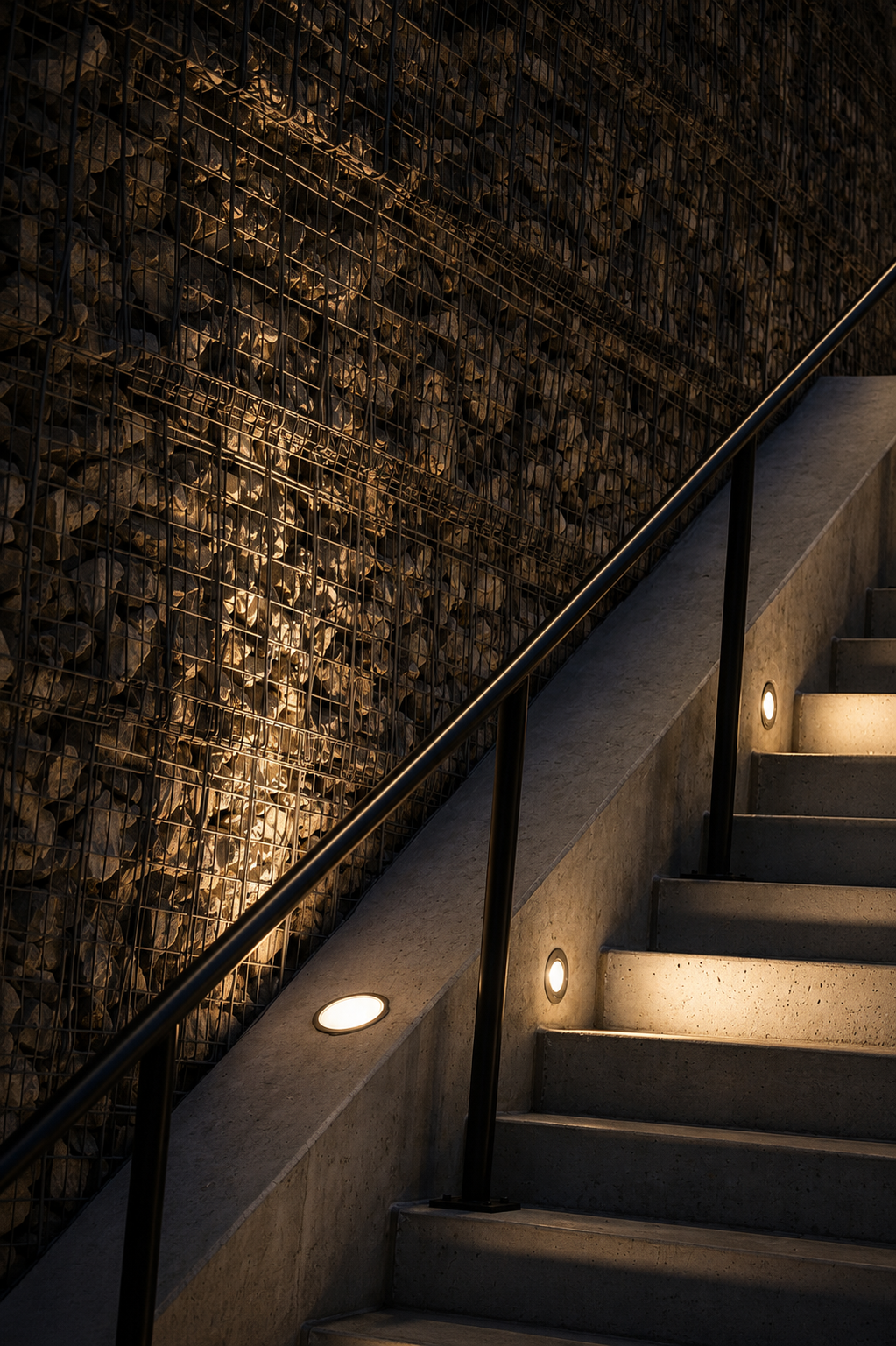

  • Wall washing and architectural surface grazing
  • Walkway and driveway accent lighting
  • Uplighting trees, flags, and columns
  • Sculpture, monument, and signage uplighting
  • In-grade hardscape and patio installations

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 7–17W
  • LED type: MR16 or PAR36, interchangeable
  • CCT options: 2700K–6000K
  • Socket/base: GX5.3 bi-pin, porcelain (spade terminals on PAR36)
  • Leads: 25–36 ft, SPT / SJ-W
  • Dimming: N/A

Performance

  • Lumens: 700–1,365 lm
  • CRI: 85 (PAR36)
  • Efficacy: ~80–100 lm/W
  • Beam angles: 15°–100°
  • Lifespan: 50,000 hours (PAR36)

Build & environmental

  • Housing: Raw brass
  • Front cover: Brass and glass (flat, domed, or louvered options available)
  • Lens: Glass
  • Gaskets: Silicone
  • Collar: Rubber expansion ring
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location
  • Certification: ETL

Mounting & dimensions

  • Diameter: 4.5–5.5"
  • Height: 9–10"
  • Mounting: Hardscape kit, adjustable
  • Accessories: Hardscape mounting kit included
  • Finish: 7 powder coat options

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 3 years
Download Spec Sheet (PDF)

In-ground flood lighting, built to perform

The WELL series fixtures allow for a variety of vertical and horizontal lighting techniques — wall washing, walkway washing, architectural grazing, and uplighting trees, flags, driveways, and sculptures. The brass-and-glass front cover adds a refined trim detail flush with grade, while a removable fixture body and hardscape mounting kit make installation, lamp swaps, and service straightforward. Interchangeable LEDs deliver maximum nighttime effects and design flexibility.

The interchangeable MR16 (or PAR36) platform keeps it dialed-in: run 7–17W lamps in 2700K through 6000K, with beam angles from 15° to 100° to tune everything from a tight tree-uplight to a wide wall wash. A raw brass housing, stainless-steel fasteners, silicone gaskets, rubber expansion ring collar, and IP67 wet-location rating make it ready for buried, submerged, and high-traffic in-grade installations.

Ideal applications:

  • Wall washing and architectural surface grazing
  • Walkway and driveway accent lighting
  • Uplighting trees, flags, and columns
  • Sculpture, monument, and signage uplighting
  • In-grade hardscape and patio installations

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 7–17W
  • LED type: MR16 or PAR36, interchangeable
  • CCT options: 2700K–6000K
  • Socket/base: GX5.3 bi-pin, porcelain (spade terminals on PAR36)
  • Leads: 25–36 ft, SPT / SJ-W
  • Dimming: N/A

Performance

  • Lumens: 700–1,365 lm
  • CRI: 85 (PAR36)
  • Efficacy: ~80–100 lm/W
  • Beam angles: 15°–100°
  • Lifespan: 50,000 hours (PAR36)

Build & environmental

  • Housing: Raw brass
  • Front cover: Brass and glass (flat, domed, or louvered options available)
  • Lens: Glass
  • Gaskets: Silicone
  • Collar: Rubber expansion ring
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location
  • Certification: ETL

Mounting & dimensions

  • Diameter: 4.5–5.5"
  • Height: 9–10"
  • Mounting: Hardscape kit, adjustable
  • Accessories: Hardscape mounting kit included
  • Finish: 7 powder coat options

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 3 years
Download Spec Sheet (PDF)
View full details

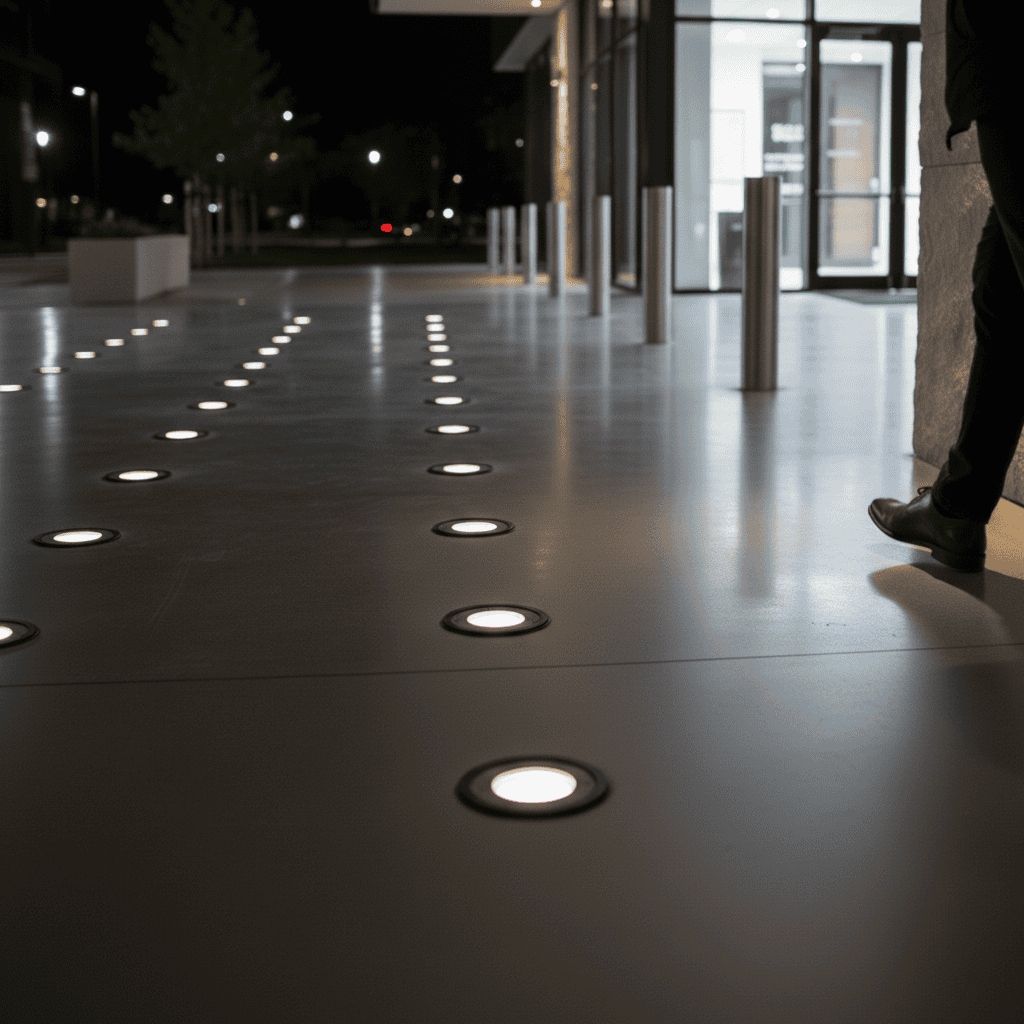

Built to live below grade.

FLUSH WITH GRADE

Built to live below grade.

50,000 hrs

LED lifespan

IP67

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

700–1,365

Lumens (7–17W)

15°–100°

Beam angle range

Lifetime housing warranty 3-year LED warranty Brass + glass front cover
Light from below.

WELLFLOOD BRASS/GLASS

Light from below.

From wall washing to tree uplighting and architectural grazing — WELLFlood delivers in-ground flood light flush to grade, with a brass-and-glass front face that finishes clean. Raw brass. IP67. Lifetime housing.

1,365 lm

Max output

IP67

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
