WellFlood - Flat Front Commercial Series

WellFlood - Flat Front Commercial Series

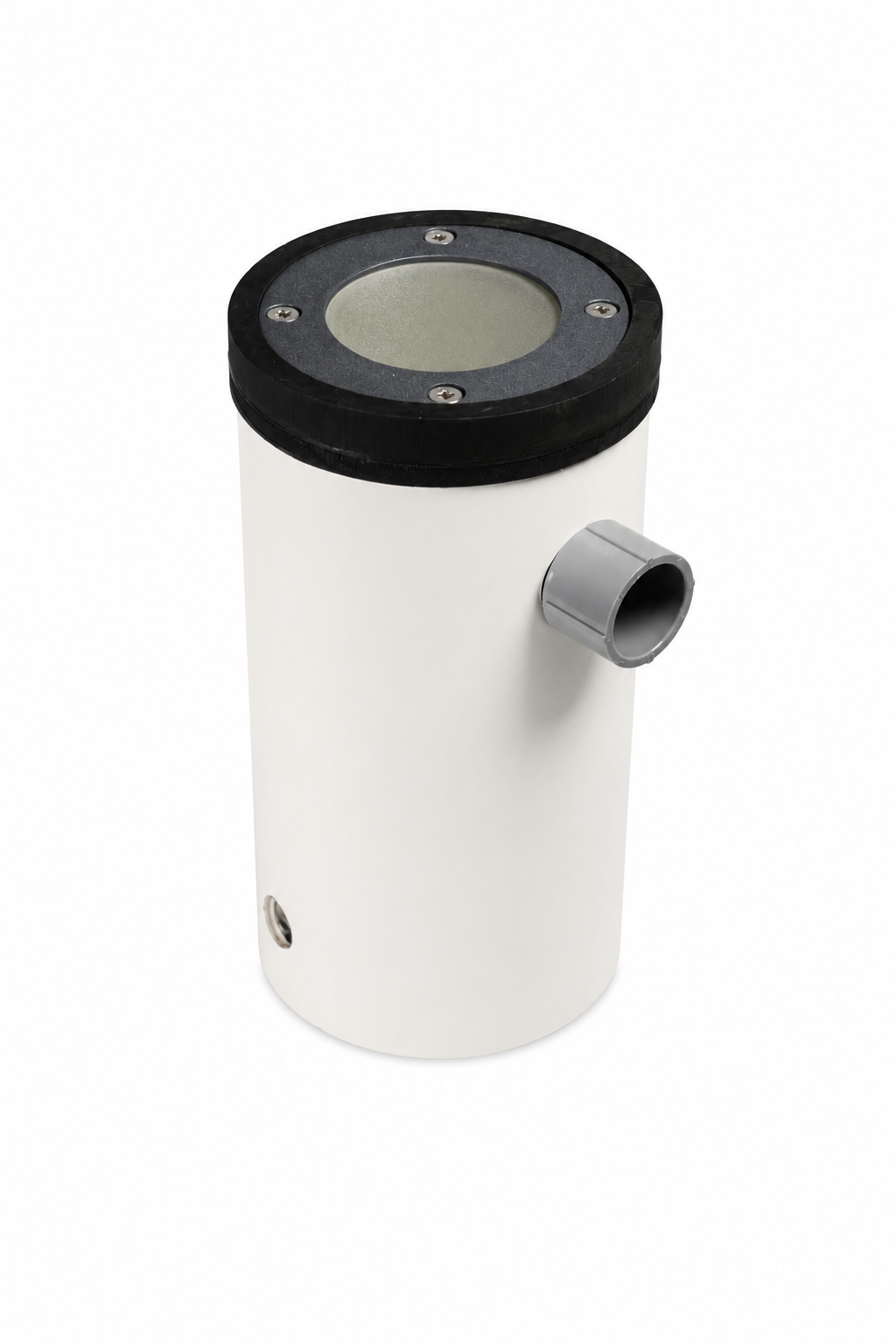

Hardscape Well Series – HS240 Encapsulated Uplighting

Retail Pricing $211.95

Part Number: HS240F

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

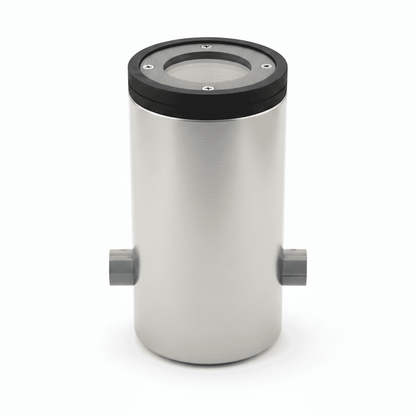

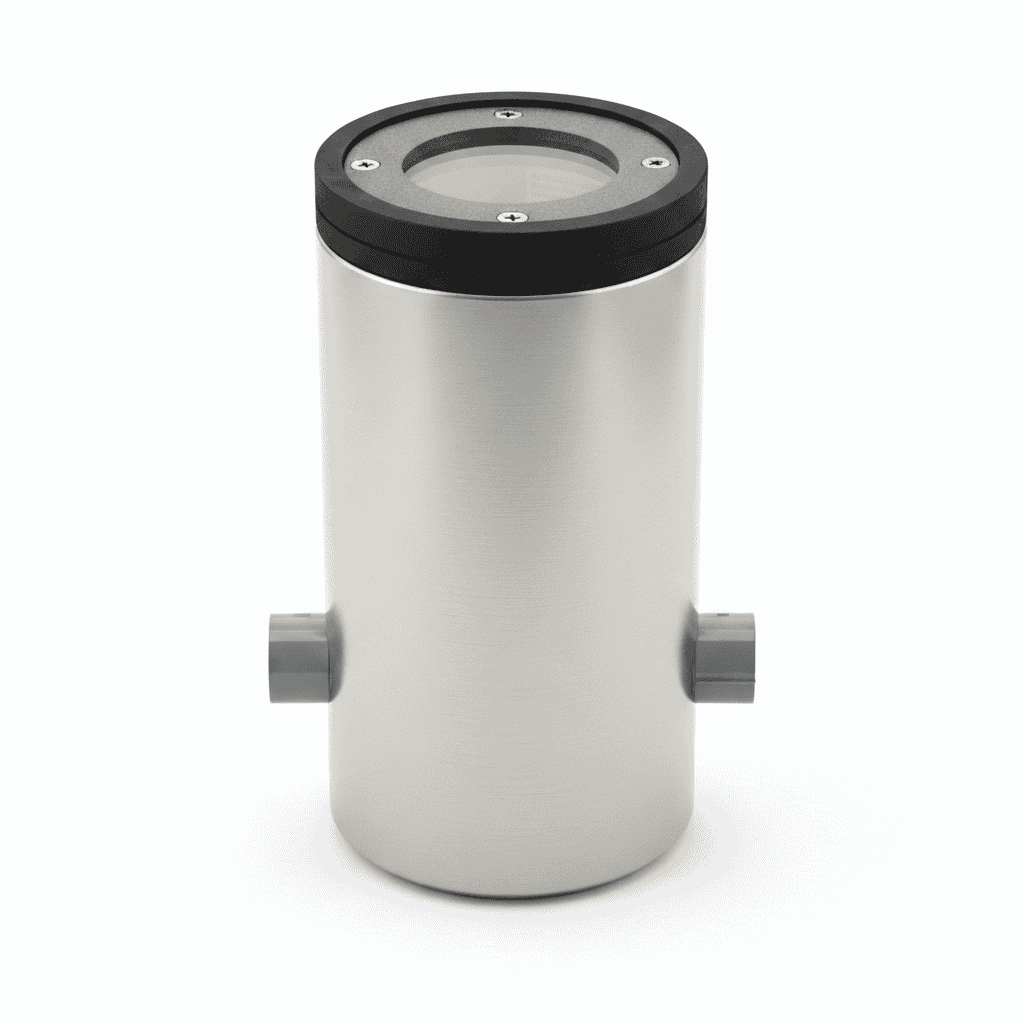

In-ground uplighting with a flat-face finish

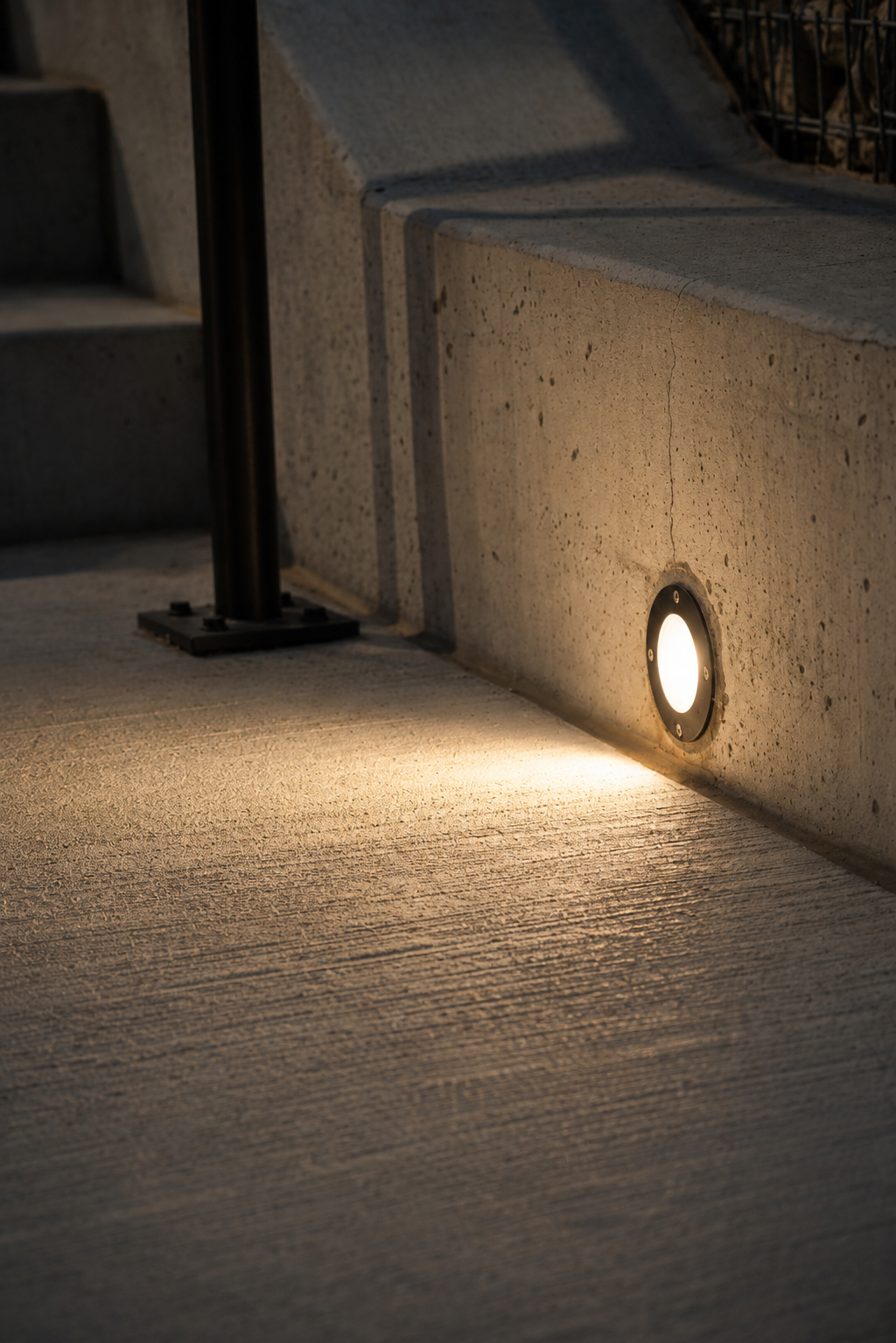

The HS240 hardscape WELL series fixture handles a variety of vertical and horizontal lighting techniques — wall washing, architectural grazing, uplighting trees, walkways, driveways, and sculpture, plus varied hardscape lighting effects. Three front-cover shapes let you tune the fixture to the specific lighting need.

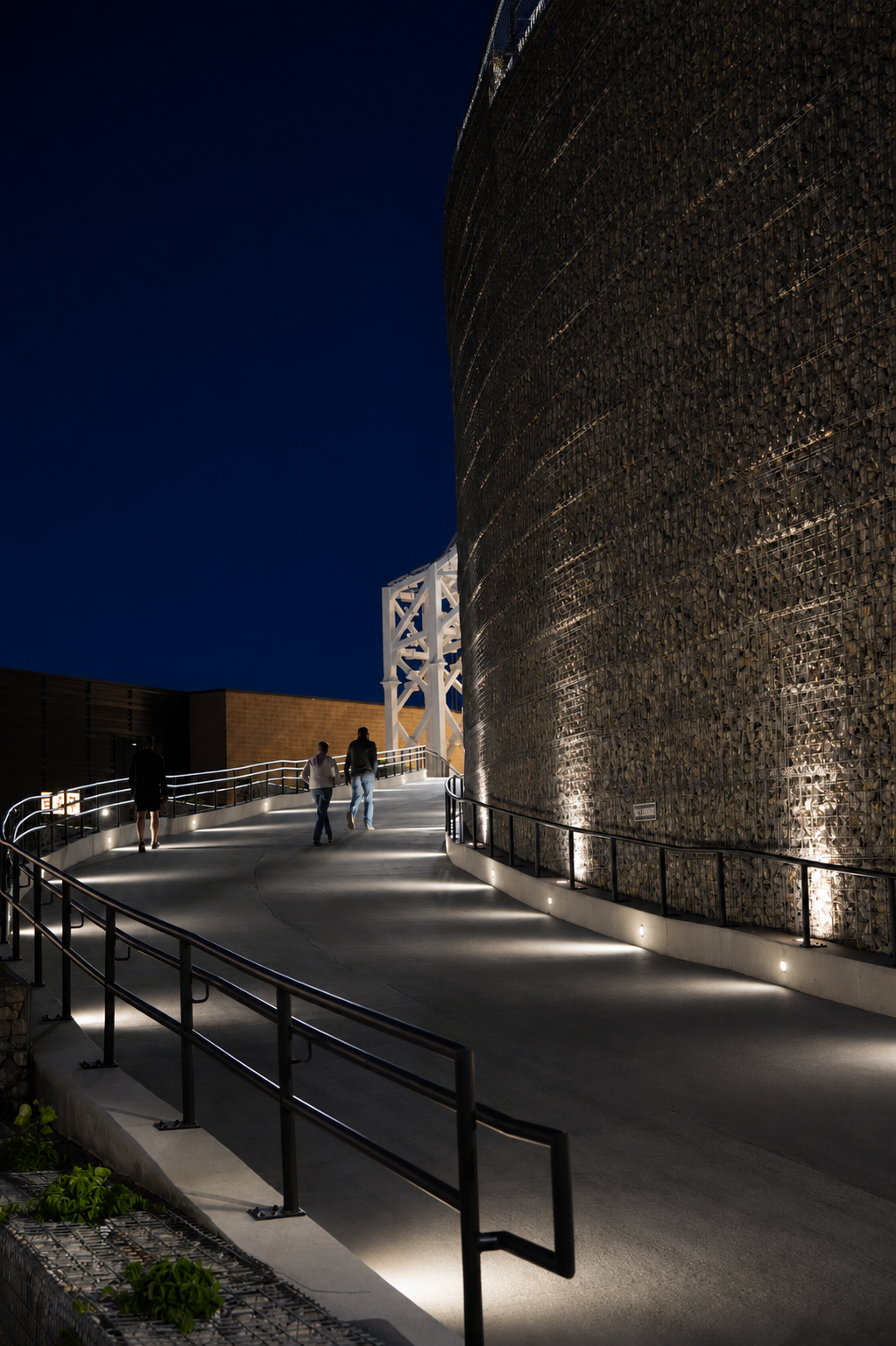

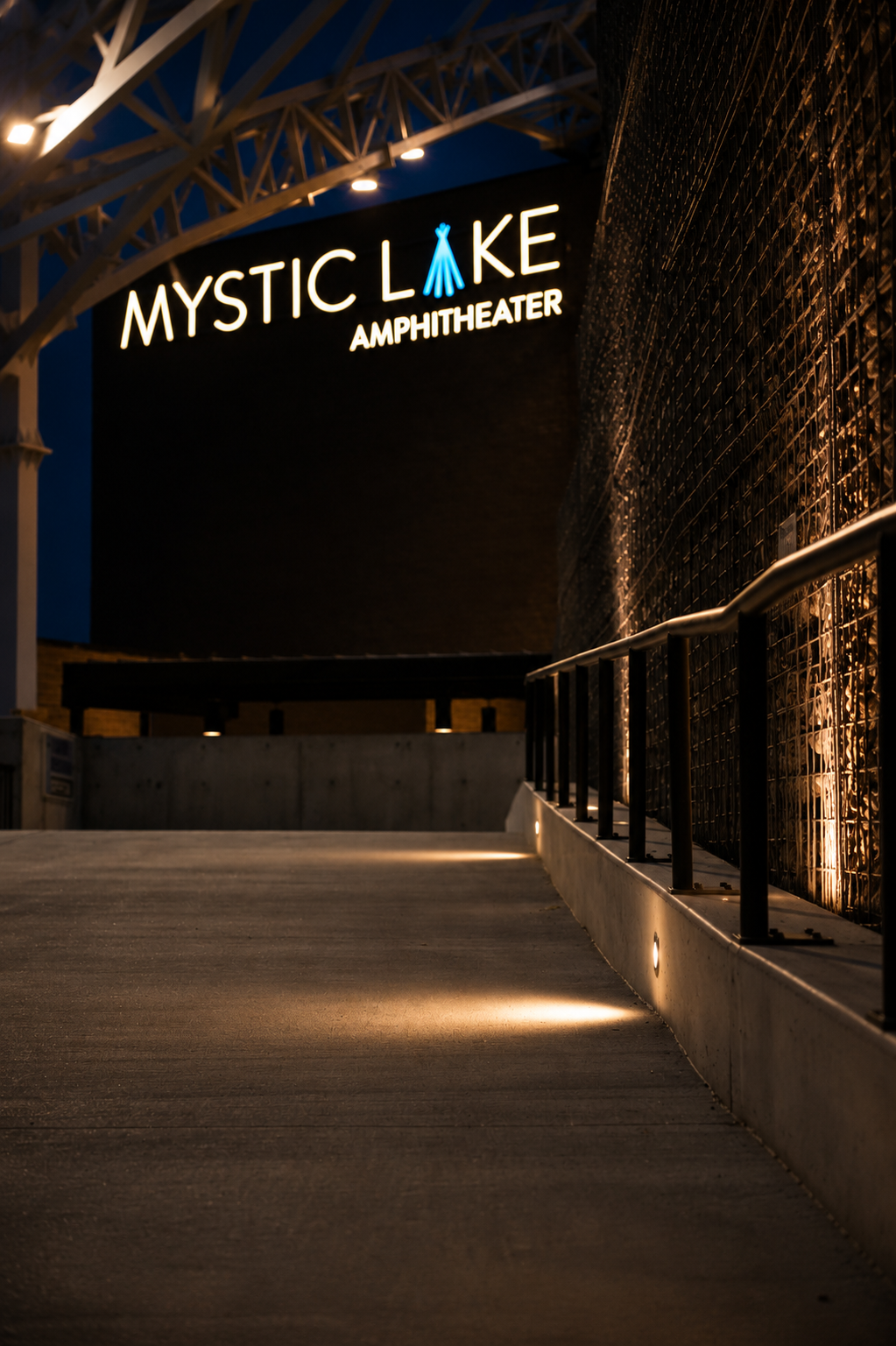

The flat front is purpose-built for non-traffic locations where the focus is throwing light directly upward to illuminate something above the fixture — a tree canopy, a column, a building face, or a monument. With nothing redirecting or shielding the beam, you get pure vertical throw.

The interchangeable MR16 (or PAR36) LED platform keeps it dialed-in: run 7–17W lamps in 2700K through 6000K, with beam angles from 15° to 100° to tune everything from a tight uplight to a wide wash. A raw brass housing, stainless-steel fasteners, silicone gaskets, rubber expansion ring collar, and IP67 wet-location rating make it ready for buried in-grade installations. The removable fixture body and included hardscape mounting kit make installation, lamp swaps, and service straightforward.

Ideal applications:

  • Tree canopy and large-foliage uplighting
  • Building facade and column wash

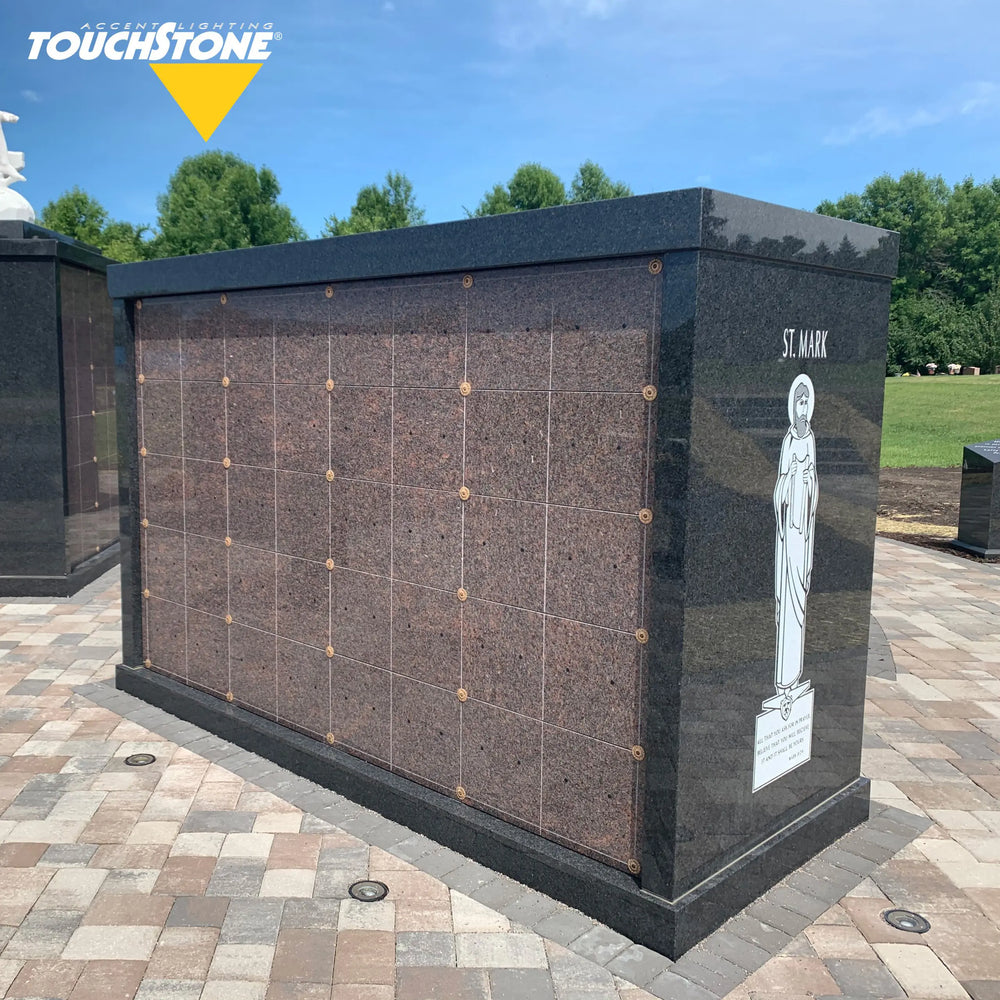

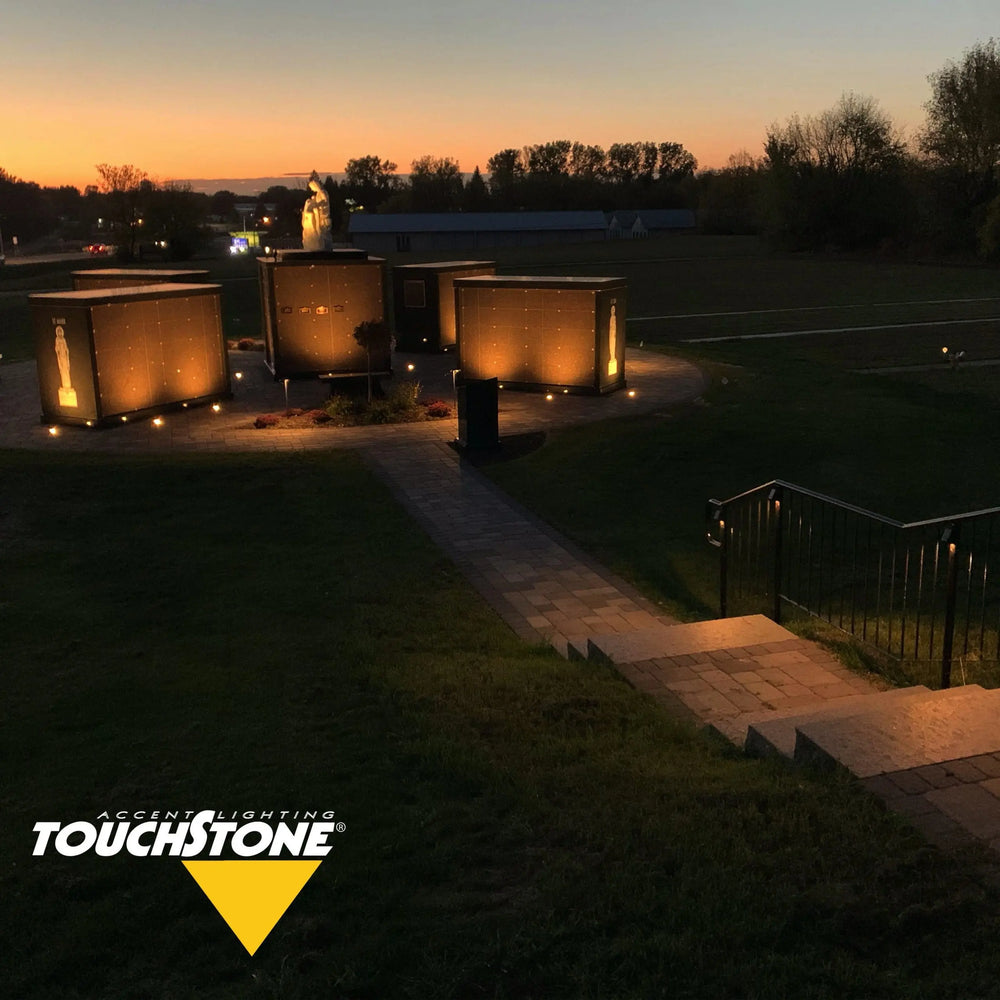

  • Sign, monument, and sculpture uplighting

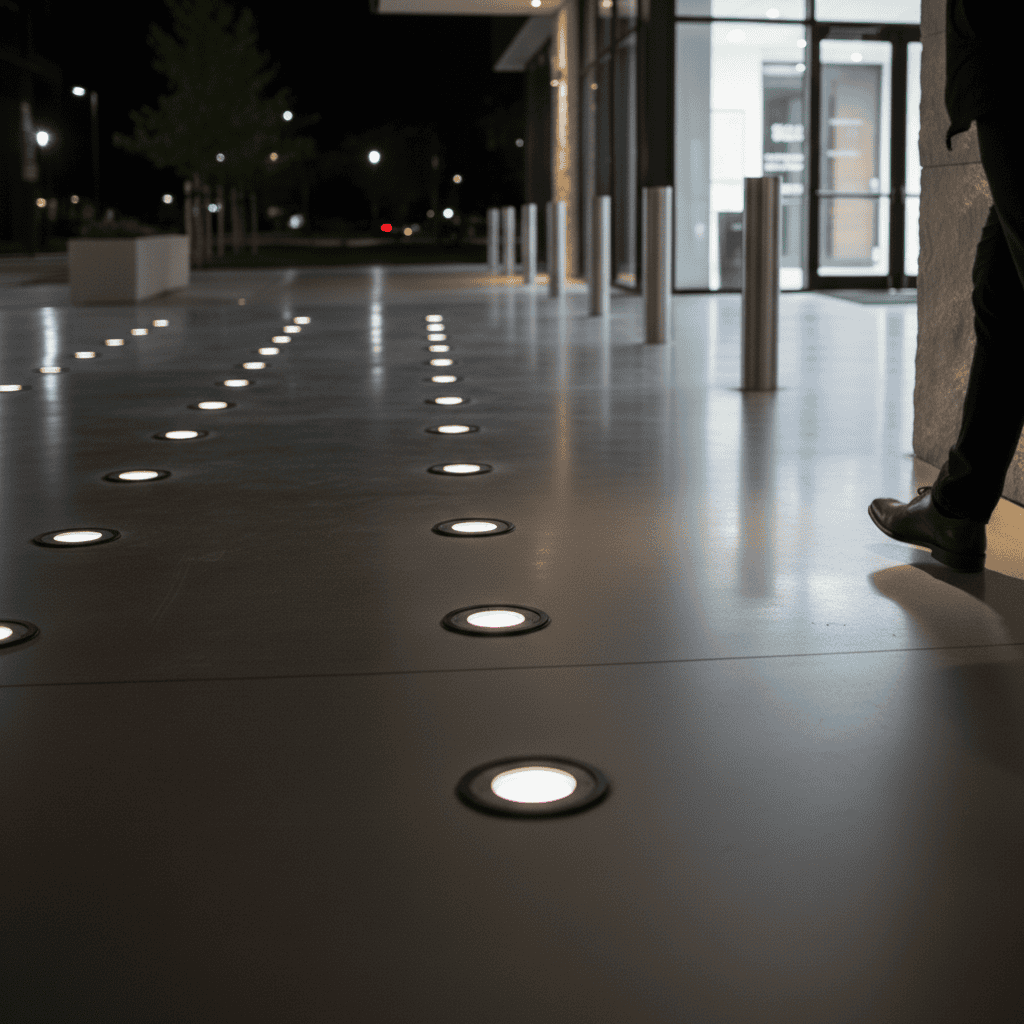

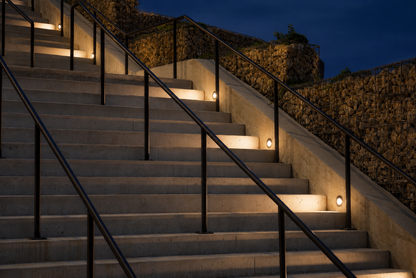

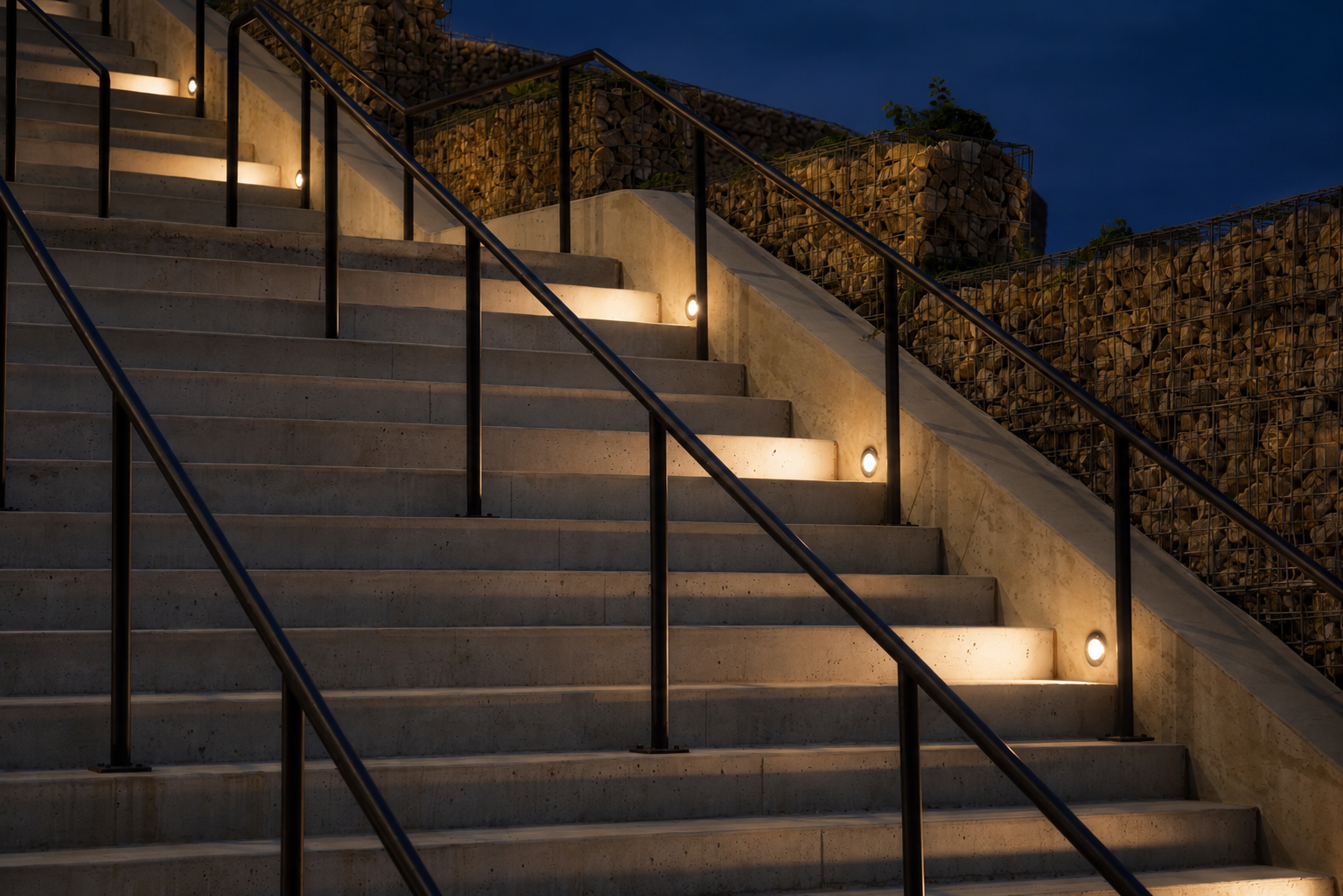

  • Driveway-edge and pathway accent lighting
  • Non-traffic in-grade hardscape installations

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 7–17W
  • LED type: MR16 or PAR36, interchangeable
  • CCT options: 2700K–6000K
  • Socket/base: GX5.3 bi-pin, porcelain (spade terminals on PAR36)
  • Leads: 25–36 ft, SPT / SJ-W
  • Dimming: N/A

Performance

  • Lumens: 700–1,365 lm
  • CRI: 85 (PAR36)
  • Efficacy: ~80–100 lm/W
  • Beam angles: 15°–100°
  • Lifespan: 50,000 hours (PAR36)

Build & environmental

  • Housing: Raw brass

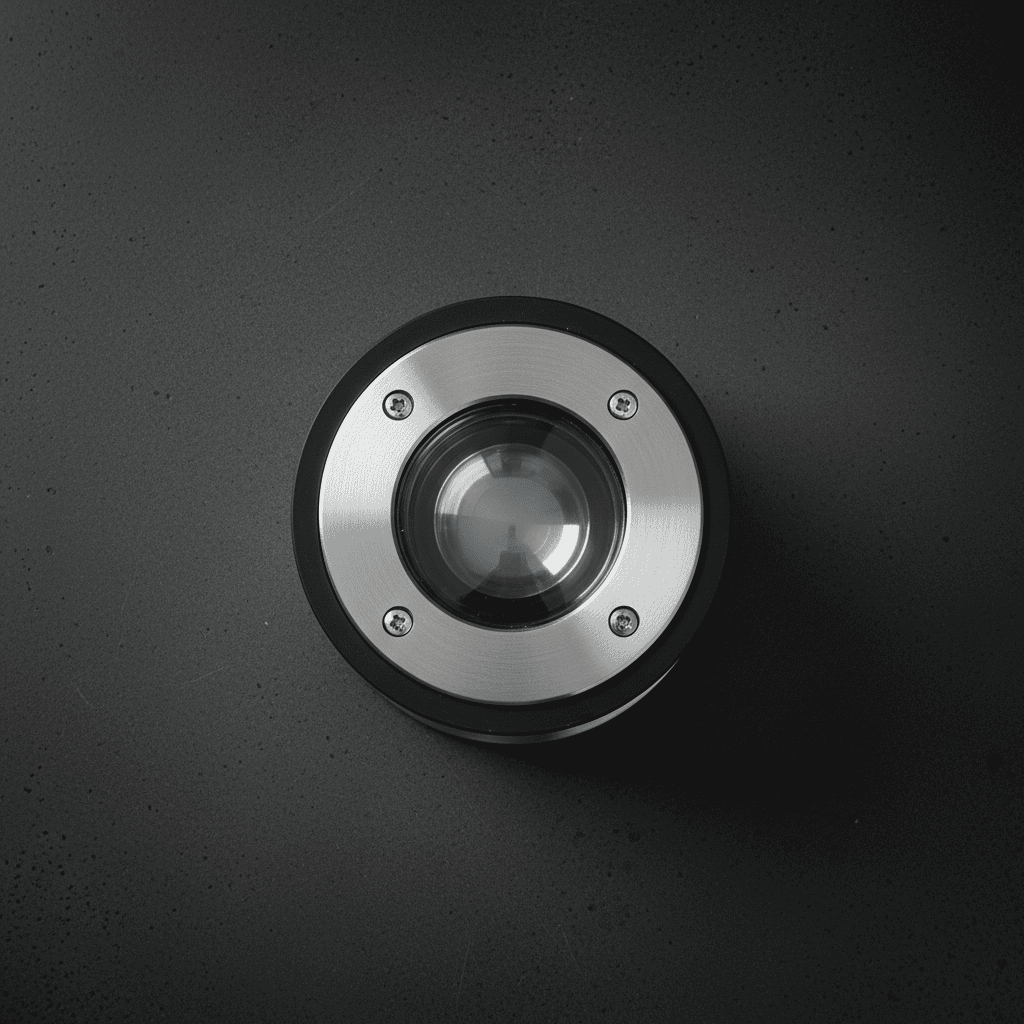

  • Front cover: Flat (domed and louvered options also available)
  • Lens: Glass
  • Gaskets: Silicone
  • Collar: Rubber expansion ring
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location
  • Certification: ETL

Mounting & dimensions

  • Diameter: 4.5–5.5"
  • Height: 9–10"
  • Mounting: Hardscape kit, adjustable (non-traffic locations)
  • Accessories: Hardscape mounting kit included
  • Finish: 7 powder coat options

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 3 years
Download Spec Sheet (PDF)

In-ground uplighting with a flat-face finish

The HS240 hardscape WELL series fixture handles a variety of vertical and horizontal lighting techniques — wall washing, architectural grazing, uplighting trees, walkways, driveways, and sculpture, plus varied hardscape lighting effects. Three front-cover shapes let you tune the fixture to the specific lighting need.

The flat front is purpose-built for non-traffic locations where the focus is throwing light directly upward to illuminate something above the fixture — a tree canopy, a column, a building face, or a monument. With nothing redirecting or shielding the beam, you get pure vertical throw.

The interchangeable MR16 (or PAR36) LED platform keeps it dialed-in: run 7–17W lamps in 2700K through 6000K, with beam angles from 15° to 100° to tune everything from a tight uplight to a wide wash. A raw brass housing, stainless-steel fasteners, silicone gaskets, rubber expansion ring collar, and IP67 wet-location rating make it ready for buried in-grade installations. The removable fixture body and included hardscape mounting kit make installation, lamp swaps, and service straightforward.

Ideal applications:

  • Tree canopy and large-foliage uplighting
  • Building facade and column wash
  • Sign, monument, and sculpture uplighting
  • Driveway-edge and pathway accent lighting
  • Non-traffic in-grade hardscape installations

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 7–17W
  • LED type: MR16 or PAR36, interchangeable
  • CCT options: 2700K–6000K
  • Socket/base: GX5.3 bi-pin, porcelain (spade terminals on PAR36)
  • Leads: 25–36 ft, SPT / SJ-W
  • Dimming: N/A

Performance

  • Lumens: 700–1,365 lm
  • CRI: 85 (PAR36)
  • Efficacy: ~80–100 lm/W
  • Beam angles: 15°–100°
  • Lifespan: 50,000 hours (PAR36)

Build & environmental

  • Housing: Raw brass
  • Front cover: Flat (domed and louvered options also available)
  • Lens: Glass
  • Gaskets: Silicone
  • Collar: Rubber expansion ring
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location
  • Certification: ETL

Mounting & dimensions

  • Diameter: 4.5–5.5"
  • Height: 9–10"
  • Mounting: Hardscape kit, adjustable (non-traffic locations)
  • Accessories: Hardscape mounting kit included
  • Finish: 7 powder coat options

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 3 years
Download Spec Sheet (PDF)
View full details

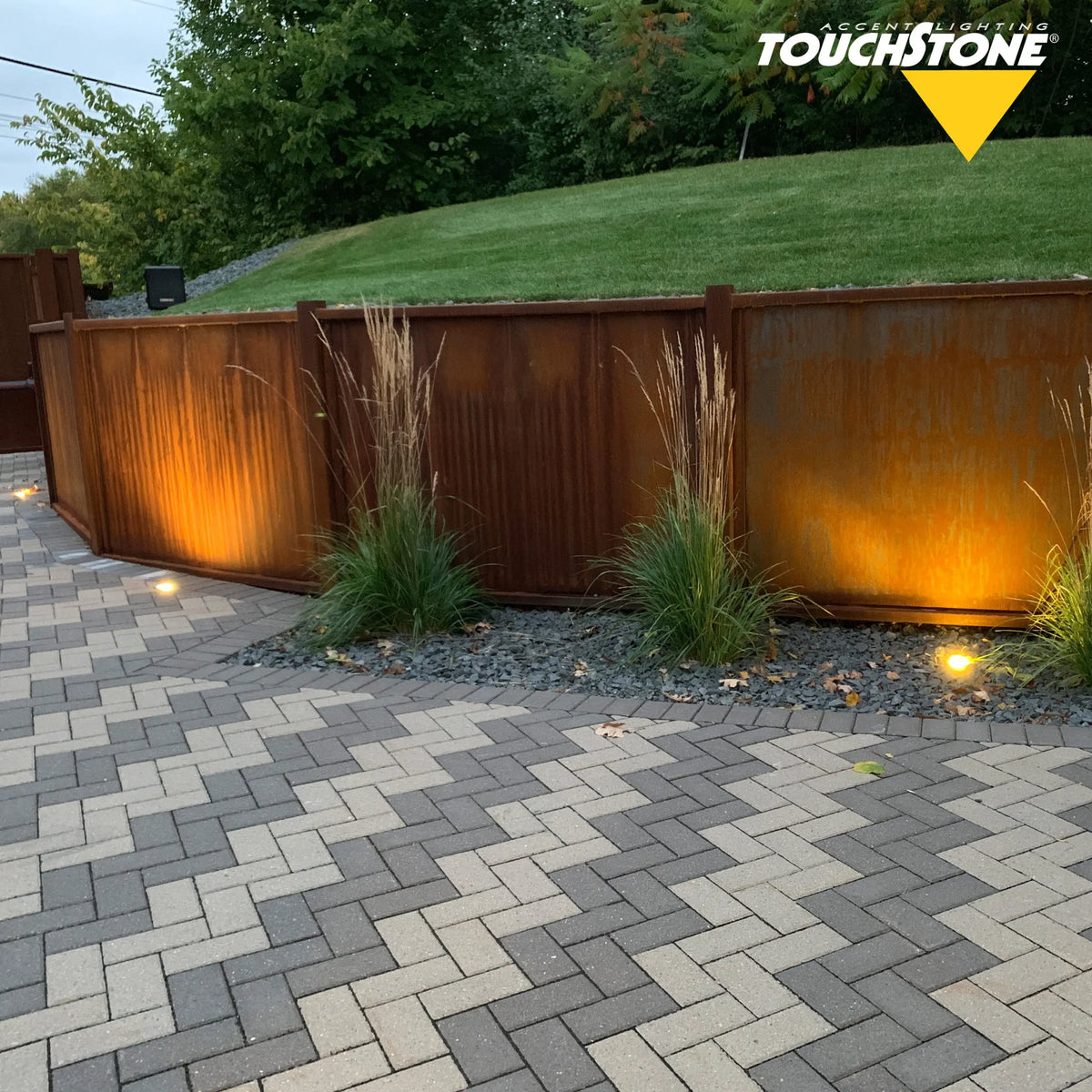

Built to throw light straight up.

DIRECT UPLIGHT

Built to throw light straight up.

50,000 hrs

LED lifespan

IP67

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

700–1,365

Lumens (7–17W)

15°–100°

Beam angle range

Lifetime housing warranty 3-year LED warranty Flat front cover
Light. Straight. Up.

WELLFLOOD FLAT FRONT

Light. Straight. Up.

From tree canopies to building facades and sculpture — WELLFlood with flat front delivers focused vertical uplight from a flush-to-grade in-ground fixture, purpose-built for non-traffic installations. Raw brass. IP67. Lifetime housing.

1,365 lm

Max output

IP67

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
