UNI Flood - 3 Watt

UNI Flood - 3 Watt

The UNIFLood series features an interchangeable MR16 for maximum nighttime effects and design flexibility.

Retail Pricing $185.00

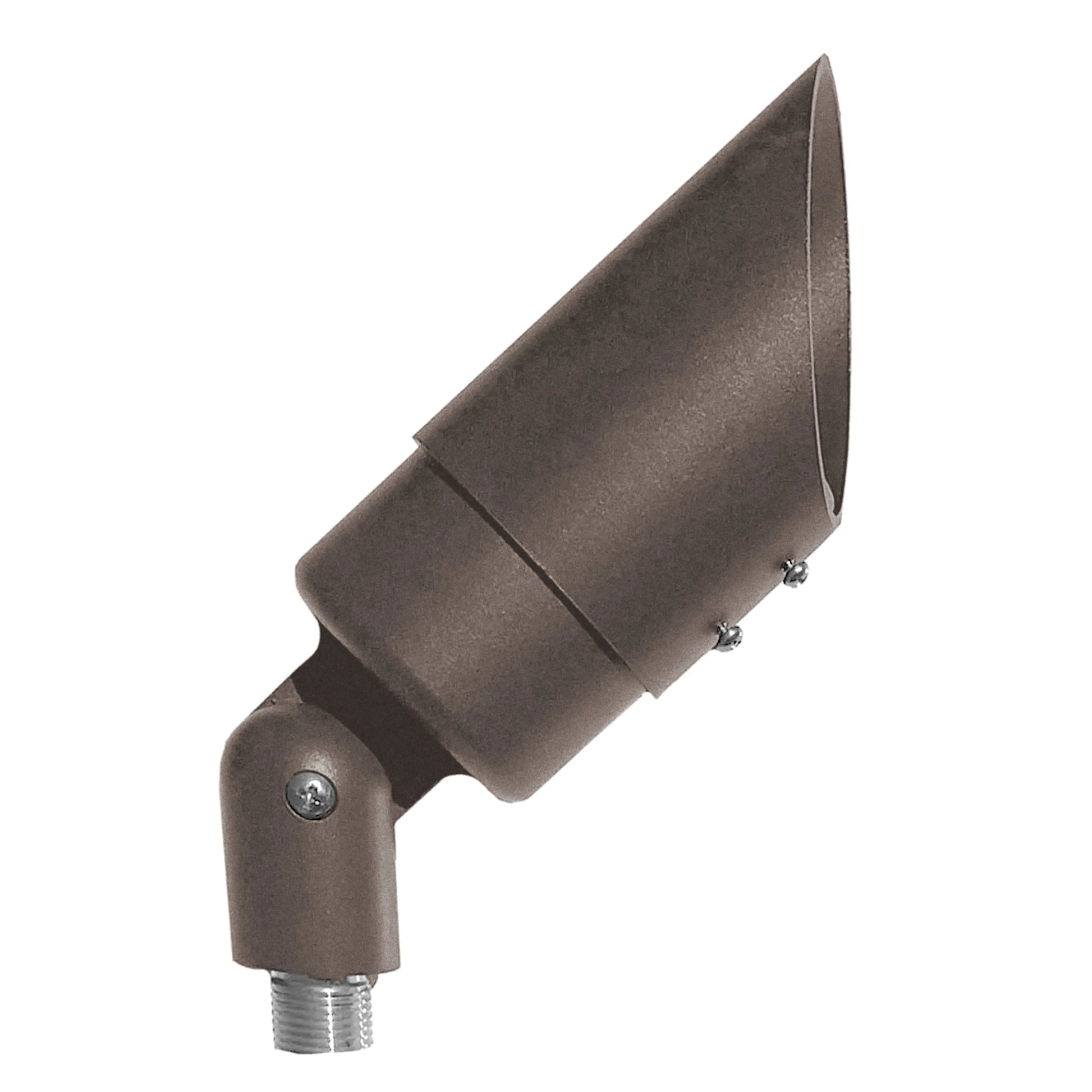

Color: ArchBronze

Part Number: CA224-3W-AR

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

USA-made directional uplight, locked-in performance

The UNIFlood 7-Watt is our compact commercial directional flood — purpose-built for uplighting trees, washing architectural facades, accenting sculpture and signage, and grazing feature walls. A locking knuckle with 15° aiming increments lets you dial in the throw and lock it in, while the threaded front-end assembly with adjustable extendable visor controls glare and beam spread cleanly.

The interchangeable MR16 lamp runs at 7W in 2700K warm or 4000K neutral white, with selectable 30°, 60°, or 100° beam distributions and a choice of domed or flat front glass lens. A machined 6063 aluminum housing with powder-coat finish, stainless-steel fasteners, O-ring gasket, GX5.3 porcelain lamp socket, and IP66 wet-location rating mean it stays sealed and aimed season after season. Accepts standard 1/2" NPT hardware and pairs with the 18" SuperStake, 18" riser, "L" coupler (for walkways and stairways), or "T" coupler (for dual-fixture signage and tree-line installs).

Ideal applications:

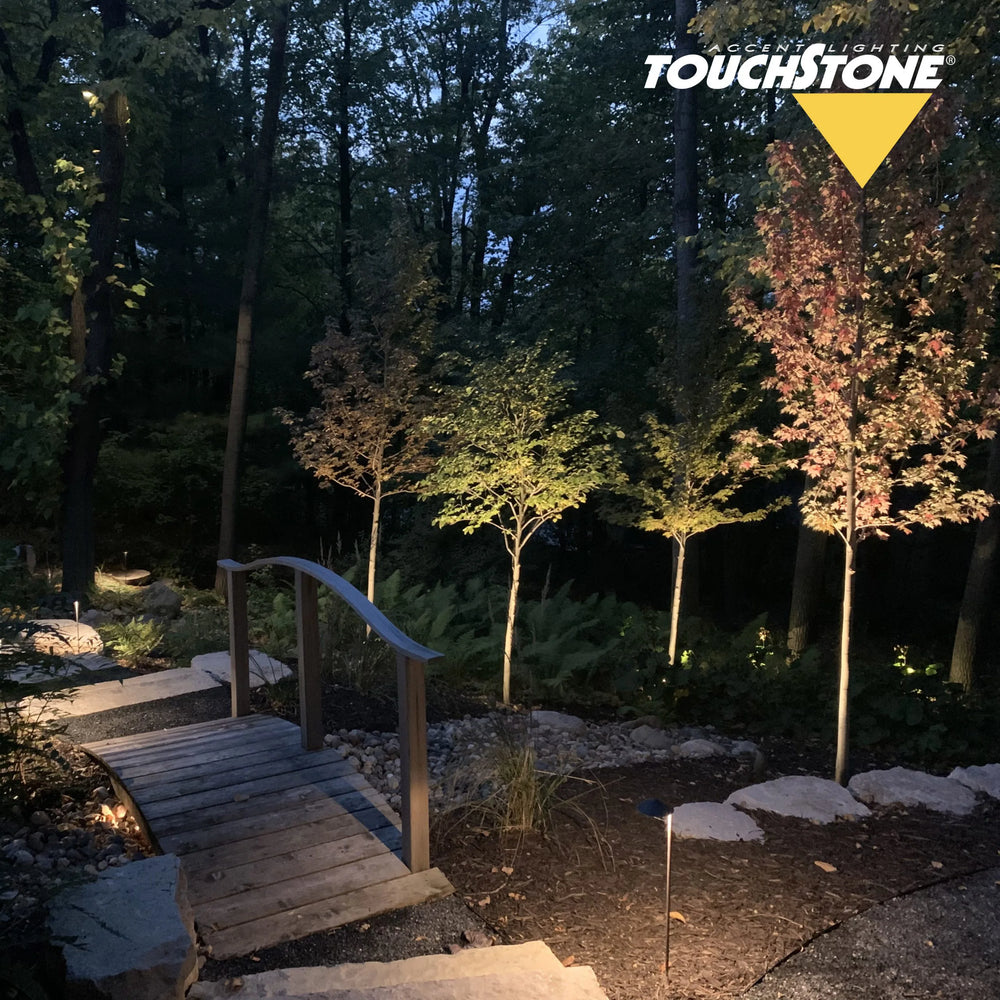

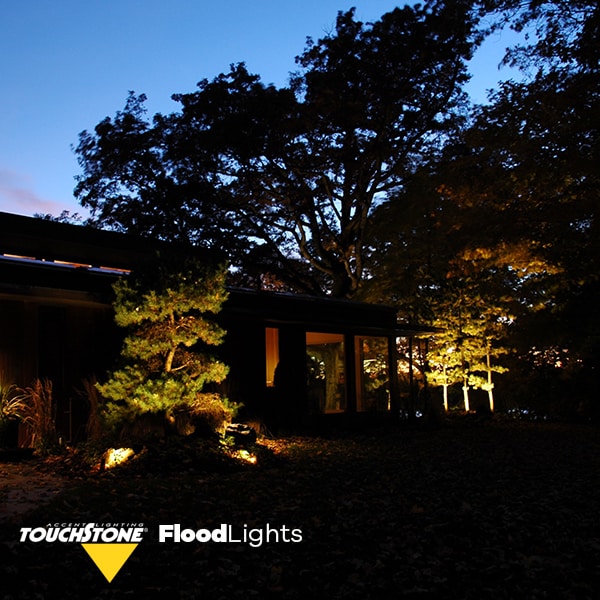

  • Tree uplighting and canopy washing

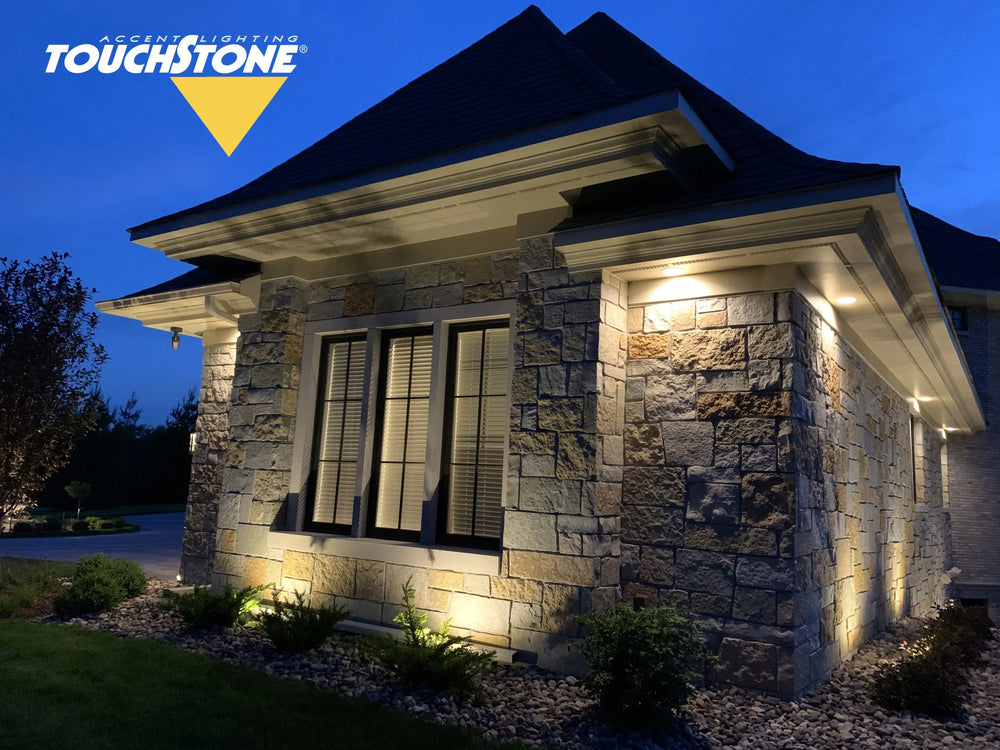

  • Building facade and architectural wall washing
  • Sculpture, statuary, and monument accenting
  • Sign and signage washing
  • Walkway and stairway accent lighting (with L-coupler)

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 7W (3W and 5W lamp options also available on the platform)
  • LED type: MR16, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 36", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: Approx. 620 lm at 7W (platform range 320–700 lm)
  • CRI: 85
  • Efficacy: ~86–107 lm/W
  • Beam angles: 30° / 60° / 100°
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Machined 6063 aluminum with powder-coat finish
  • Front: Threaded front-end assembly, domed or flat glass lens
  • Visor: Adjustable and extendable
  • Knuckle: Locking, 15° aiming increments
  • Sealing: O-ring gasket
  • Fasteners: Stainless steel
  • Hardware: Accepts 1/2" NPT
  • IP rating: IP66, wet-location
  • Certification: ETL

Mounting & dimensions

  • Diameter: 2-1/2"
  • Height: 7-1/2"
  • Mounting: Locking knuckle with couplers and risers
  • Accessories: 18" SuperStake, 18" riser, 4" surface mount, "L" coupler, "T" coupler

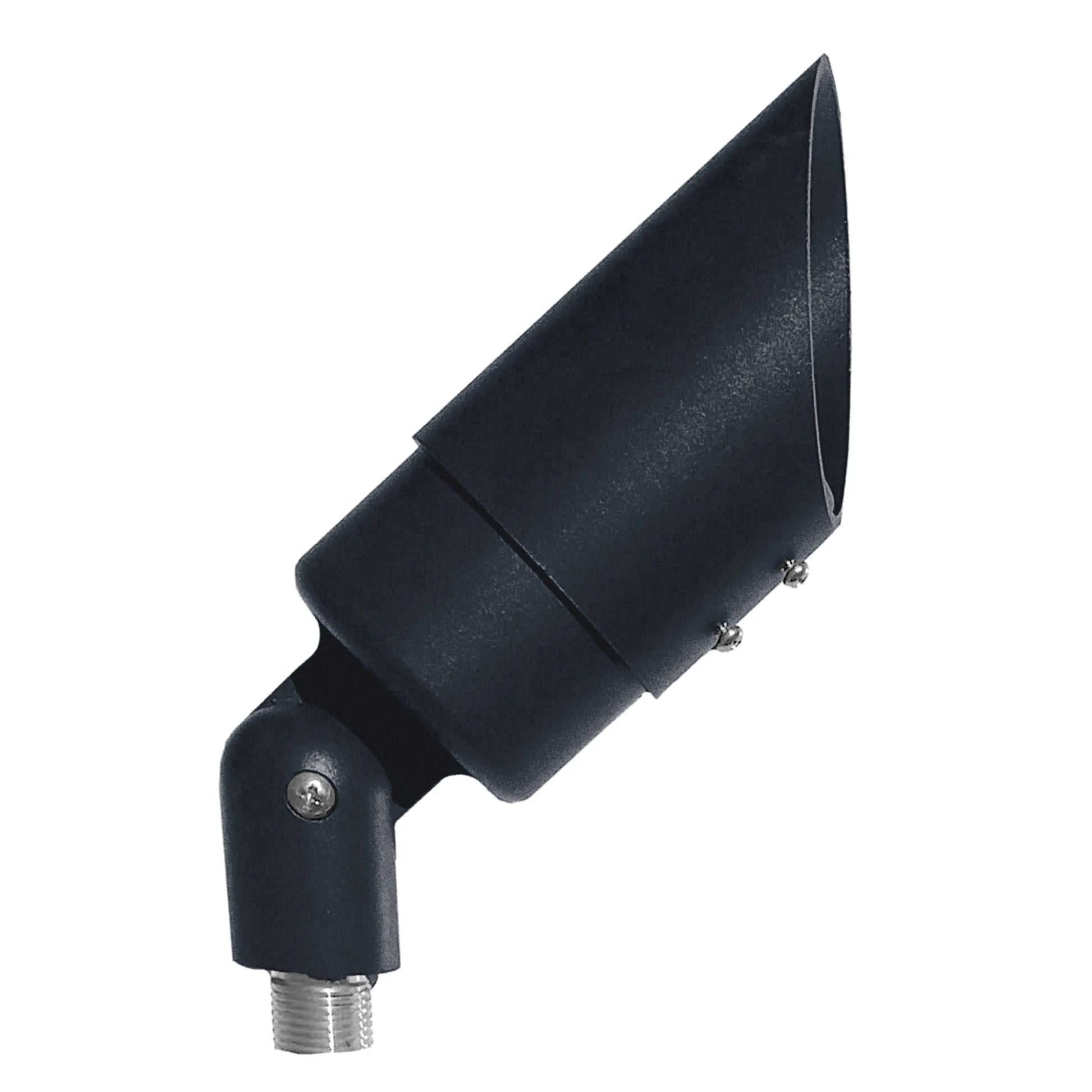

  • Finish options: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

USA-made directional uplight, locked-in performance

The UNIFlood 7-Watt is our compact commercial directional flood — purpose-built for uplighting trees, washing architectural facades, accenting sculpture and signage, and grazing feature walls. A locking knuckle with 15° aiming increments lets you dial in the throw and lock it in, while the threaded front-end assembly with adjustable extendable visor controls glare and beam spread cleanly.

The interchangeable MR16 lamp runs at 7W in 2700K warm or 4000K neutral white, with selectable 30°, 60°, or 100° beam distributions and a choice of domed or flat front glass lens. A machined 6063 aluminum housing with powder-coat finish, stainless-steel fasteners, O-ring gasket, GX5.3 porcelain lamp socket, and IP66 wet-location rating mean it stays sealed and aimed season after season. Accepts standard 1/2" NPT hardware and pairs with the 18" SuperStake, 18" riser, "L" coupler (for walkways and stairways), or "T" coupler (for dual-fixture signage and tree-line installs).

Ideal applications:

  • Tree uplighting and canopy washing
  • Building facade and architectural wall washing
  • Sculpture, statuary, and monument accenting
  • Sign and signage washing
  • Walkway and stairway accent lighting (with L-coupler)

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 7W (3W and 5W lamp options also available on the platform)
  • LED type: MR16, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 36", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: Approx. 620 lm at 7W (platform range 320–700 lm)
  • CRI: 85
  • Efficacy: ~86–107 lm/W
  • Beam angles: 30° / 60° / 100°
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Machined 6063 aluminum with powder-coat finish
  • Front: Threaded front-end assembly, domed or flat glass lens
  • Visor: Adjustable and extendable
  • Knuckle: Locking, 15° aiming increments
  • Sealing: O-ring gasket
  • Fasteners: Stainless steel
  • Hardware: Accepts 1/2" NPT
  • IP rating: IP66, wet-location
  • Certification: ETL

Mounting & dimensions

  • Diameter: 2-1/2"
  • Height: 7-1/2"
  • Mounting: Locking knuckle with couplers and risers
  • Accessories: 18" SuperStake, 18" riser, 4" surface mount, "L" coupler, "T" coupler
  • Finish options: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details
Built to aim and stay aimed.

DIAL IT IN. LOCK IT DOWN.

Built to aim and stay aimed.

50,000 hrs

LED lifespan

IP66

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

~620 lm

Output @ 7W

30° / 60° / 100°

Beam angle options

Lifetime housing warranty 5-year LED warranty Made in USA
Aim. Lock. Light.

UNIFLOOD

Aim. Lock. Light.

From mature trees to building facades and sculpture — UNIFlood 7W delivers focused architectural uplight from a machined aluminum body with a 15°-increment locking knuckle that holds aim through every season. 6063 aluminum. IP66. Made in USA.

~620 lm

Output @ 7W

IP66

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
