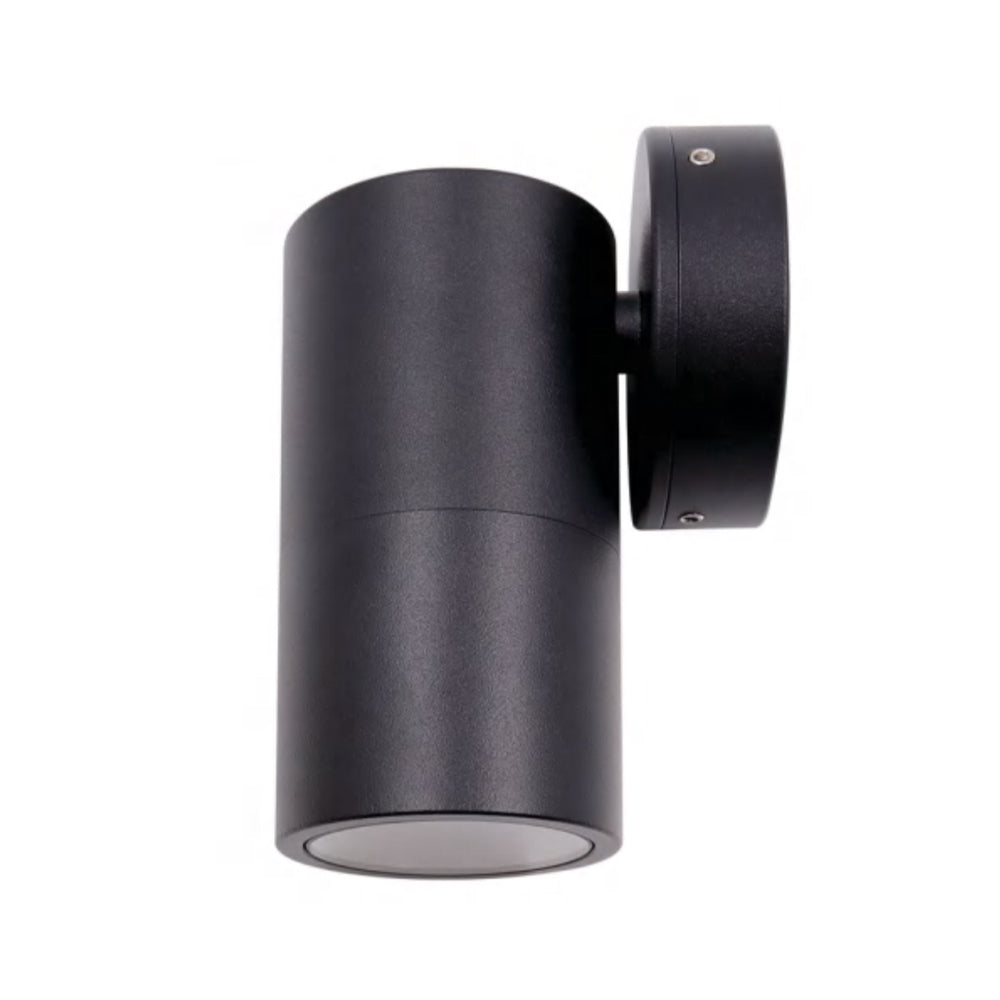

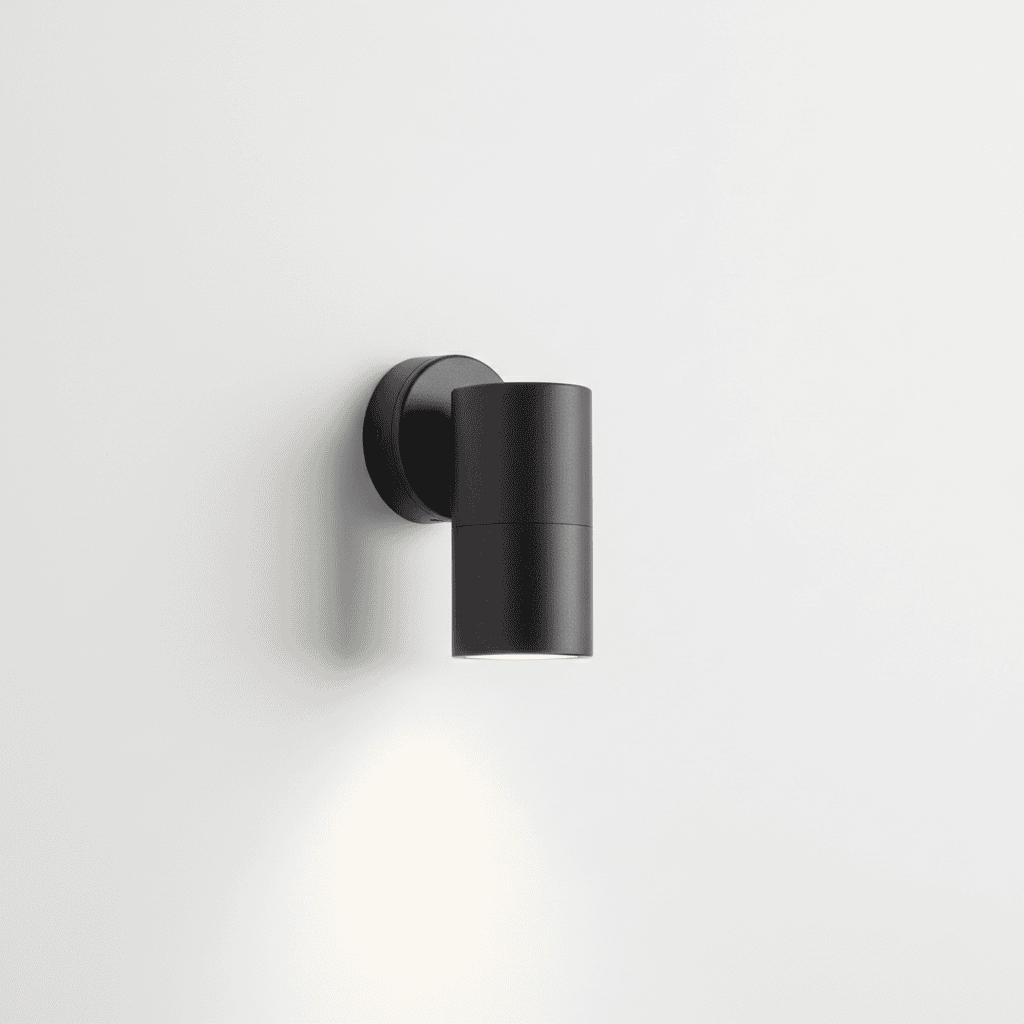

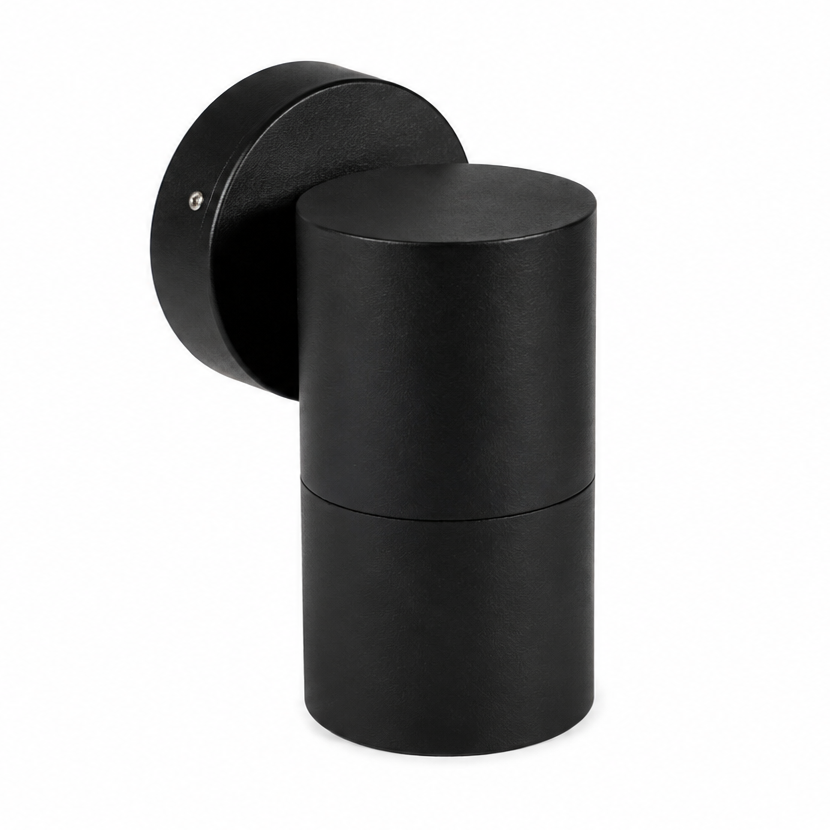

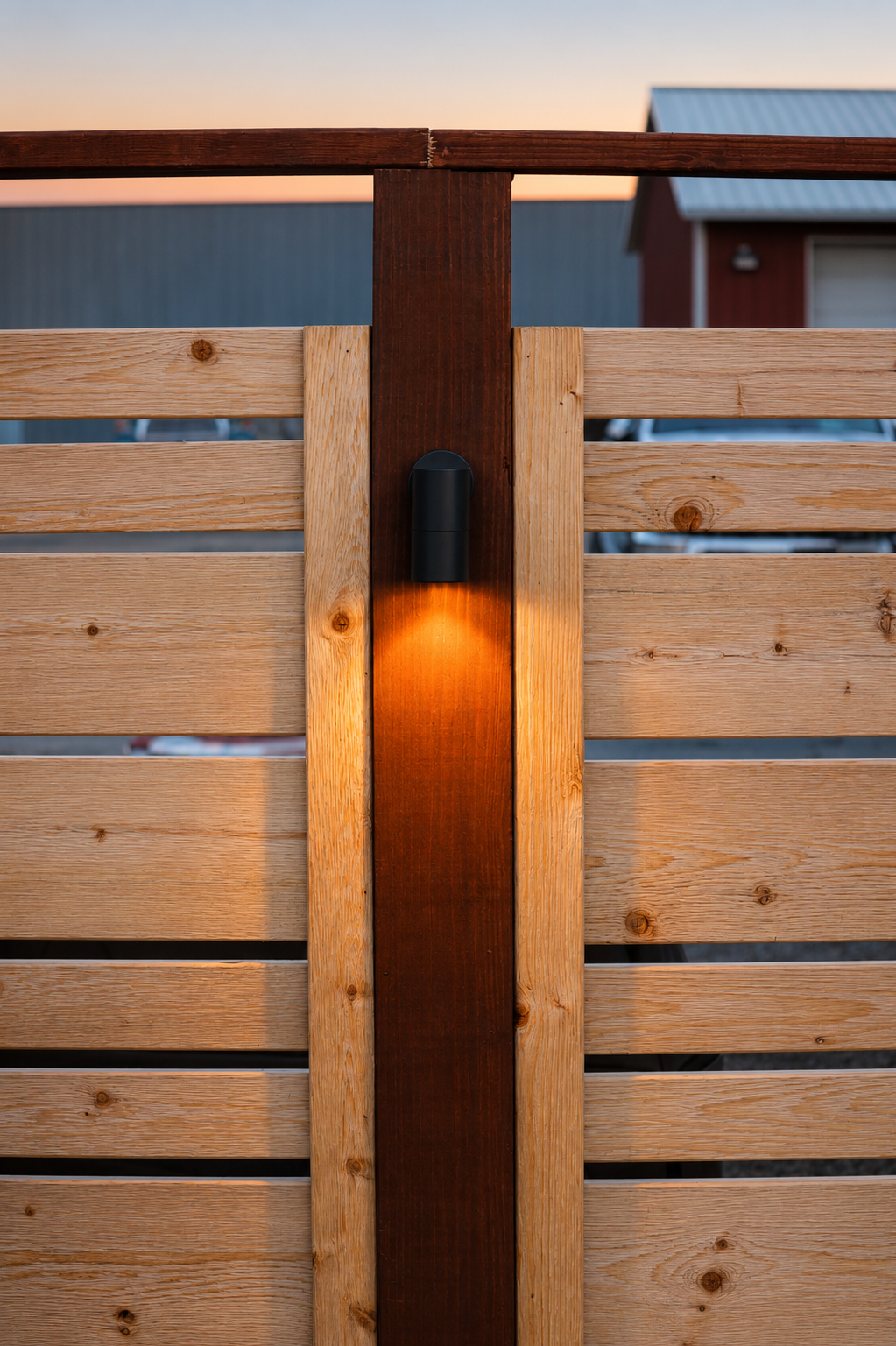

TubeSconce - Single Direction

TubeSconce - Single Direction

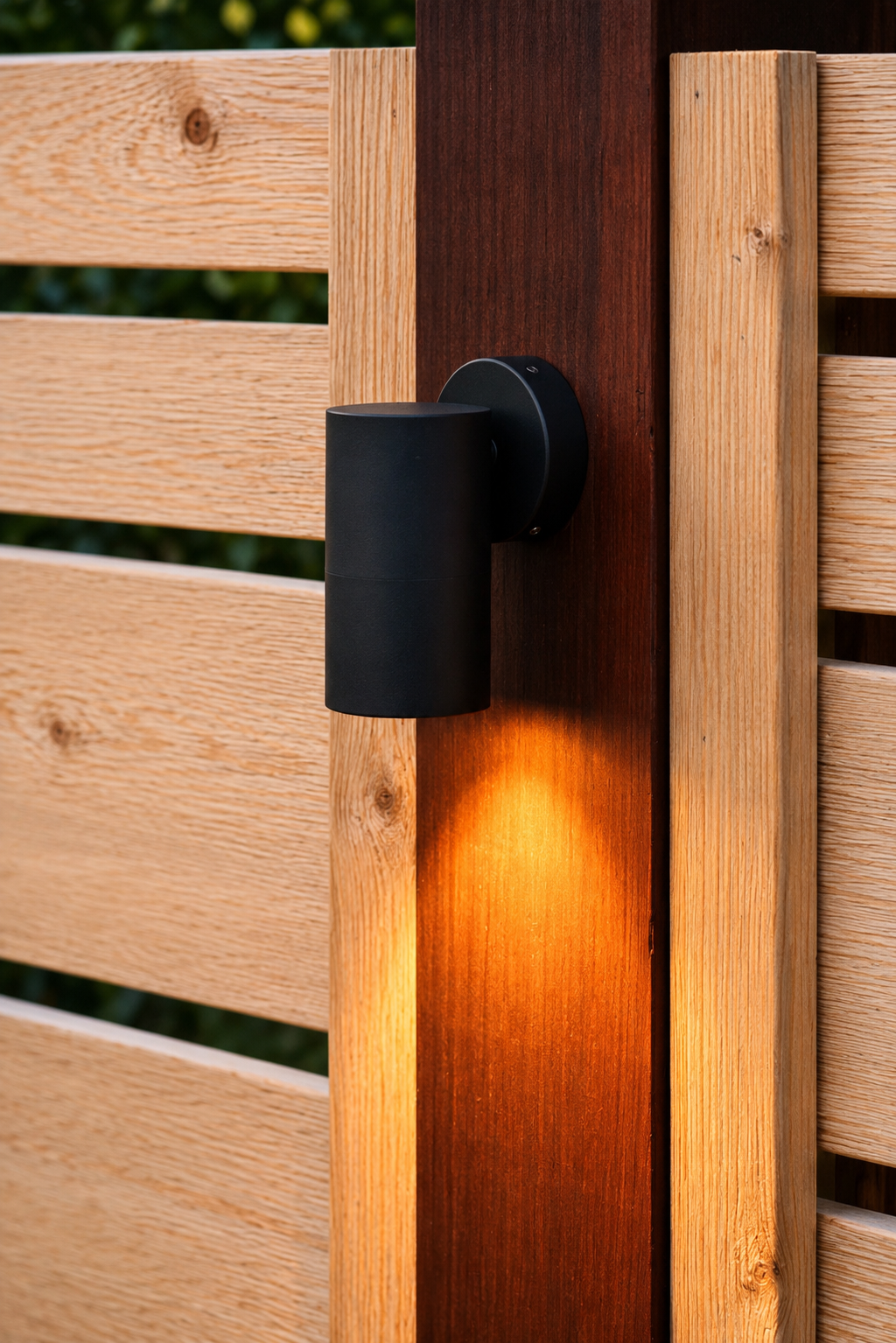

The TubeScone series is great for accenting pergola columns, walls and under deck post areas. The versatile mounting allow for surface mounting or round J-box mount.

Retail Pricing $114.95

Part Number: CTS380-BKTX

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Architectural sconce lighting, built to perform

The TubeSconce Single Direction is our compact architectural sconce, engineered for the spaces where standard wall packs and floods feel too loud — pergola columns, exterior walls, entryways, and under-deck post areas. A machined solid brass housing, sealed glass lens, stainless-steel fasteners, and IP66 wet-location rating mean it holds up year-round in demanding commercial environments.

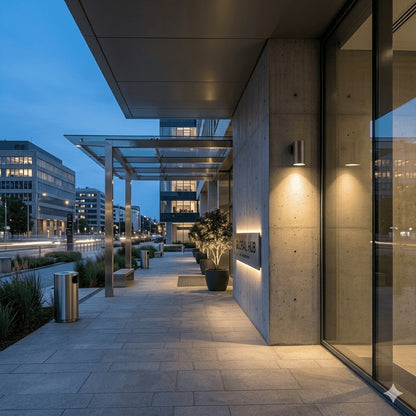

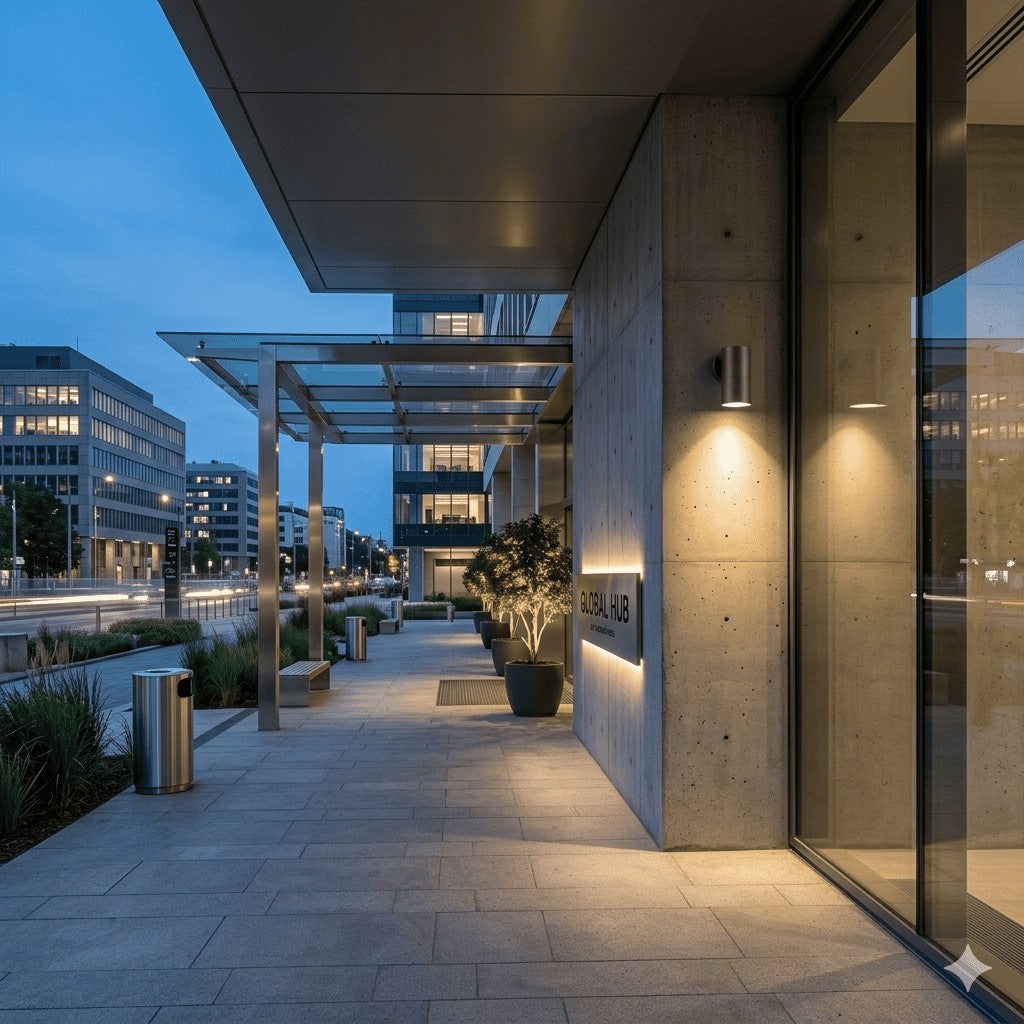

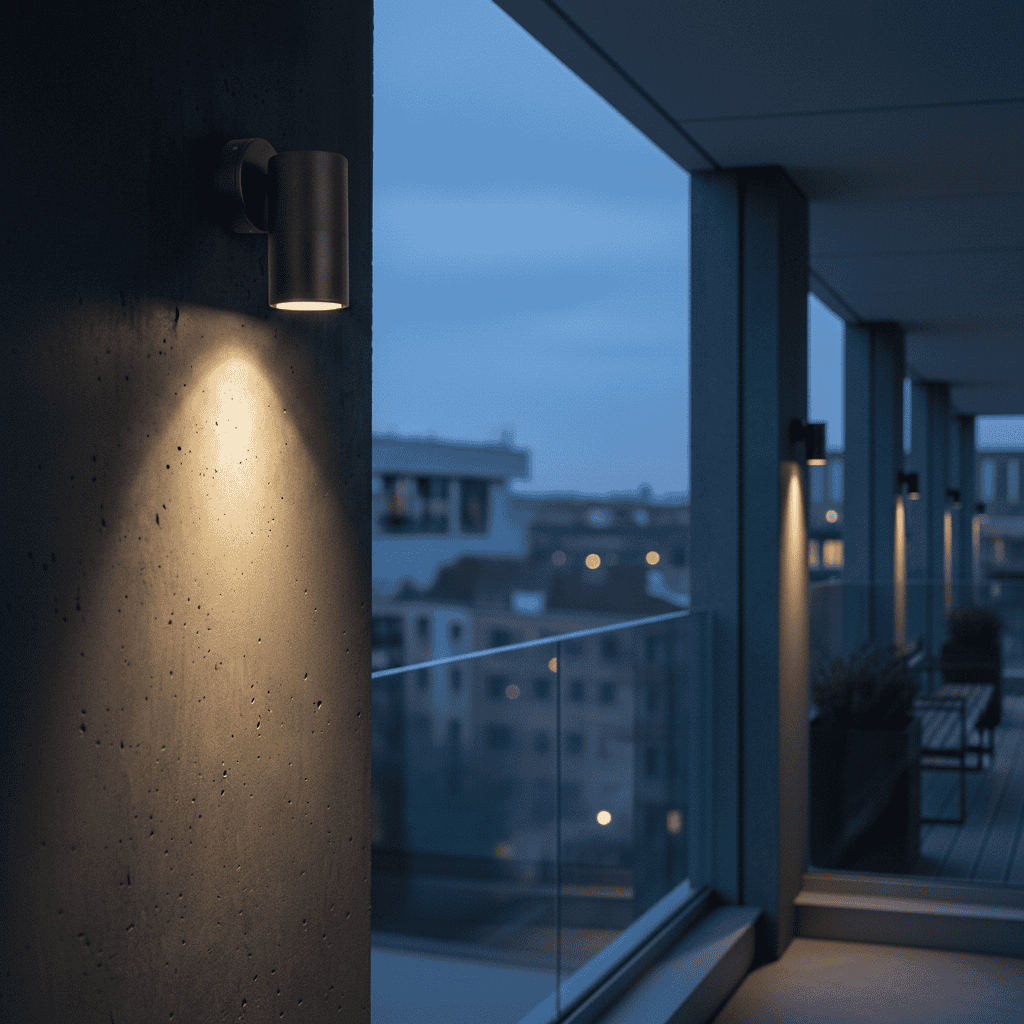

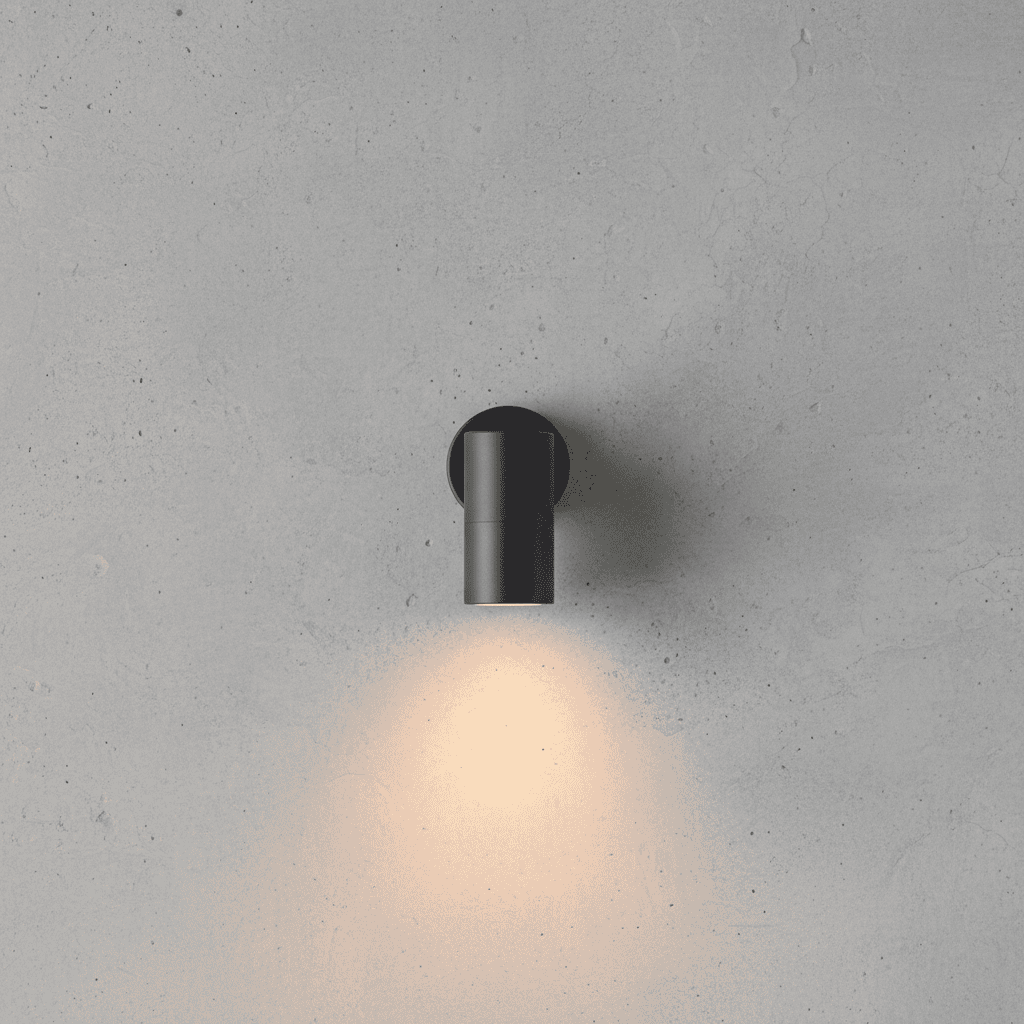

The interchangeable MR16 platform keeps it flexible: run 3W or 5W LEDs in 2700K or 4000K, with field-selectable 30°, 60°, or 100° beam distributions — letting designers and installers tune the wash on-site without swapping fixtures. Versatile mounting fits both flush surface installs and standard round J-box applications, and the 9–17V AC/DC operating range integrates cleanly with most low-voltage architectural and landscape systems. Mount it pointing up to wash walls and graze textured surfaces, or pointing down for focused path and entry accents.

Ideal applications:

  • Pergola columns and beam undersides
  • Exterior walls, entryways, and breezeways
  • Under-deck and elevated post lighting
  • Hospitality and outdoor-living architectural accents
  • Column wash and vertical surface grazing

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 3–5W (single lamp)
  • LED type: MR16, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 12", 18/2 SPT
  • Dimming: Yes

Performance

  • Lumens: 220–550 lm
  • CRI: 85
  • Efficacy: ~86–107 lm/W
  • Beam angles: 30° / 60° / 100°
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Machined solid brass
  • IP rating: IP66, wet-location
  • Lens: Sealed glass
  • Fasteners: Stainless steel
  • Certification: ETL

Mounting & dimensions

  • Overall size: 2.35" W × 5" tall housing, 3.35" deep
  • Mounting plate: 2.75" dia.
  • Mounting: Surface mount or round J-box
  • Direction: Single-direction
  • Finish: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Architectural sconce lighting, built to perform

The TubeSconce Single Direction is our compact architectural sconce, engineered for the spaces where standard wall packs and floods feel too loud — pergola columns, exterior walls, entryways, and under-deck post areas. A machined solid brass housing, sealed glass lens, stainless-steel fasteners, and IP66 wet-location rating mean it holds up year-round in demanding commercial environments.

The interchangeable MR16 platform keeps it flexible: run 3W or 5W LEDs in 2700K or 4000K, with field-selectable 30°, 60°, or 100° beam distributions — letting designers and installers tune the wash on-site without swapping fixtures. Versatile mounting fits both flush surface installs and standard round J-box applications, and the 9–17V AC/DC operating range integrates cleanly with most low-voltage architectural and landscape systems. Mount it pointing up to wash walls and graze textured surfaces, or pointing down for focused path and entry accents.

Ideal applications:

  • Pergola columns and beam undersides
  • Exterior walls, entryways, and breezeways
  • Under-deck and elevated post lighting
  • Hospitality and outdoor-living architectural accents
  • Column wash and vertical surface grazing

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 3–5W (single lamp)
  • LED type: MR16, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 12", 18/2 SPT
  • Dimming: Yes

Performance

  • Lumens: 220–550 lm
  • CRI: 85
  • Efficacy: ~86–107 lm/W
  • Beam angles: 30° / 60° / 100°
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Machined solid brass
  • IP rating: IP66, wet-location
  • Lens: Sealed glass
  • Fasteners: Stainless steel
  • Certification: ETL

Mounting & dimensions

  • Overall size: 2.35" W × 5" tall housing, 3.35" deep
  • Mounting plate: 2.75" dia.
  • Mounting: Surface mount or round J-box
  • Direction: Single-direction
  • Finish: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details

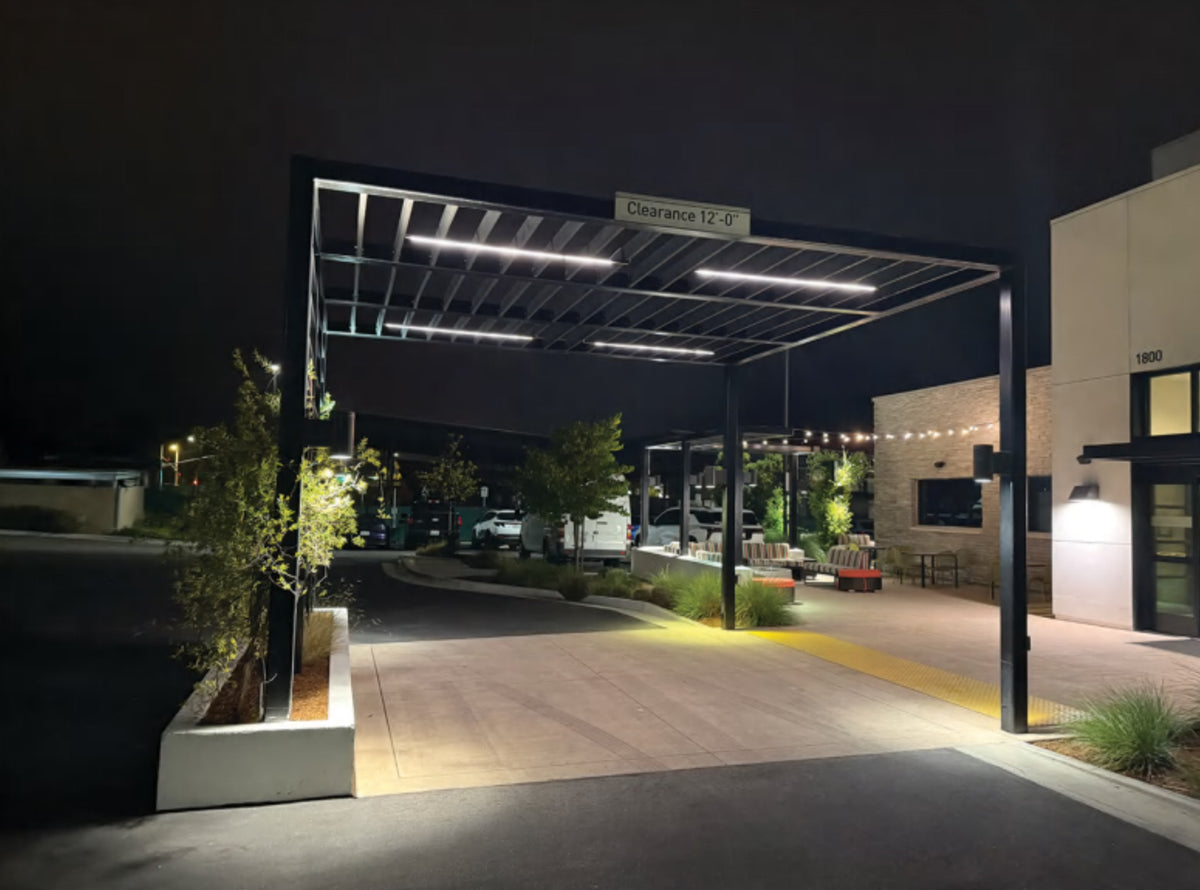

Built for commercial performance.

BY THE NUMBERS

Built for commercial performance.

50,000 hrs

LED lifespan

IP66

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

220–550

Lumens (3–5W)

3

Beam angles: 30° / 60° / 100°

Lifetime housing warranty 5-year LED warranty Made in USA
Point it where it counts.

TUBESCONCE SINGLE DIRECTION

Point it where it counts.

From pergola columns to entryways and exterior walls — TubeSconce delivers focused architectural accent lighting in a form-factor that disappears into the architecture. Solid brass. IP66. Lifetime housing.

550 lm

Max output

IP66

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
