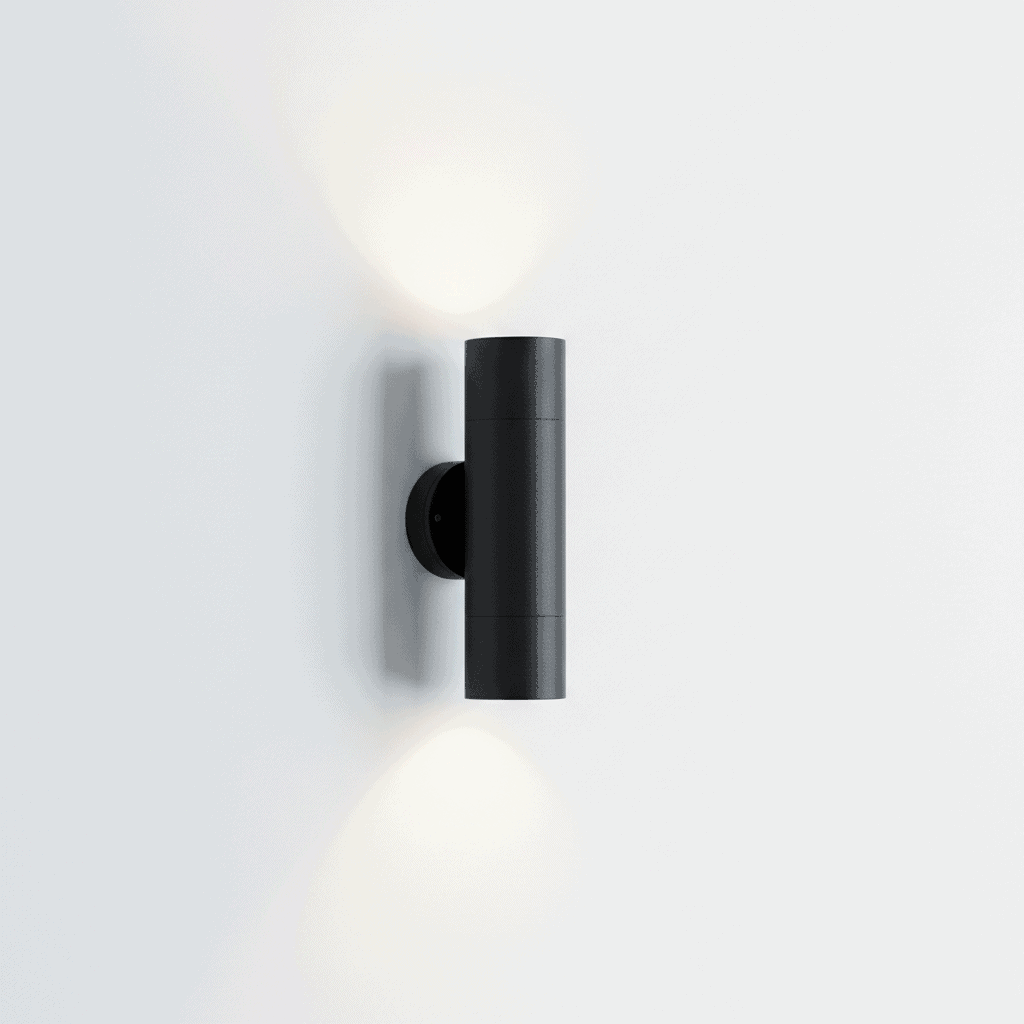

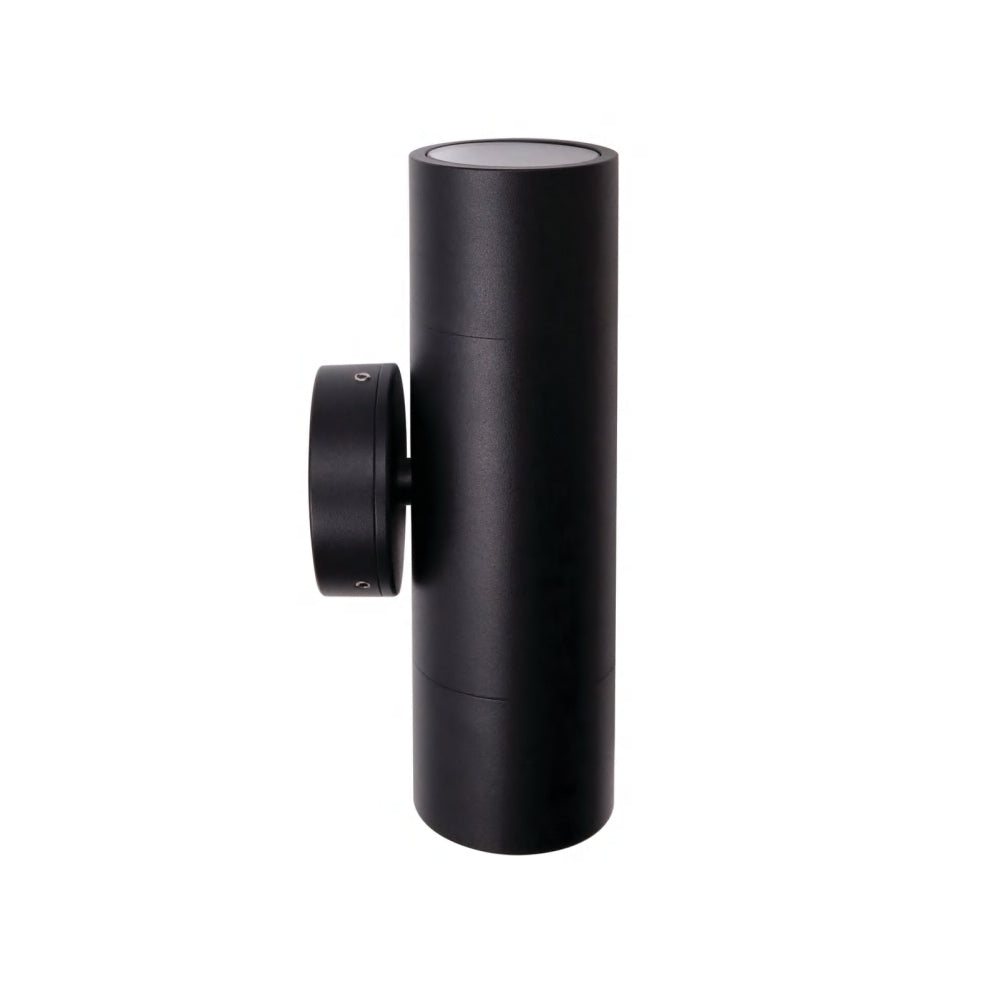

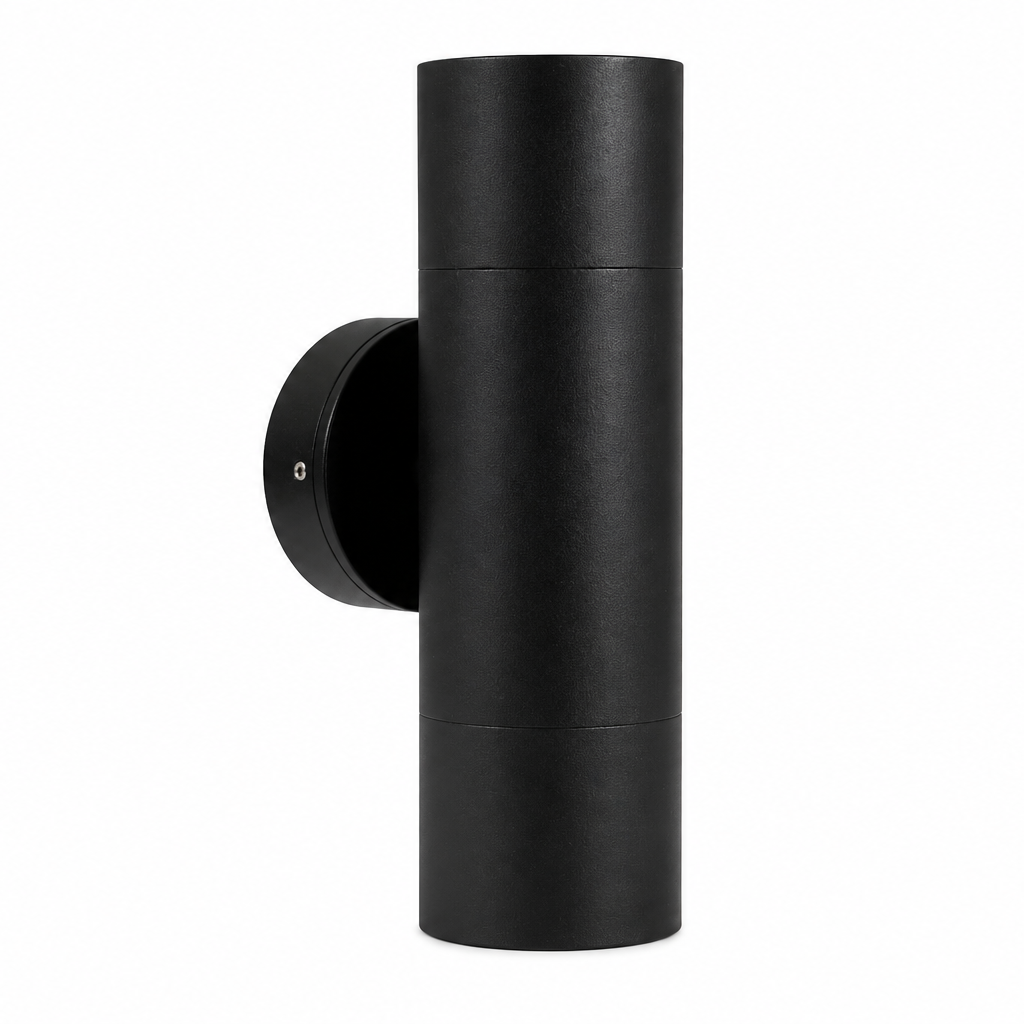

TubeSconce - Dual Direction

TubeSconce - Dual Direction

The TubeScone series is great for accenting pergola columns, walls and under deck post areas. The versatile mounting allow for surface mounting or round J-box mount.

Retail Pricing $132.95

Part Number: CTS380D-BKTX

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Architectural sconce lighting, built to perform

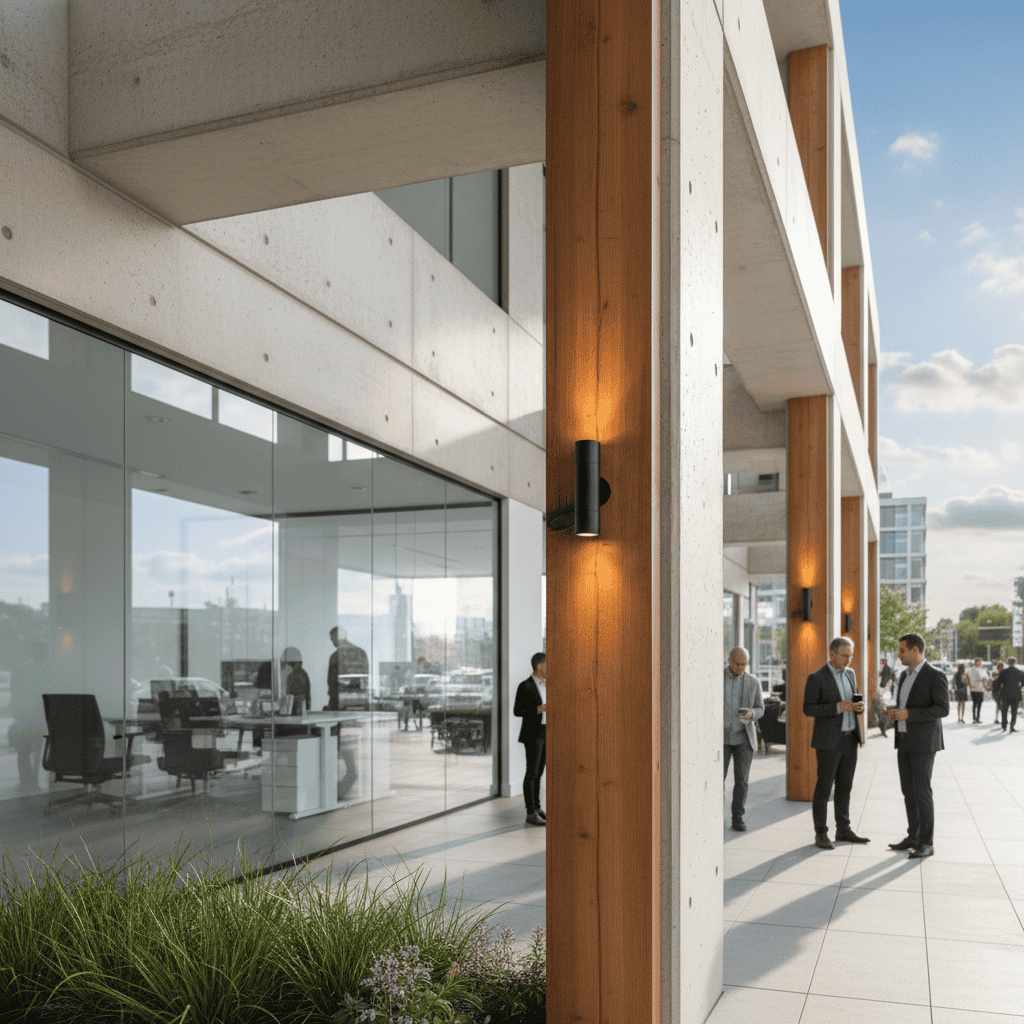

The TubeSconce series is our compact architectural up-and-down sconce, engineered for the spaces where standard wall packs and floods feel too loud — pergola columns, exterior walls, entryways, and under-deck post areas. A machined solid brass housing, sealed glass lens, stainless-steel fasteners, and IP66 wet-location rating mean it holds up year-round in demanding commercial environments.

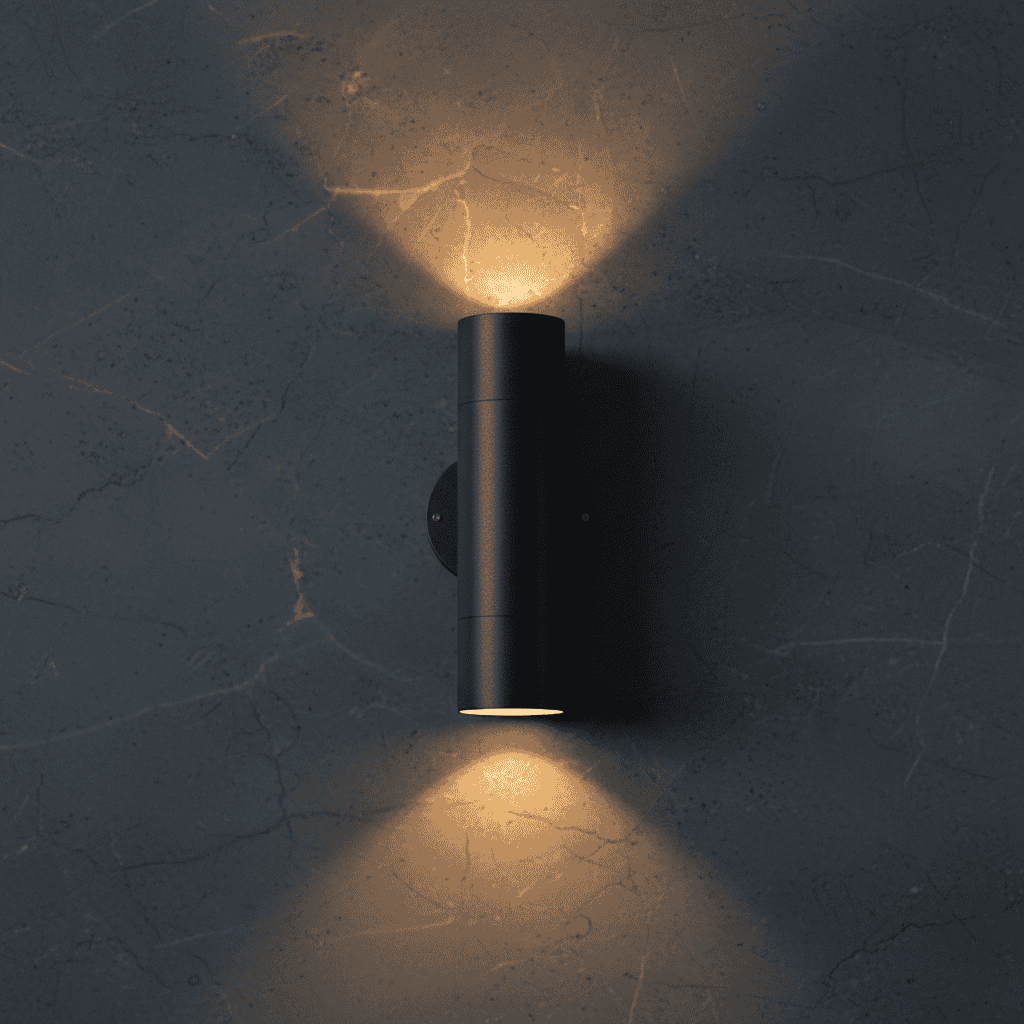

The interchangeable MR16 platform keeps it flexible: run 3W or 5W LEDs in 2700K or 4000K, with field-selectable 30°, 60°, or 100° beam distributions — letting designers and installers tune the wash on-site without swapping fixtures. Versatile mounting fits both flush surface installs and standard round J-box applications, and the 9–17V AC/DC operating range integrates cleanly with most low-voltage architectural and landscape systems. Choose dual-direction for symmetric up-and-down throw, or single-direction for focused accents.

Ideal applications:

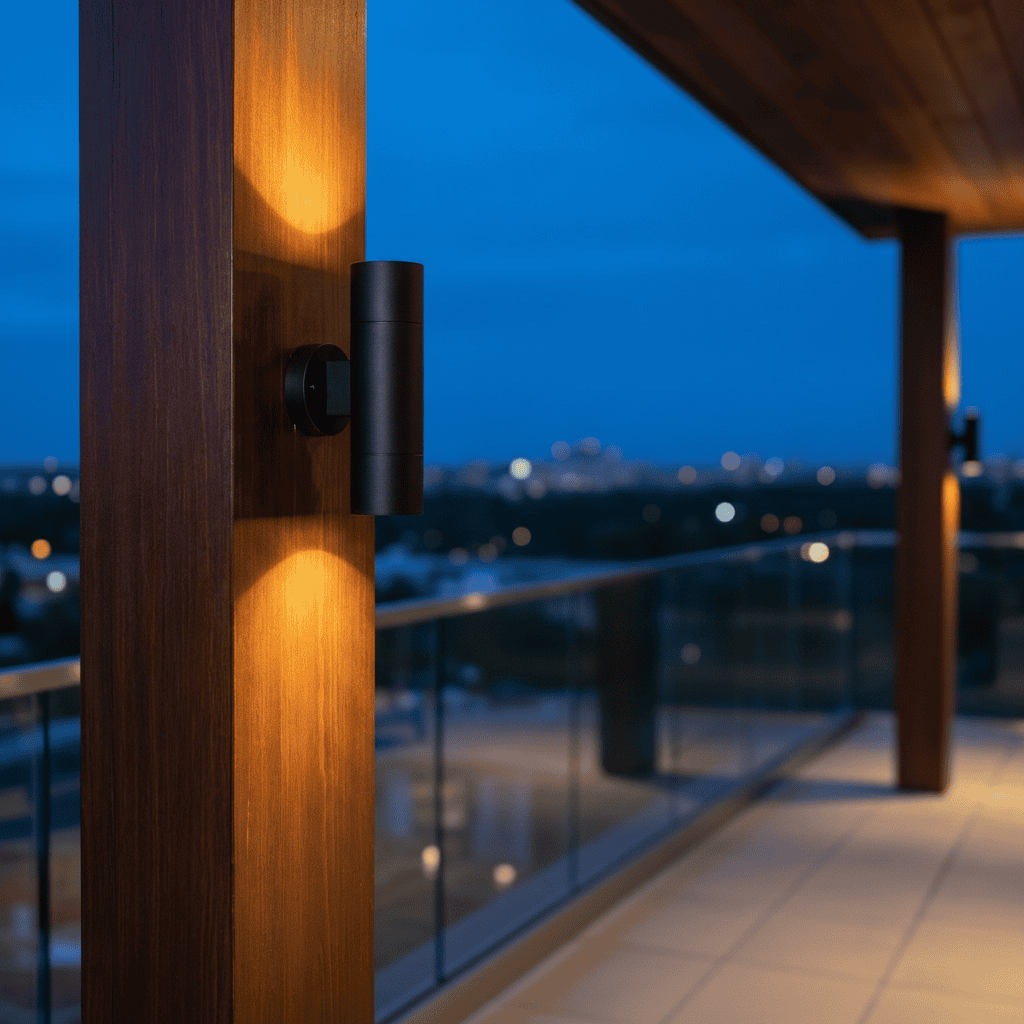

  • Pergola columns and beam undersides

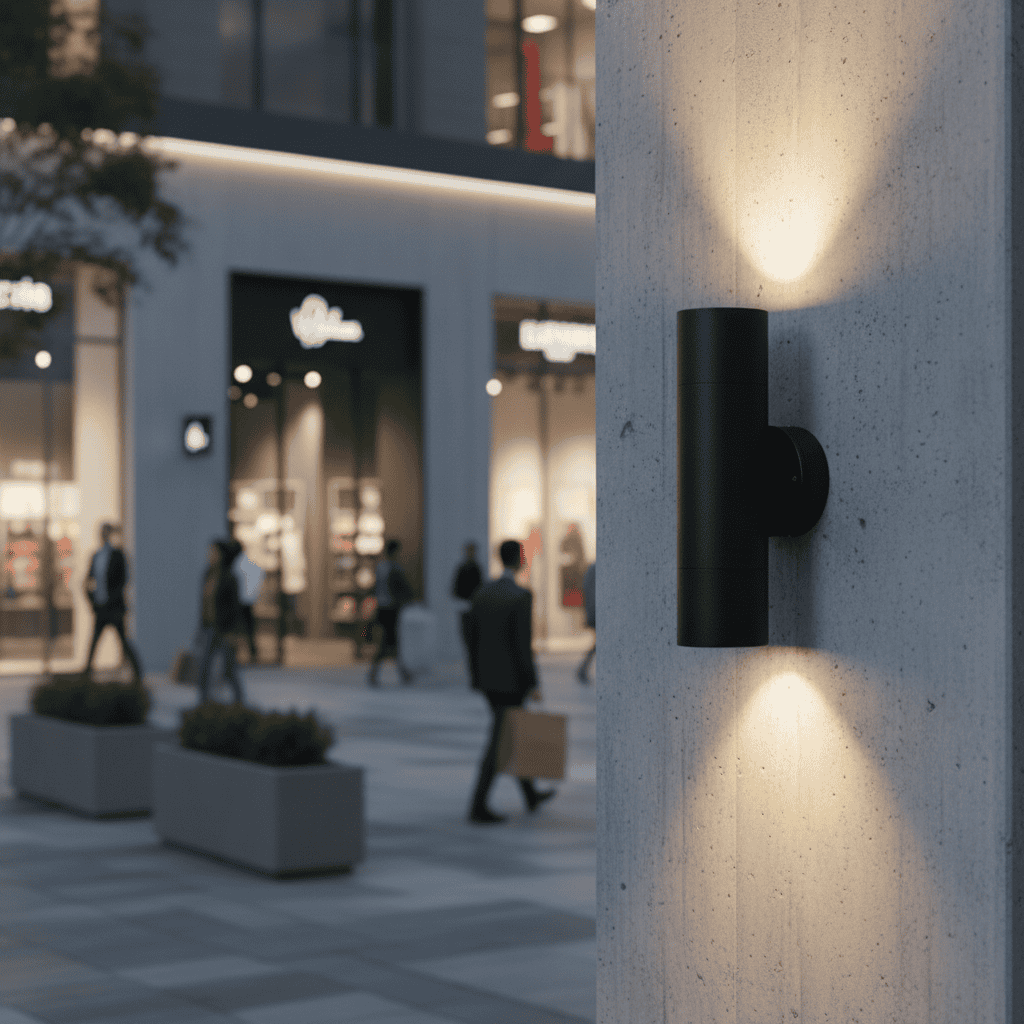

  • Exterior walls, entryways, and breezeways

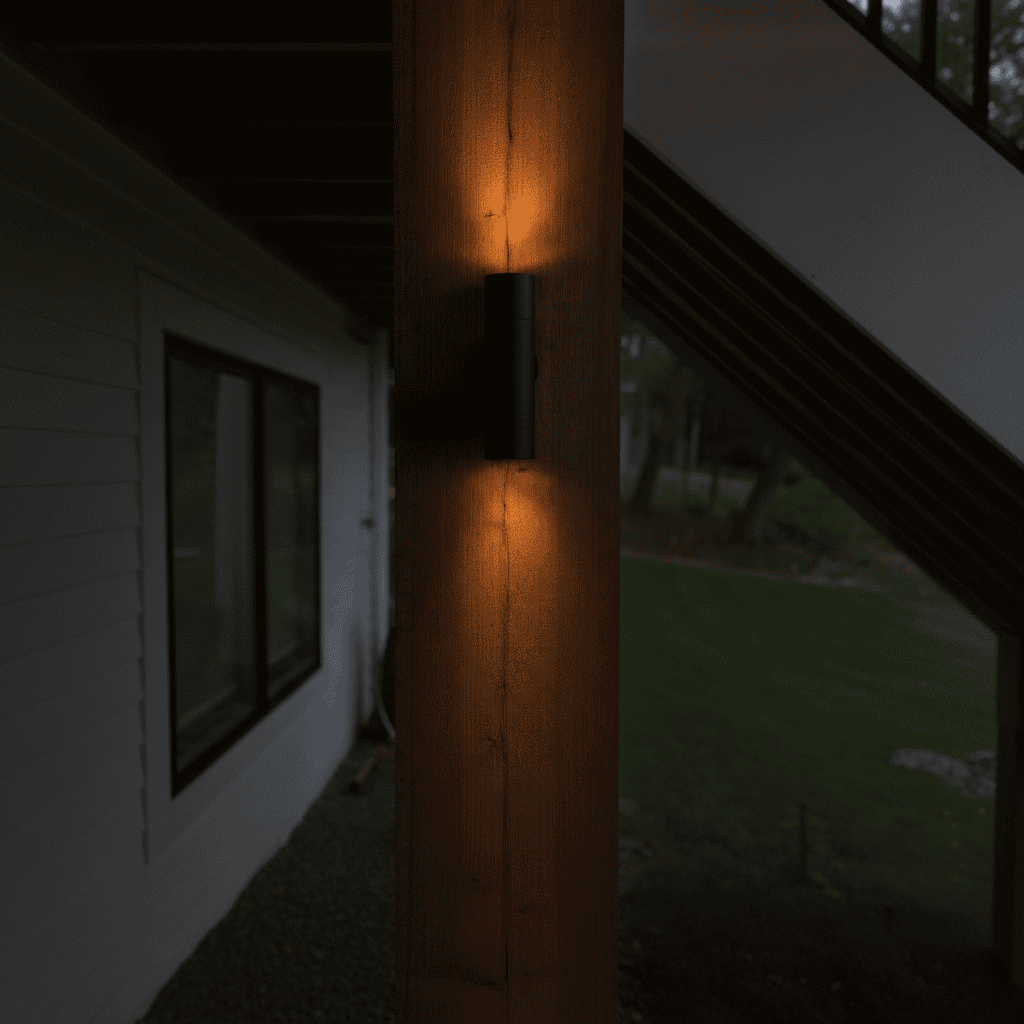

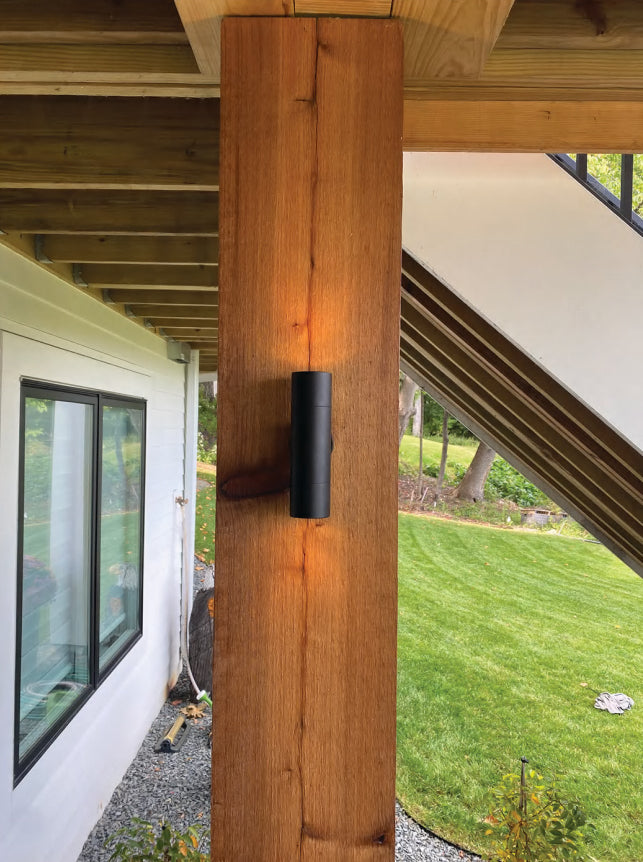

  • Under-deck and elevated post lighting
  • Hospitality and outdoor-living architectural accents
  • Column wash and vertical surface grazing

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 3–5W per lamp (two lamps, dual direction)
  • LED type: MR16, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 12", 18/2 SPT
  • Dimming: Yes

Performance

  • Lumens: 220–550 lm
  • CRI: 85
  • Efficacy: ~86–107 lm/W
  • Beam angles: 30° / 60° / 100°
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Machined solid brass
  • IP rating: IP66, wet-location
  • Lens: Sealed glass
  • Fasteners: Stainless steel
  • Certification: ETL

Mounting & dimensions

  • Overall size: 2.35" W × 8.25" tall housing, 3.35" deep
  • Mounting plate: 2.75" dia.
  • Mounting: Surface mount or round J-box
  • Direction: Dual or single-direction models
  • Finish: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Architectural sconce lighting, built to perform

The TubeSconce series is our compact architectural up-and-down sconce, engineered for the spaces where standard wall packs and floods feel too loud — pergola columns, exterior walls, entryways, and under-deck post areas. A machined solid brass housing, sealed glass lens, stainless-steel fasteners, and IP66 wet-location rating mean it holds up year-round in demanding commercial environments.

The interchangeable MR16 platform keeps it flexible: run 3W or 5W LEDs in 2700K or 4000K, with field-selectable 30°, 60°, or 100° beam distributions — letting designers and installers tune the wash on-site without swapping fixtures. Versatile mounting fits both flush surface installs and standard round J-box applications, and the 9–17V AC/DC operating range integrates cleanly with most low-voltage architectural and landscape systems. Choose dual-direction for symmetric up-and-down throw, or single-direction for focused accents.

Ideal applications:

  • Pergola columns and beam undersides
  • Exterior walls, entryways, and breezeways
  • Under-deck and elevated post lighting
  • Hospitality and outdoor-living architectural accents
  • Column wash and vertical surface grazing

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 3–5W per lamp (two lamps, dual direction)
  • LED type: MR16, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 12", 18/2 SPT
  • Dimming: Yes

Performance

  • Lumens: 220–550 lm
  • CRI: 85
  • Efficacy: ~86–107 lm/W
  • Beam angles: 30° / 60° / 100°
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Machined solid brass
  • IP rating: IP66, wet-location
  • Lens: Sealed glass
  • Fasteners: Stainless steel
  • Certification: ETL

Mounting & dimensions

  • Overall size: 2.35" W × 8.25" tall housing, 3.35" deep
  • Mounting plate: 2.75" dia.
  • Mounting: Surface mount or round J-box
  • Direction: Dual or single-direction models
  • Finish: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details
Built for commercial performance.

BY THE NUMBERS

Built for commercial performance.

50,000 hrs

LED lifespan

IP66

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

220–550

Lumens (3–5W)

3

Beam angles: 30° / 60° / 100°

Lifetime housing warranty 5-year LED warranty Made in USA

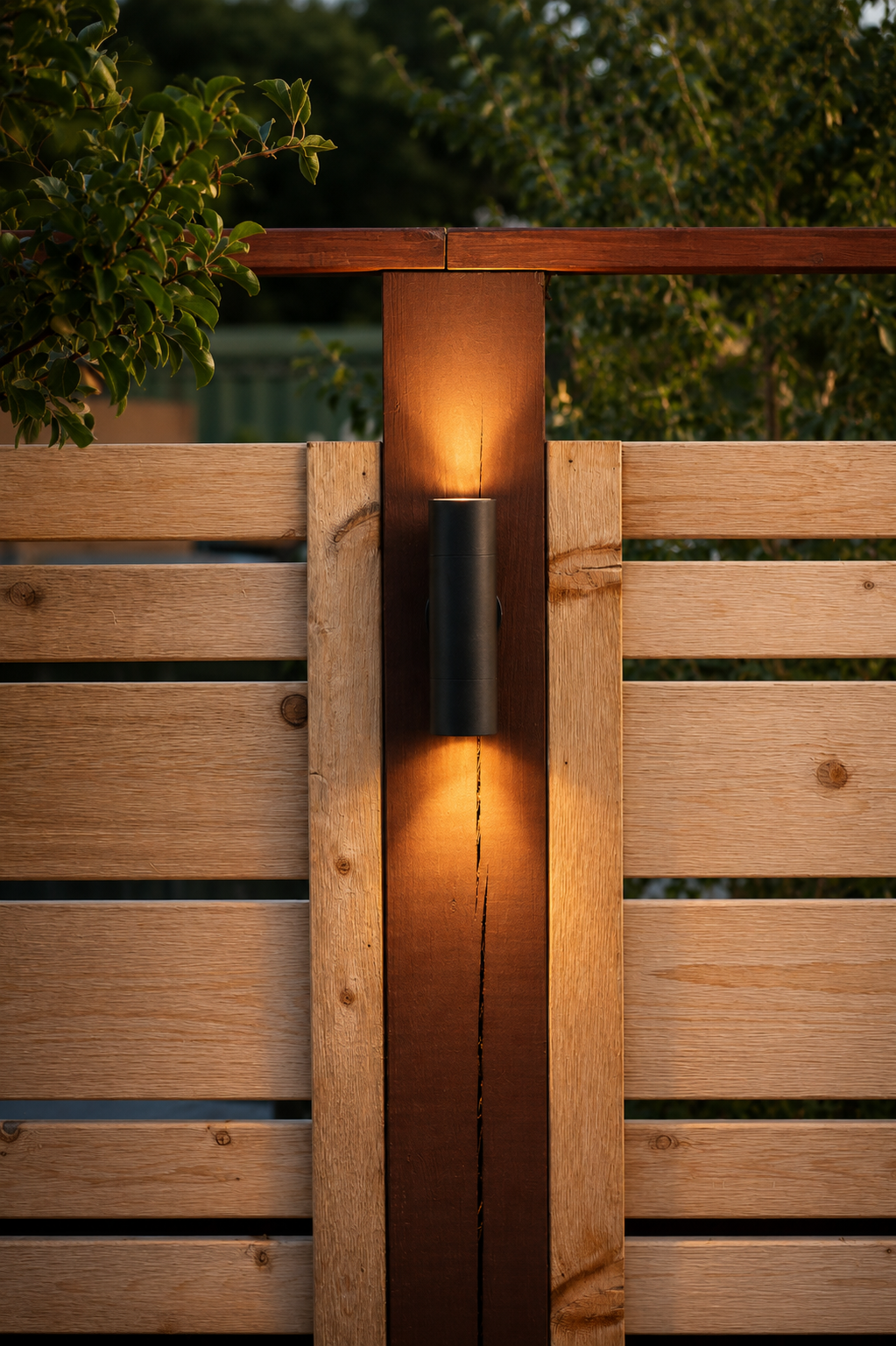

Light up. Light down.
