Tubelle Commercial Series

Tubelle Commercial Series

The Tubelle series is a great choice for modern commercial and estate lighting, larger patios, walkways, and driveways.

Retail Pricing $329.00
Fixture Finish: ArchBronze
Color Temperature

Part Number: CTL336-AR2700

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

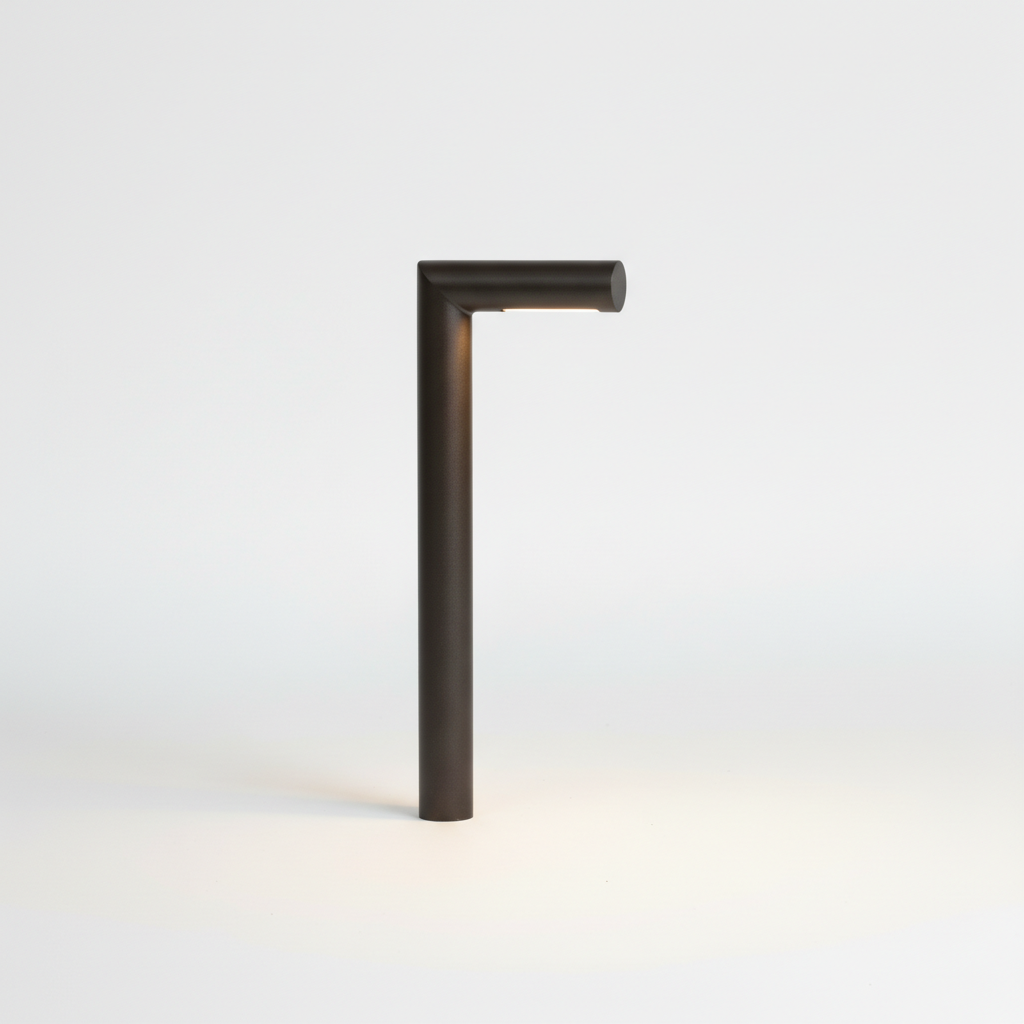

Modern commercial bollard with dark-sky directional design

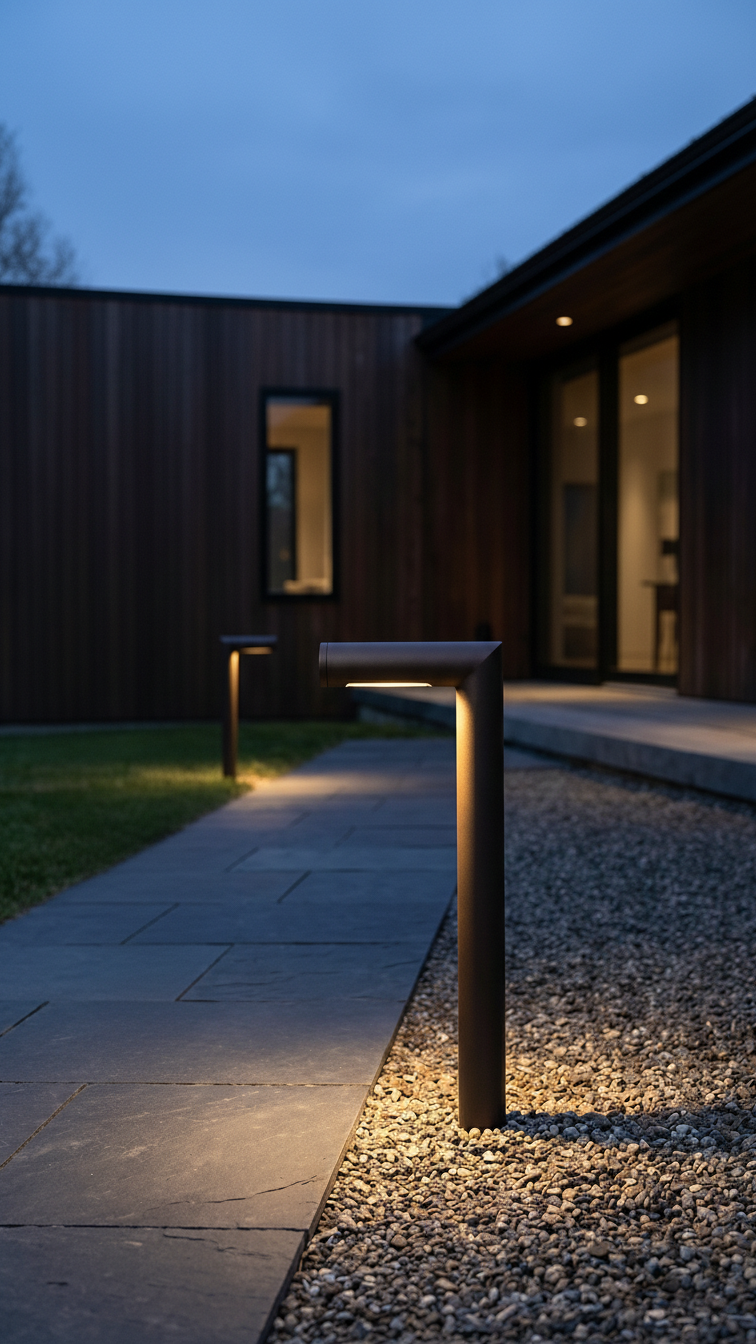

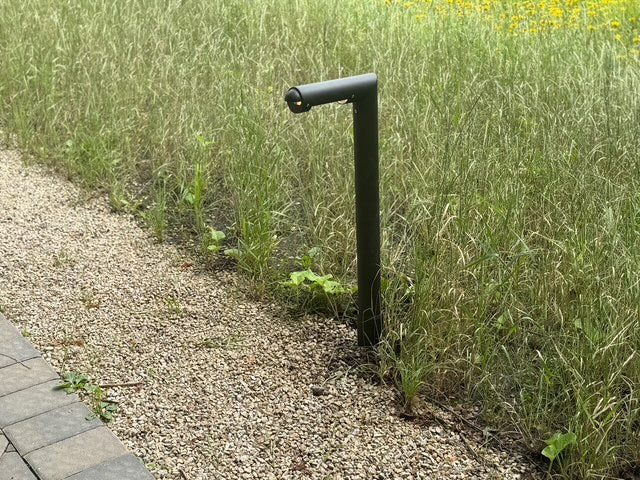

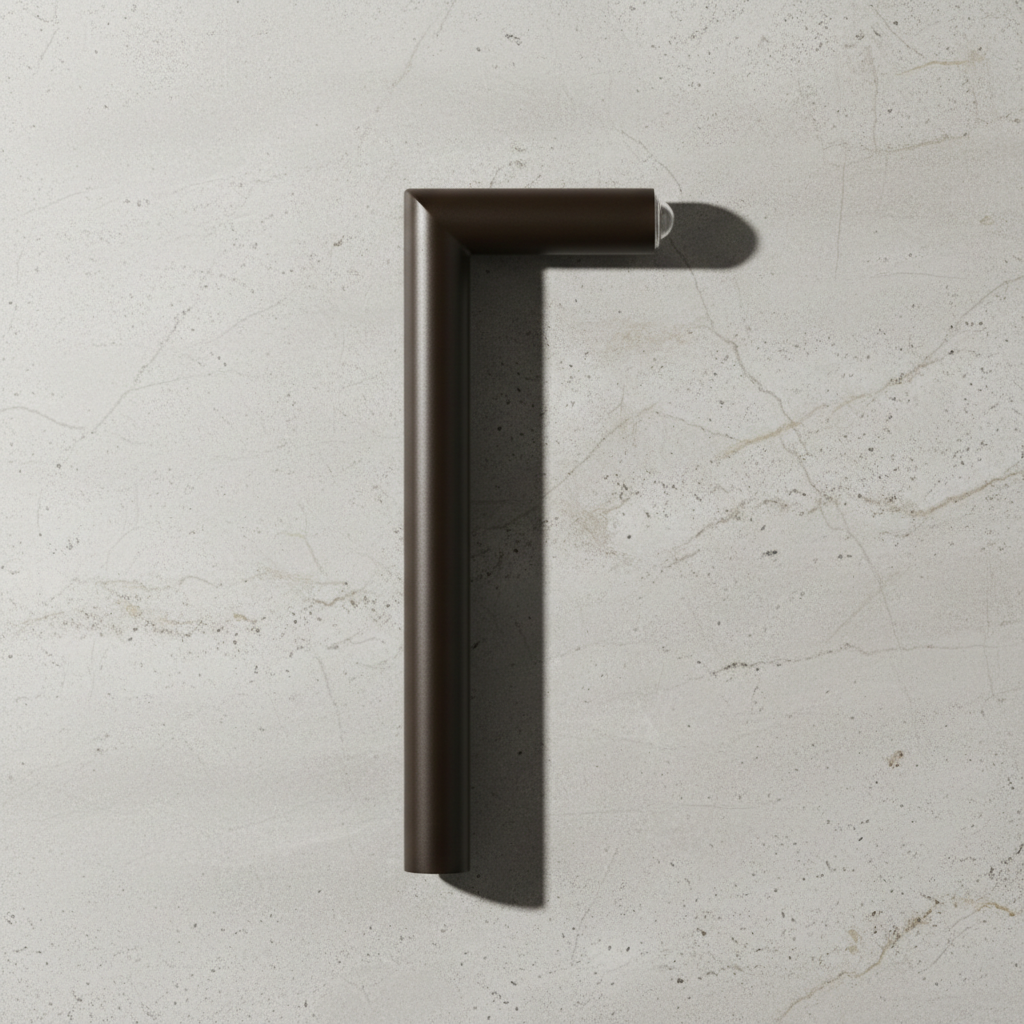

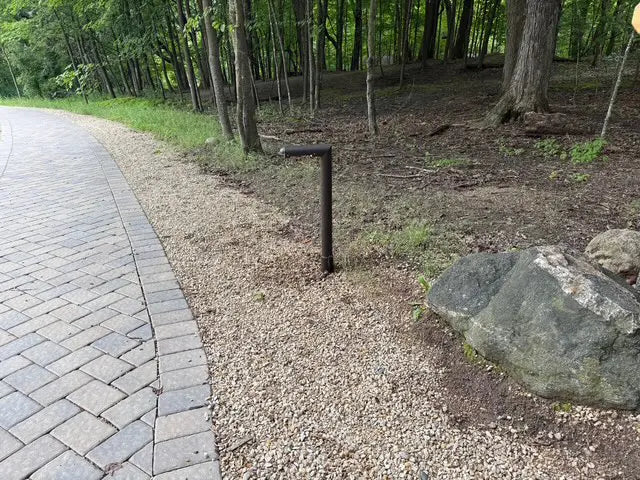

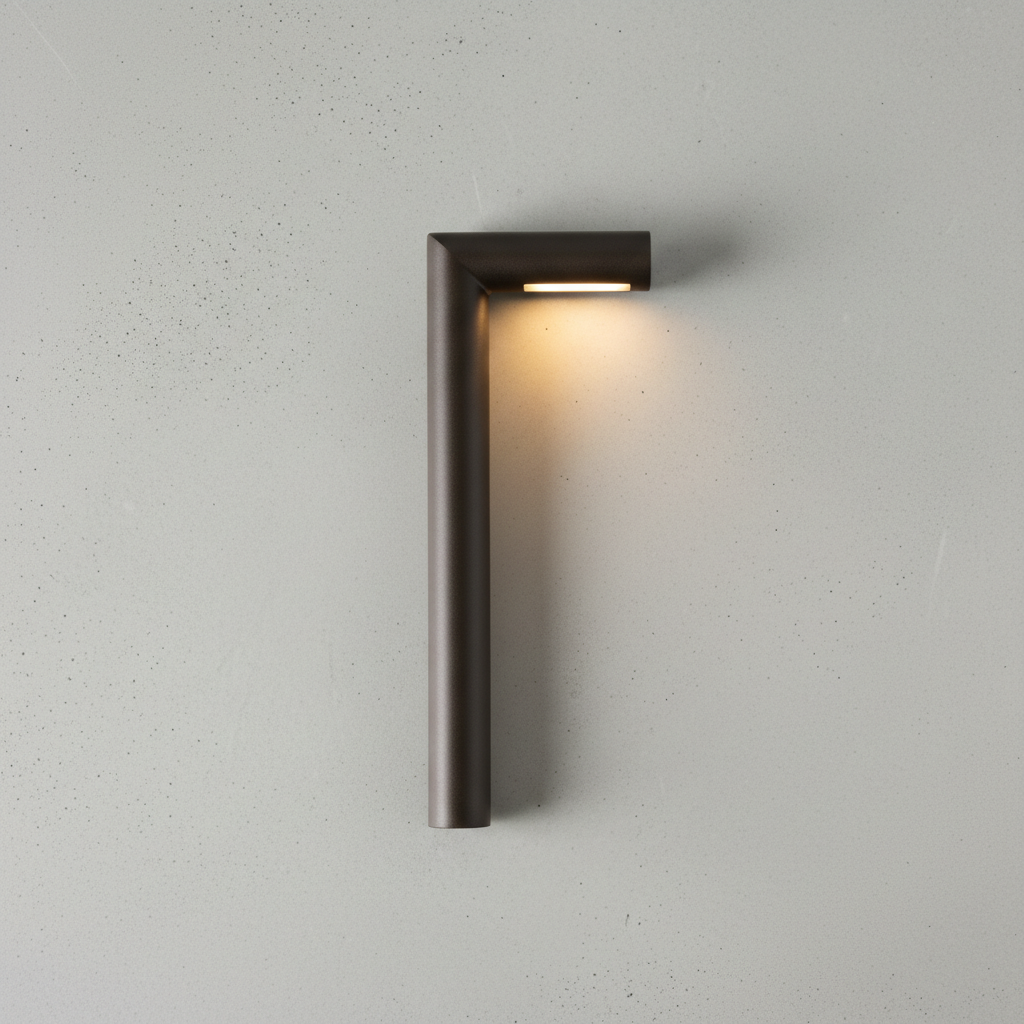

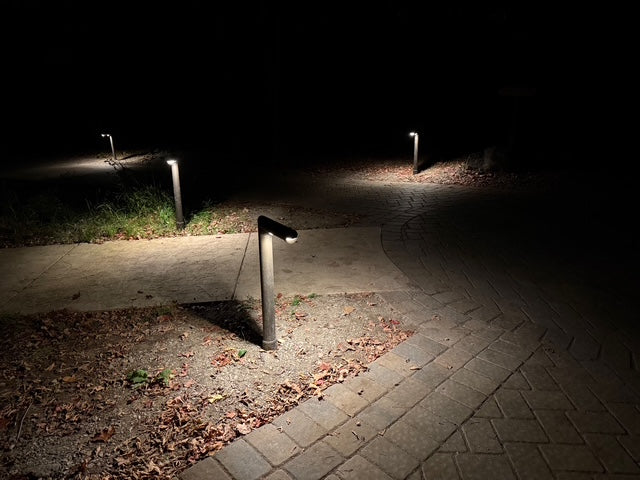

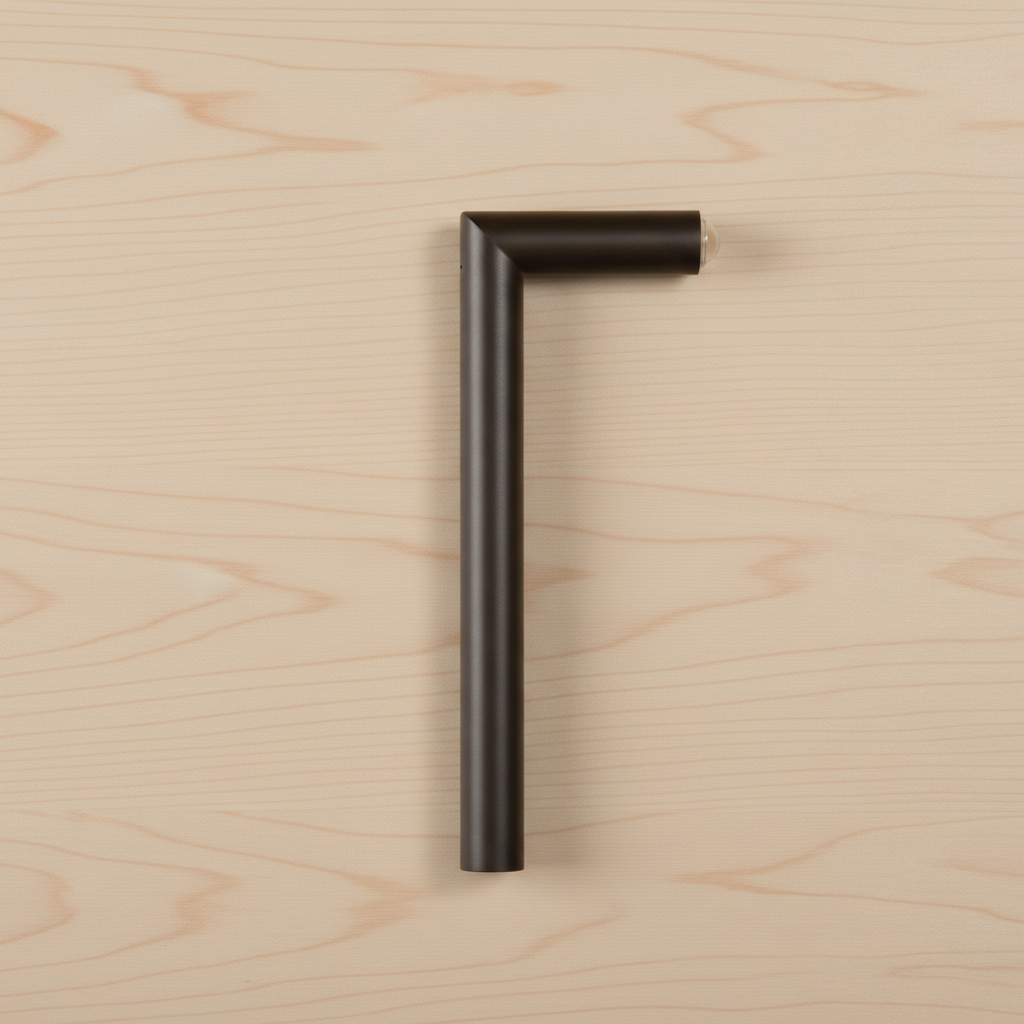

The Tubelle is a heavy-duty modern bollard built for larger areas — commercial walkways, park trails, estate driveways, and larger patios that need effective accent lighting without sacrificing scale or design. A 3-inch diameter aluminum tube post supports a 16-inch horizontal arm that holds two interchangeable 4W G4 ceramic LEDs: one aimed downward to wash the path below, and one aimed outward to extend the pool laterally. The result is even, directional light with no upward spill — no light pollution, no glare, and a cleaner night sky.

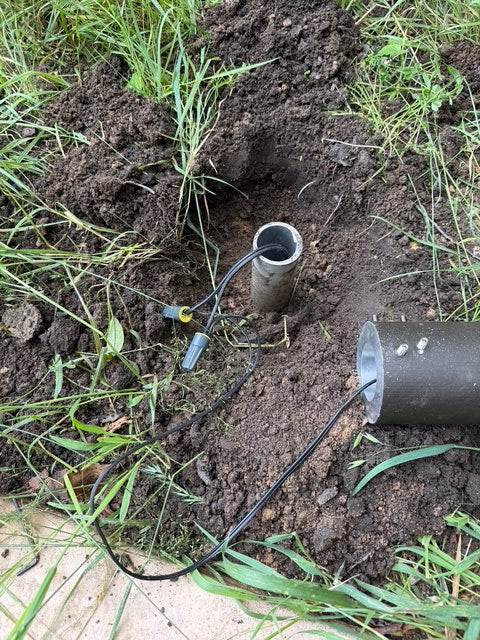

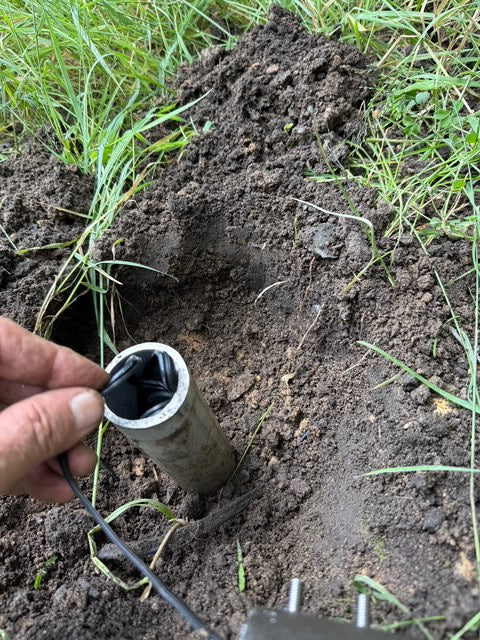

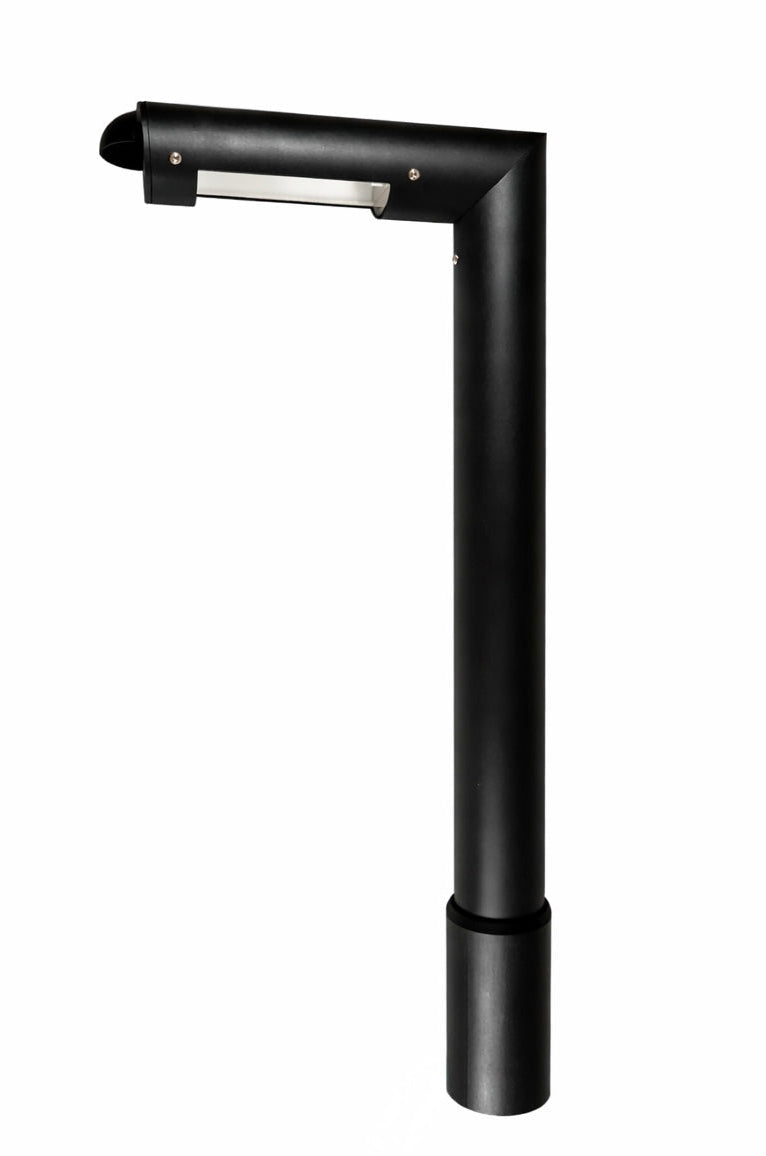

A sealed lens housing, 3" aluminum tubing with powder-coat finish, 6063 aluminum riser boot and components, stainless-steel finial and fasteners, and IP66 wet-location rating make it ready for long-term outdoor service. The 24" SuperStake mount keeps it plumb through seasonal frost heave, and the fixture stands 36" tall with a 16" arm. Available in BlackTex or ArchBronze, with 2700K warm or 4000K neutral white LEDs.

Ideal applications:

  • Modern commercial walkway and pathway lighting
  • Park trails, plazas, and gathering spaces
  • Estate driveways and motor-court borders
  • Larger patios and outdoor living areas
  • Architectural site lighting with dark-sky compliance

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 8W total (2 × 4W LEDs — one downward, one outward)
  • LED type: G4 ceramic, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 24", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: ~660 lm
  • CRI: 85
  • Efficacy: ~83 lm/W
  • Light pattern: 16 ft diameter pool, directional (down + out, no upward spill)
  • Lifespan: 50,000 hours

Build & environmental

  • Body: 3" aluminum tubing with powder-coat finish

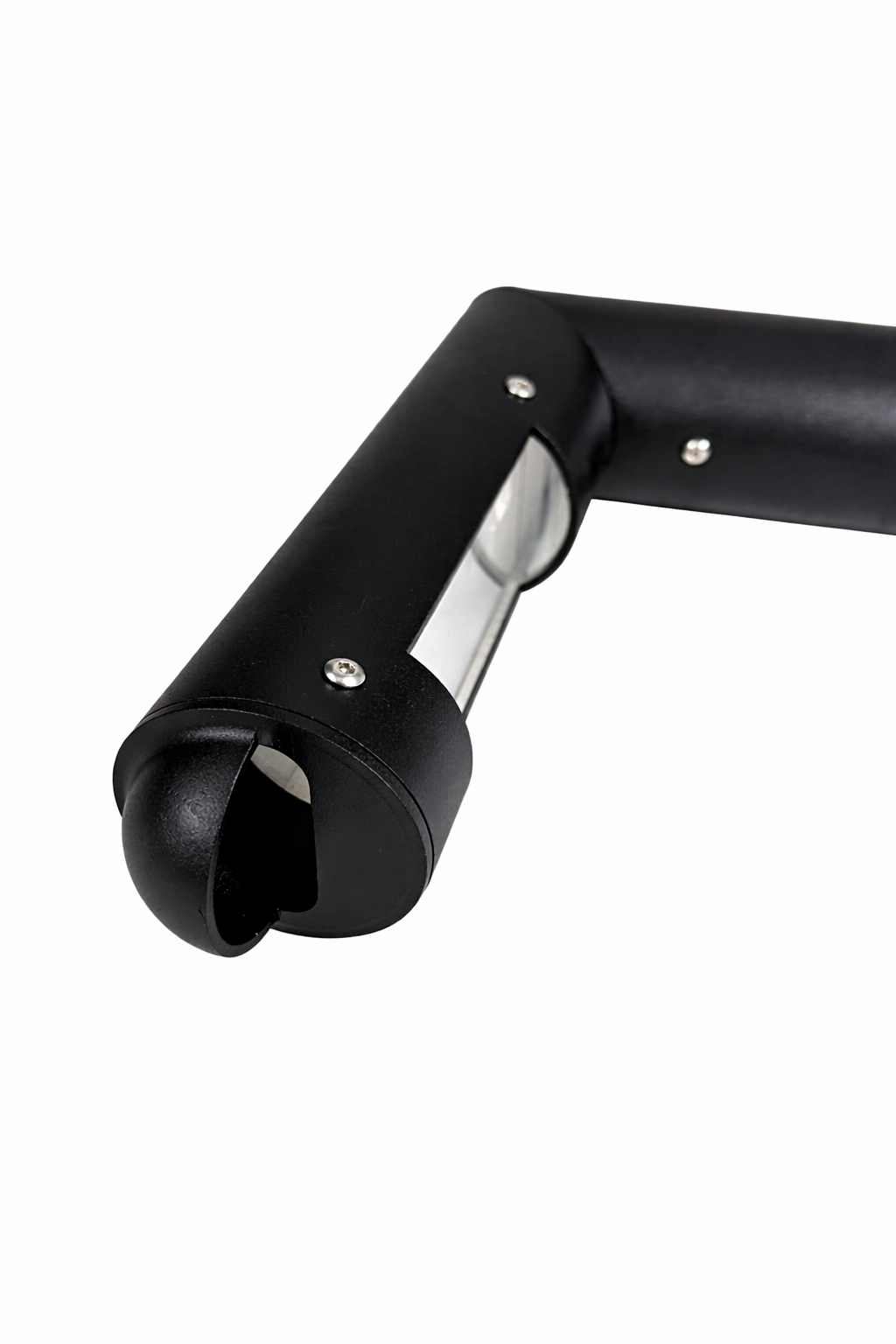

  • Lens: Sealed lens housing

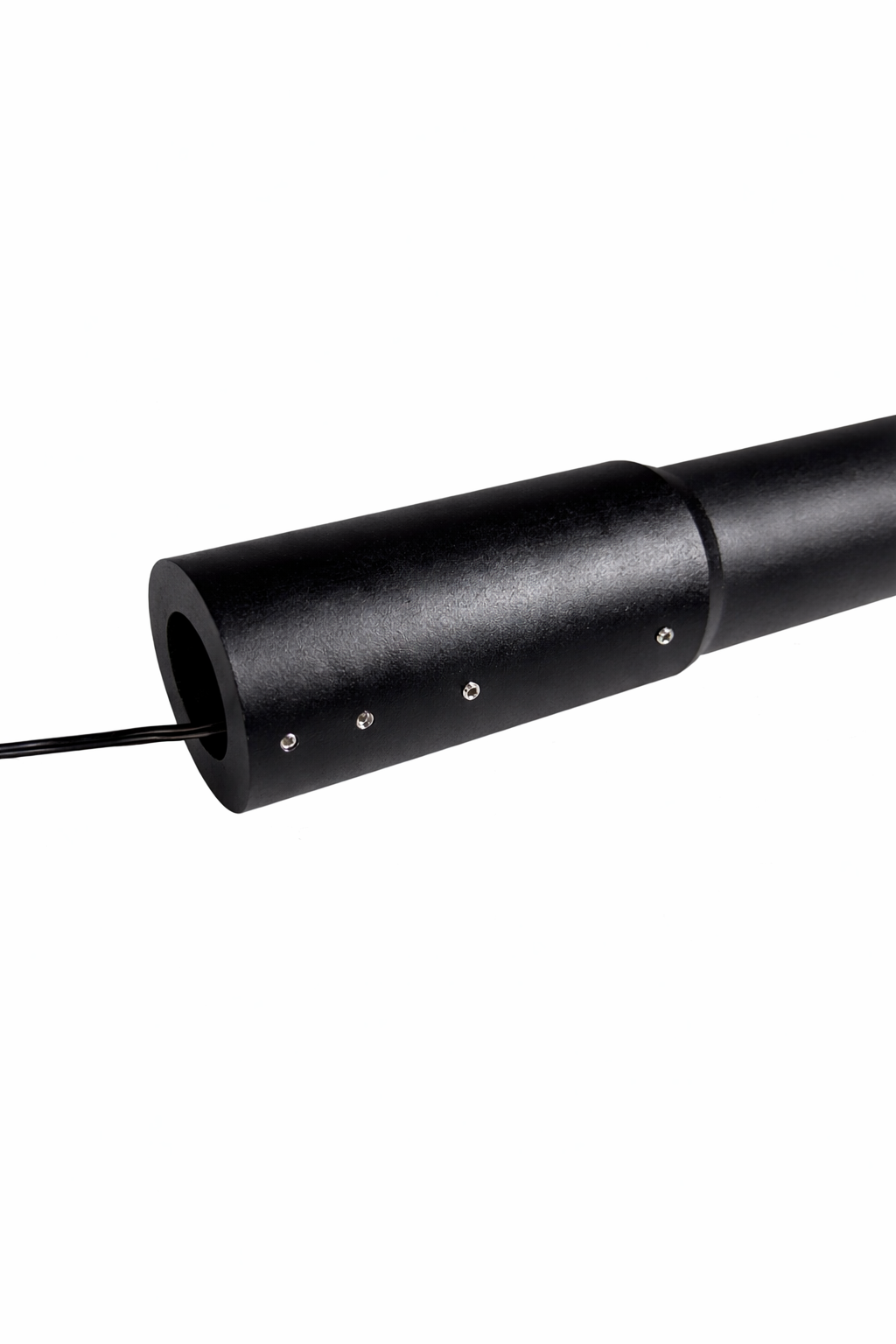

  • Riser boot & components: 6063 aluminum
  • Finial & fasteners: Stainless steel
  • IP rating: IP66, wet-location

Mounting & dimensions

  • Body diameter: 3"
  • Arm length: 16"
  • Overall height: 36" tall
  • Mounting: 24" SuperStake
  • Accessories: 24" SuperStake included
  • Finish options: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • Origin: Made in USA
Download Spec Sheet (PDF)

Modern commercial bollard with dark-sky directional design

The Tubelle is a heavy-duty modern bollard built for larger areas — commercial walkways, park trails, estate driveways, and larger patios that need effective accent lighting without sacrificing scale or design. A 3-inch diameter aluminum tube post supports a 16-inch horizontal arm that holds two interchangeable 4W G4 ceramic LEDs: one aimed downward to wash the path below, and one aimed outward to extend the pool laterally. The result is even, directional light with no upward spill — no light pollution, no glare, and a cleaner night sky.

A sealed lens housing, 3" aluminum tubing with powder-coat finish, 6063 aluminum riser boot and components, stainless-steel finial and fasteners, and IP66 wet-location rating make it ready for long-term outdoor service. The 24" SuperStake mount keeps it plumb through seasonal frost heave, and the fixture stands 36" tall with a 16" arm. Available in BlackTex or ArchBronze, with 2700K warm or 4000K neutral white LEDs.

Ideal applications:

  • Modern commercial walkway and pathway lighting
  • Park trails, plazas, and gathering spaces
  • Estate driveways and motor-court borders
  • Larger patios and outdoor living areas
  • Architectural site lighting with dark-sky compliance

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 8W total (2 × 4W LEDs — one downward, one outward)
  • LED type: G4 ceramic, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 24", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: ~660 lm
  • CRI: 85
  • Efficacy: ~83 lm/W
  • Light pattern: 16 ft diameter pool, directional (down + out, no upward spill)
  • Lifespan: 50,000 hours

Build & environmental

  • Body: 3" aluminum tubing with powder-coat finish
  • Lens: Sealed lens housing
  • Riser boot & components: 6063 aluminum
  • Finial & fasteners: Stainless steel
  • IP rating: IP66, wet-location

Mounting & dimensions

  • Body diameter: 3"
  • Arm length: 16"
  • Overall height: 36" tall
  • Mounting: 24" SuperStake
  • Accessories: 24" SuperStake included
  • Finish options: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details
Built to light the path, not the sky.

DUAL-LED. ZERO POLLUTION.

Built to light the path, not the sky.

50,000 hrs

LED lifespan

IP66

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

~660 lm

Output (8W total)

16 ft

Light pool diameter

Lifetime housing warranty Made in USA Dual-LED dark-sky design

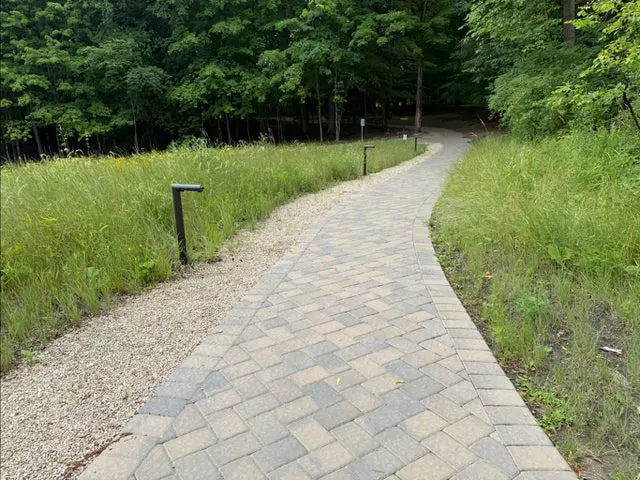

Down and out. Never up.

TUBELLE COMMERCIAL SERIES

Down and out. Never up.

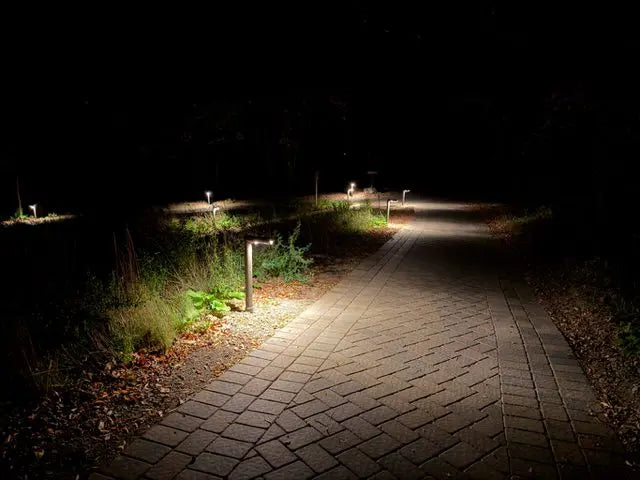

From commercial walkways to estate driveways and park trails — the Tubelle delivers a 16-ft pool of directional dual-LED light from a modern bollard built to illuminate the path, not the night sky. Aluminum body. IP66. Made in USA.
