For high traffic areas you might want to consider using our 12″ superstakes for superior fixture mounting.

Retail Pricing $160.00
Fixture Color: BlackTex

Part Number: CGL246BK

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

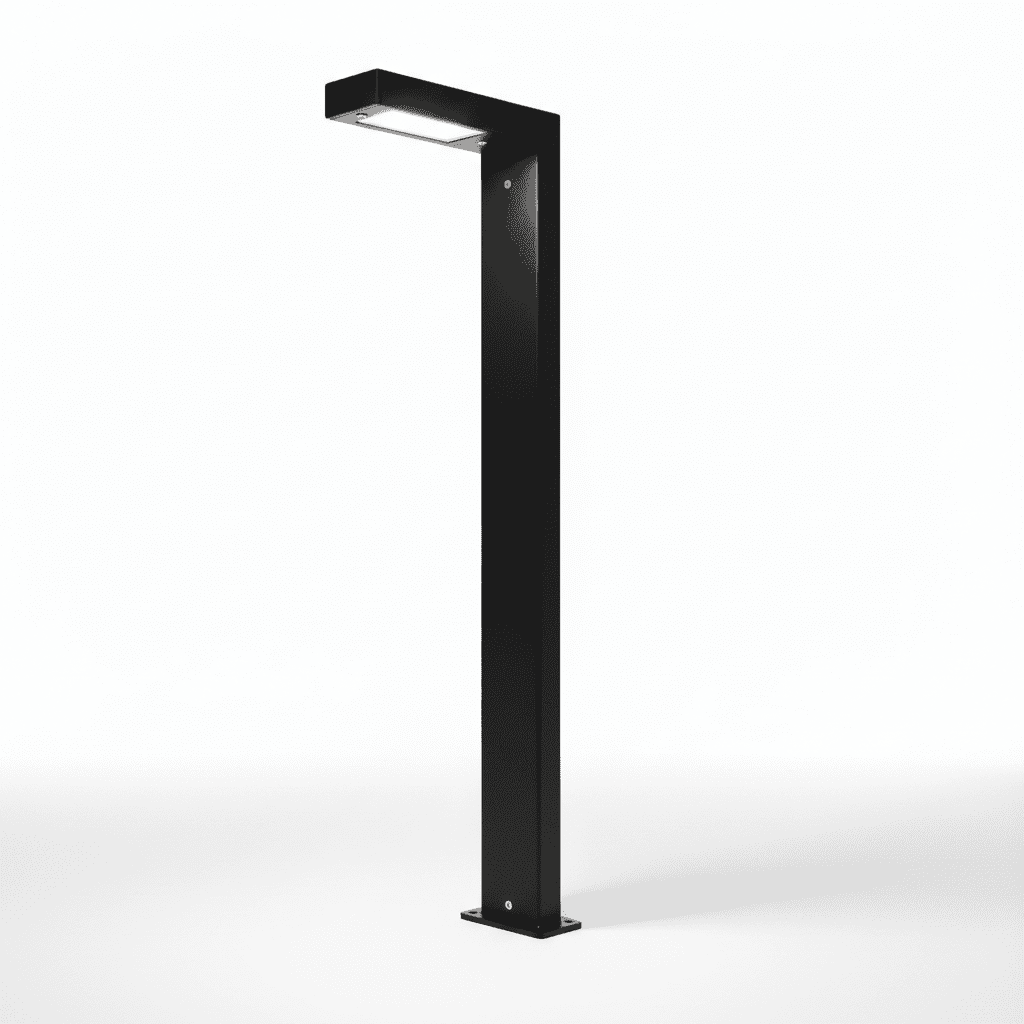

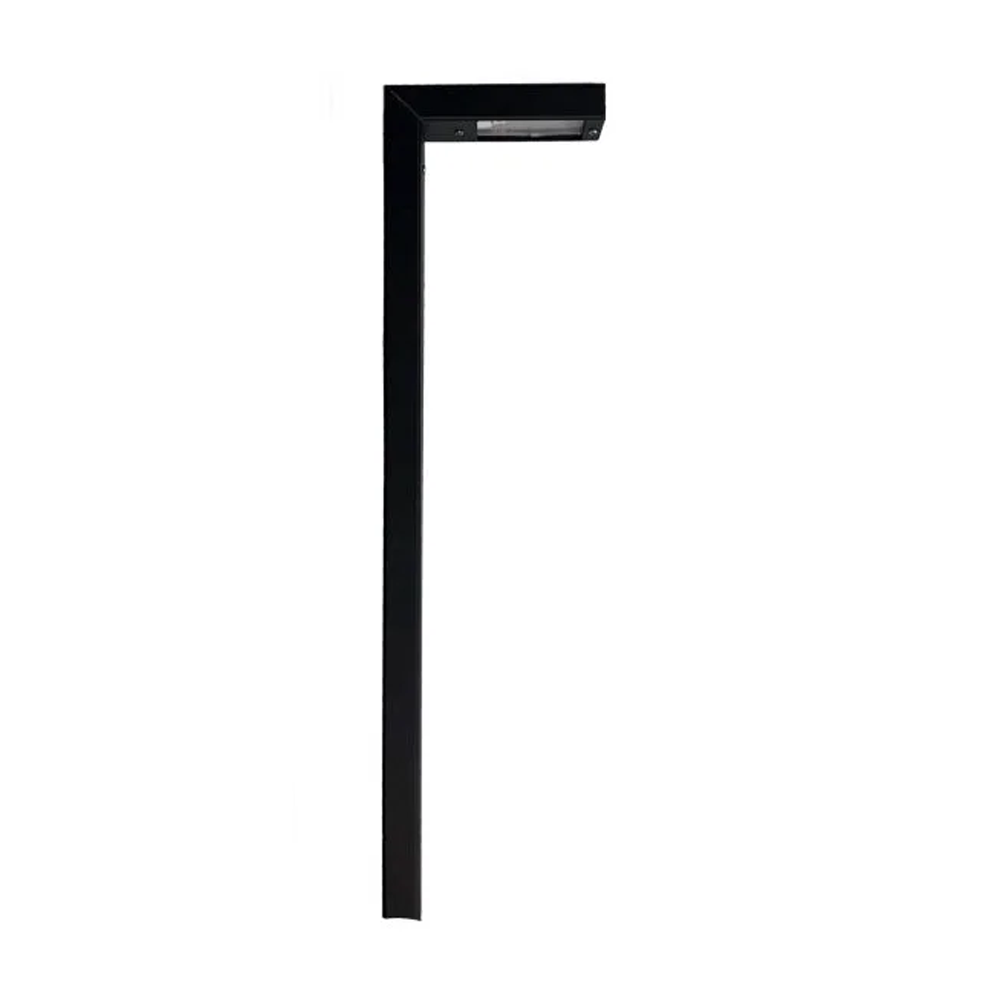

Contemporary path lighting, built to last

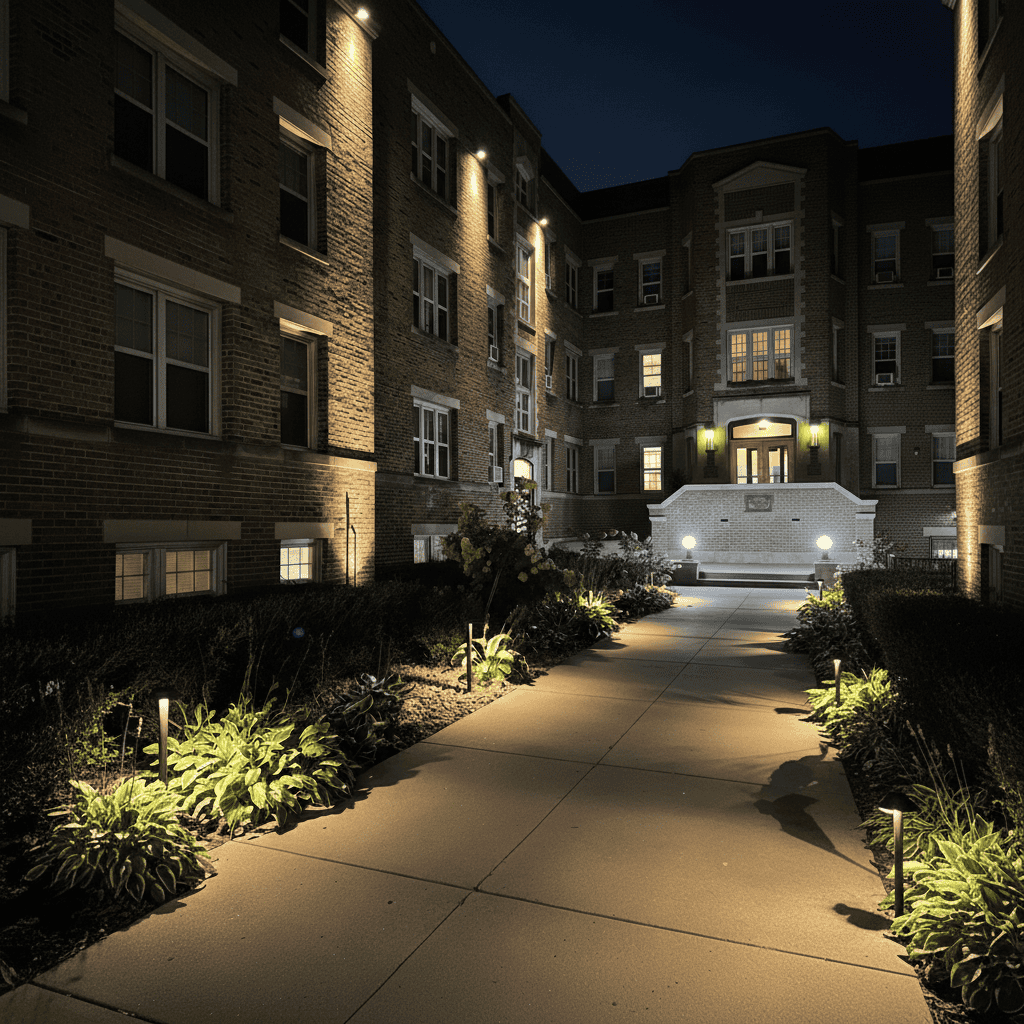

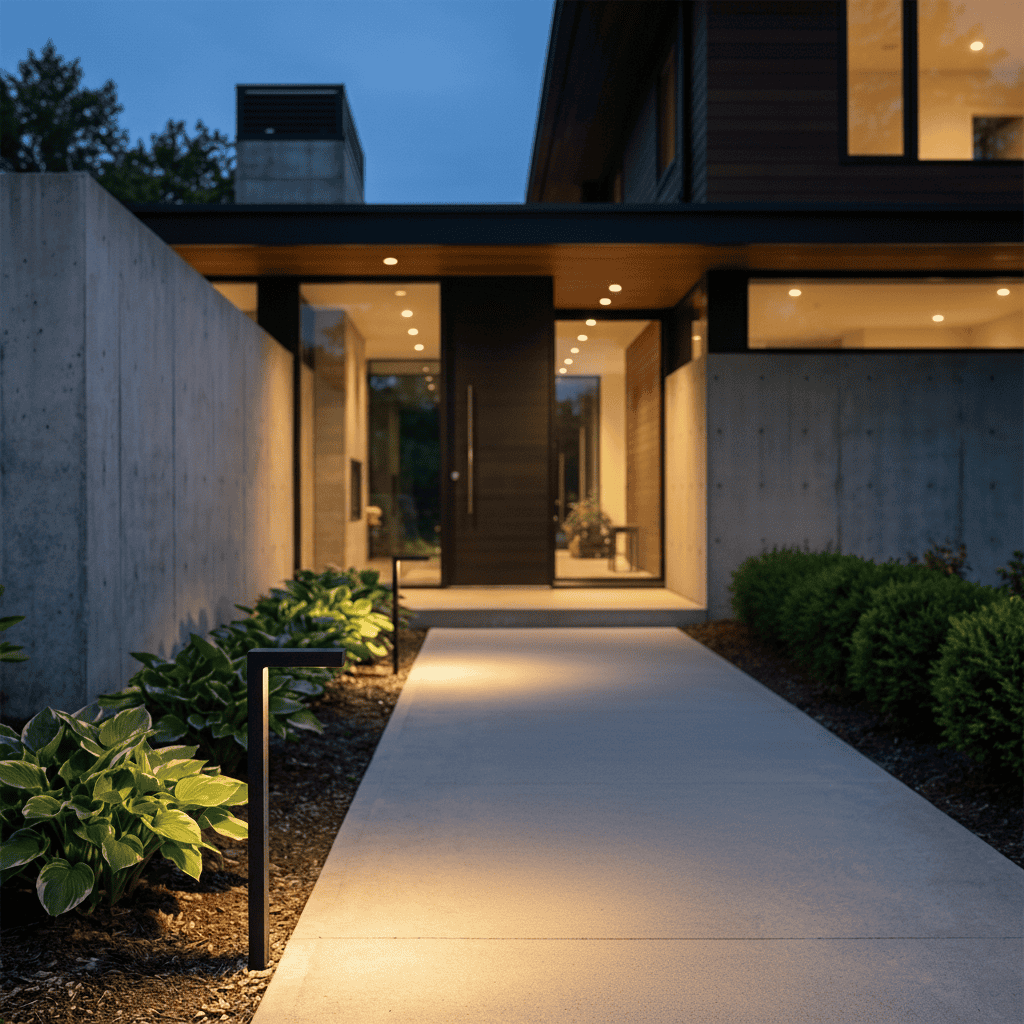

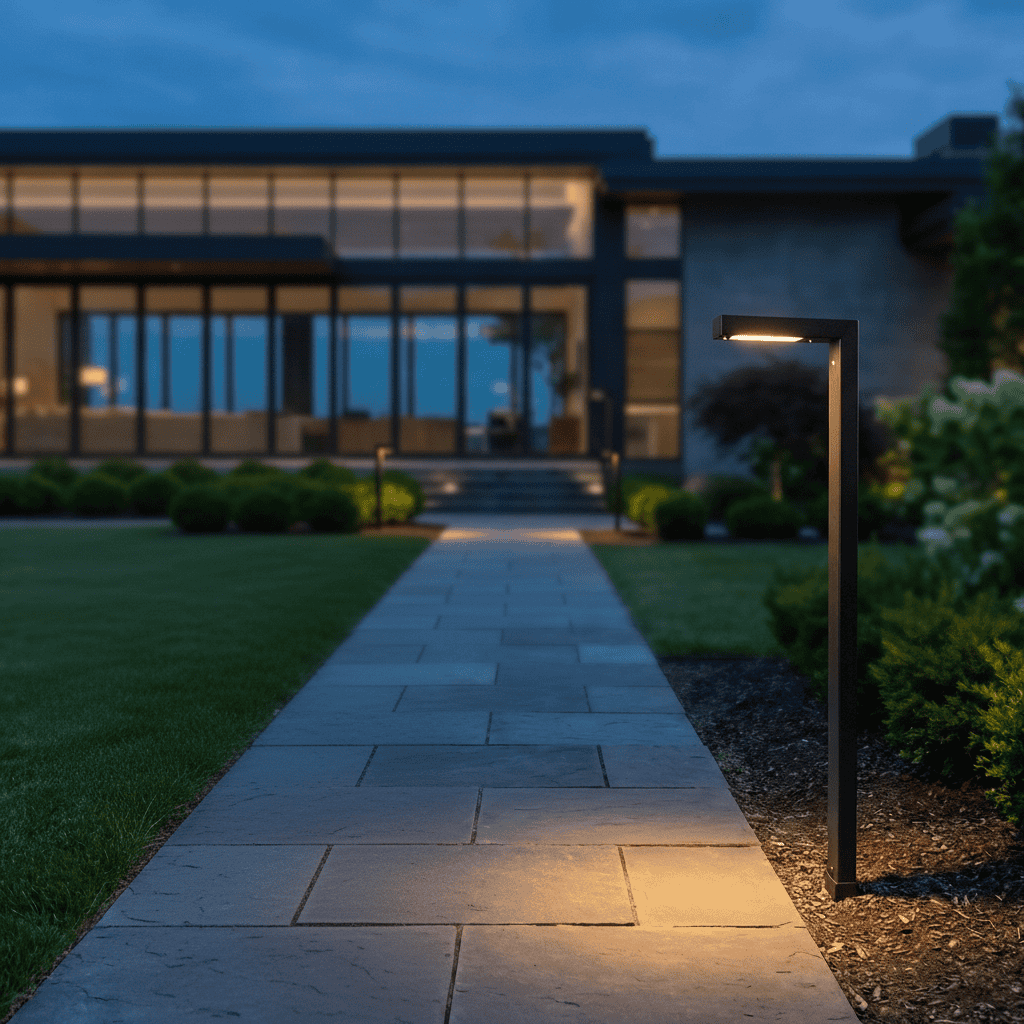

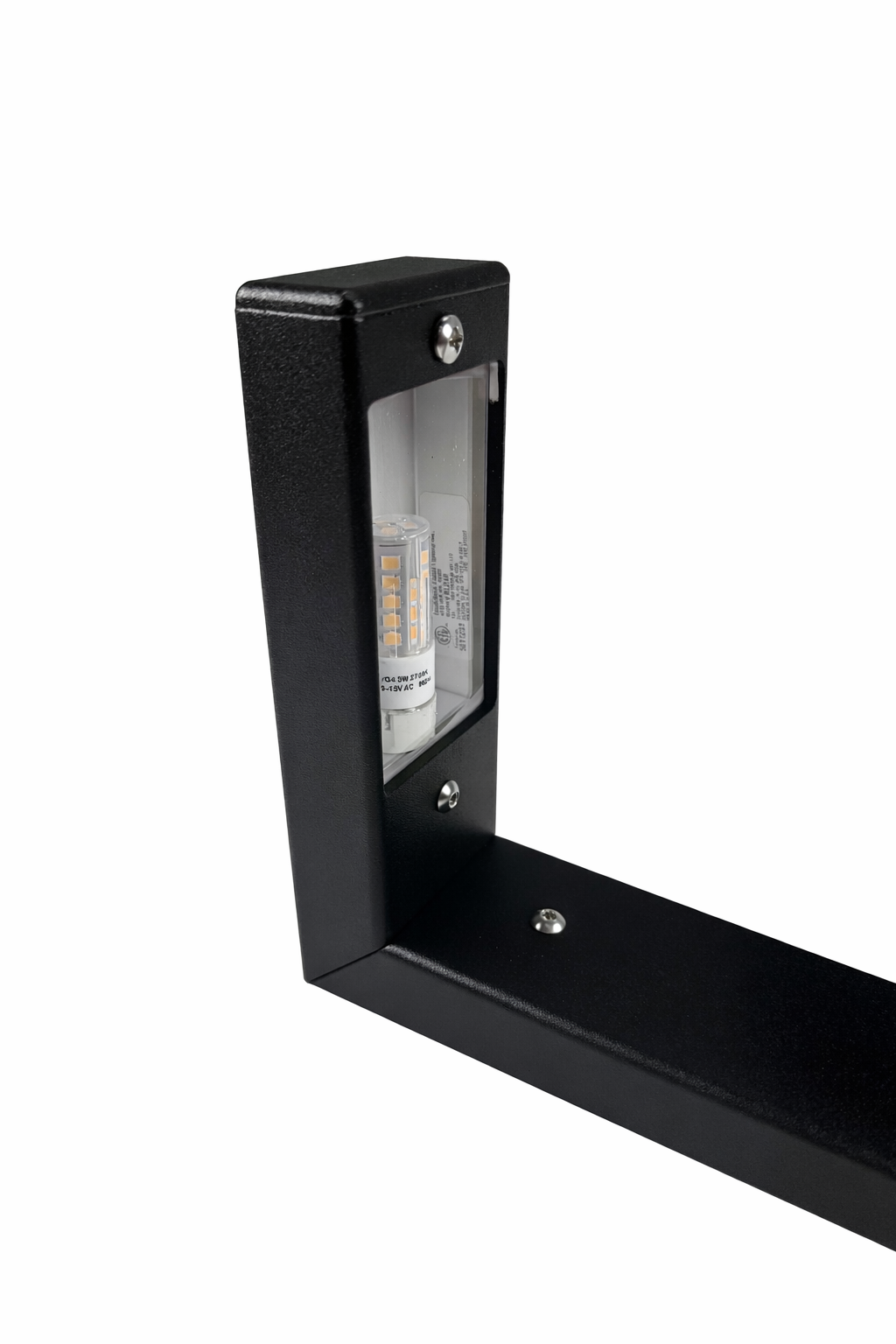

The Loo series is our contemporary L-shaped path light, engineered to deliver clean architectural light along walkways, driveways, gardens, and landscape edges. A sealed lens compartment with interchangeable G4 ceramic LED keeps the optic protected and serviceable, while 6063 aluminum housing, stainless-steel fasteners, aluminum end cap, coupler block and riser components, and an IP67 wet-location rating mean the fixture stands up to weather, irrigation, and high-traffic landscape installs.

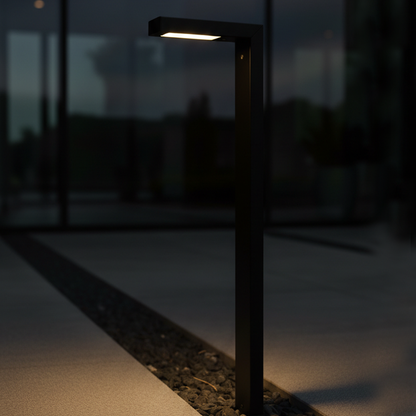

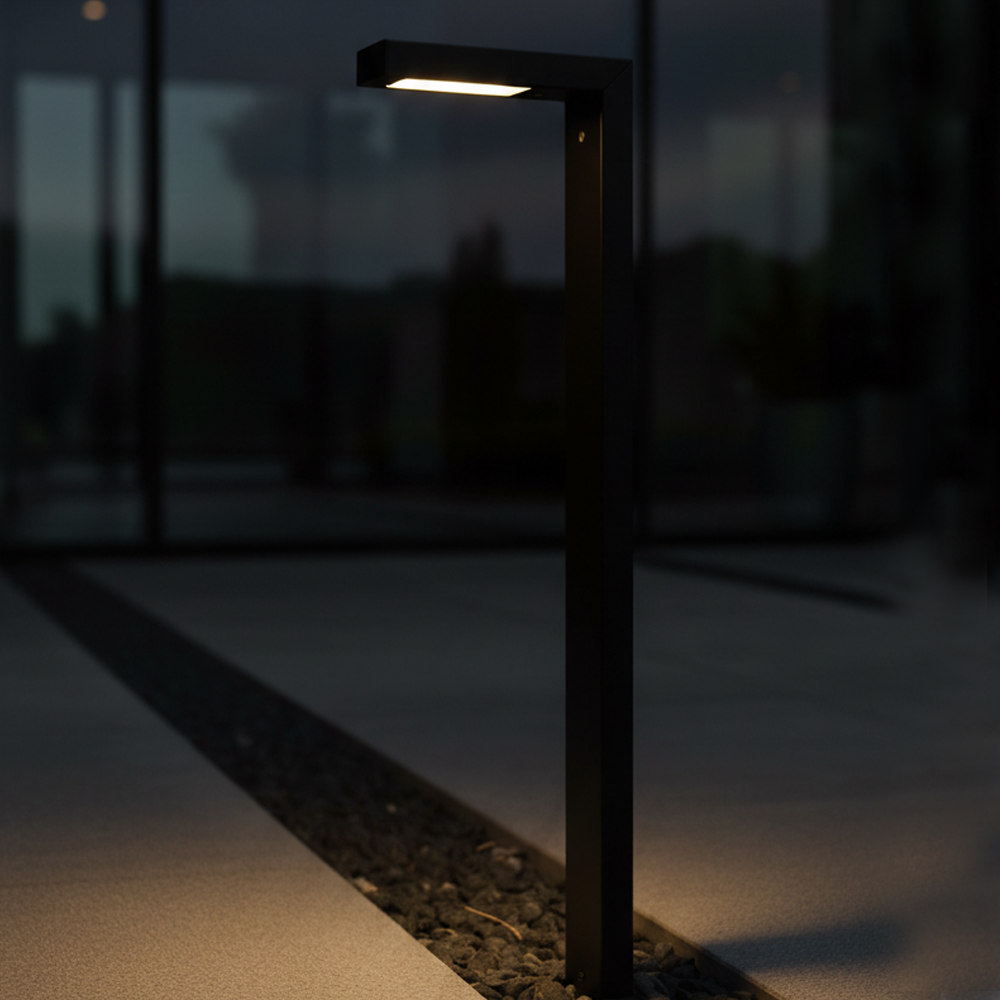

Each fixture casts a 16-ft diameter pool of light from a single 4W ceramic LED in 2700K warm or 4000K neutral white — enough coverage to space fixtures generously along a path without dark spots between them. Stake-mounted on Touchstone's 18" SuperStake for a stable, plumb install (consider the 12" SuperStake for high-traffic areas), and available in BlackTex or ArchBronze finishes.

Ideal applications:

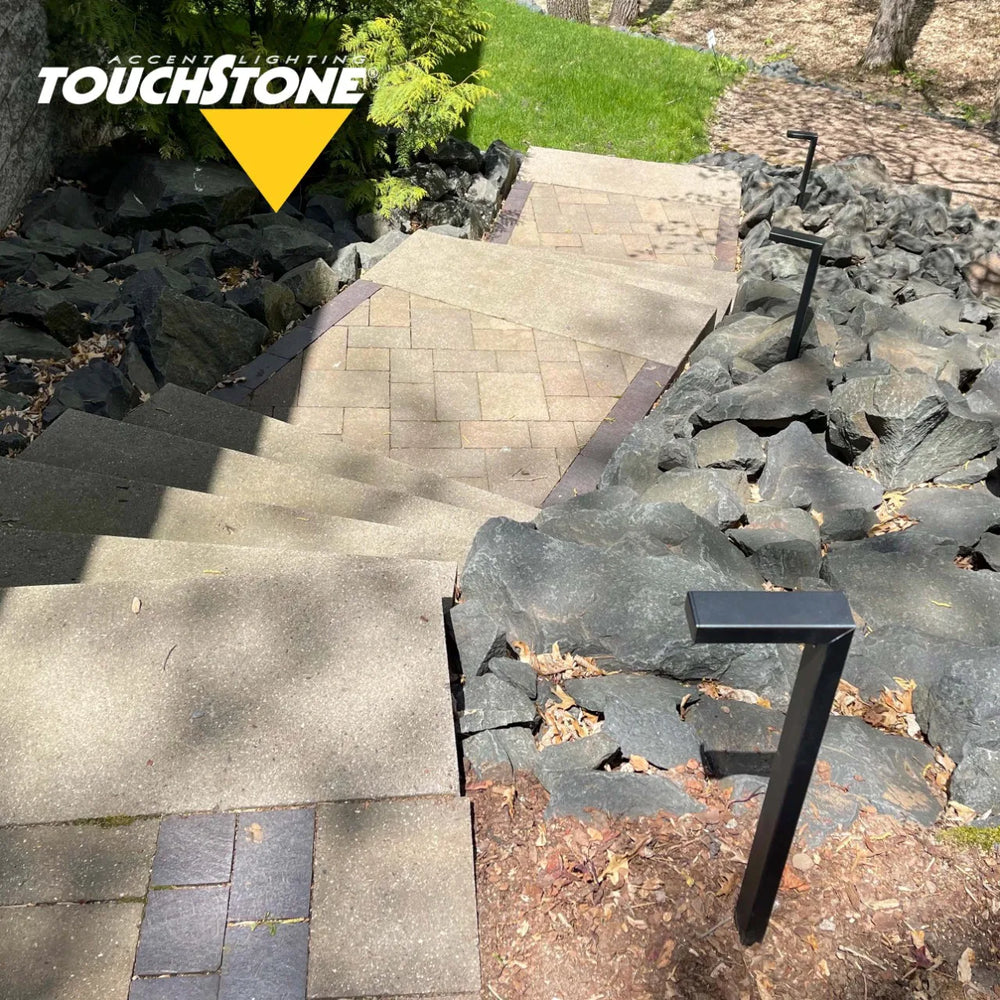

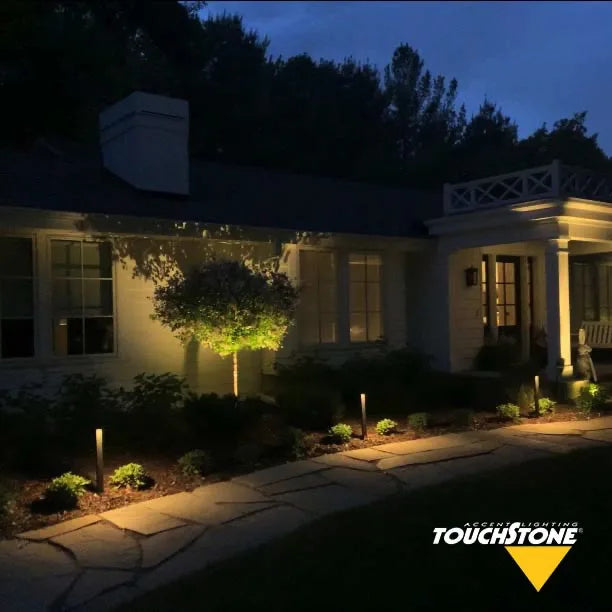

  • Walkway and pathway lighting
  • Landscape and garden edge accents
  • Driveway and motor-court borders

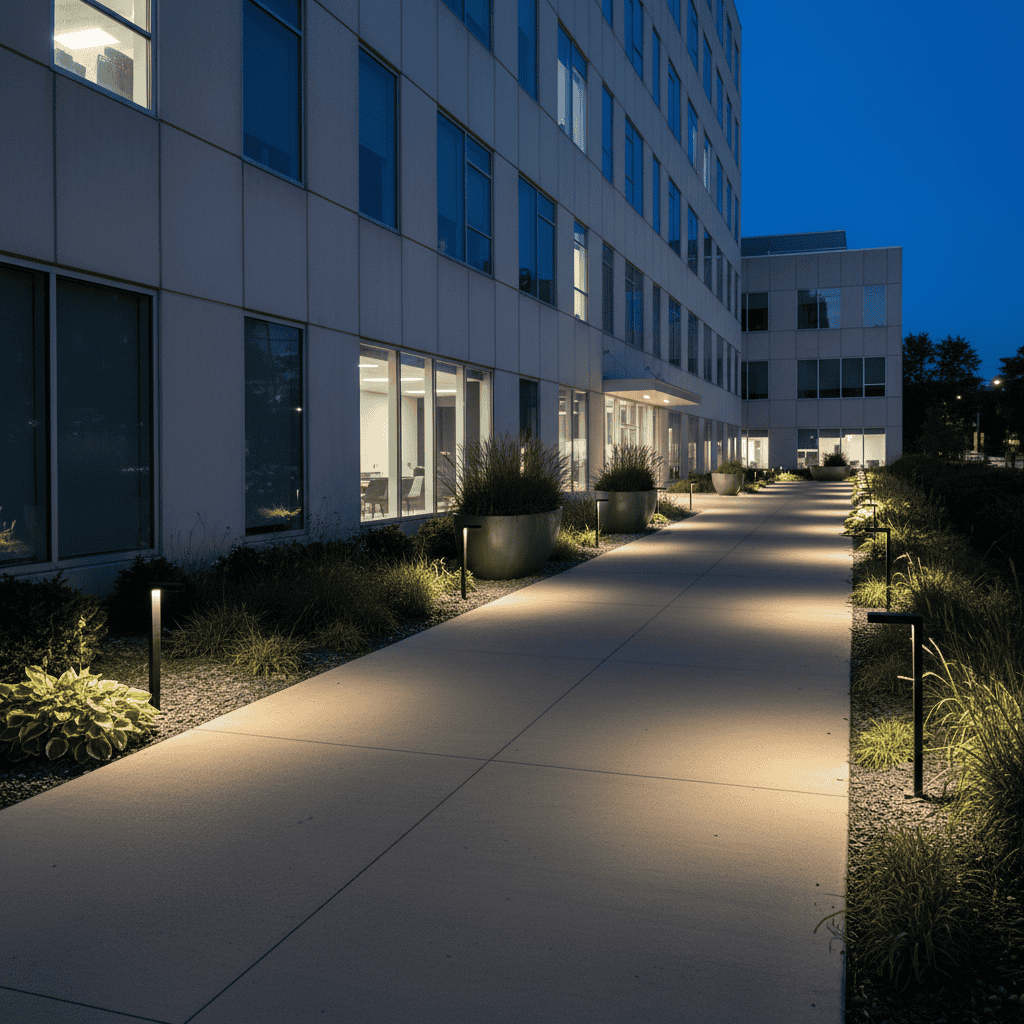

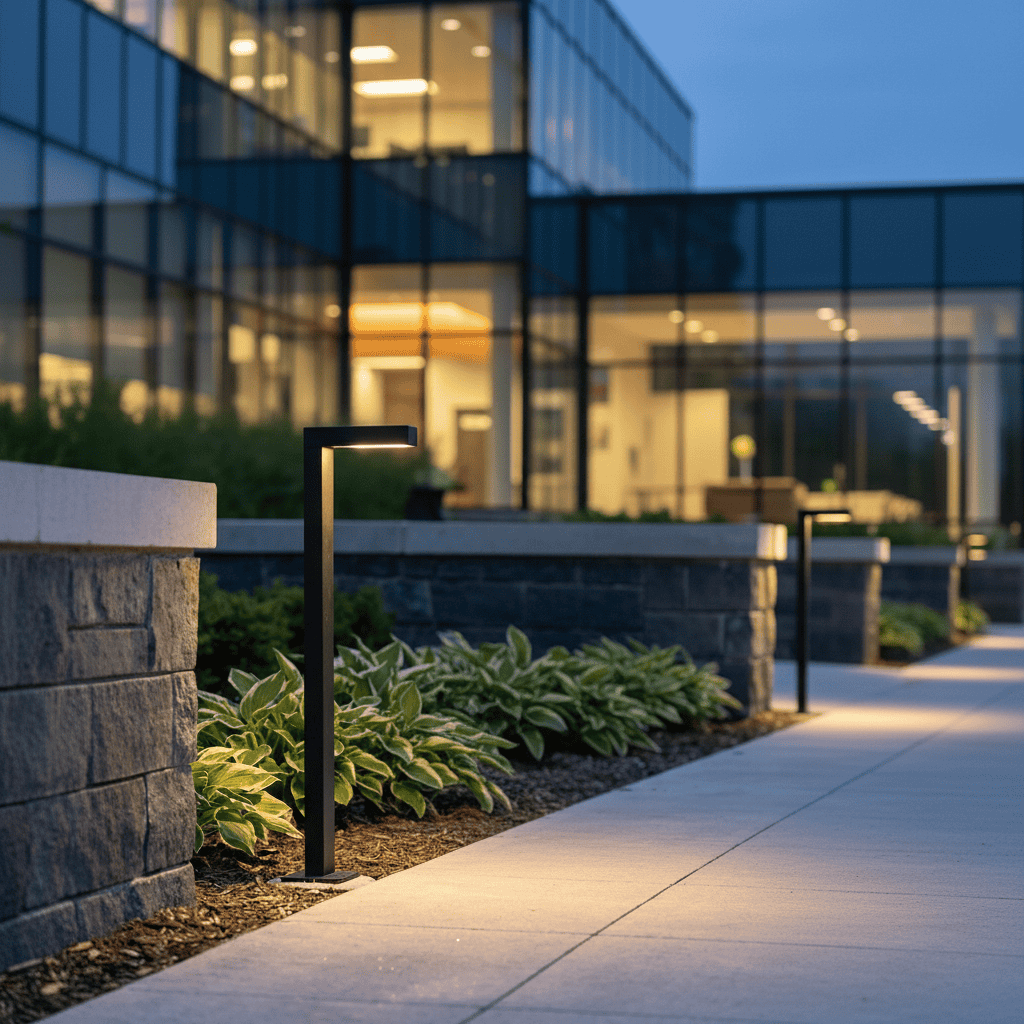

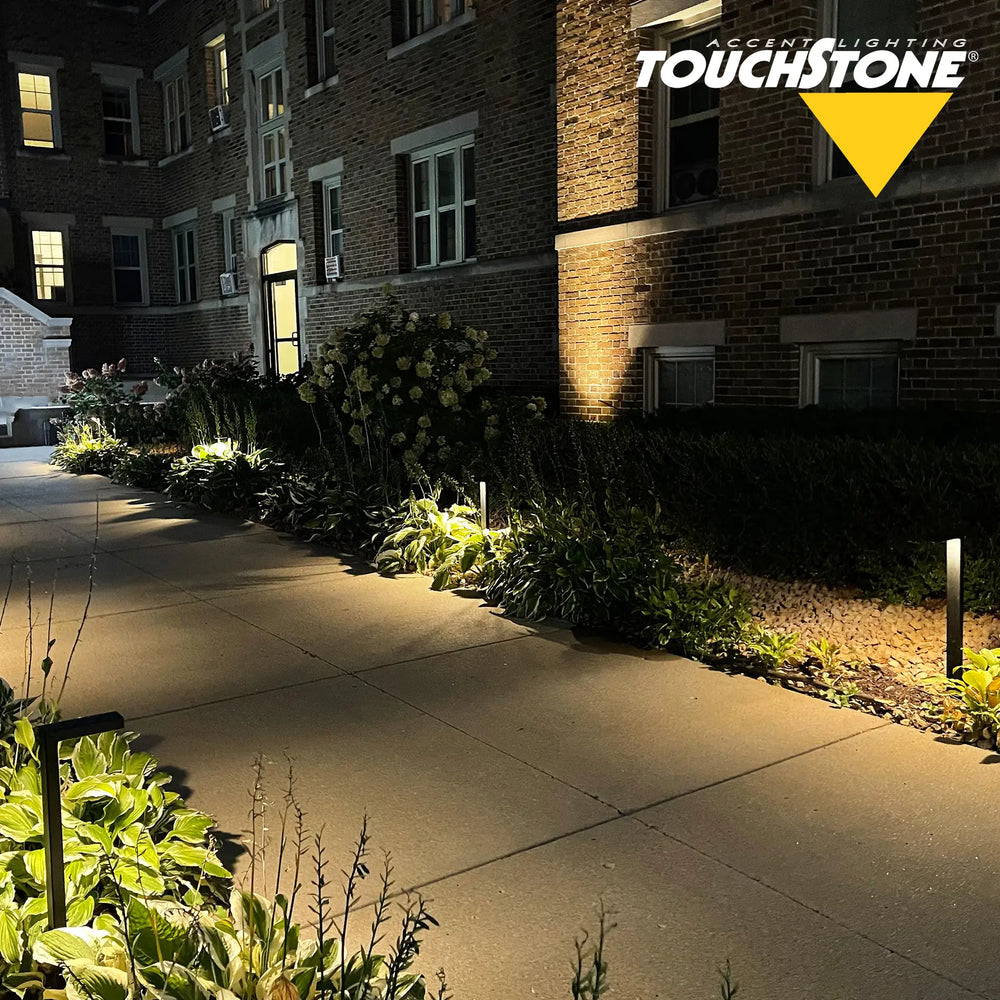

  • Commercial property and hospitality grounds
  • Architectural site lighting and entry approaches

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 4W
  • LED type: G4 ceramic, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin
  • Leads: 36", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 290–330 lm
  • CRI: 85
  • Efficacy: ~73–83 lm/W
  • Light pattern: 16 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: 6063 aluminum
  • Lens: Clear poly, sealed compartment

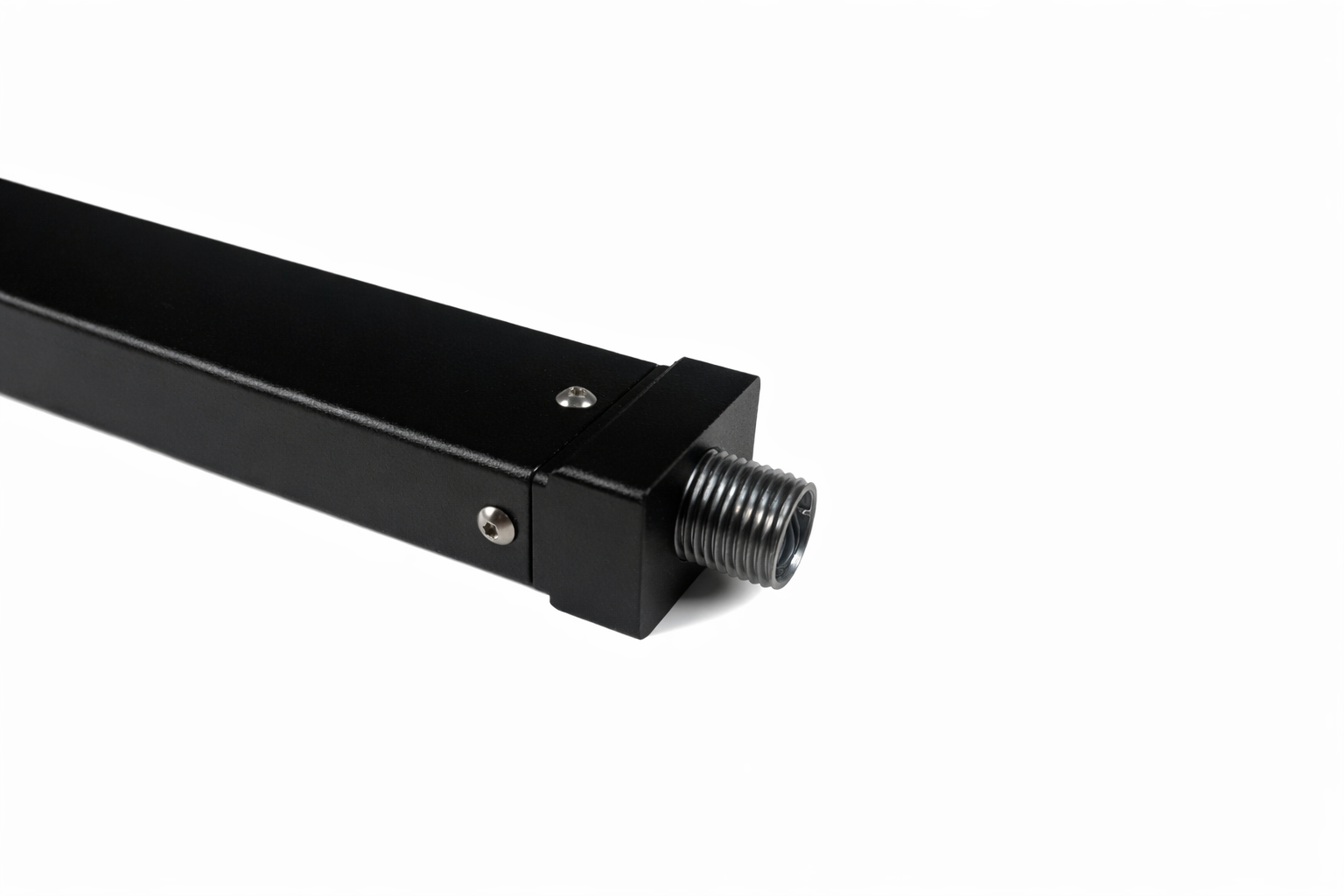

  • Hardware: Aluminum end cap, coupler block, and riser
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location

Mounting & dimensions

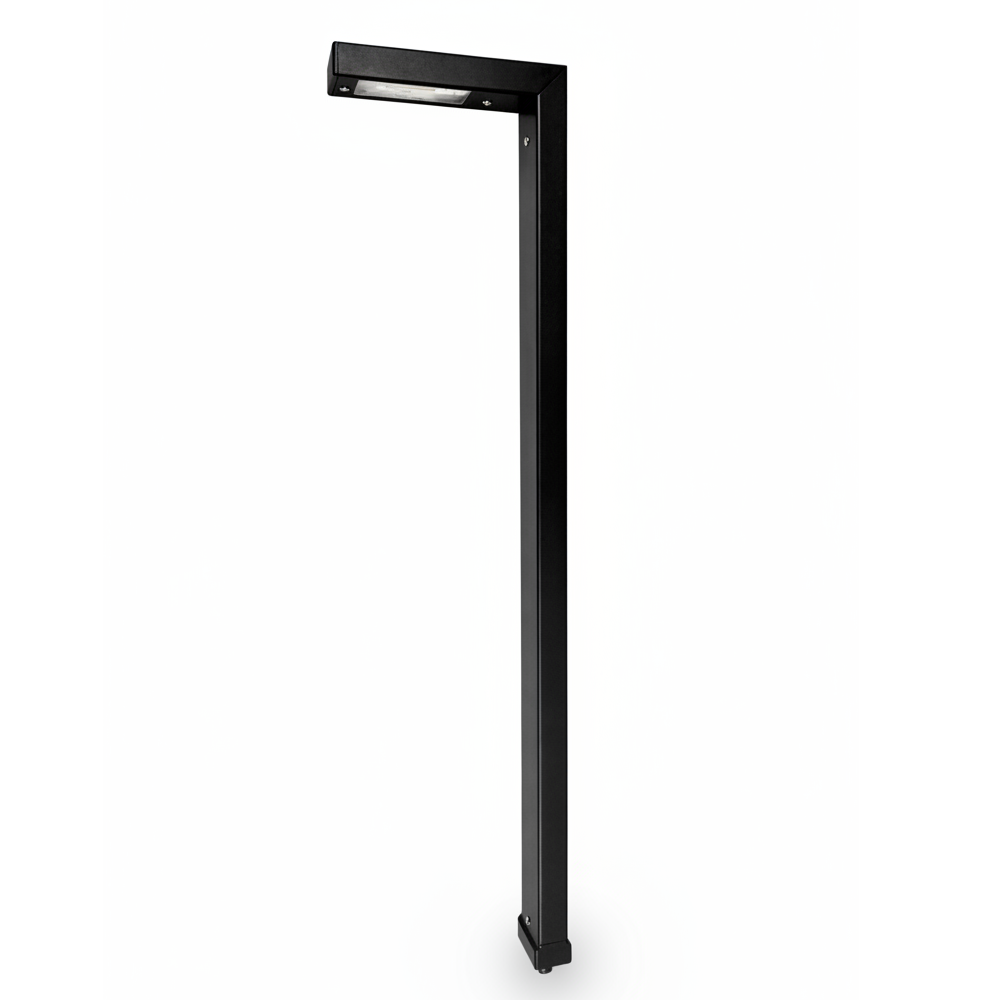

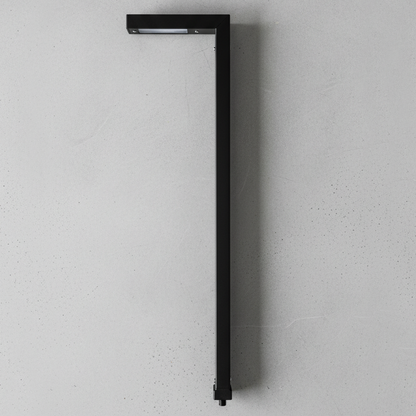

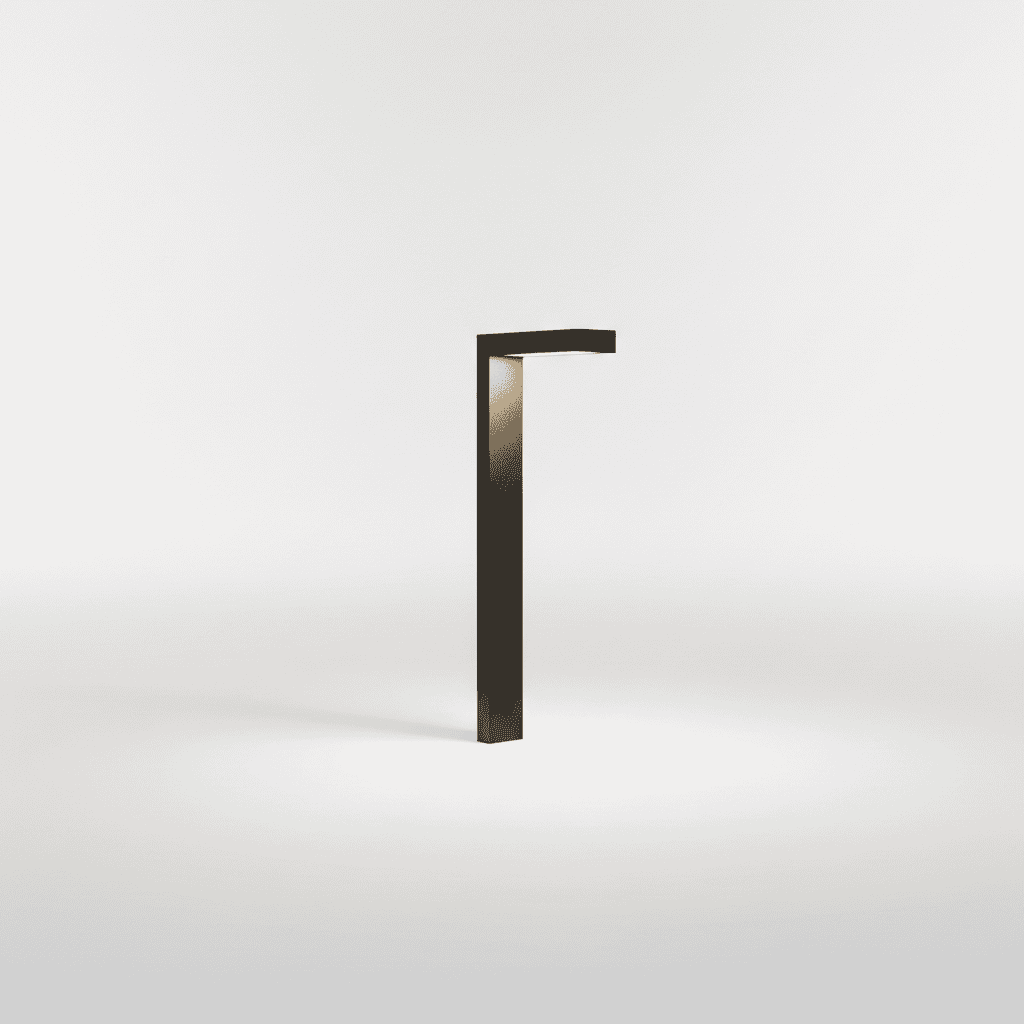

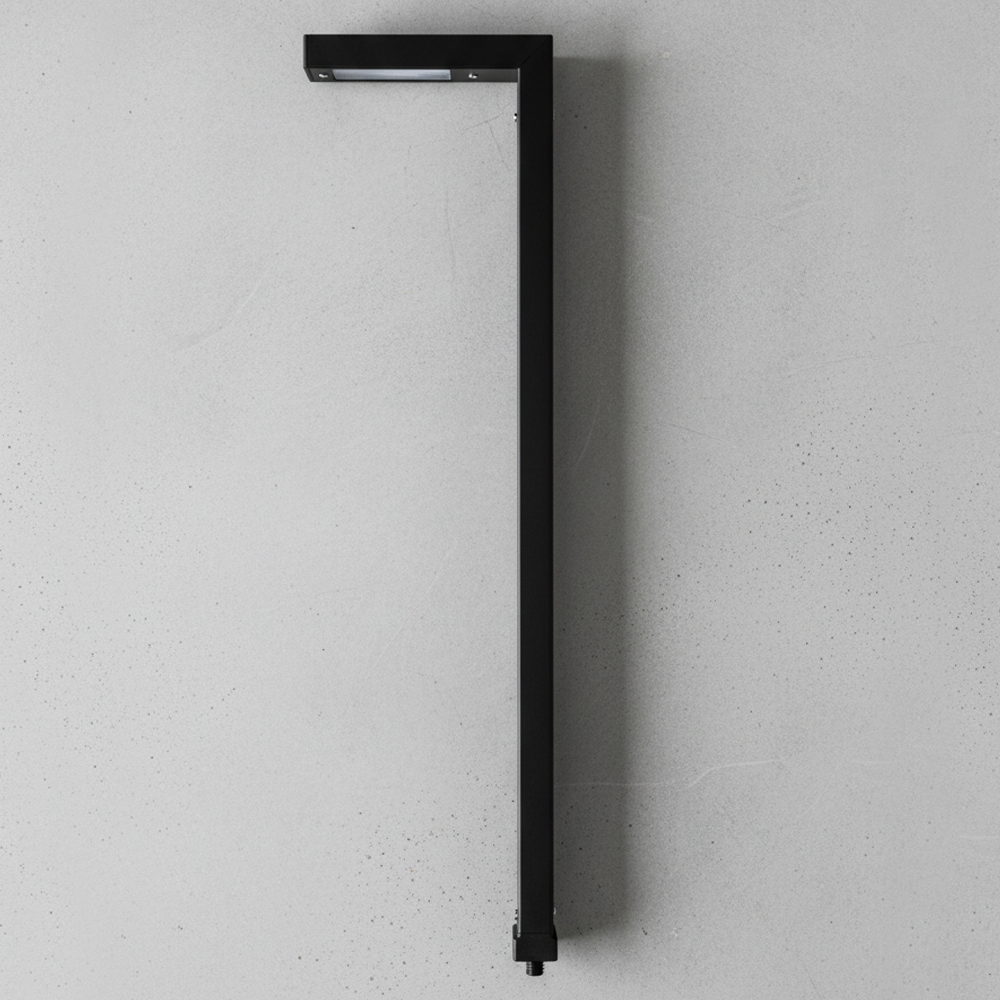

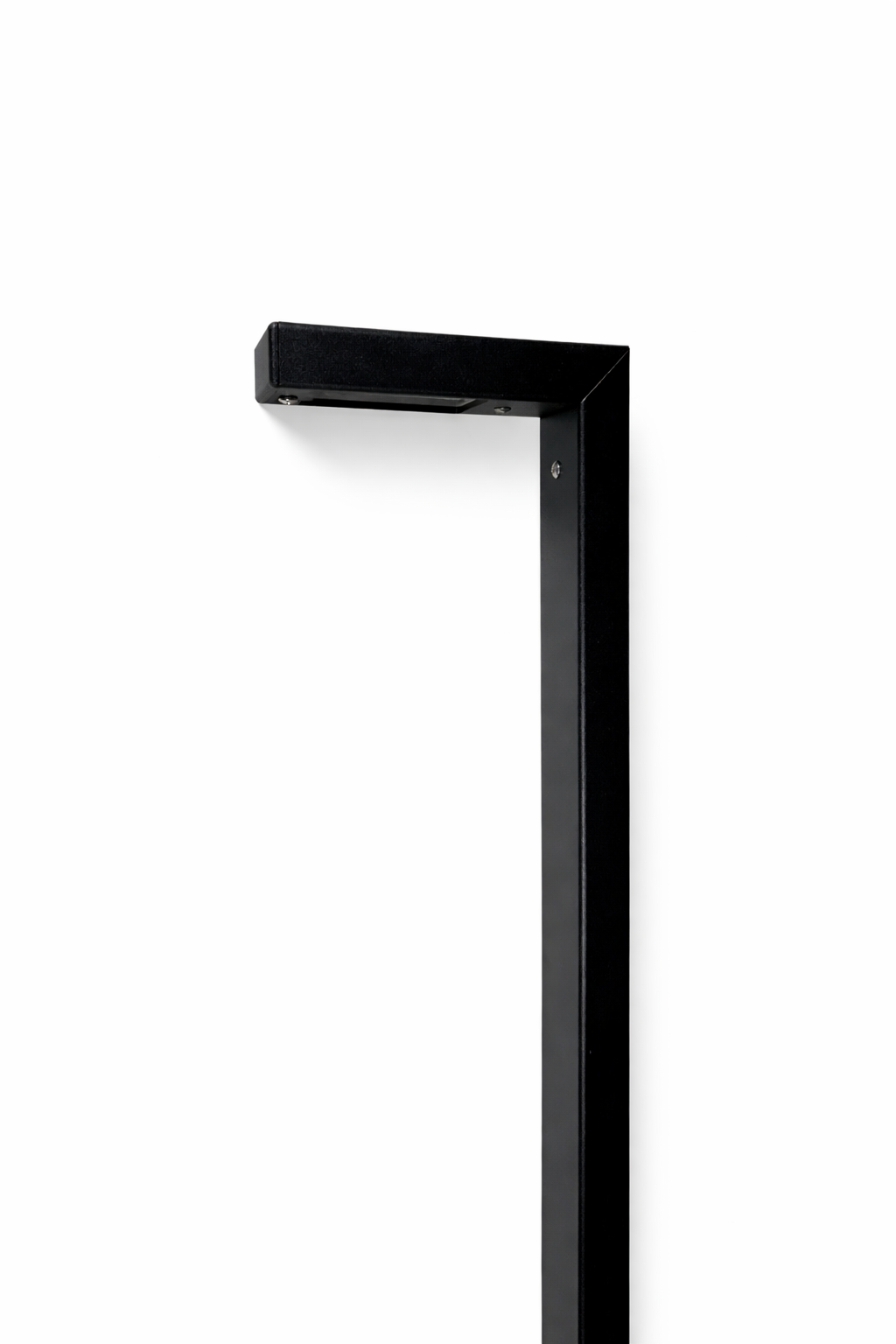

  • Form: L-shaped — 6" W arm × 2" W post × 24" tall
  • Mounting: 18" SuperStake (12" SuperStake recommended for high-traffic areas)
  • Accessories: SuperStake included

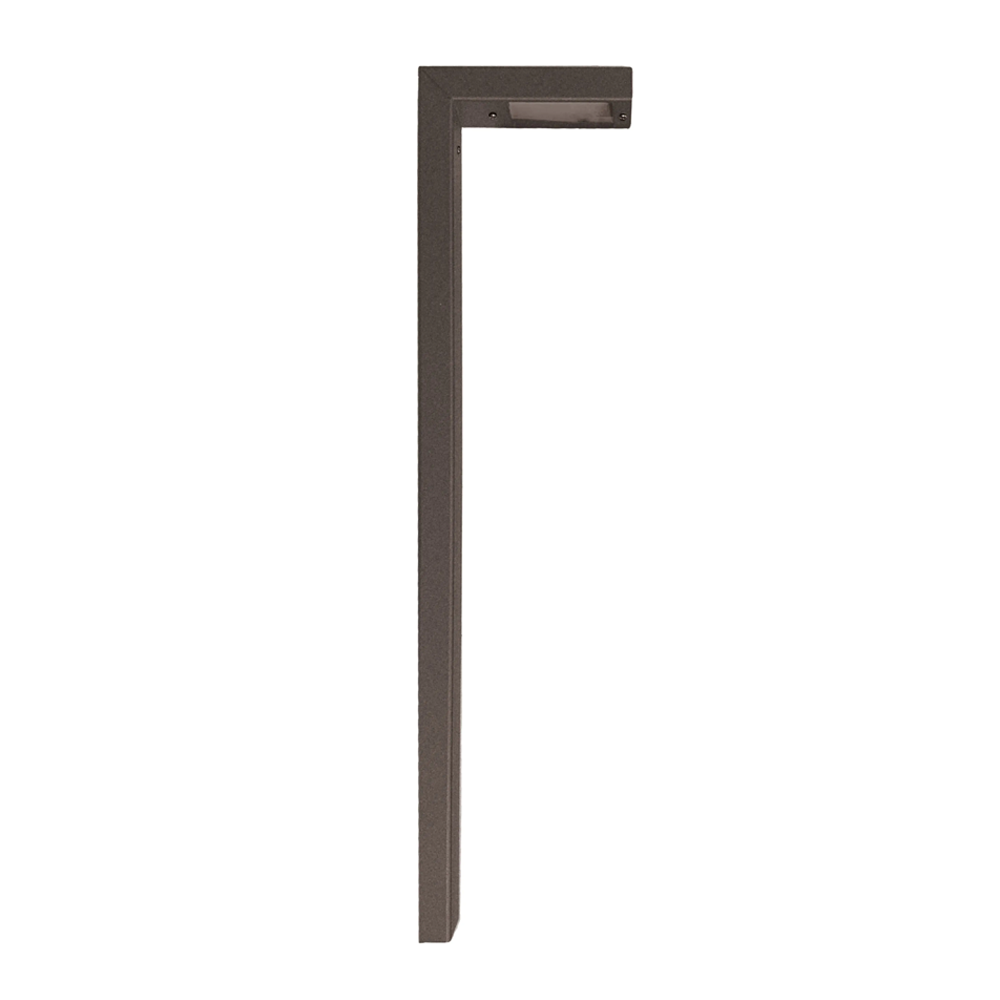

  • Finish options: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Contemporary path lighting, built to last

The Loo series is our contemporary L-shaped path light, engineered to deliver clean architectural light along walkways, driveways, gardens, and landscape edges. A sealed lens compartment with interchangeable G4 ceramic LED keeps the optic protected and serviceable, while 6063 aluminum housing, stainless-steel fasteners, aluminum end cap, coupler block and riser components, and an IP67 wet-location rating mean the fixture stands up to weather, irrigation, and high-traffic landscape installs.

Each fixture casts a 16-ft diameter pool of light from a single 4W ceramic LED in 2700K warm or 4000K neutral white — enough coverage to space fixtures generously along a path without dark spots between them. Stake-mounted on Touchstone's 18" SuperStake for a stable, plumb install (consider the 12" SuperStake for high-traffic areas), and available in BlackTex or ArchBronze finishes.

Ideal applications:

  • Walkway and pathway lighting
  • Landscape and garden edge accents
  • Driveway and motor-court borders
  • Commercial property and hospitality grounds
  • Architectural site lighting and entry approaches

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 4W
  • LED type: G4 ceramic, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin
  • Leads: 36", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 290–330 lm
  • CRI: 85
  • Efficacy: ~73–83 lm/W
  • Light pattern: 16 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: 6063 aluminum
  • Lens: Clear poly, sealed compartment
  • Hardware: Aluminum end cap, coupler block, and riser
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location

Mounting & dimensions

  • Form: L-shaped — 6" W arm × 2" W post × 24" tall
  • Mounting: 18" SuperStake (12" SuperStake recommended for high-traffic areas)
  • Accessories: SuperStake included
  • Finish options: BlackTex or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details

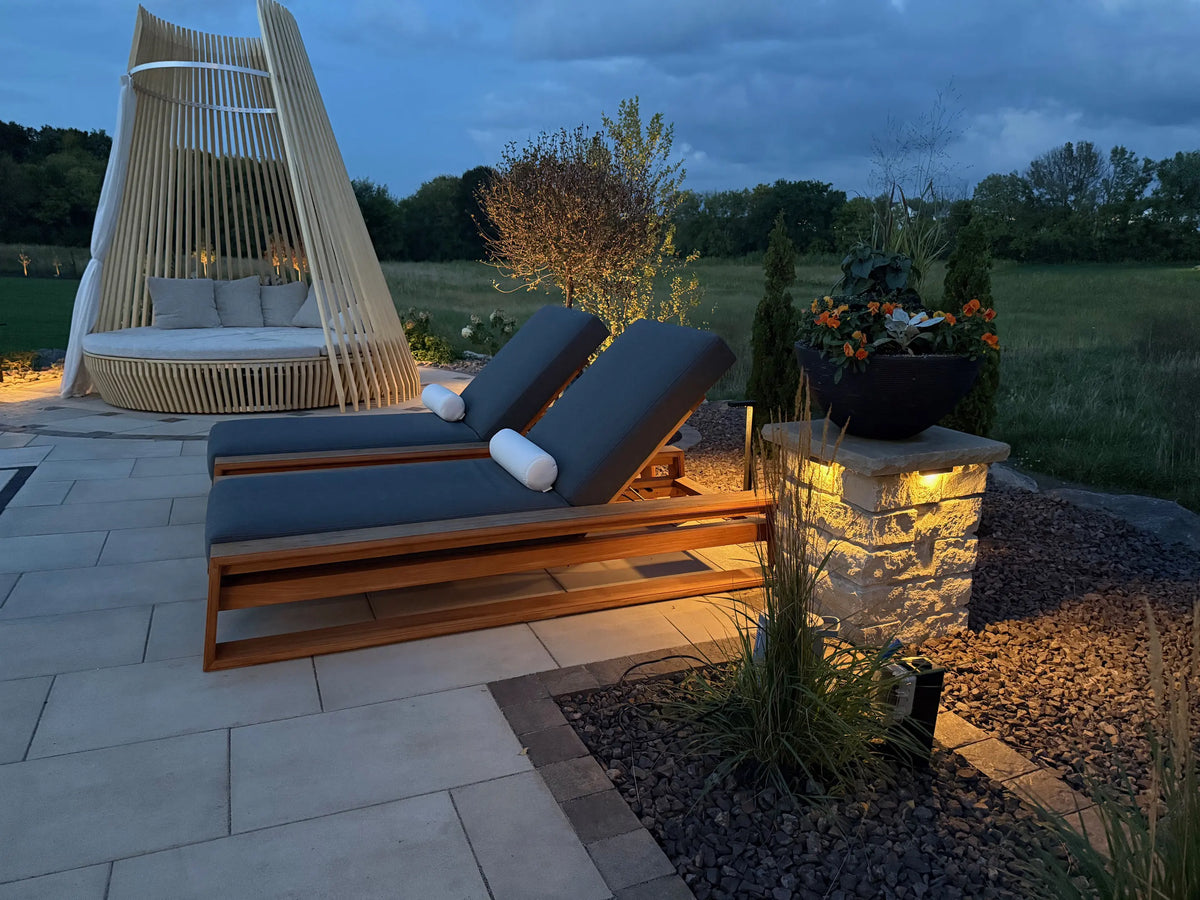

Engineered to light the way.
