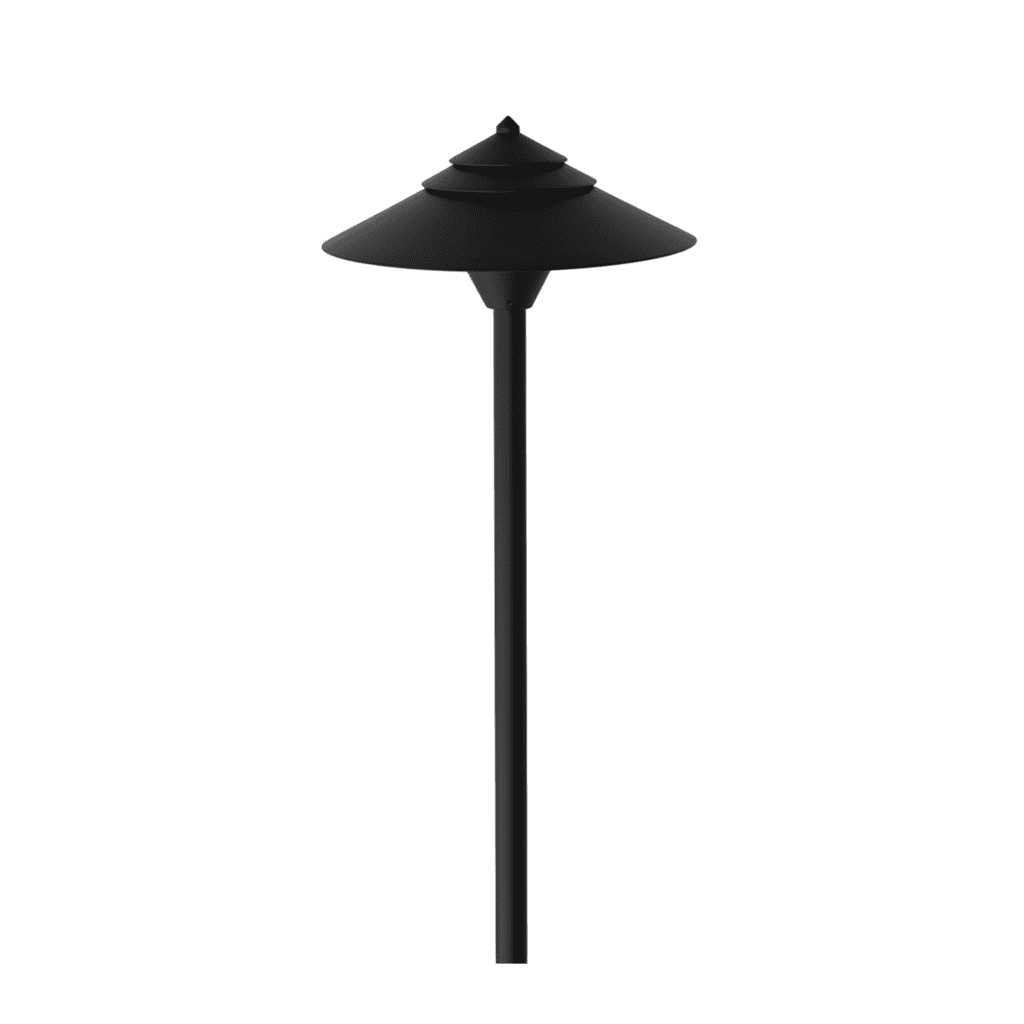

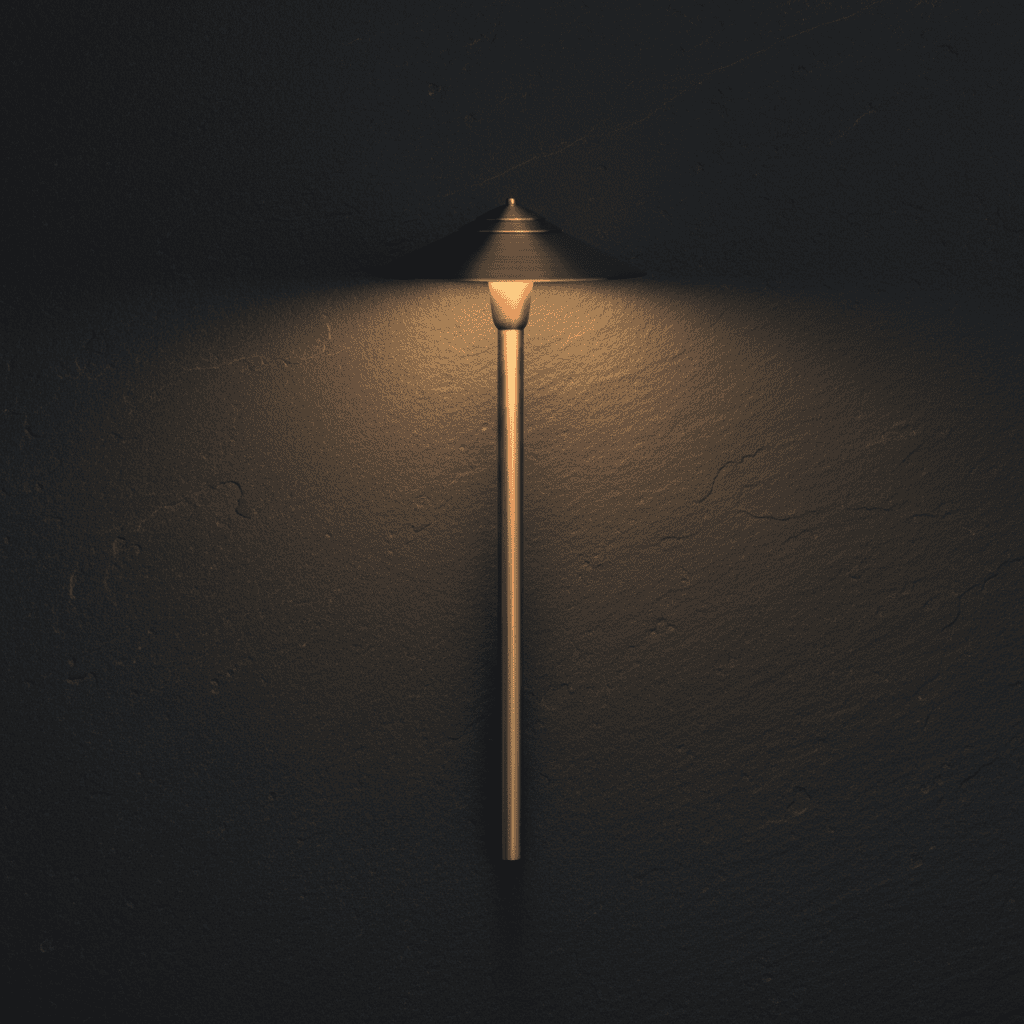

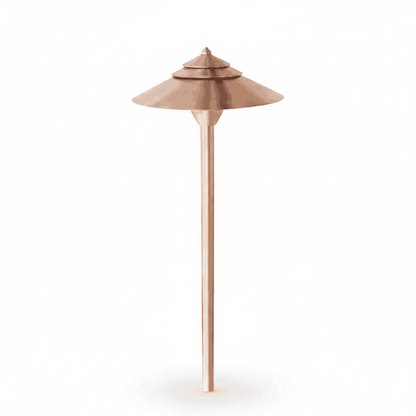

Maxwell Heavy Duty 11 Commercial Series

Maxwell Heavy Duty 11 Commercial Series

Designed for larger landscape and garden areas. The heavy-duty Maxwell 11 features a beefy 1 1/4 inch riser stem with an 11 inch diameter hood.

Retail Pricing $200.00
Color: ArchBronze
Color Temperature
Quantity

Part Number: CGCM11125-AR2700

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Heavy-duty commercial pathlight, sized for the landscape

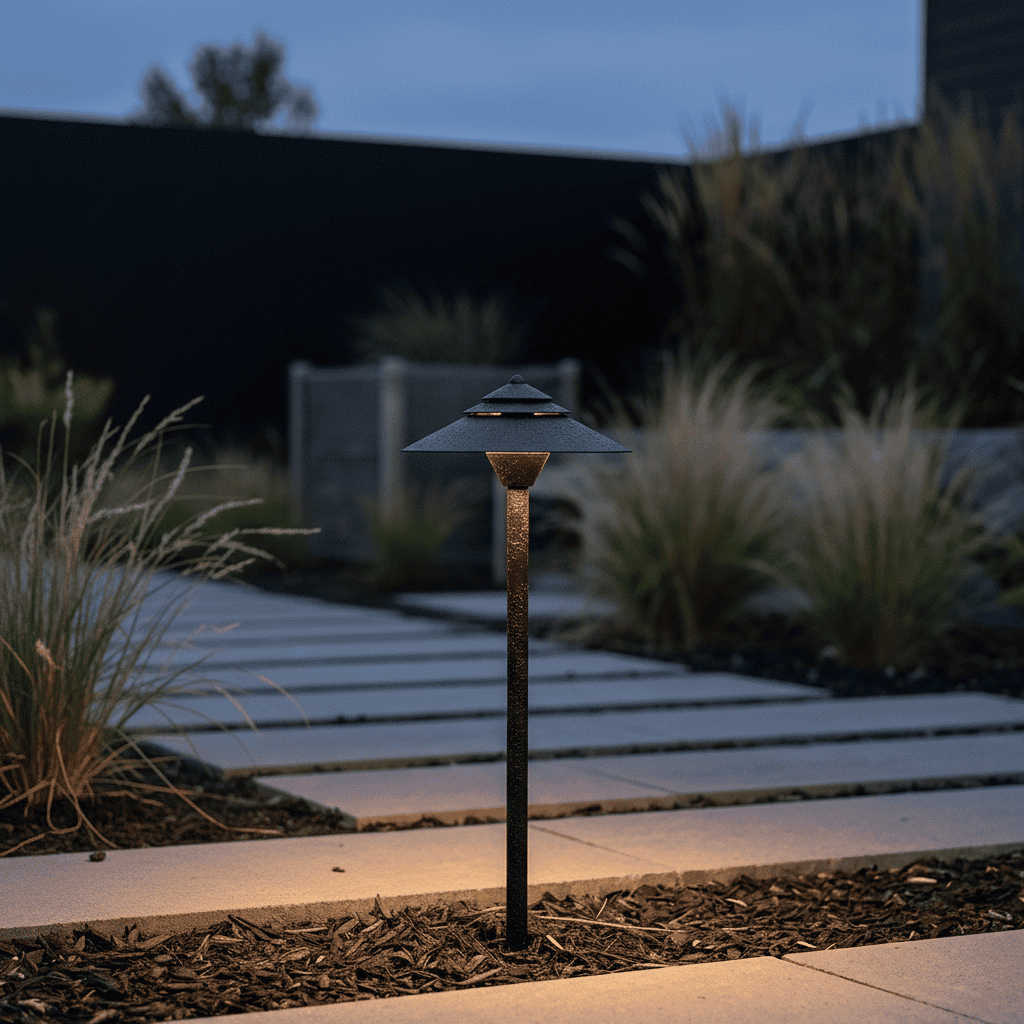

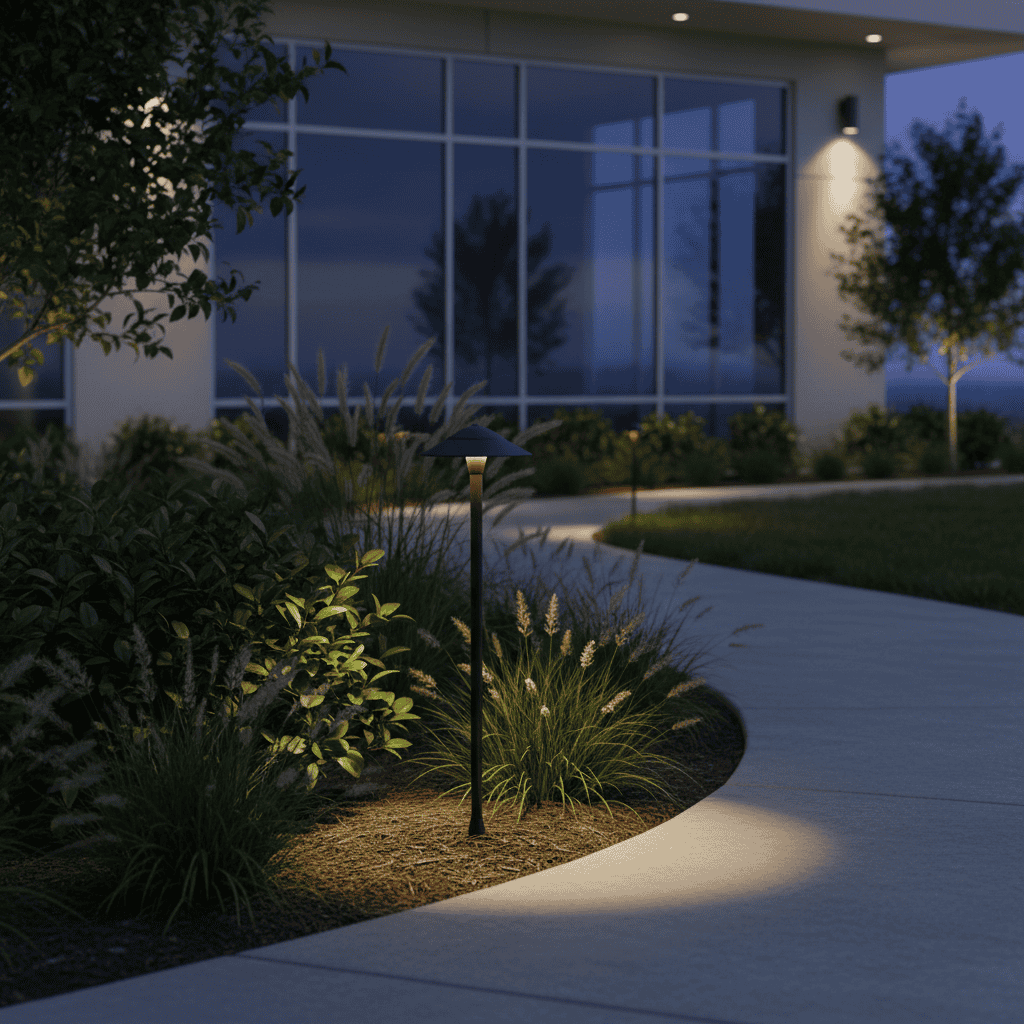

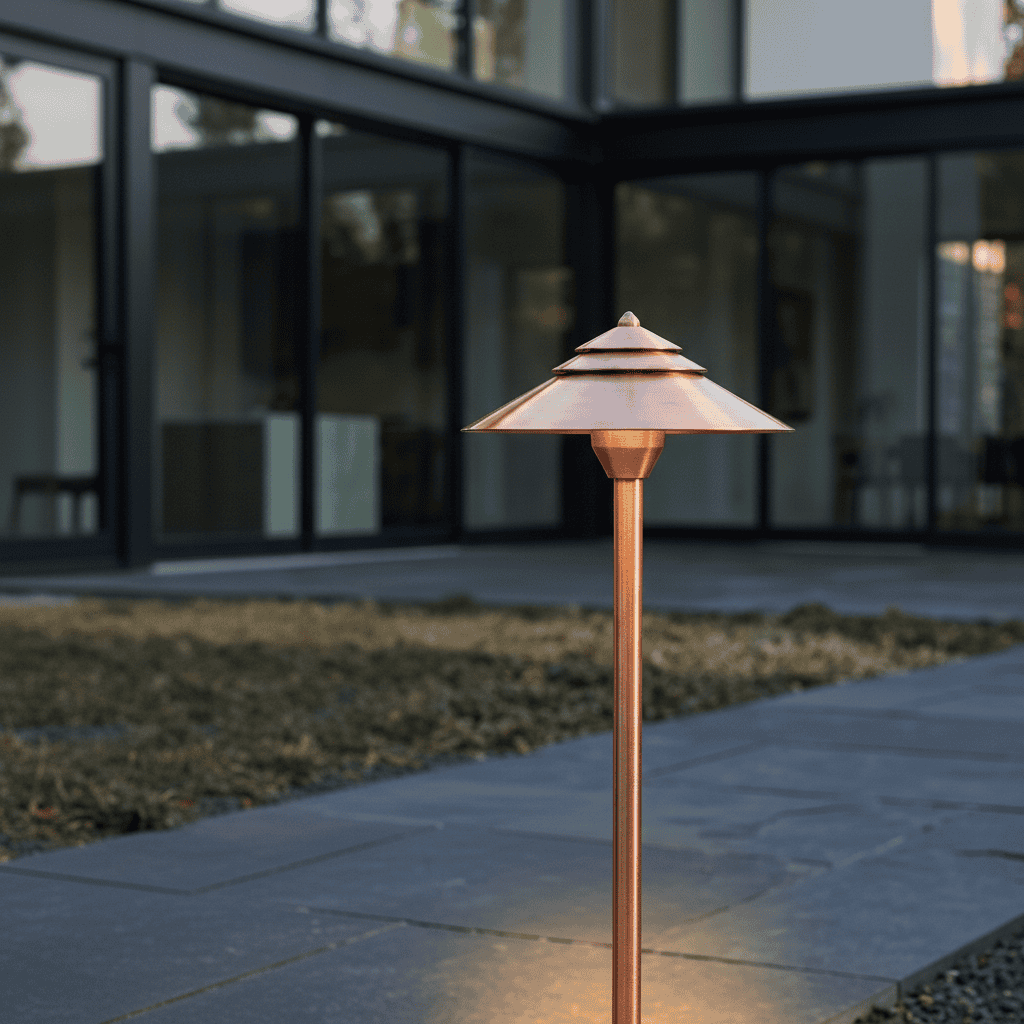

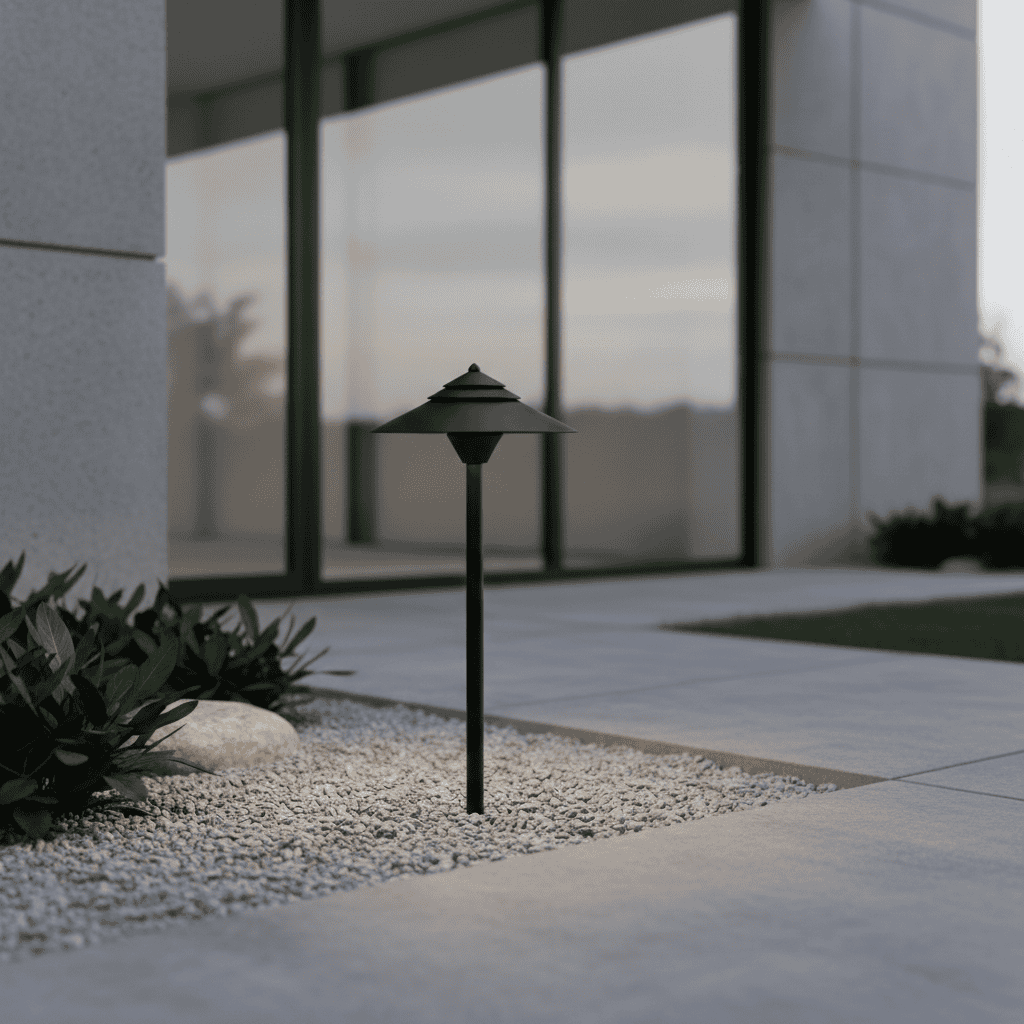

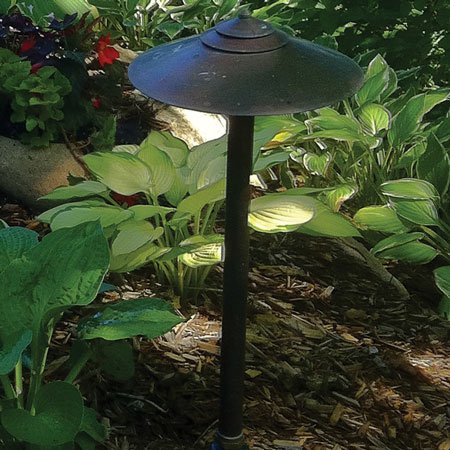

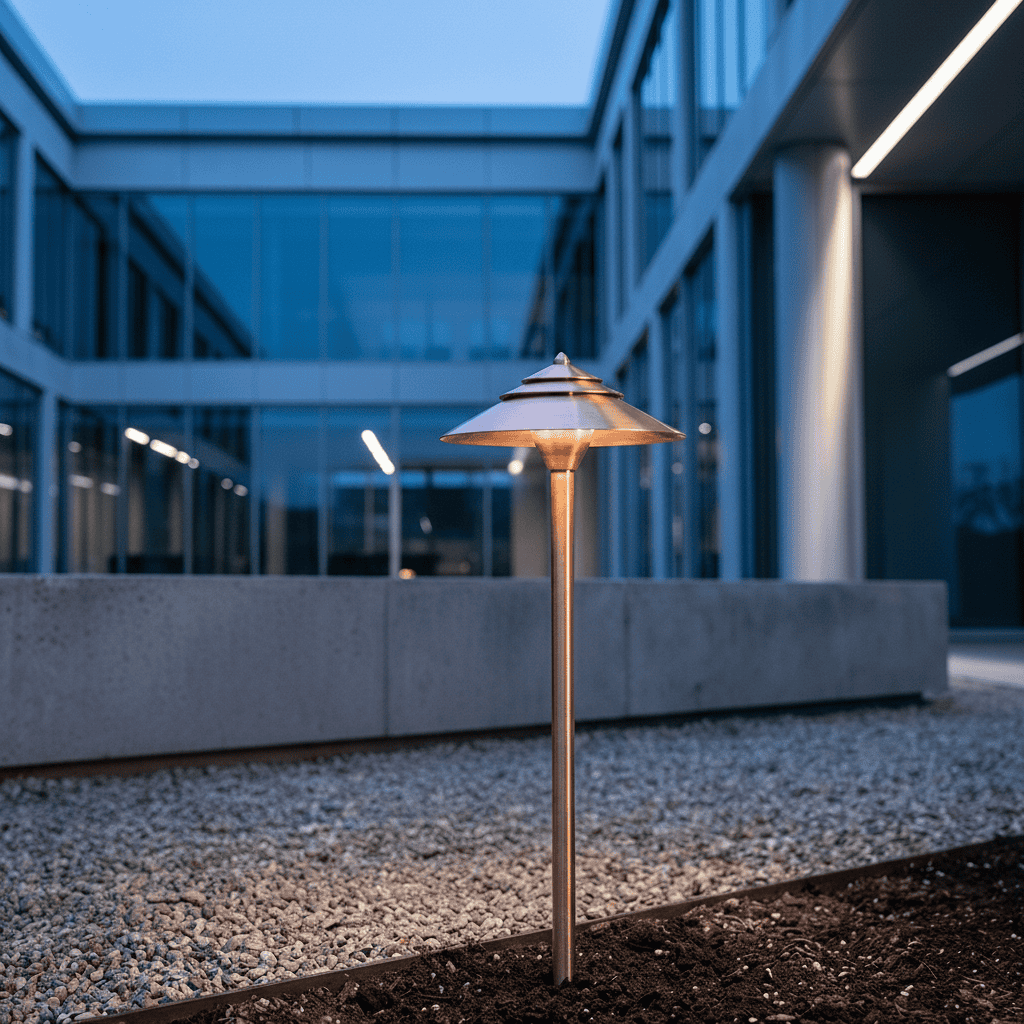

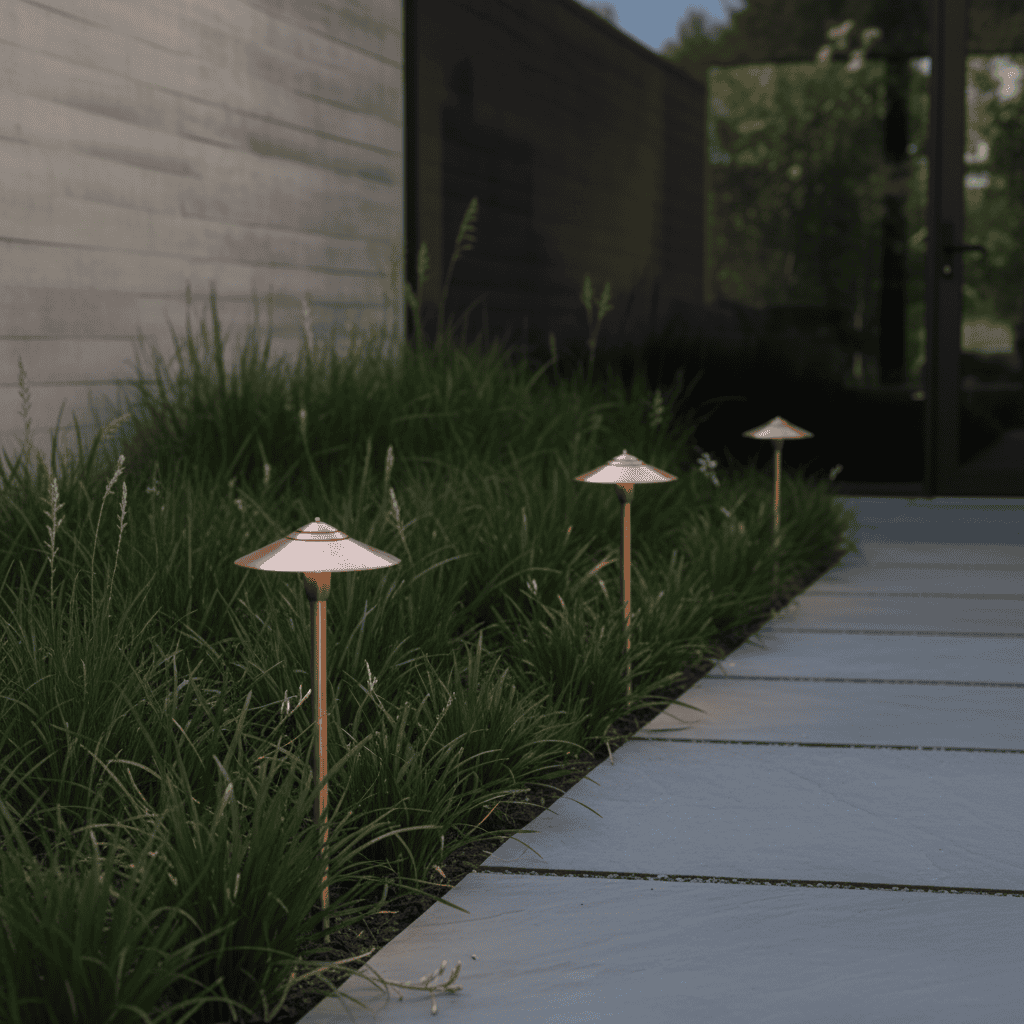

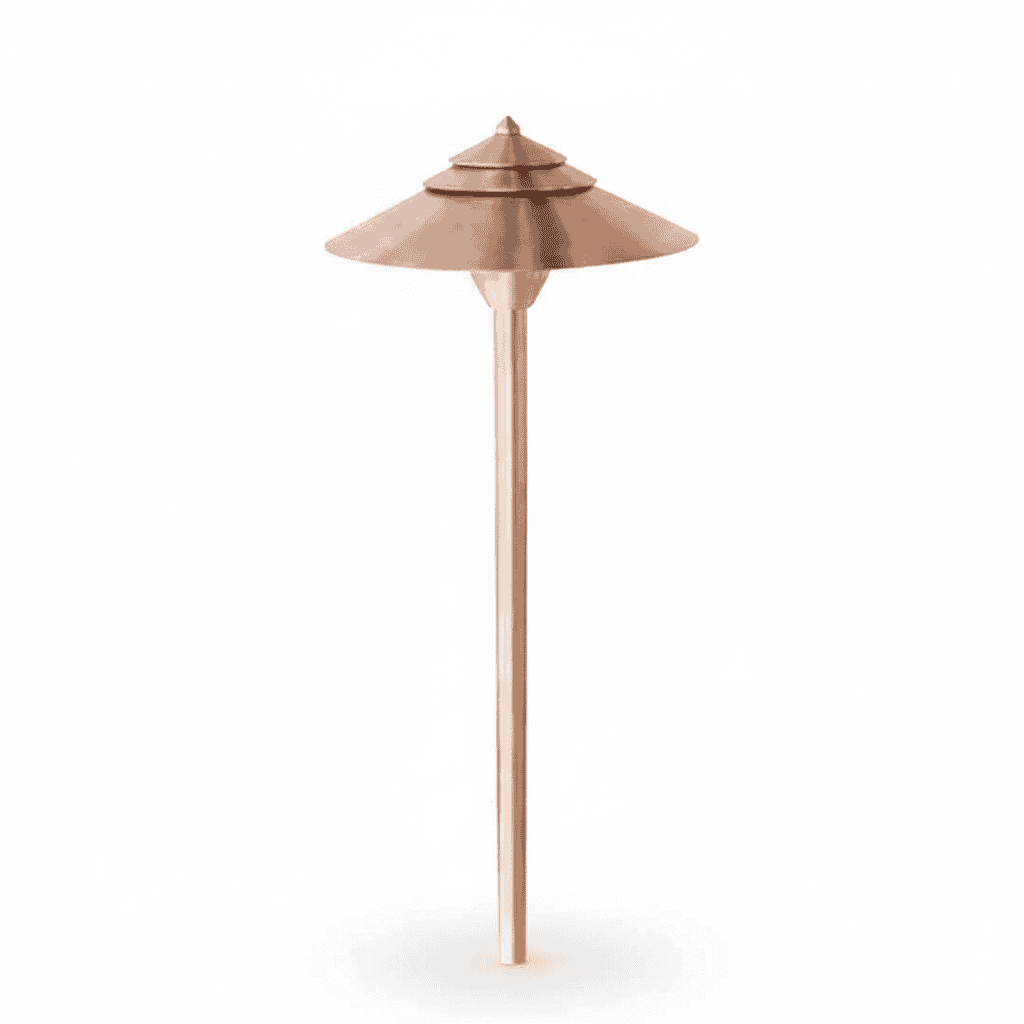

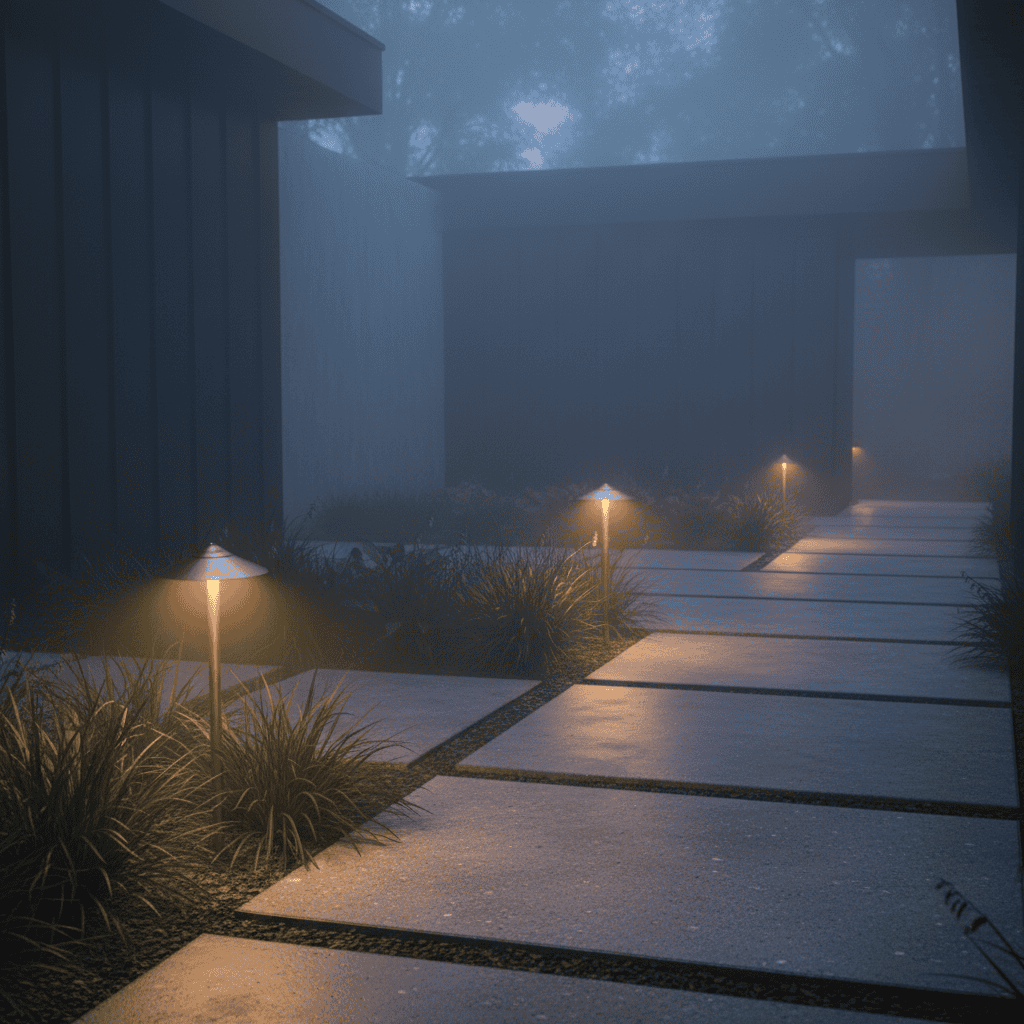

The Maxwell 11 is our heavy-duty commercial path light — designed for larger landscapes, gardens, walkways, and driveways where standard path fixtures get spaced too thin. The classic pagoda-style hood spans a full 11" in diameter, set on a beefy 1-1/4" riser stem that holds steady through wind, irrigation, and seasonal frost heave. A simple, elegant design shape that reads timeless against any architectural style.

Each fixture casts up to a 22-ft diameter pool of light from a single 4W G4 ceramic LED in 2700K warm or 4000K neutral white — letting specifiers space fixtures generously along long runs without dark spots between them. A copper hood with powder-coat finish, 6063 aluminum riser boot and yoke, stainless-steel finial and fasteners, GX5.3 porcelain lamp socket, and IP66 wet-location rating keep it sealed, plumb, and lit through everything the season throws at it. Tool-less hood removal makes lamp swaps straightforward, and the riser can be custom-cut on-site to dial in the right height. Available in raw copper, BlackTex, or ArchBronze.

Ideal applications:

  • Commercial walkway and pathway lighting
  • Large landscape and garden installations
  • Driveway and motor-court accent lighting
  • Hospitality grounds and resort properties
  • Estate and architectural site lighting

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 4W
  • LED type: G4 ceramic, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 24", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 290–330 lm
  • CRI: 85
  • Efficacy: ~73–83 lm/W
  • Light pattern: Up to 22 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

  • Hood: 11" diameter copper hood with powder-coat finish
  • Riser boot & yoke: 6063 aluminum
  • Finial & fasteners: Stainless steel
  • Hardware: Accepts 1/2" NPT
  • IP rating: IP66, wet-location
  • Certification: ETL

Mounting & dimensions

  • Hood diameter: 11"
  • Riser stem: 1-1/4" diameter × 30" tall (custom-cut to any height on-site)
  • Mounting: 18" SuperStake
  • Service: Tool-less hood removal
  • Accessories: SuperStake included
  • Finish options: Raw copper, BlackTex, or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 3 years
  • Origin: Made in USA

Heavy-duty commercial pathlight, sized for the landscape

The Maxwell 11 is our heavy-duty commercial path light — designed for larger landscapes, gardens, walkways, and driveways where standard path fixtures get spaced too thin. The classic pagoda-style hood spans a full 11" in diameter, set on a beefy 1-1/4" riser stem that holds steady through wind, irrigation, and seasonal frost heave. A simple, elegant design shape that reads timeless against any architectural style.

Each fixture casts up to a 22-ft diameter pool of light from a single 4W G4 ceramic LED in 2700K warm or 4000K neutral white — letting specifiers space fixtures generously along long runs without dark spots between them. A copper hood with powder-coat finish, 6063 aluminum riser boot and yoke, stainless-steel finial and fasteners, GX5.3 porcelain lamp socket, and IP66 wet-location rating keep it sealed, plumb, and lit through everything the season throws at it. Tool-less hood removal makes lamp swaps straightforward, and the riser can be custom-cut on-site to dial in the right height. Available in raw copper, BlackTex, or ArchBronze.

Ideal applications:

  • Commercial walkway and pathway lighting
  • Large landscape and garden installations
  • Driveway and motor-court accent lighting
  • Hospitality grounds and resort properties
  • Estate and architectural site lighting

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 4W
  • LED type: G4 ceramic, interchangeable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 24", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 290–330 lm
  • CRI: 85
  • Efficacy: ~73–83 lm/W
  • Light pattern: Up to 22 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

  • Hood: 11" diameter copper hood with powder-coat finish
  • Riser boot & yoke: 6063 aluminum
  • Finial & fasteners: Stainless steel
  • Hardware: Accepts 1/2" NPT
  • IP rating: IP66, wet-location
  • Certification: ETL

Mounting & dimensions

  • Hood diameter: 11"
  • Riser stem: 1-1/4" diameter × 30" tall (custom-cut to any height on-site)
  • Mounting: 18" SuperStake
  • Service: Tool-less hood removal
  • Accessories: SuperStake included
  • Finish options: Raw copper, BlackTex, or ArchBronze

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 3 years
  • Origin: Made in USA
View full details
Heavy-duty by design.

BUILT FOR THE LANDSCAPE

Heavy-duty by design.

50,000 hrs

LED lifespan

IP66

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

290–330

Lumens (4W)

22 ft

Light pool diameter

Lifetime housing warranty 3-year LED warranty Tool-less hood removal

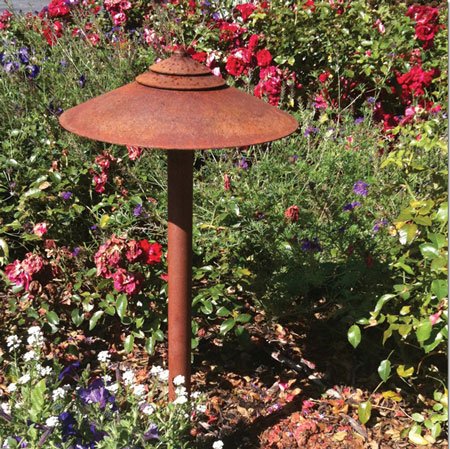

Wide pools. Long paths.

MAXWELL HEAVY DUTY 11

Wide pools. Long paths.

From commercial walkways to large landscapes and driveways — the Maxwell Heavy Duty 11 delivers wide, even pools of light from a classic pagoda-style hood mounted on a beefy 1-1/4" riser. Copper hood. IP66. Made in USA.

22 ft

Light pool

IP66

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
