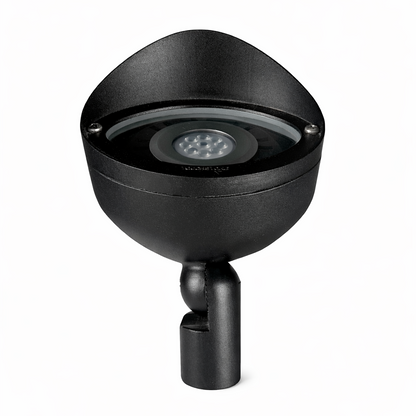

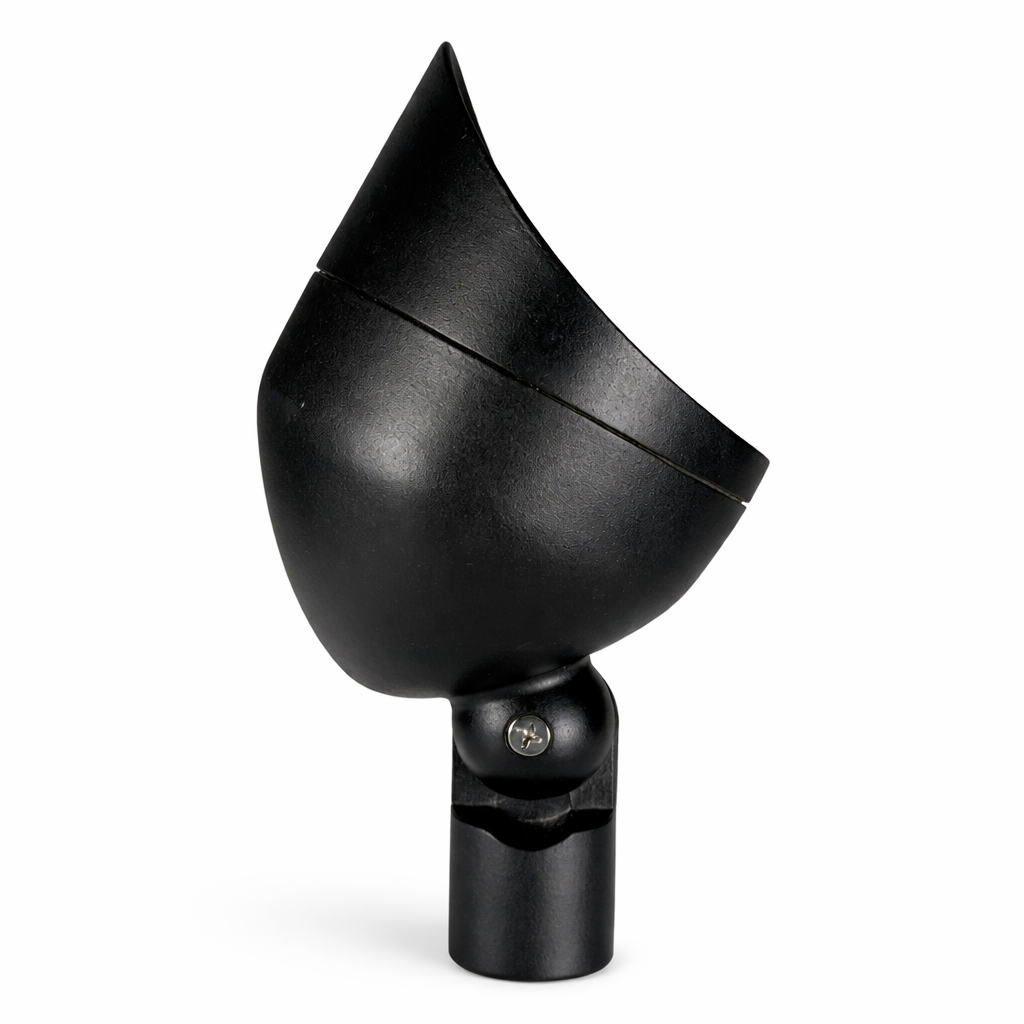

MaxFlood Commercial Series Custom Colors

MaxFlood Commercial Series Custom Colors

MaxFlood Series – A236 Sculpture and Artwork Lighting

Retail Pricing $163.00
Powdercoat Fixture Finishes: BlackTex
Bulb Wattage
Color Temperature

Part Number: CA236P-13BK4000

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Commercial-scale uplighting, built to perform

The MAXFlood commercial series is our super-duty uplight, engineered for the jobs standard landscape floods can't handle — mature trees, expansive architectural facades, monument signage, sculpture, and long walls. A solid brass housing, locking knuckle, and IP67 wet-location rating mean it holds up in demanding commercial environments season after season.

The interchangeable PAR36 platform keeps it flexible: run 10W, 13W, or 17W LEDs in 2700K
through 6000K, or drop in the ColorChange WWRGB LED for Bluetooth-controlled color scenes —
ideal for seasonal displays, branded architectural accents, and event lighting.

Ideal applications:

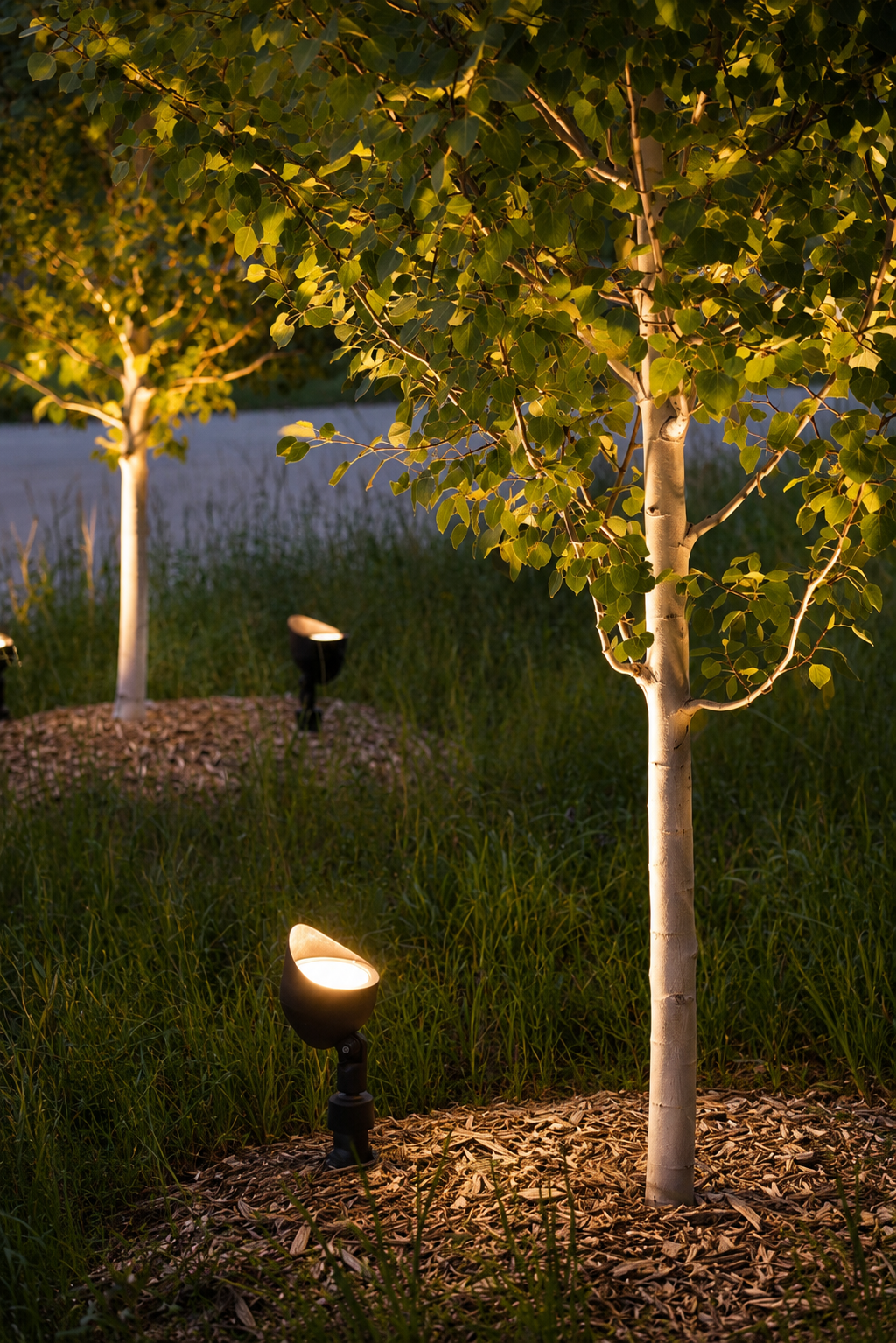

  • Mature trees and large landscape canopies
  • Commercial building facades and architectural features
  • Monument signs and illuminated signage
  • Sculpture, statuary, and public art

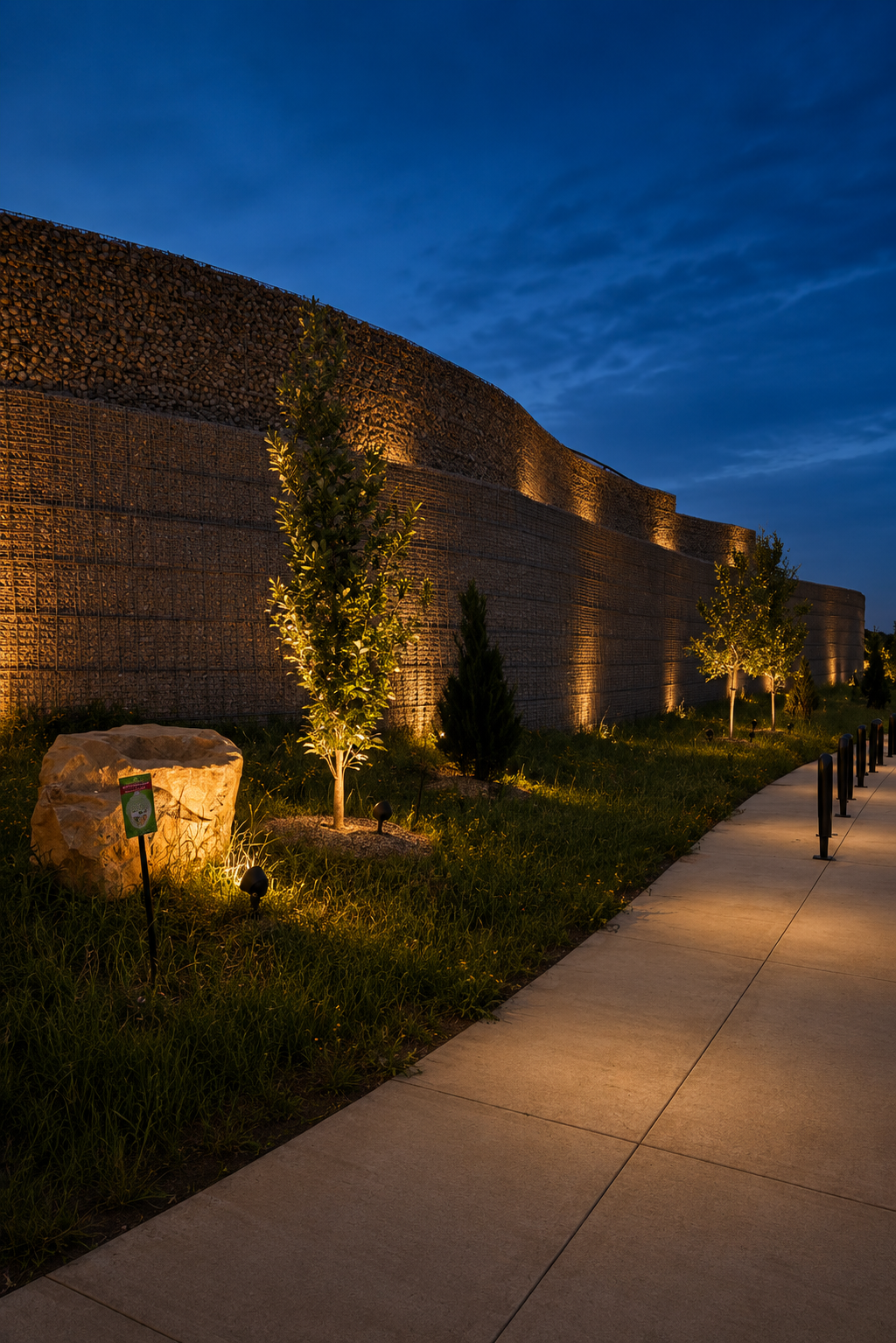

  • Wall washing across expansive surfaces

Technical specifications

Electrical

  • Voltage9–17V AC/DC
  • Wattage range10–17W
  • LED typePAR36, interchangeable
  • CCT options2700K–6000K + WWRGB
  • Socket/baseSpade terminals
  • Leads36", 18/2 SPT

Performance

  • Lumens840–1,365 lm
  • CRI85
  • Efficacy~80–84 lm/W
  • Beam angles15° / 30° / 60° / 100°
  • Lifespan50,000 hours

Build & environmental

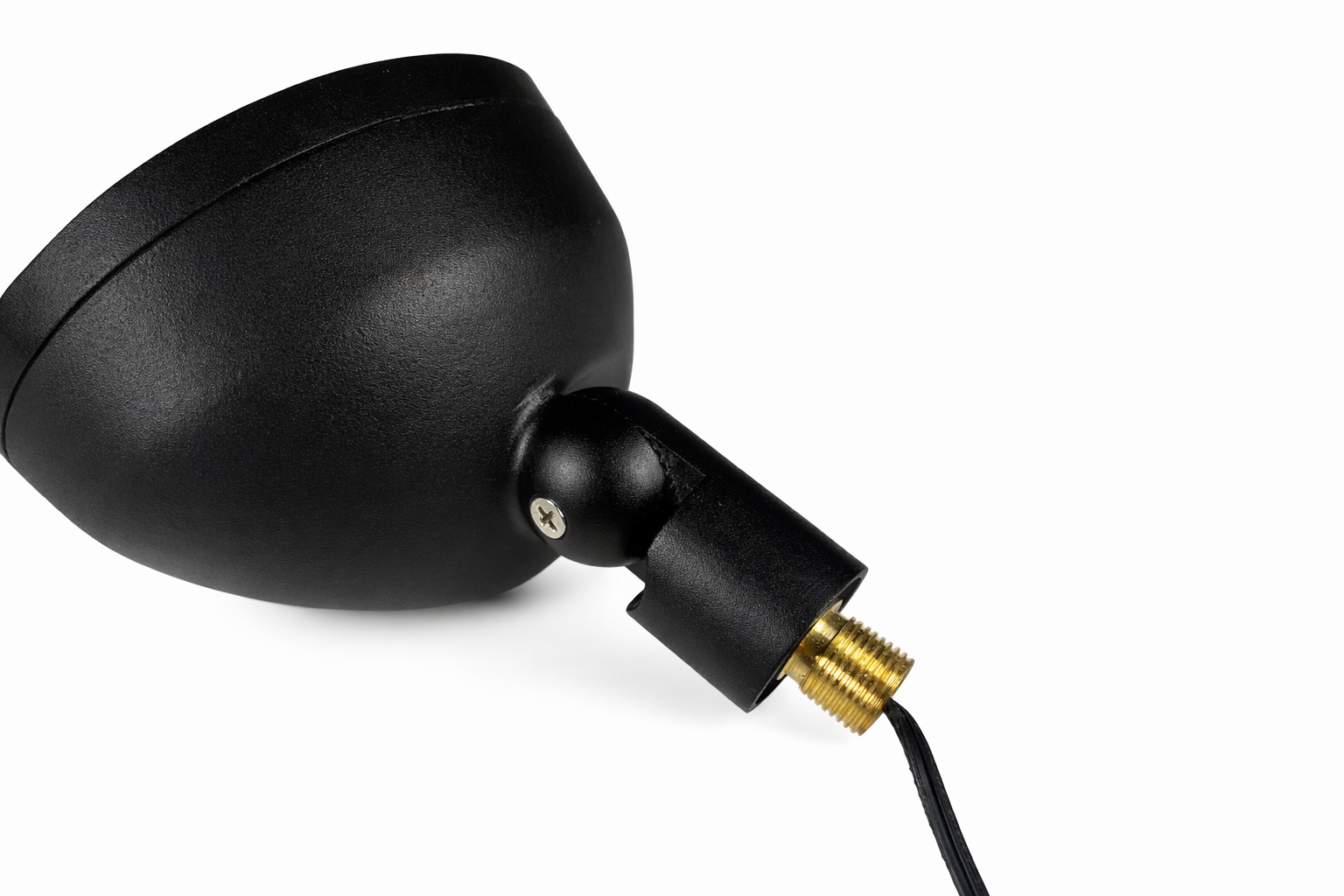

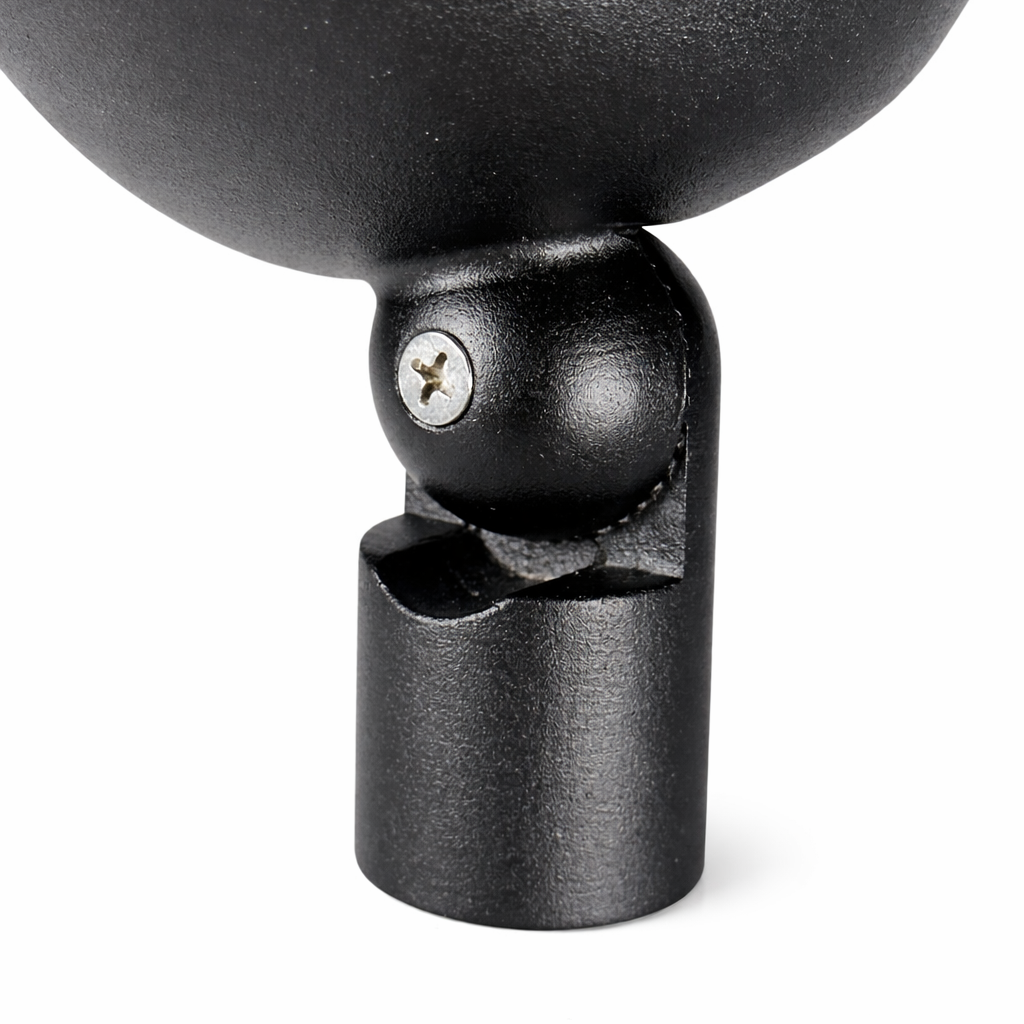

  • HousingSolid brass + knuckle
  • IP ratingIP67, wet-location

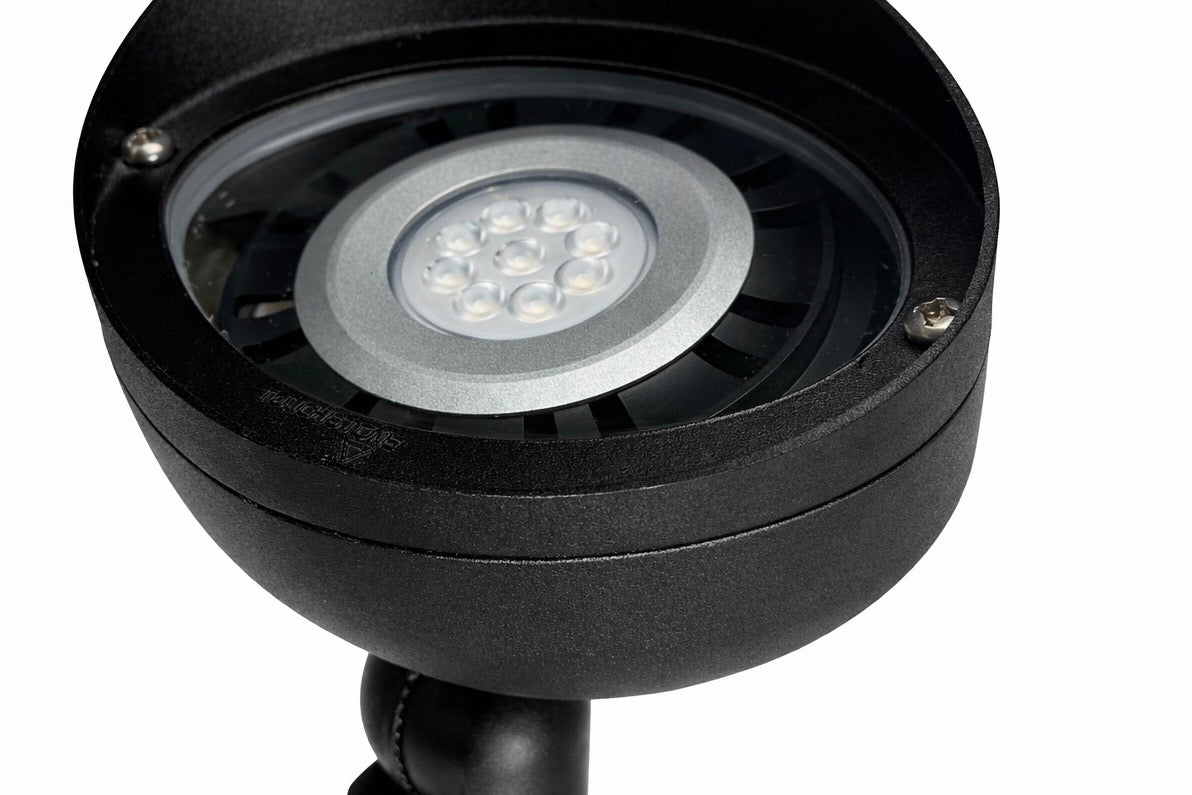

  • LensFlat glass + visor
  • GasketSilicone
  • FastenersStainless steel
  • CertificationETL (Intertek 5011251)

Mounting & dimensions

  • Overall size7-3/4" W × 10" tall
  • Stake18" SS2A SuperStake
  • HardwareAccepts 1/2" NPT
  • Finish3+ powder coat options
  • AccessoriesSuperStake, surface mount

Warranty & origin

  • Housing warrantyLifetime
  • LED warranty5 years
  • OriginAssembled in USA
Download Spec Sheet (PDF)

Commercial-scale uplighting, built to perform

The MAXFlood commercial series is our super-duty uplight, engineered for the jobs standard landscape floods can't handle — mature trees, expansive architectural facades, monument signage, sculpture, and long walls. A solid brass housing, locking knuckle, and IP67 wet-location rating mean it holds up in demanding commercial environments season after season.

The interchangeable PAR36 platform keeps it flexible: run 10W, 13W, or 17W LEDs in 2700K
through 6000K, or drop in the ColorChange WWRGB LED for Bluetooth-controlled color scenes —
ideal for seasonal displays, branded architectural accents, and event lighting.

Ideal applications:

  • Mature trees and large landscape canopies
  • Commercial building facades and architectural features
  • Monument signs and illuminated signage
  • Sculpture, statuary, and public art
  • Wall washing across expansive surfaces

Technical specifications

Electrical

  • Voltage9–17V AC/DC
  • Wattage range10–17W
  • LED typePAR36, interchangeable
  • CCT options2700K–6000K + WWRGB
  • Socket/baseSpade terminals
  • Leads36", 18/2 SPT

Performance

  • Lumens840–1,365 lm
  • CRI85
  • Efficacy~80–84 lm/W
  • Beam angles15° / 30° / 60° / 100°
  • Lifespan50,000 hours

Build & environmental

  • HousingSolid brass + knuckle
  • IP ratingIP67, wet-location
  • LensFlat glass + visor
  • GasketSilicone
  • FastenersStainless steel
  • CertificationETL (Intertek 5011251)

Mounting & dimensions

  • Overall size7-3/4" W × 10" tall
  • Stake18" SS2A SuperStake
  • HardwareAccepts 1/2" NPT
  • Finish3+ powder coat options
  • AccessoriesSuperStake, surface mount

Warranty & origin

  • Housing warrantyLifetime
  • LED warranty5 years
  • OriginAssembled in USA
Download Spec Sheet (PDF)
View full details

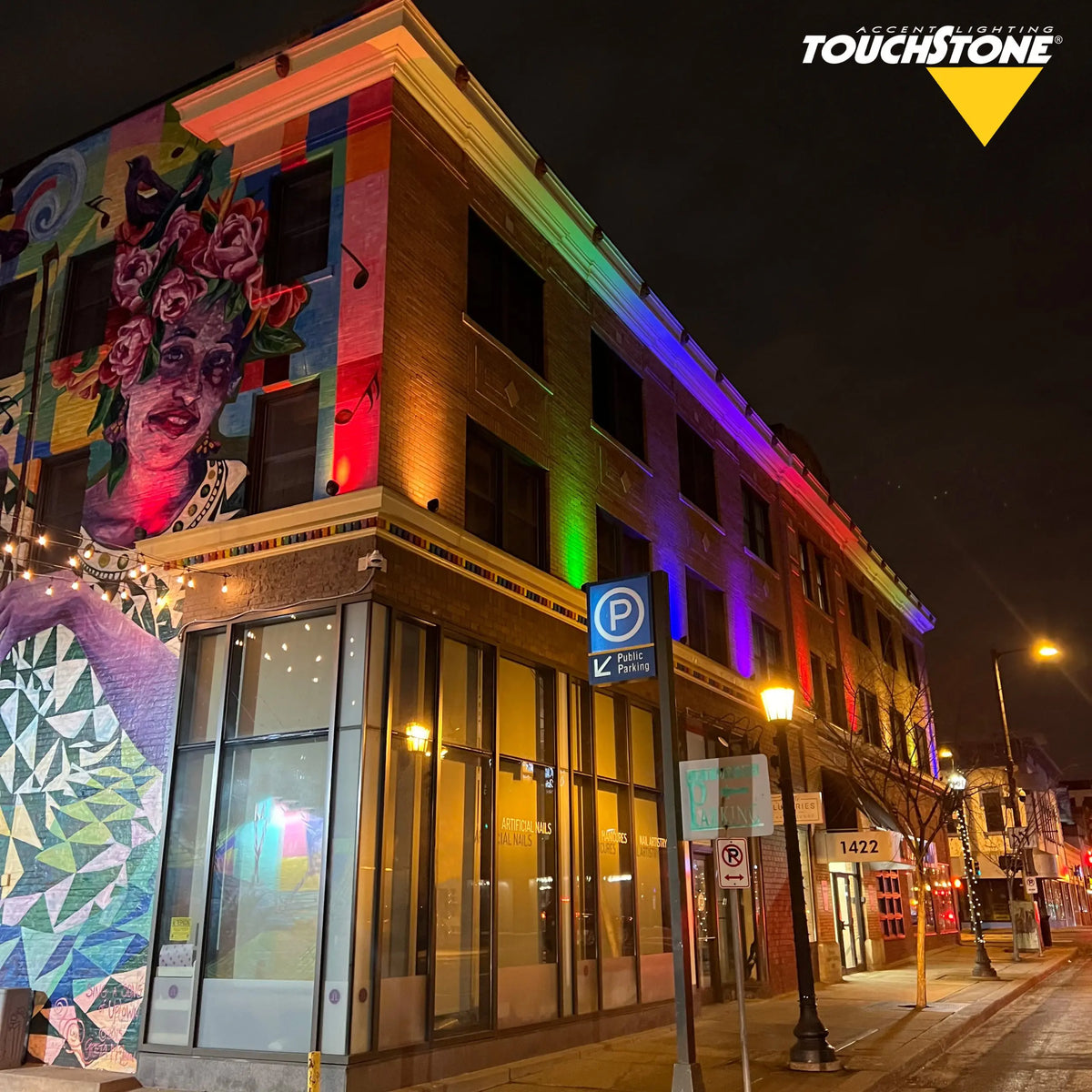

Built for commercial performance.

MAXFlood Commercial Series

Built for commercial performance.

50,000 hrs

LED lifespan

IP67

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

840–1,365

Lumens (10–17W)

4

Beam angles: 15° / 30° / 60° / 100°

Lifetime housing warranty 5-year LED warranty Assembled in USA

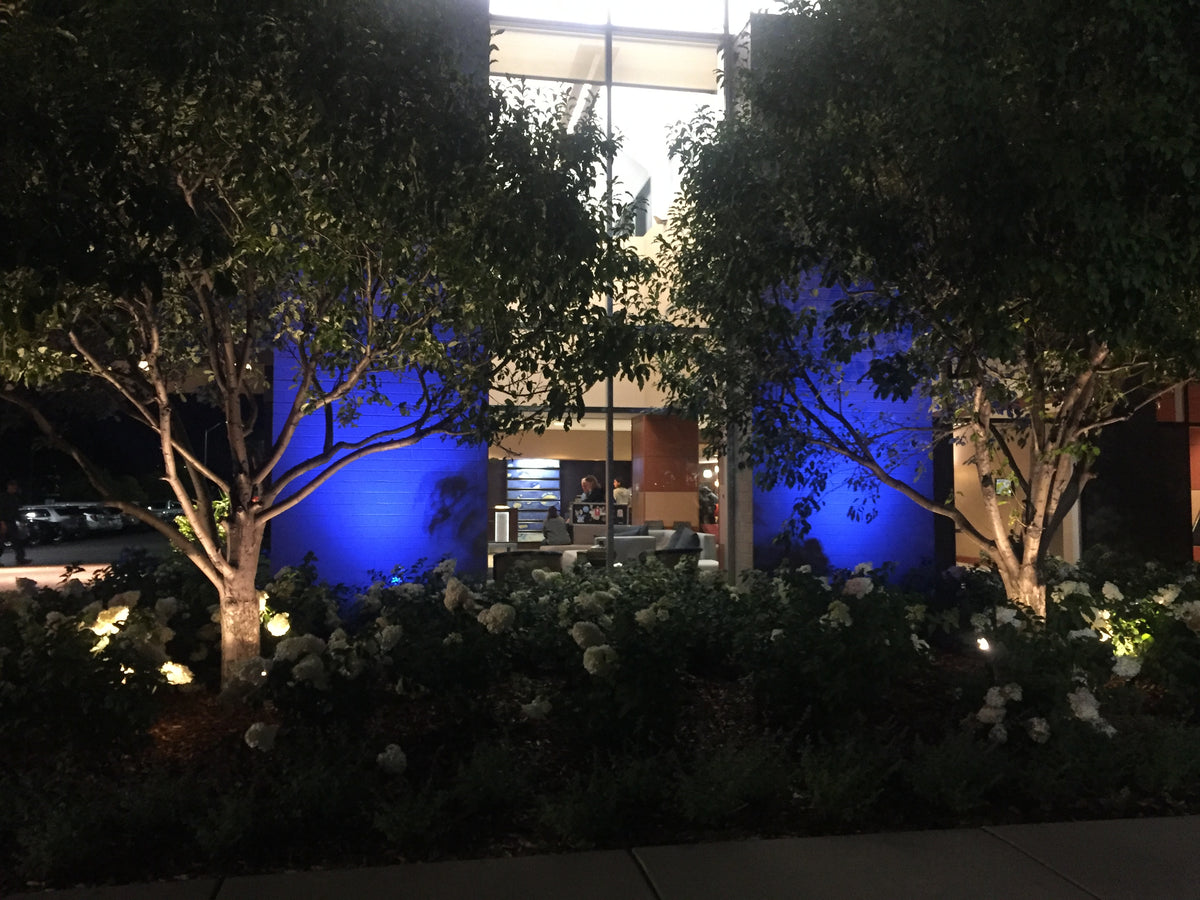

Light what matters most.
