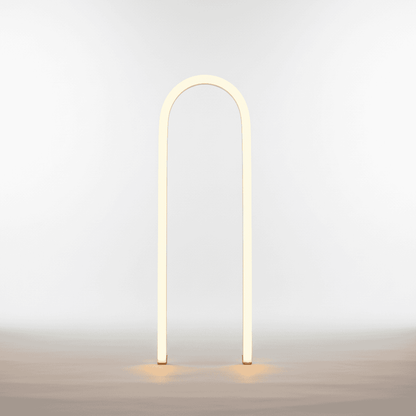

LumaFlex - Square Profile

LumaFlex - Square Profile

Smooth neon-like illumination for commercial accenting and cove lighting.

Retail Pricing $500.00

Part Number: CLFSQ

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

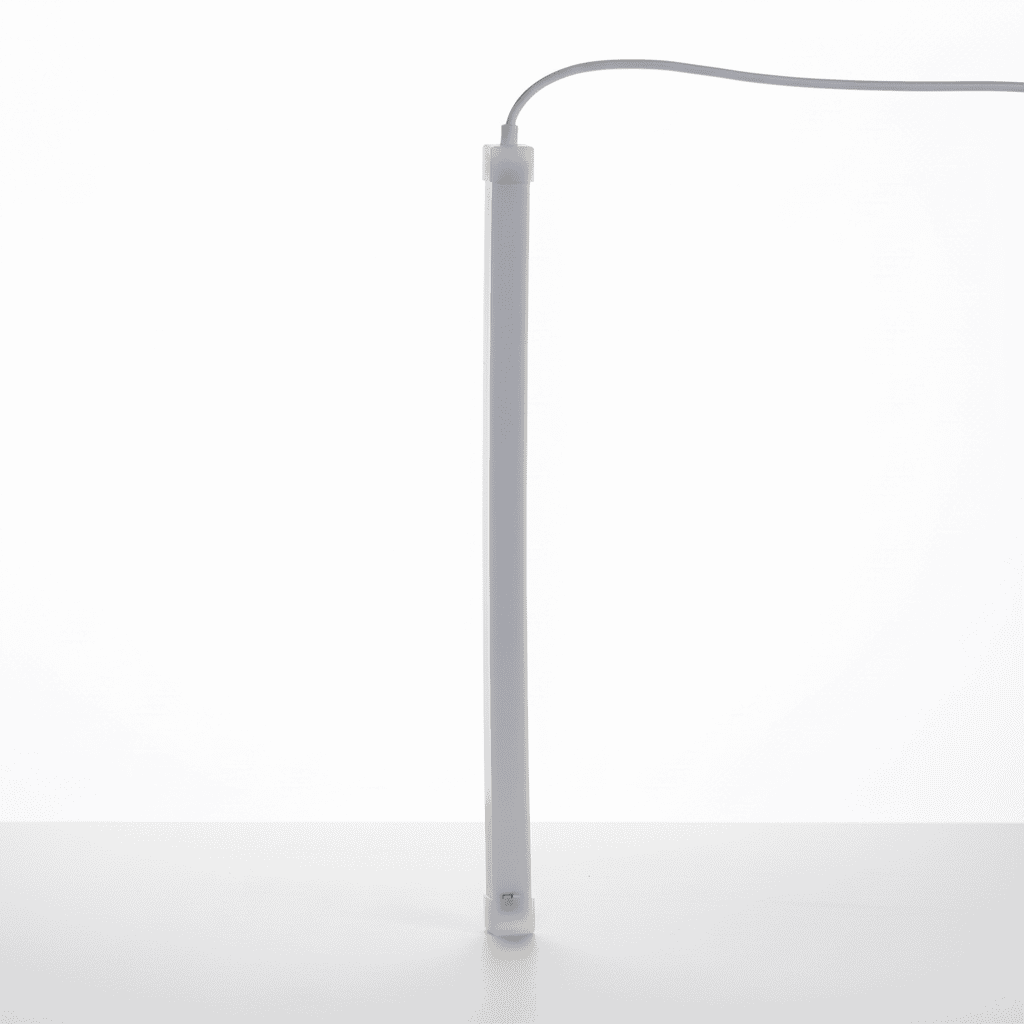

Square-profile linear lighting, end-to-end clean lines

LumaFlex Square Profile is our flexible neon-style linear lighting in a square cross-section — engineered for clean, straight runs along walls, undersides, and flat surfaces where a precise edge of light is the goal. It's great for commercial building accenting, under-counter areas, and cove lighting, casting a smooth lineal line of light that reads like neon without the bulk, fragility, or color shift.

Available in 12V AC/DC and 24V DC options across 2700K warm or 4000K cool white, with continuous runs up to 100 ft and the ability to cut to length on-site. SMD2835 LEDs, sealed silicone end caps, and an IP68 waterproof rating make it ready for both indoor and outdoor commercial use. Mounts with flexible stainless-steel mounting channel or U-channel with end caps for clean, anchored installs in any orientation.

Ideal applications:

  • Cove and uplighting in commercial spaces

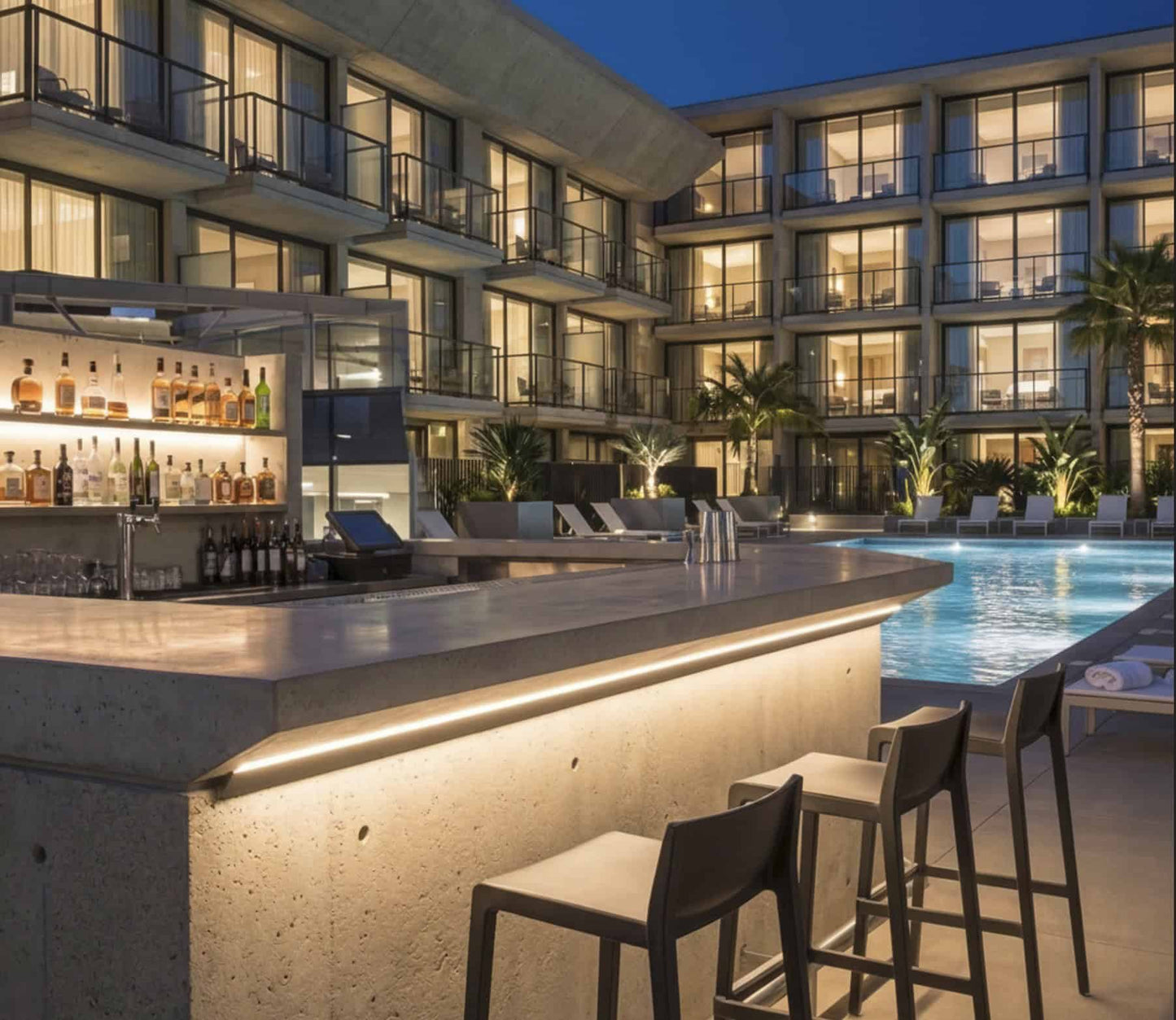

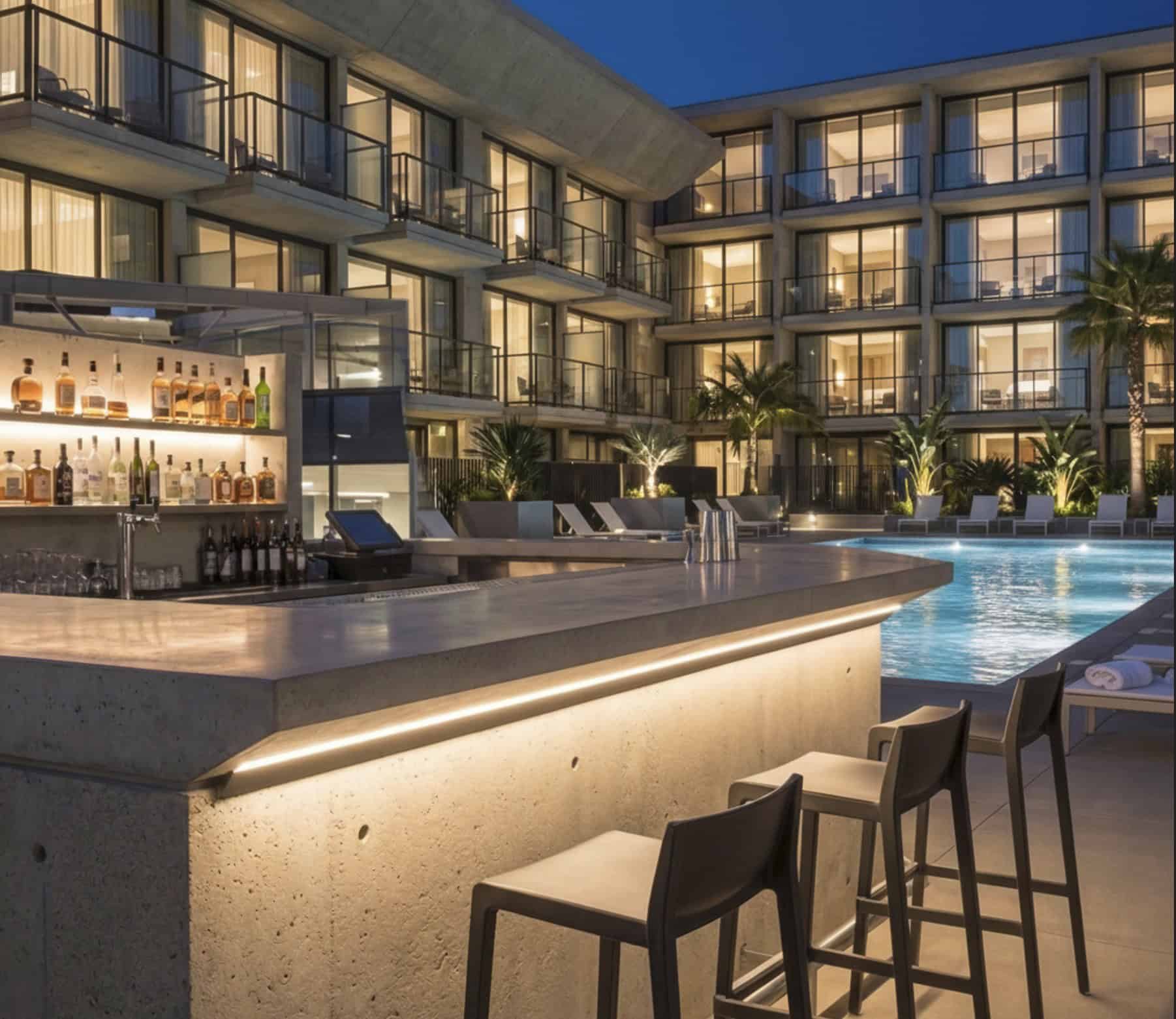

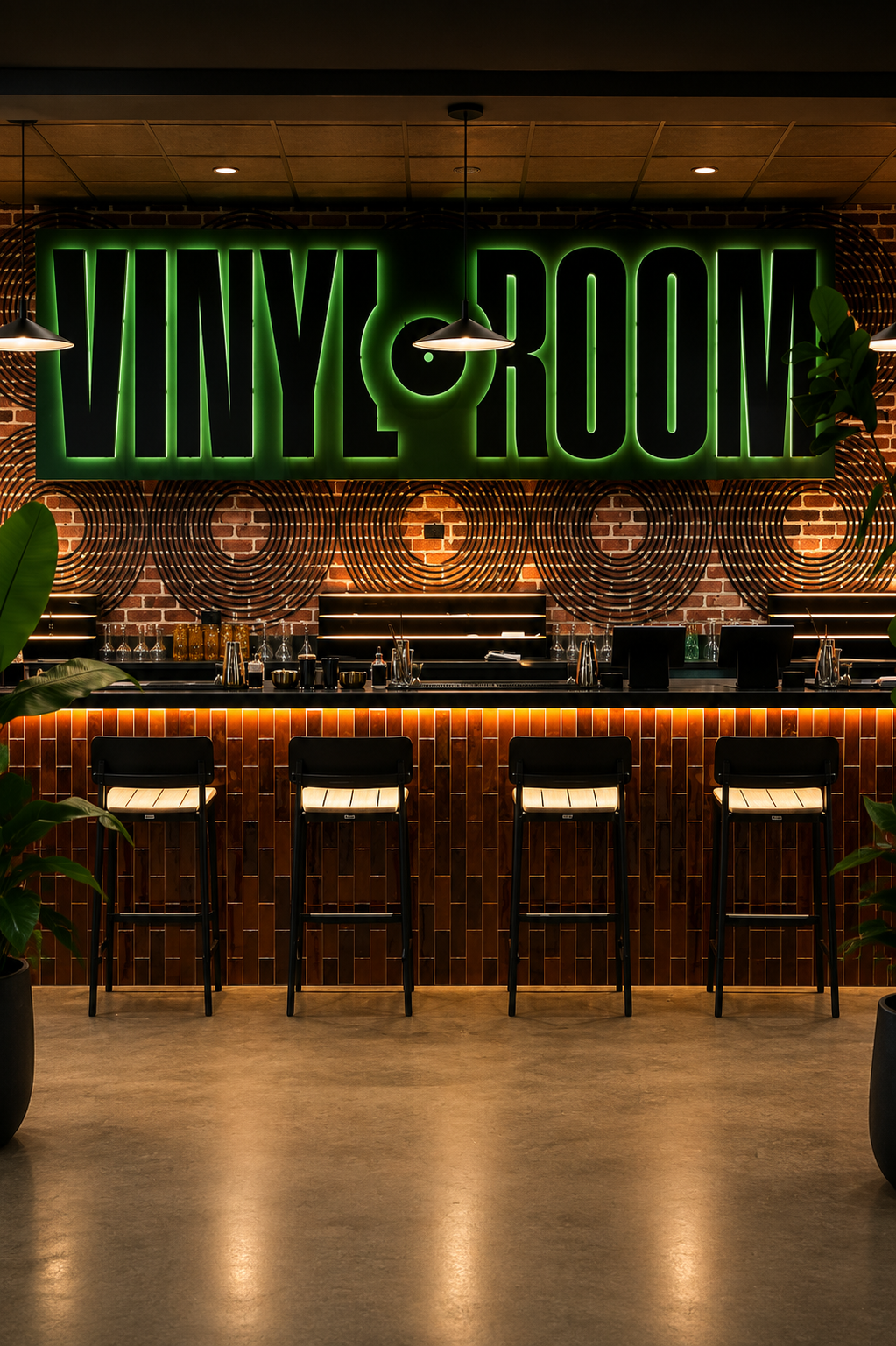

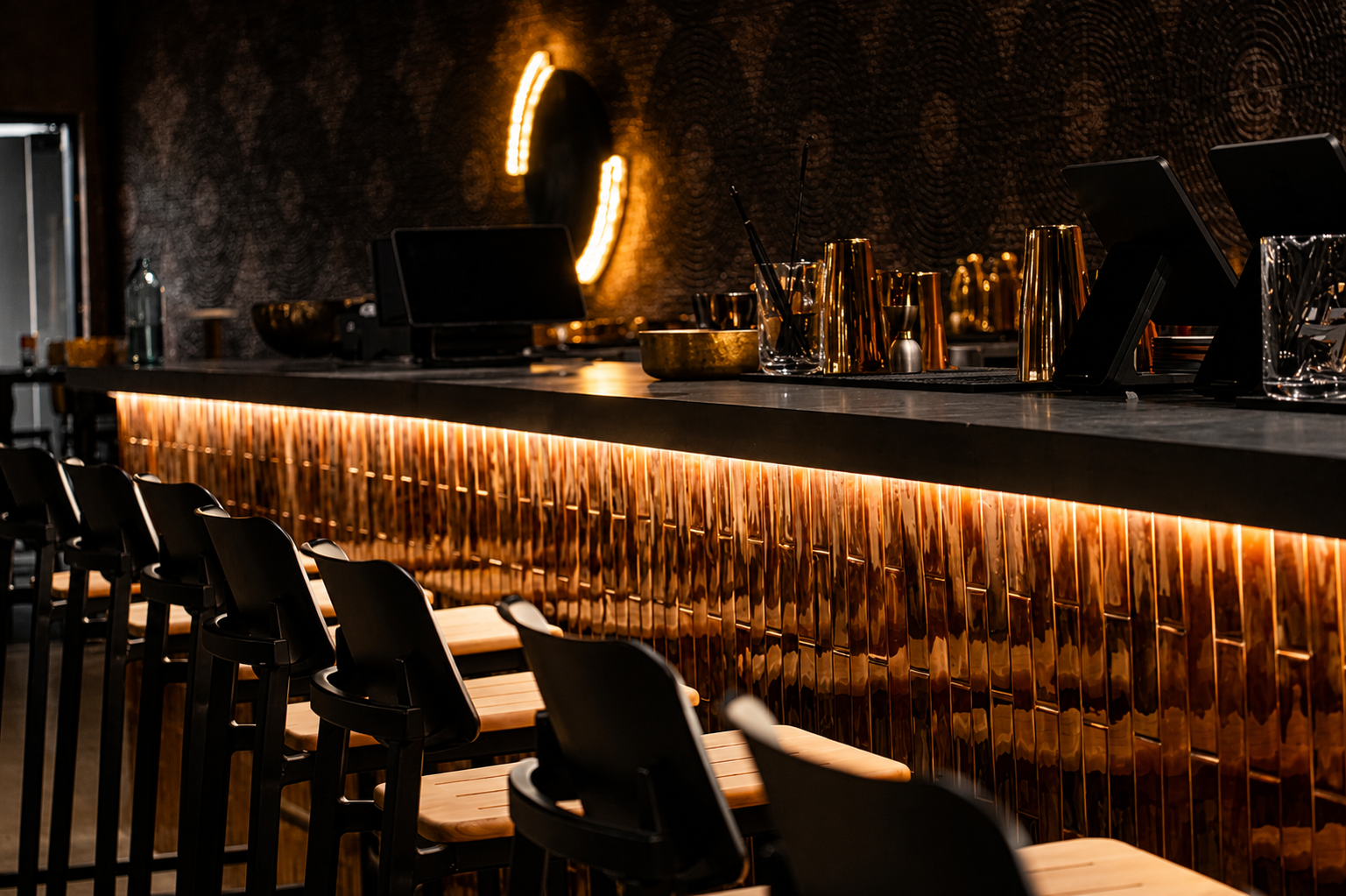

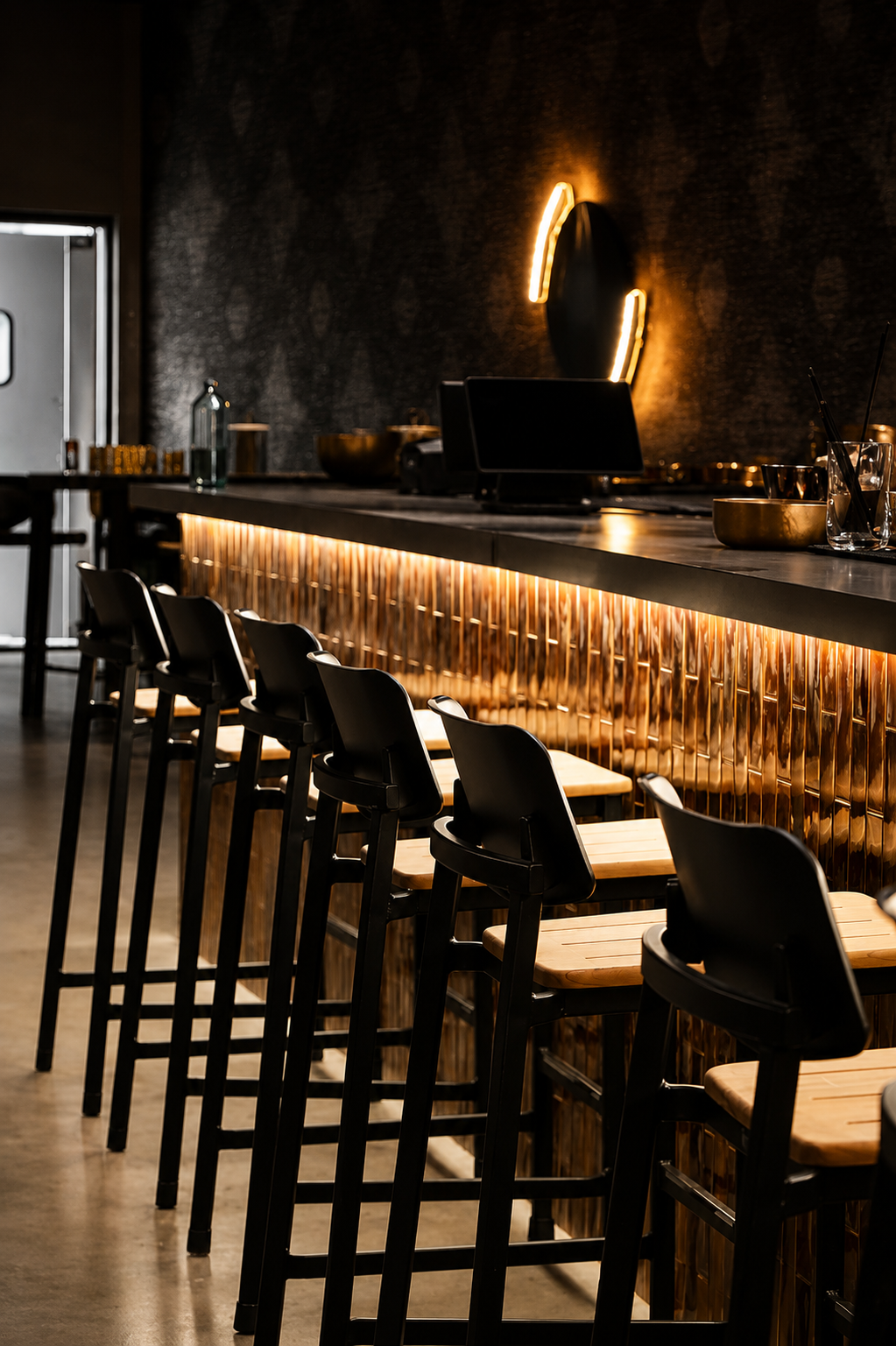

  • Under-counter, bar, and back-bar accent lighting
  • Architectural feature walls and straight-run accents
  • Hospitality, retail, and restaurant ambiance

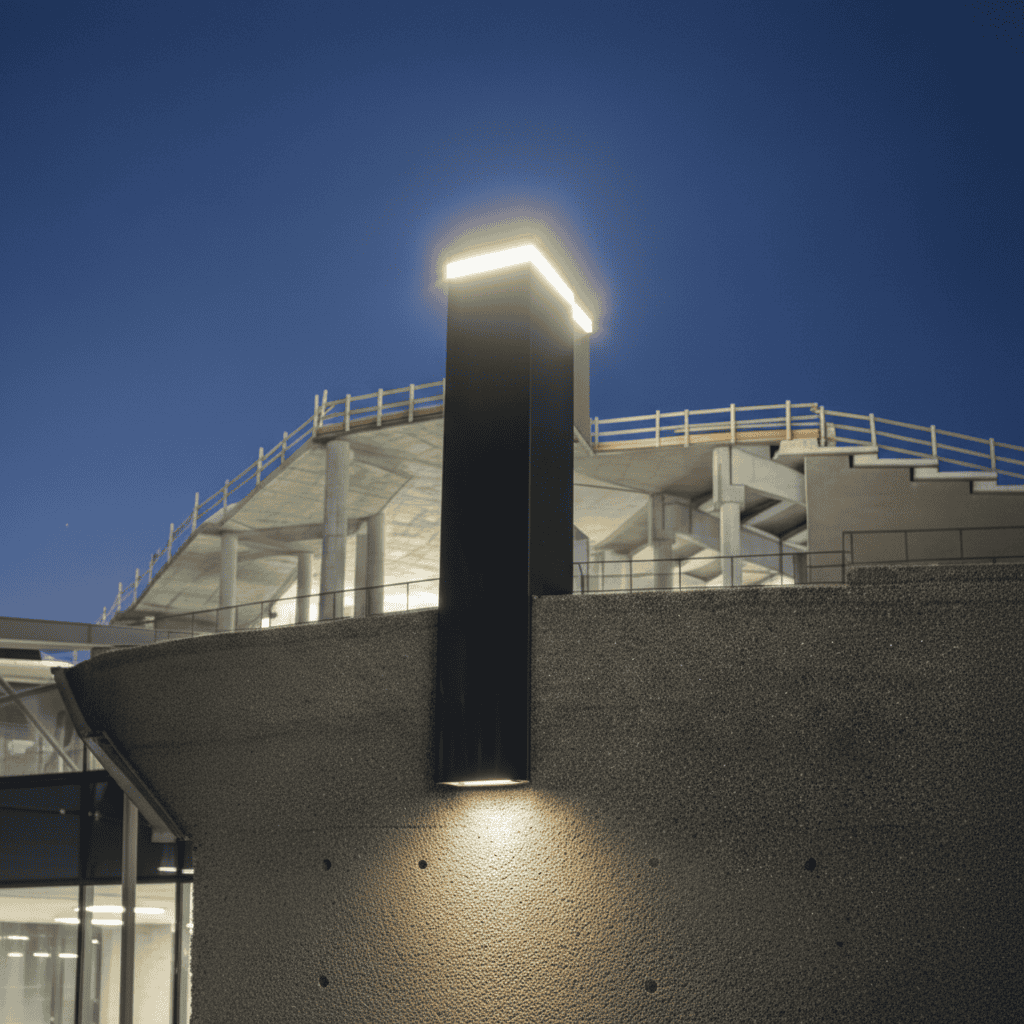

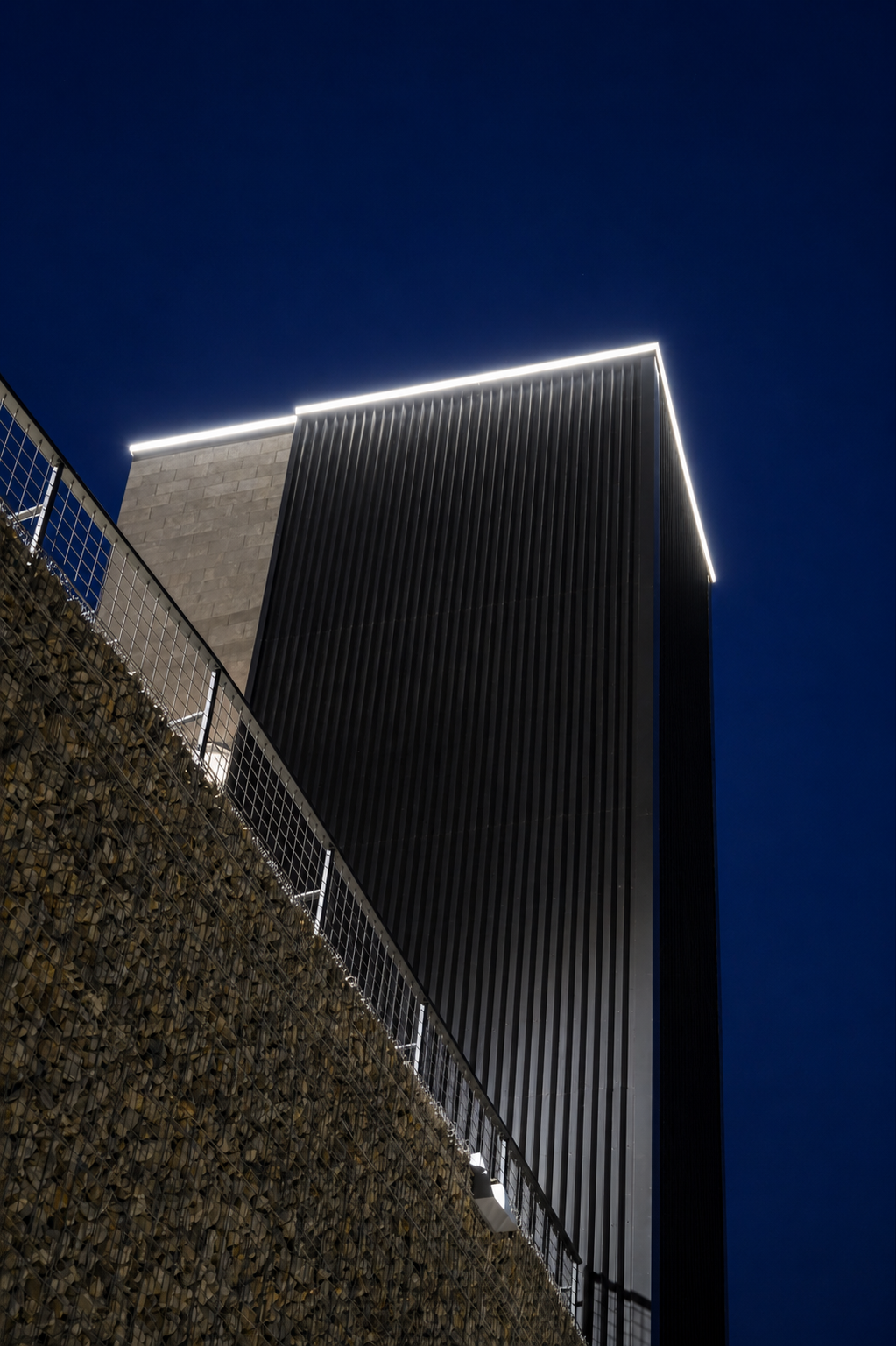

  • Outdoor pergola, signage, and facade outlining

Technical specifications

Electrical

  • Voltage: 12V AC/DC or 24V DC
  • Wattage: 10W per 39" (3–300W total range)
  • LED type: SMD2835
  • CCT options: 2700K warm white or 4000K cool white
  • Leads: 12", 18/2 SPT
  • Dimming: Yes
  • Driver: Requires 12V transformer or 24V DC driver

Performance

  • Light pattern: Smooth lineal line of light
  • Continuous run: Up to 100 ft
  • Lifespan: 25,000 hours

Build & environmental

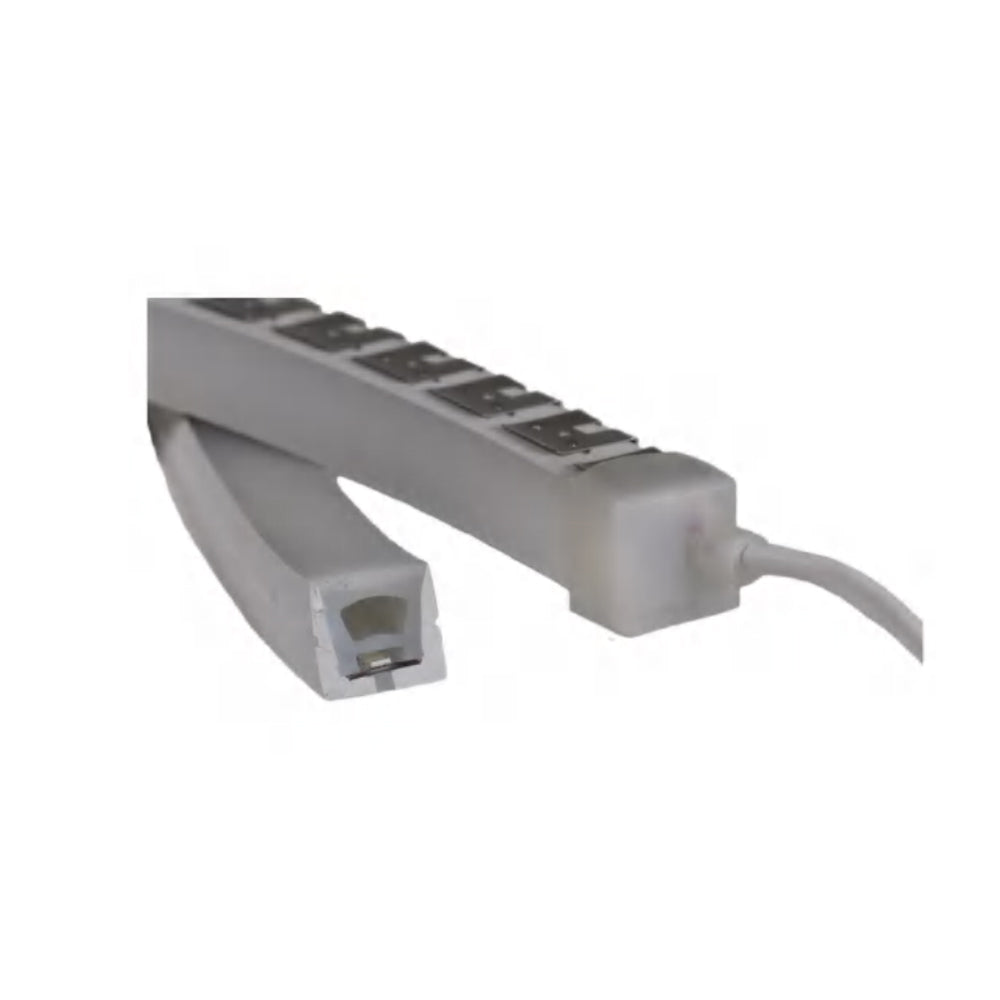

  • Body: Flexible silicone, square cross-section, surface-mounts in any orientation
  • End caps: Sealed silicone
  • Mounting clips: Stainless steel
  • IP rating: IP68, waterproof
  • Certification: ETL

Mounting & dimensions

  • 12V profile: 1/2" W × 1/2" T
  • 24V profile: 1" W × 1" T
  • Mounting: Flexible stainless-steel mounting channel or U-channel with end caps
  • Custom cuts: Cut-to-length on-site
  • Finish: White or BlackTex

Warranty & origin

  • Warranty: 3 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Square-profile linear lighting, end-to-end clean lines

LumaFlex Square Profile is our flexible neon-style linear lighting in a square cross-section — engineered for clean, straight runs along walls, undersides, and flat surfaces where a precise edge of light is the goal. It's great for commercial building accenting, under-counter areas, and cove lighting, casting a smooth lineal line of light that reads like neon without the bulk, fragility, or color shift.

Available in 12V AC/DC and 24V DC options across 2700K warm or 4000K cool white, with continuous runs up to 100 ft and the ability to cut to length on-site. SMD2835 LEDs, sealed silicone end caps, and an IP68 waterproof rating make it ready for both indoor and outdoor commercial use. Mounts with flexible stainless-steel mounting channel or U-channel with end caps for clean, anchored installs in any orientation.

Ideal applications:

  • Cove and uplighting in commercial spaces
  • Under-counter, bar, and back-bar accent lighting
  • Architectural feature walls and straight-run accents
  • Hospitality, retail, and restaurant ambiance
  • Outdoor pergola, signage, and facade outlining

Technical specifications

Electrical

  • Voltage: 12V AC/DC or 24V DC
  • Wattage: 10W per 39" (3–300W total range)
  • LED type: SMD2835
  • CCT options: 2700K warm white or 4000K cool white
  • Leads: 12", 18/2 SPT
  • Dimming: Yes
  • Driver: Requires 12V transformer or 24V DC driver

Performance

  • Light pattern: Smooth lineal line of light
  • Continuous run: Up to 100 ft
  • Lifespan: 25,000 hours

Build & environmental

  • Body: Flexible silicone, square cross-section, surface-mounts in any orientation
  • End caps: Sealed silicone
  • Mounting clips: Stainless steel
  • IP rating: IP68, waterproof
  • Certification: ETL

Mounting & dimensions

  • 12V profile: 1/2" W × 1/2" T
  • 24V profile: 1" W × 1" T
  • Mounting: Flexible stainless-steel mounting channel or U-channel with end caps
  • Custom cuts: Cut-to-length on-site
  • Finish: White or BlackTex

Warranty & origin

  • Warranty: 3 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
