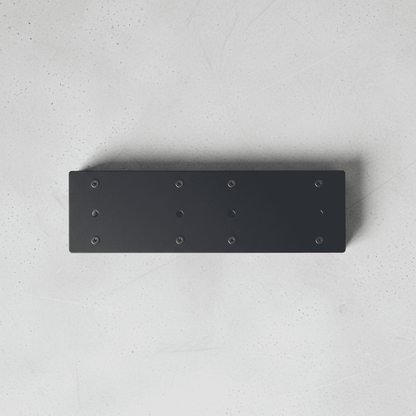

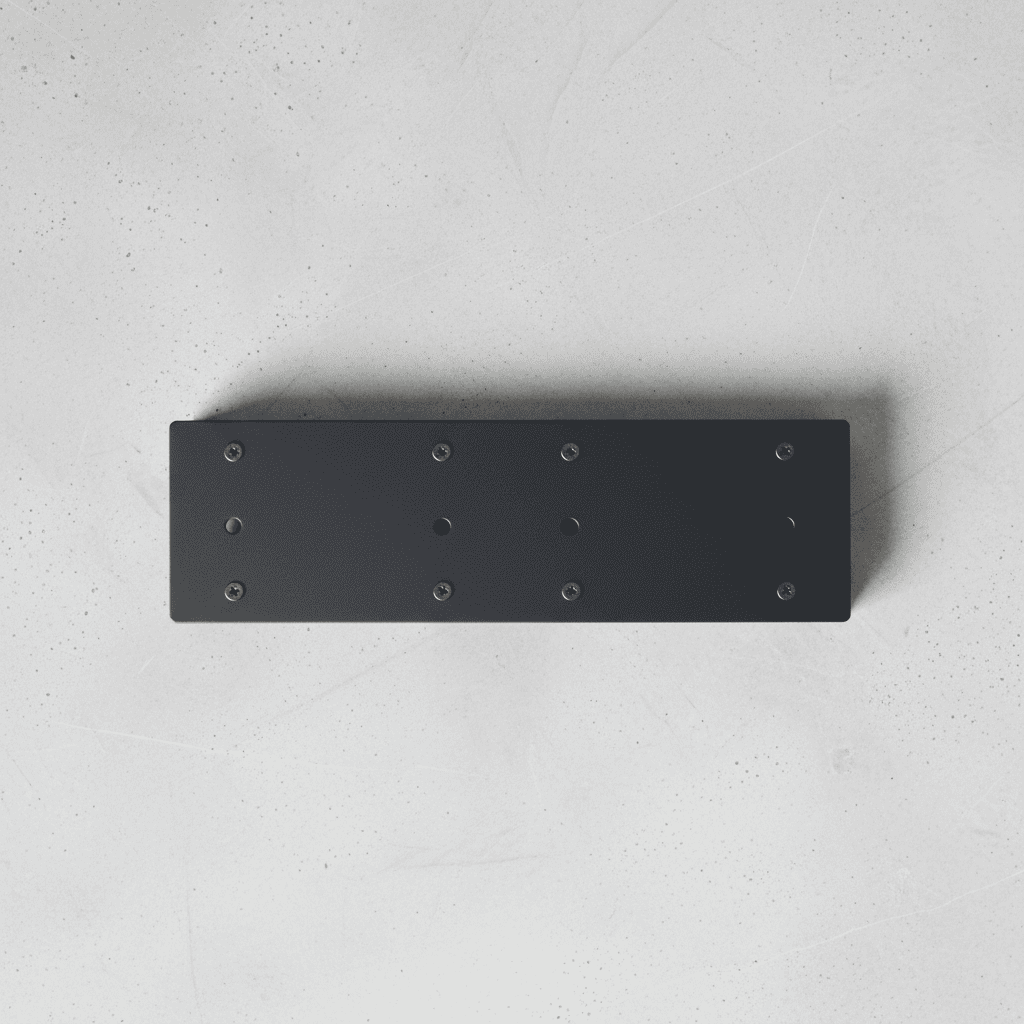

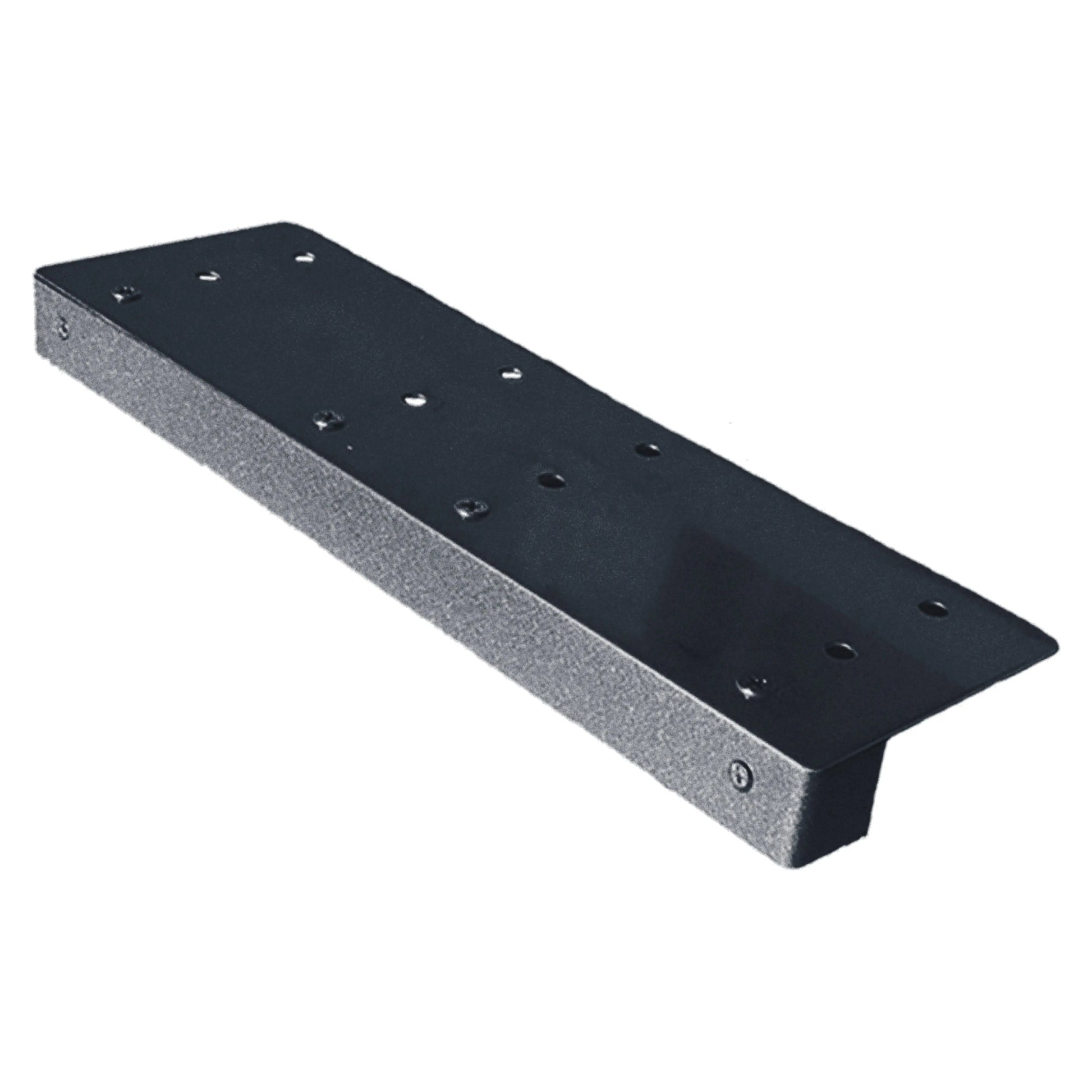

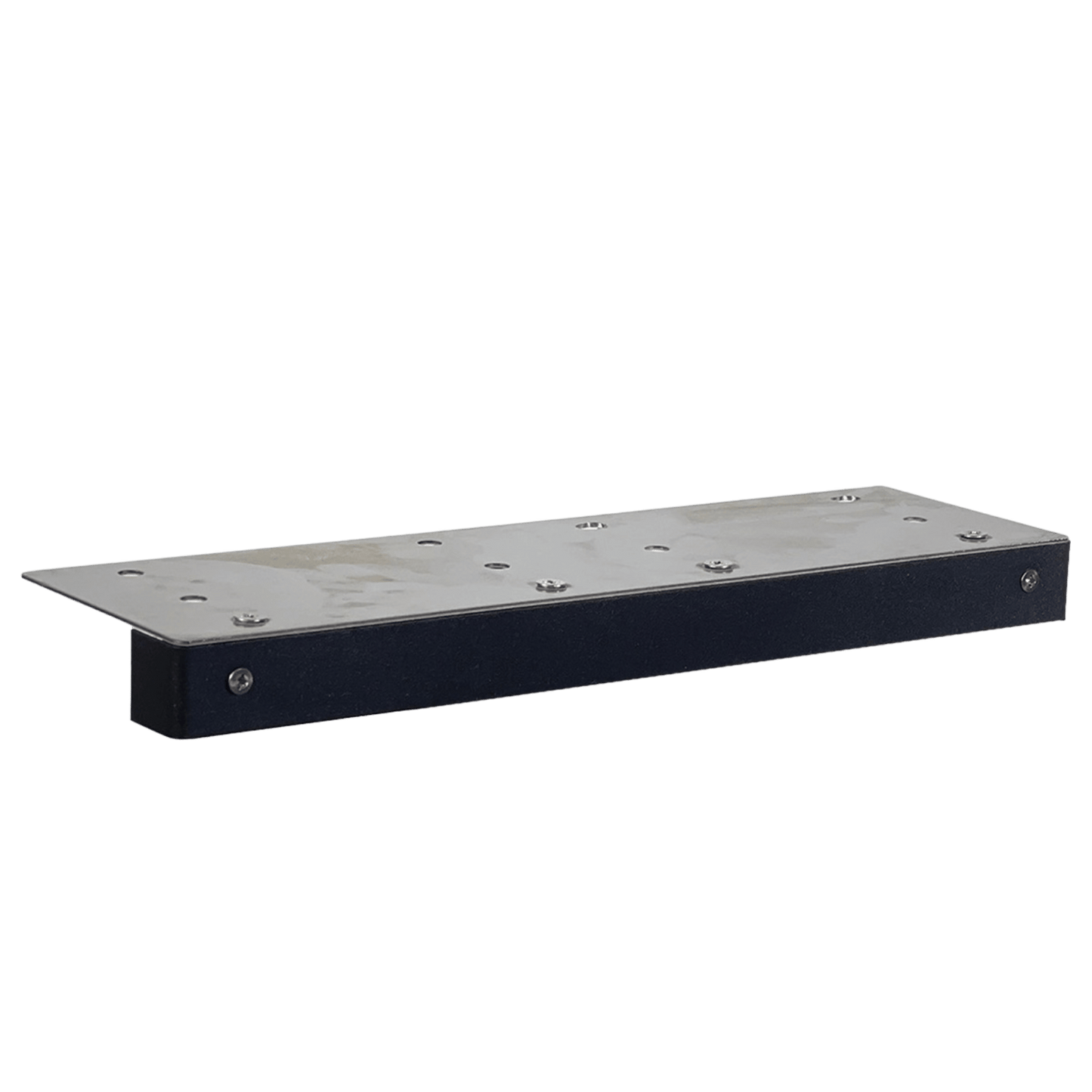

Ledge Series - 10 Inch Commercial Series

Ledge Series - 10 Inch Commercial Series

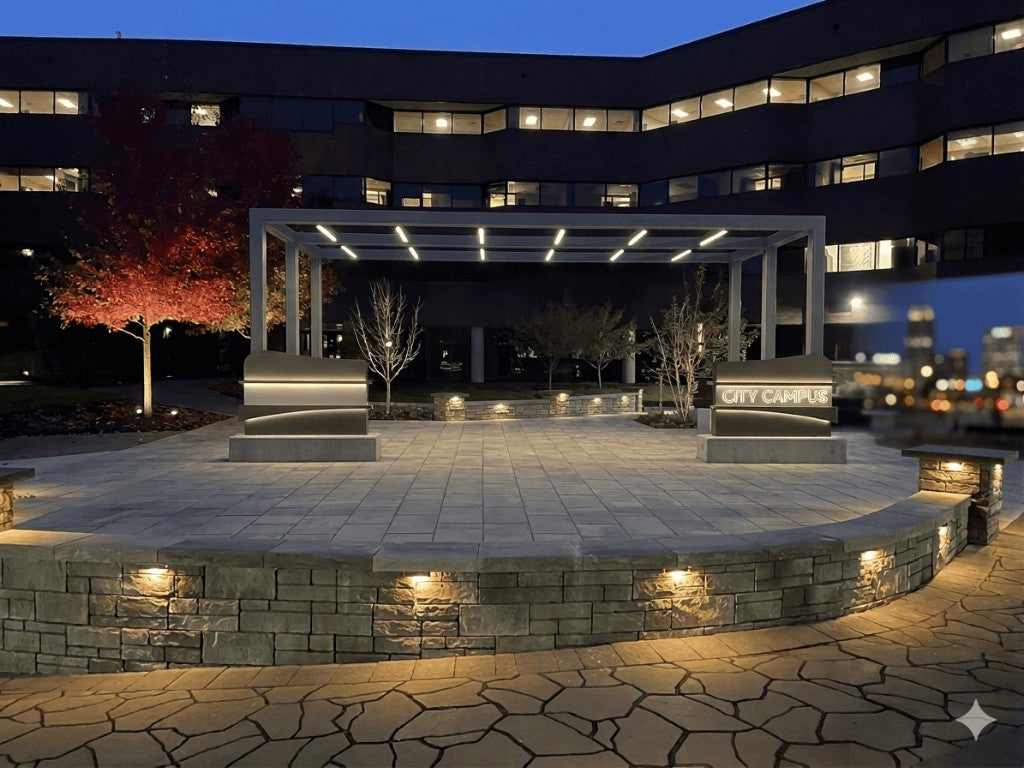

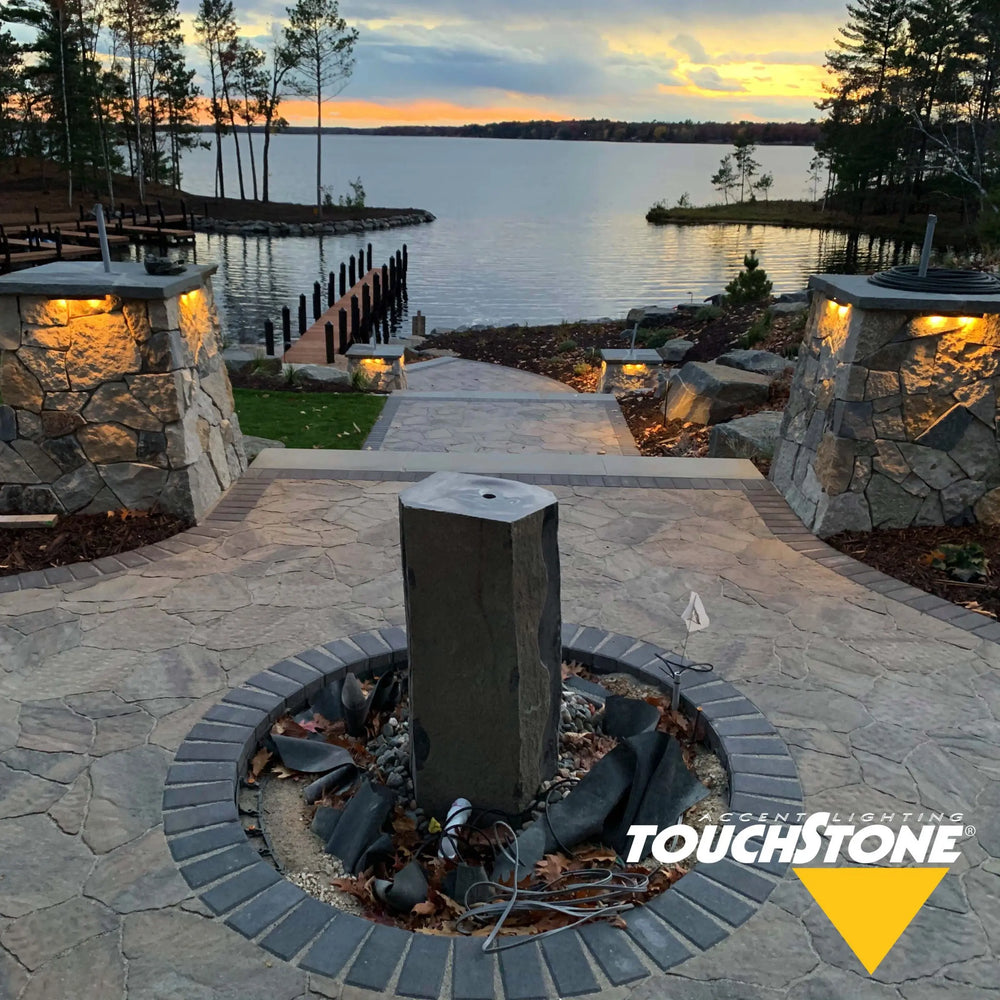

These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or can be used to downlight addresses, columns, and monuments.

Retail Pricing $149.95
Powdercoat Color: ArchBronze
Color Temperature

Part Number: CDL1011AR2700

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Subtle illumination for hardscape and architecture — mid-format 10-inch

Our LEDGE, Top Cap, and Rail series surface mounts provide subtle, attractive illumination while enhancing the look of your overall landscape and architectural design. These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or to downlight address numbers, columns, and monuments. A heavy-duty stainless-steel housing makes for a durable fixture, while the raw copper housing option gives it a sophisticated, elegant look.

The 10-inch DL1011 is the mid-format option in the LEDGE line, packing two integrated 2W G4 ceramic LEDs across a 10.5-inch housing — engineered for medium-length top caps, standard step risers, and any architectural element that needs more even coverage than the 5-inch can provide without going to the full 15-inch span.

Dimensions: 10.5" W × 4" D × 1" tall

Ledge Surface Mounts — ideal applications:

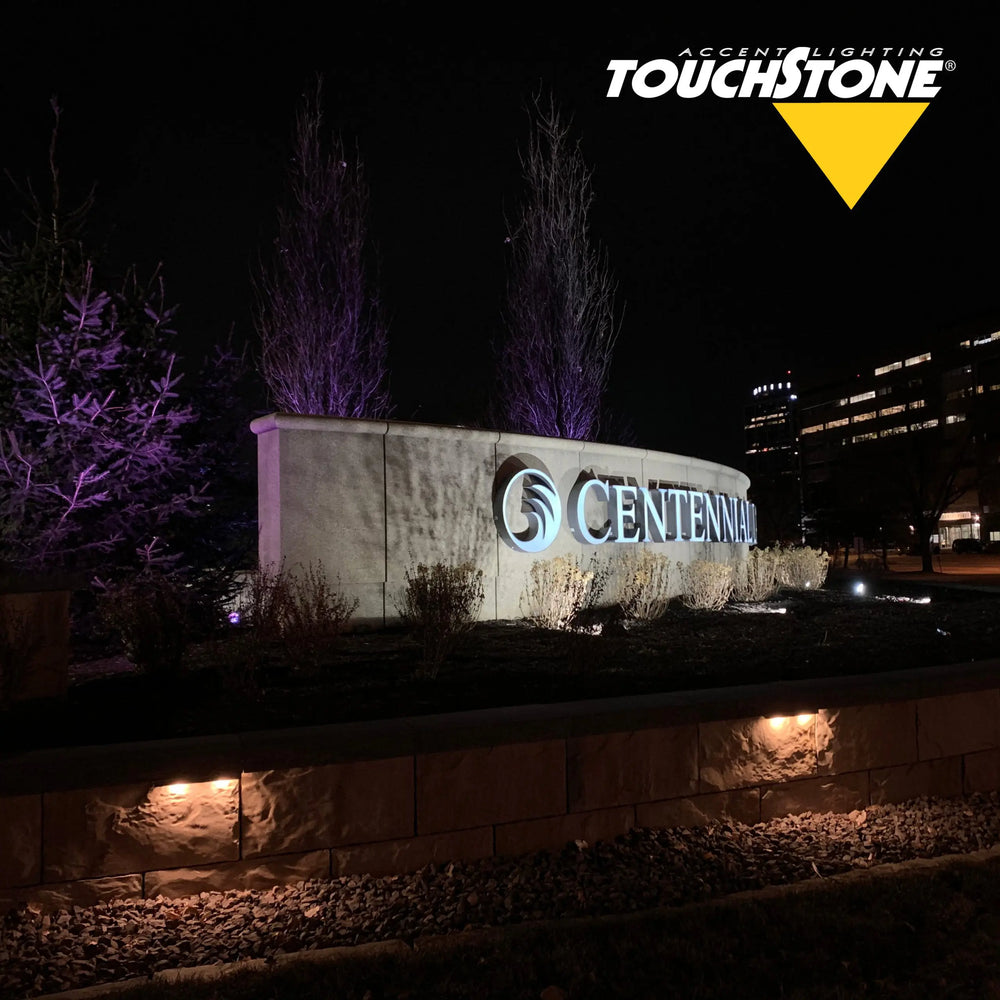

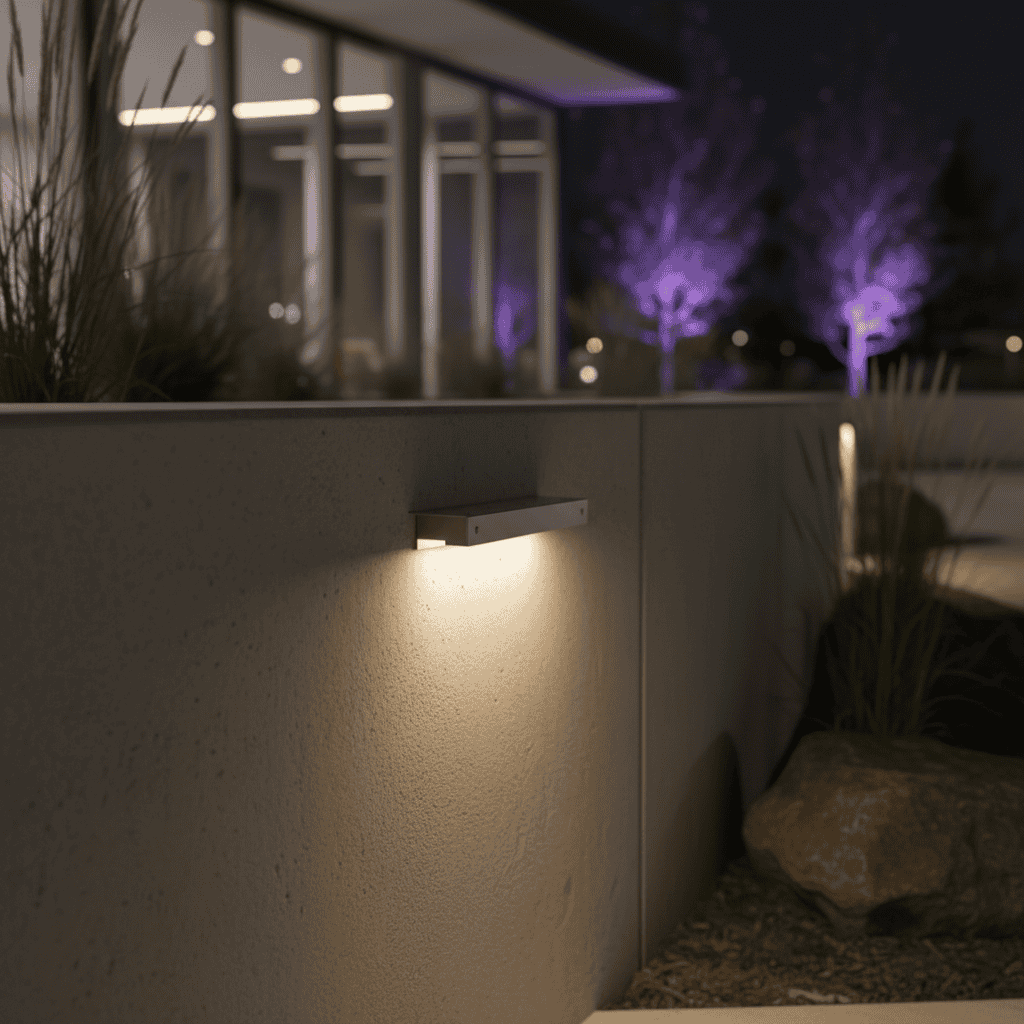

  • Under masonry top caps
  • Under deck steps and railings

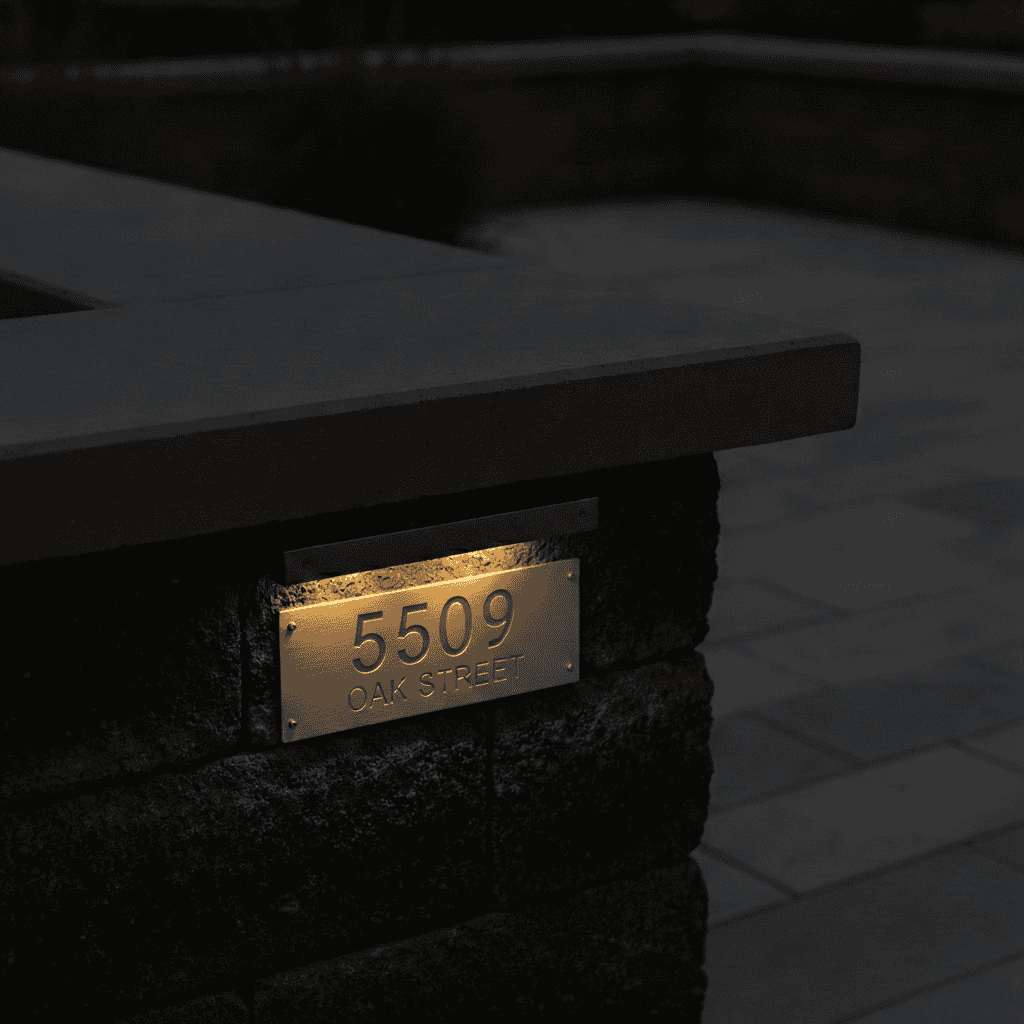

  • Downlight address numbers
  • Downlight columns and monuments
  • Hardscape lighting, deck lighting, and outdoor living areas

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 4W total (2 × 2W G4 ceramic LEDs)
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: ~360 lm total (180 lm per LED × 2)
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool per LED
  • Lifespan: 50,000 hours

Build & environmental

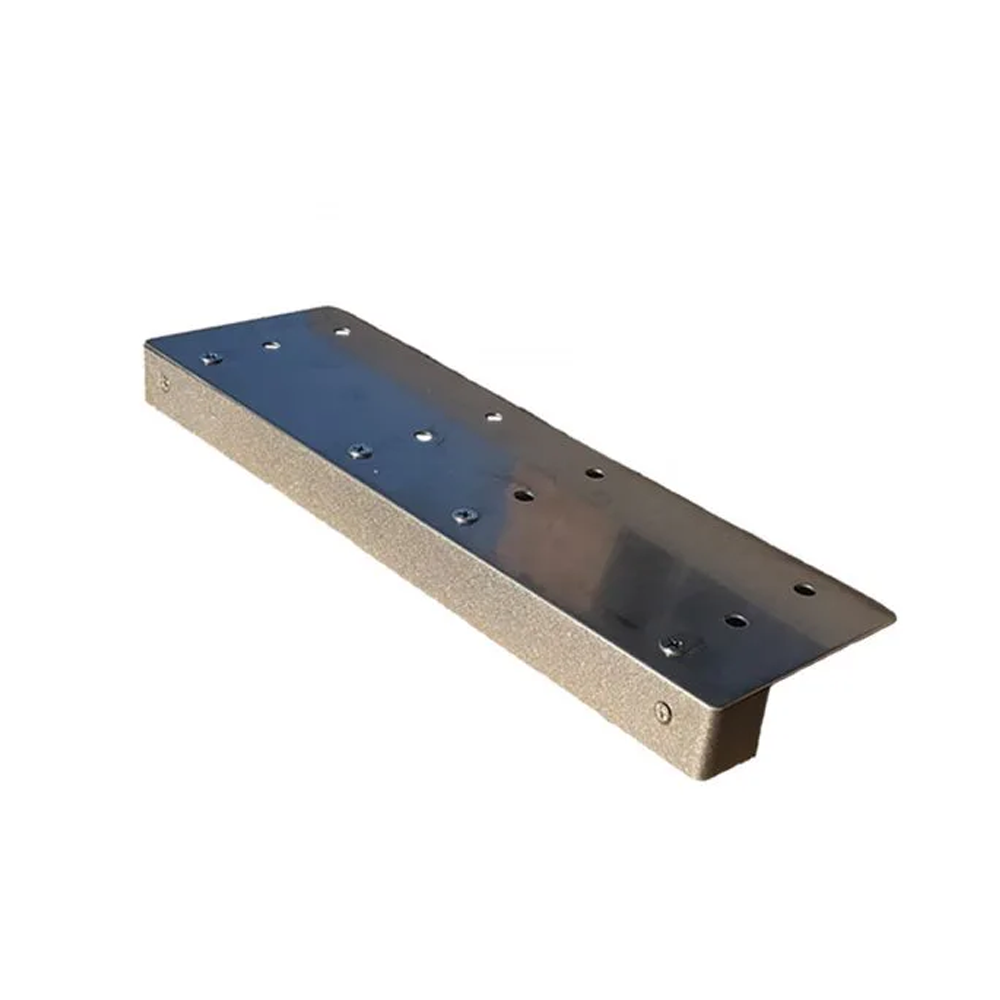

  • Housing: Heavy-duty stainless steel or raw copper
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

  • Width: 10.5"
  • Depth: 4"
  • Height: 1"

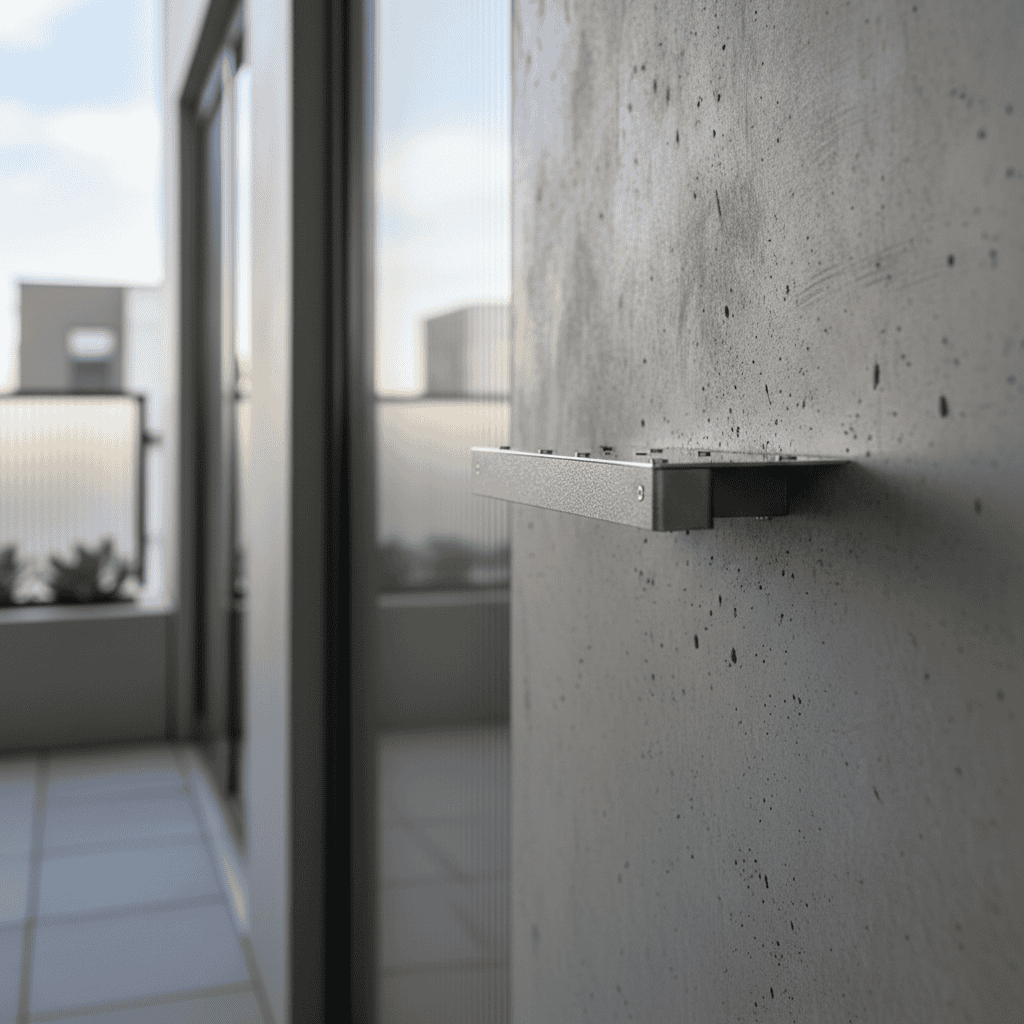

  • Mounting: Mortar plate, under top cap, or step riser
  • Finish options: Stainless steel, raw copper, black patina, or 8+ powder coat colors

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Subtle illumination for hardscape and architecture — mid-format 10-inch

Our LEDGE, Top Cap, and Rail series surface mounts provide subtle, attractive illumination while enhancing the look of your overall landscape and architectural design. These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or to downlight address numbers, columns, and monuments. A heavy-duty stainless-steel housing makes for a durable fixture, while the raw copper housing option gives it a sophisticated, elegant look.

The 10-inch DL1011 is the mid-format option in the LEDGE line, packing two integrated 2W G4 ceramic LEDs across a 10.5-inch housing — engineered for medium-length top caps, standard step risers, and any architectural element that needs more even coverage than the 5-inch can provide without going to the full 15-inch span.

Dimensions: 10.5" W × 4" D × 1" tall

Ledge Surface Mounts — ideal applications:

  • Under masonry top caps
  • Under deck steps and railings
  • Downlight address numbers
  • Downlight columns and monuments
  • Hardscape lighting, deck lighting, and outdoor living areas

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 4W total (2 × 2W G4 ceramic LEDs)
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: ~360 lm total (180 lm per LED × 2)
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool per LED
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Heavy-duty stainless steel or raw copper
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

  • Width: 10.5"
  • Depth: 4"
  • Height: 1"
  • Mounting: Mortar plate, under top cap, or step riser
  • Finish options: Stainless steel, raw copper, black patina, or 8+ powder coat colors

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details

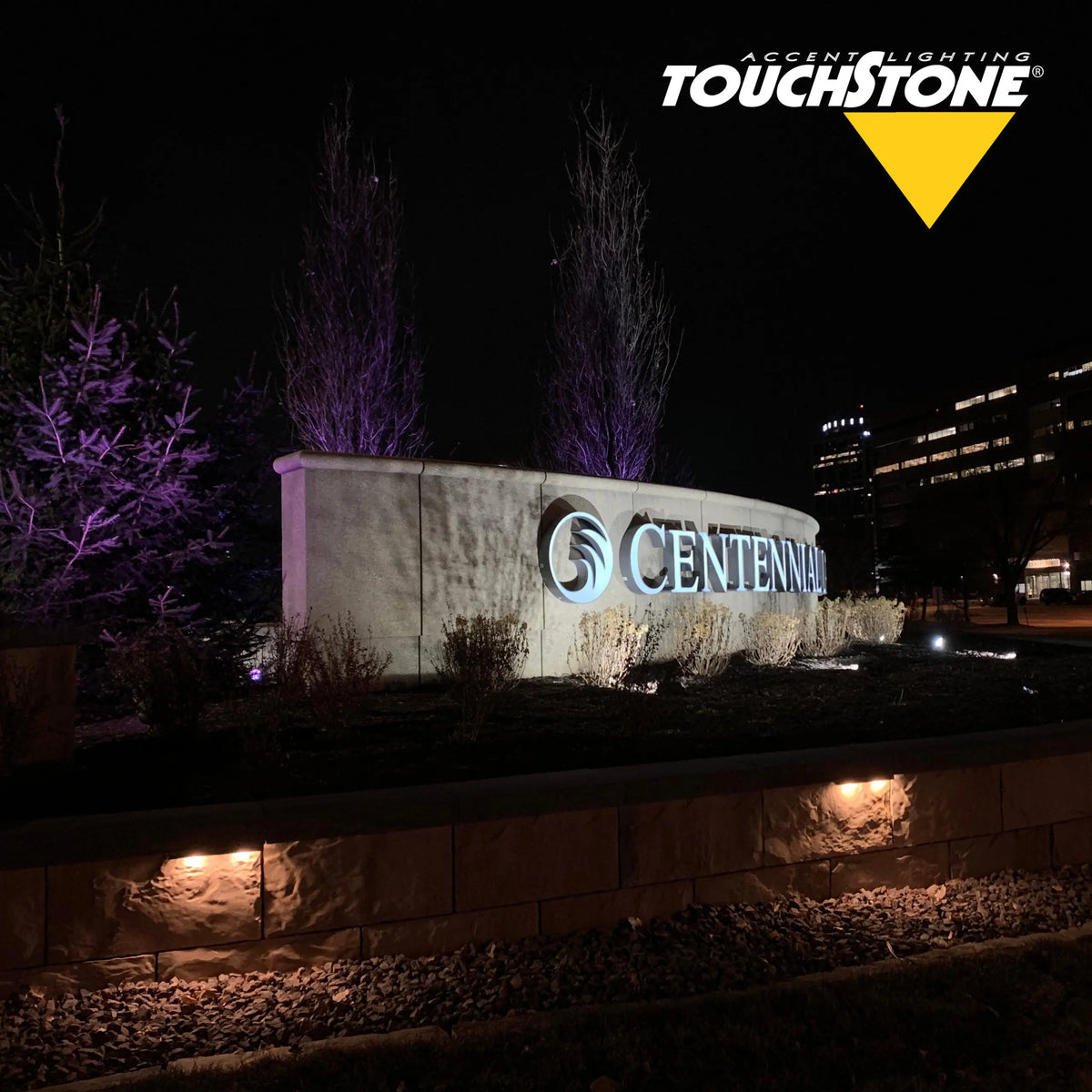

Mid-format. Balanced spread.

TEN-INCH FORMAT

Mid-format. Balanced spread.

50,000 hrs

LED lifespan

IP64

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

~360 lm

Total output (2 × 2W)

5–8 ft

Light pool per LED

Lifetime housing warranty 5-year LED warranty 2-LED configuration

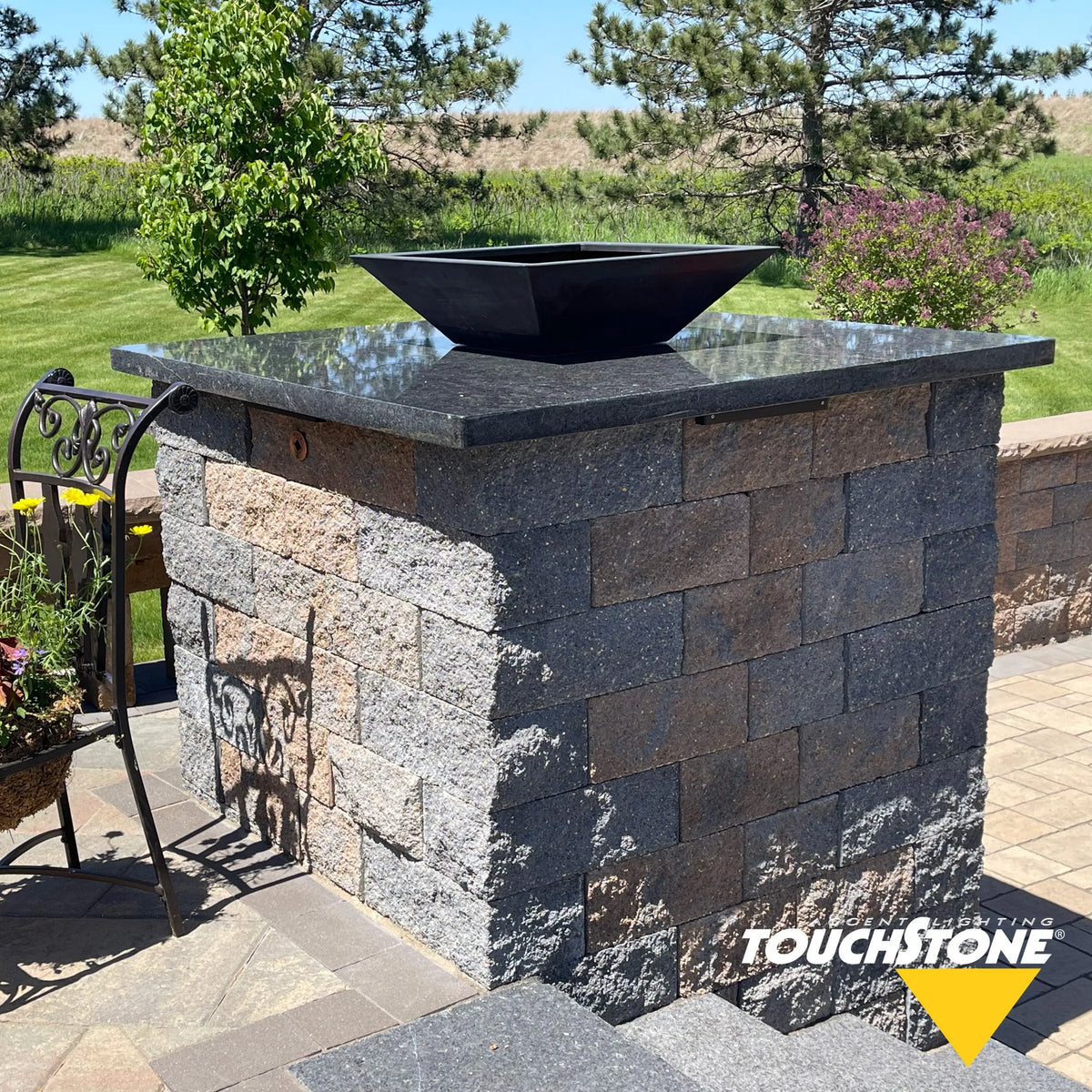

Light the wider edge.

LEDGE 10-INCH COMMERCIAL

Light the wider edge.

From standard masonry top caps to step risers and column bases — the 10-inch LEDGE delivers low-profile architectural light across mid-length surfaces with two integrated LEDs in a single 10.5" housing. Stainless steel or raw copper. IP64. Lifetime housing.

~360 lm

Total output

IP64

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
