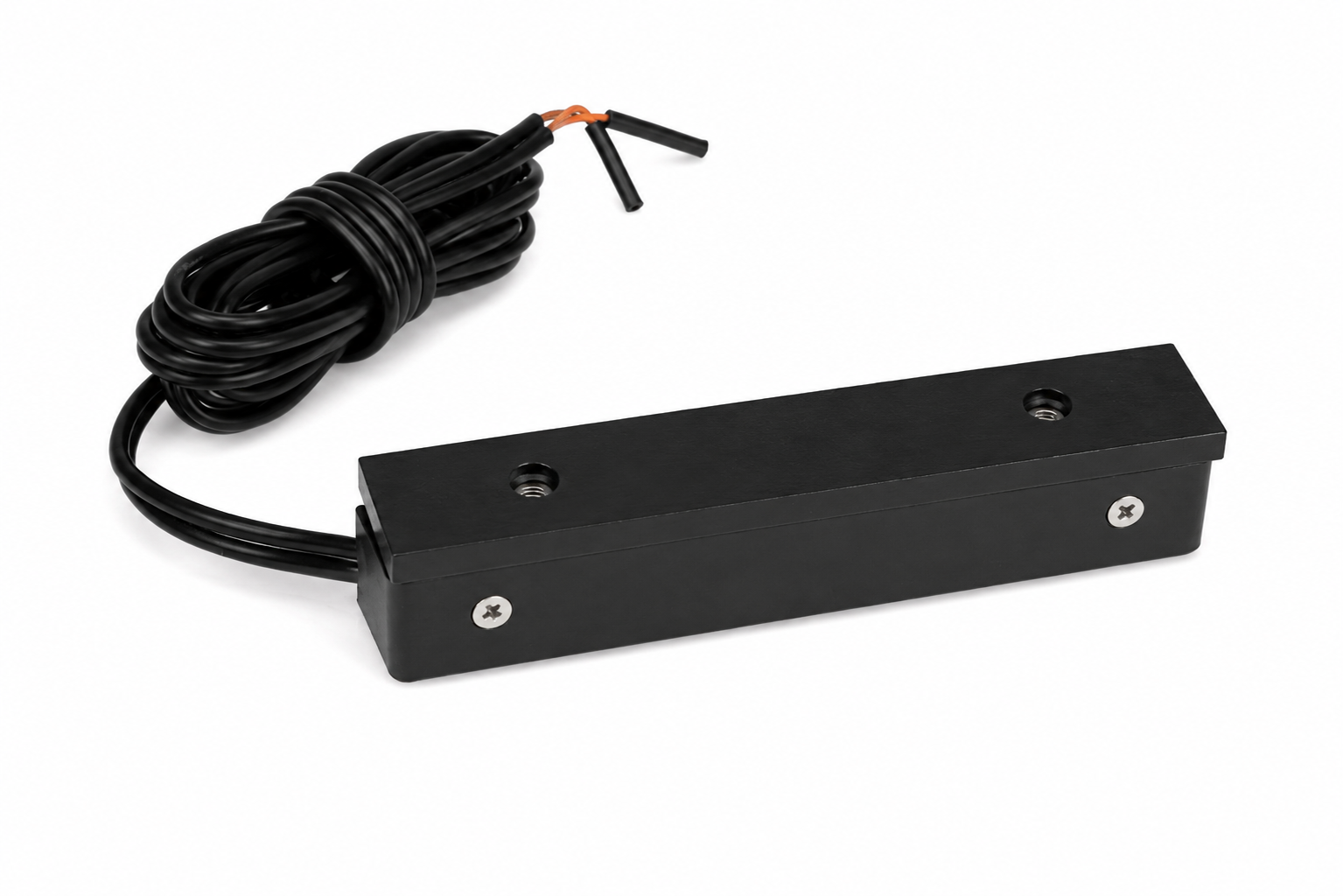

Ledge Bar

Ledge Bar

The LEDGEBAR series is great for lighting addresses, architectural,steps and walls.The versatile mounting chassis allows for surface mounting.

Retail Pricing $214.95
Width
Finish: ArchBronze

Part Number: CLB1511-MP-AR15

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Hardscape lighting, built to perform

The LEDGE series is our low-profile hardscape light, engineered to integrate cleanly under top caps, into mortar joints, and along step risers — illuminating columns, walls, address numbers, and walkways with even, controlled light. A stainless-steel housing with mortar mount plate, G4 bi-pin porcelain socket, frosted glass lens, and IP64 wet-location rating means it holds up year-round in demanding outdoor commercial environments.

The interchangeable G4 Ceramic LED platform keeps it flexible: run 2W lamps in 2700K or 4000K to suit the project, with each fixture casting a 5–8 ft diameter pool of light. Three width options (5", 10", or 15") let specifiers pick the right scale for the space, and a finish menu of raw copper, stainless steel, and 8+ powder coat colors means the fixture blends — or contrasts — with whatever it's mounted into.

Ideal applications:

  • Hardscape walls, retaining walls, and column caps
  • Step risers and stair edges

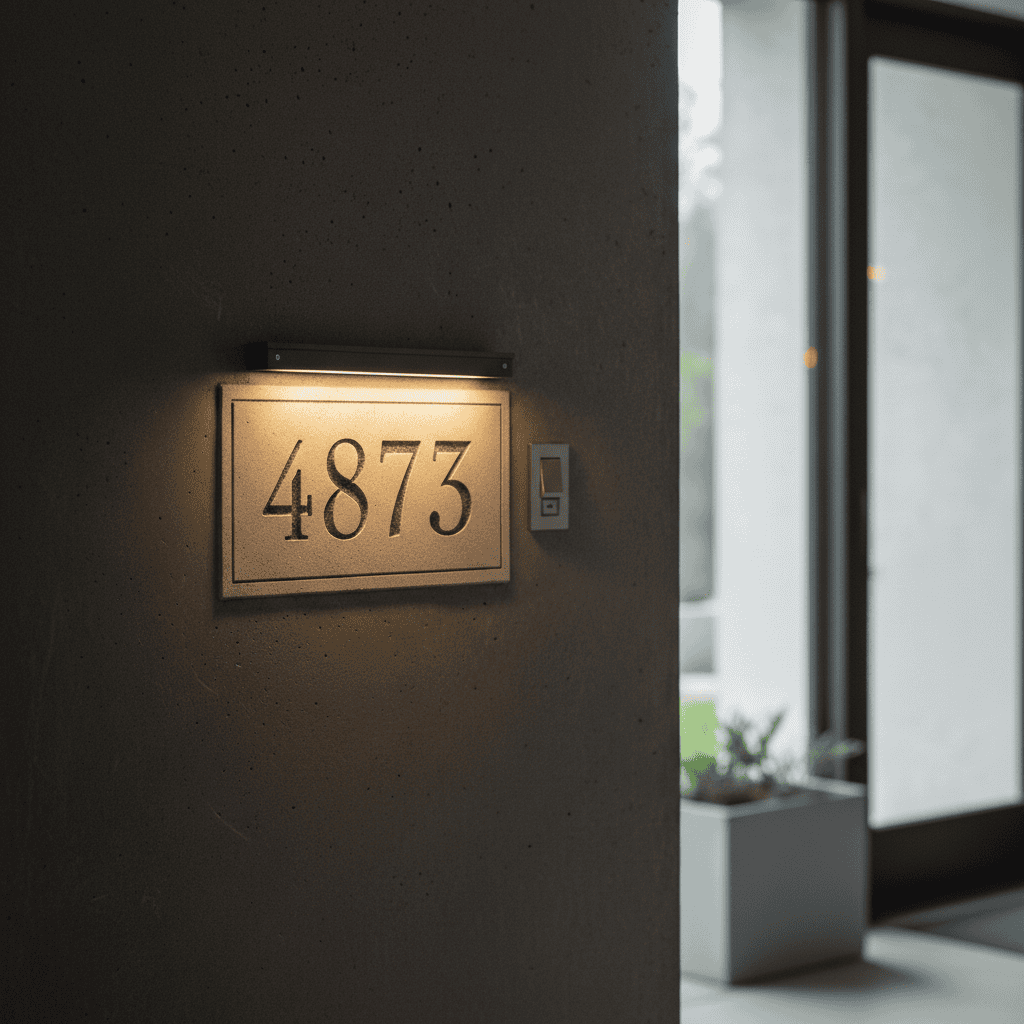

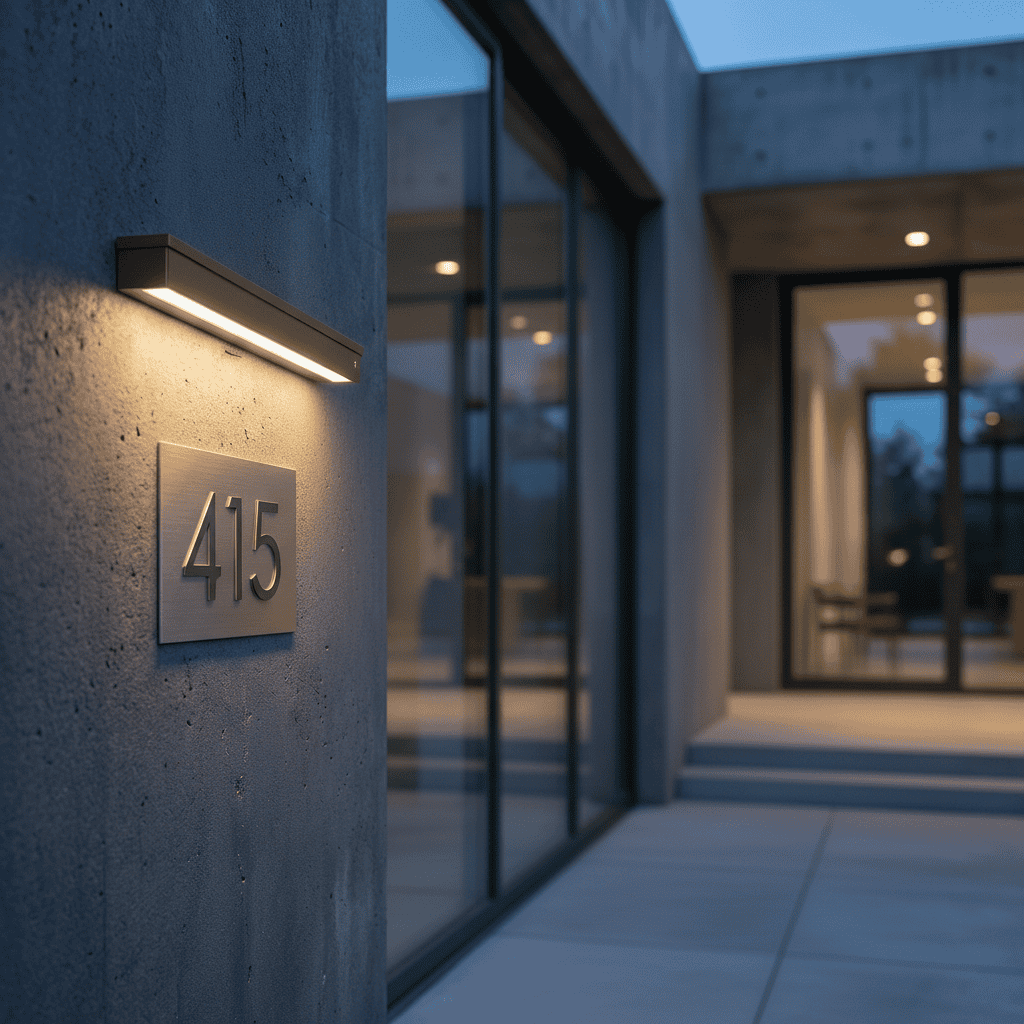

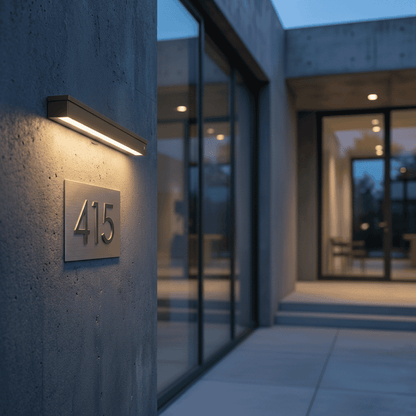

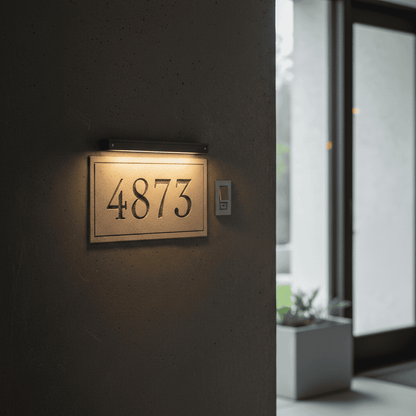

  • Address numbers and signage backlighting
  • Deck and fence accent lighting
  • Walkway and pathway grazing

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 2–6W
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 180 lm per LED
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Stainless steel
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

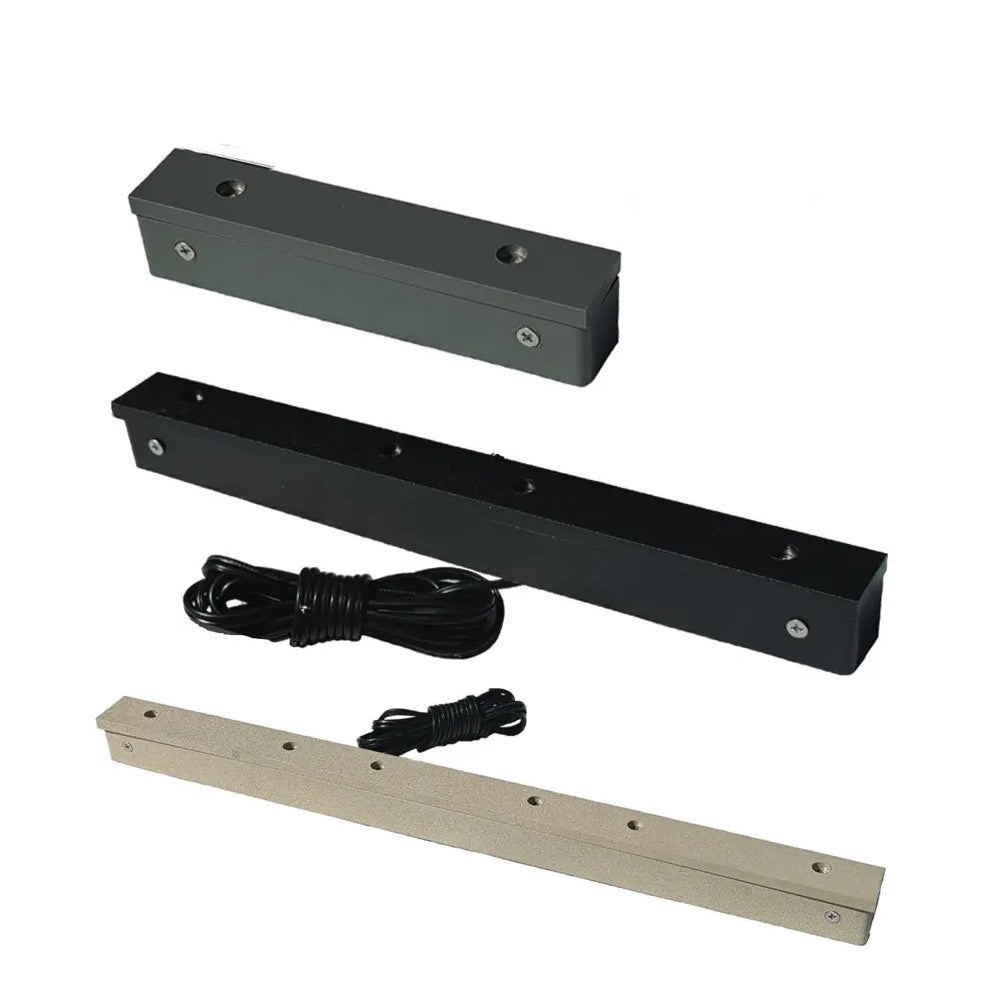

  • Width options: 5", 10", or 15"
  • Depth: 1"
  • Mounting: Mortar plate, under top cap, or step riser
  • Accessories: Mortar plate

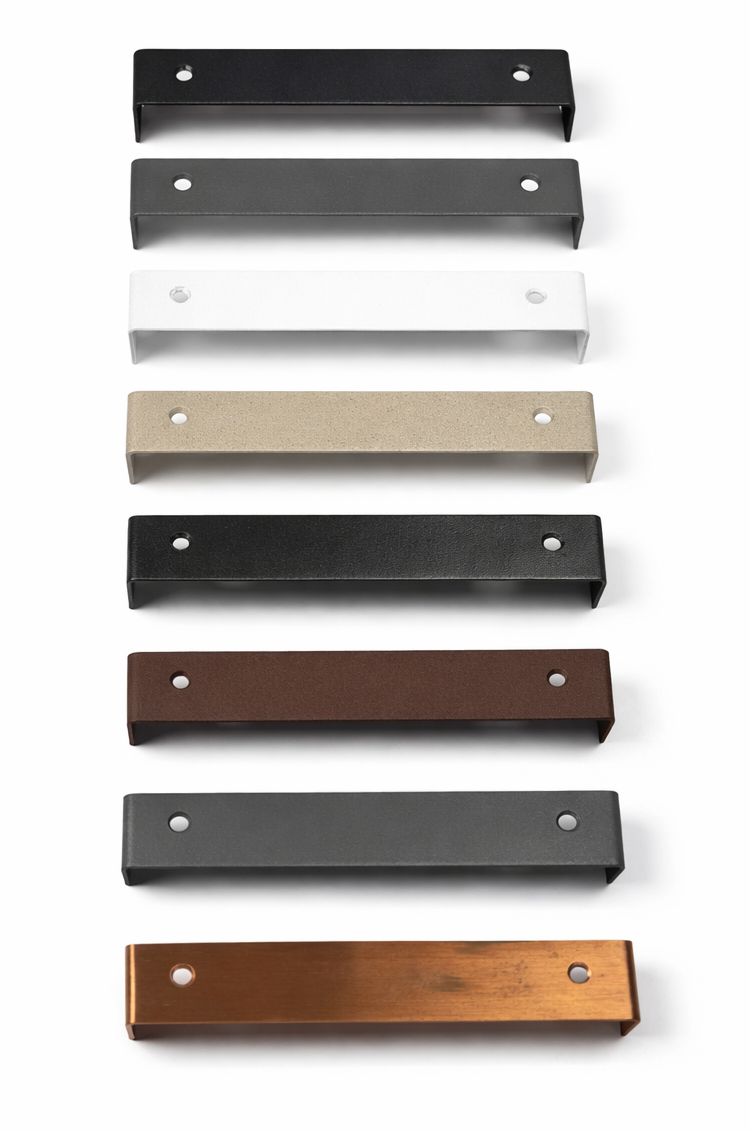

  • Finish options: Raw copper, stainless steel, or 8+ powder coat colors

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 5 years
Download Spec Sheet (PDF)

Hardscape lighting, built to perform

The LEDGE series is our low-profile hardscape light, engineered to integrate cleanly under top caps, into mortar joints, and along step risers — illuminating columns, walls, address numbers, and walkways with even, controlled light. A stainless-steel housing with mortar mount plate, G4 bi-pin porcelain socket, frosted glass lens, and IP64 wet-location rating means it holds up year-round in demanding outdoor commercial environments.

The interchangeable G4 Ceramic LED platform keeps it flexible: run 2W lamps in 2700K or 4000K to suit the project, with each fixture casting a 5–8 ft diameter pool of light. Three width options (5", 10", or 15") let specifiers pick the right scale for the space, and a finish menu of raw copper, stainless steel, and 8+ powder coat colors means the fixture blends — or contrasts — with whatever it's mounted into.

Ideal applications:

  • Hardscape walls, retaining walls, and column caps
  • Step risers and stair edges
  • Address numbers and signage backlighting
  • Deck and fence accent lighting
  • Walkway and pathway grazing

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 2–6W
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 180 lm per LED
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Stainless steel
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

  • Width options: 5", 10", or 15"
  • Depth: 1"
  • Mounting: Mortar plate, under top cap, or step riser
  • Accessories: Mortar plate
  • Finish options: Raw copper, stainless steel, or 8+ powder coat colors

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 5 years
Download Spec Sheet (PDF)
View full details

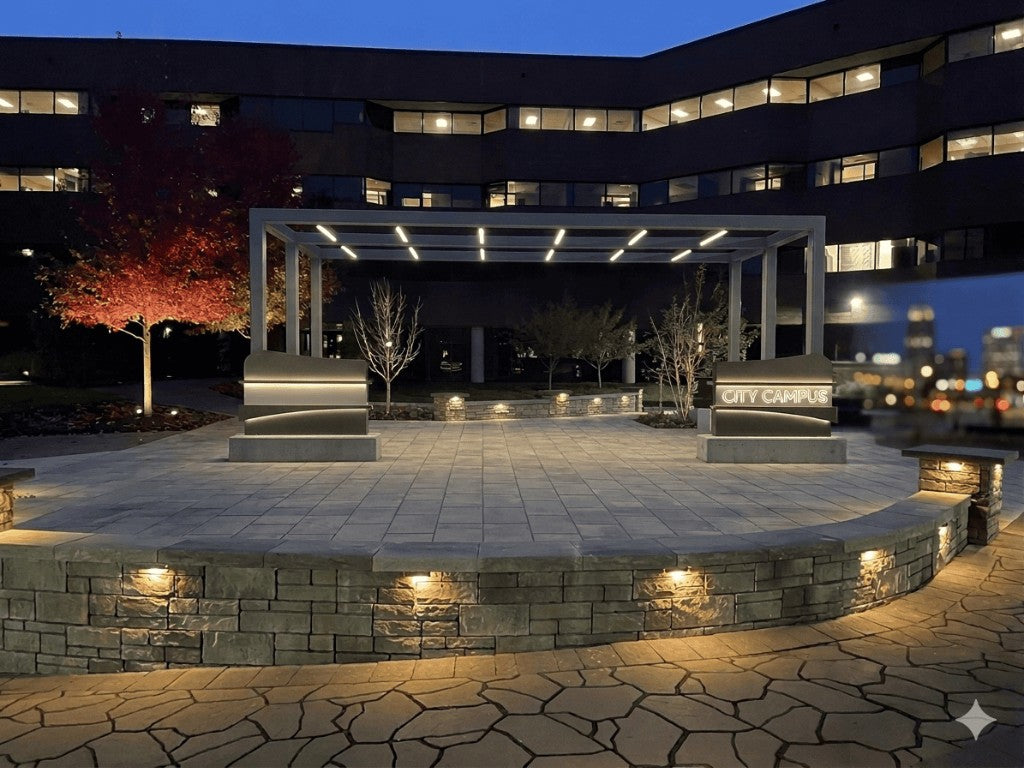

Built into the architecture.

BUILT INTO THE STONE

Built into the architecture.

50,000 hrs

LED lifespan

IP64

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

180 lm

Per LED (2W)

5–8 ft

Light pool diameter

Lifetime housing warranty 5-year LED warranty 8+ finish options

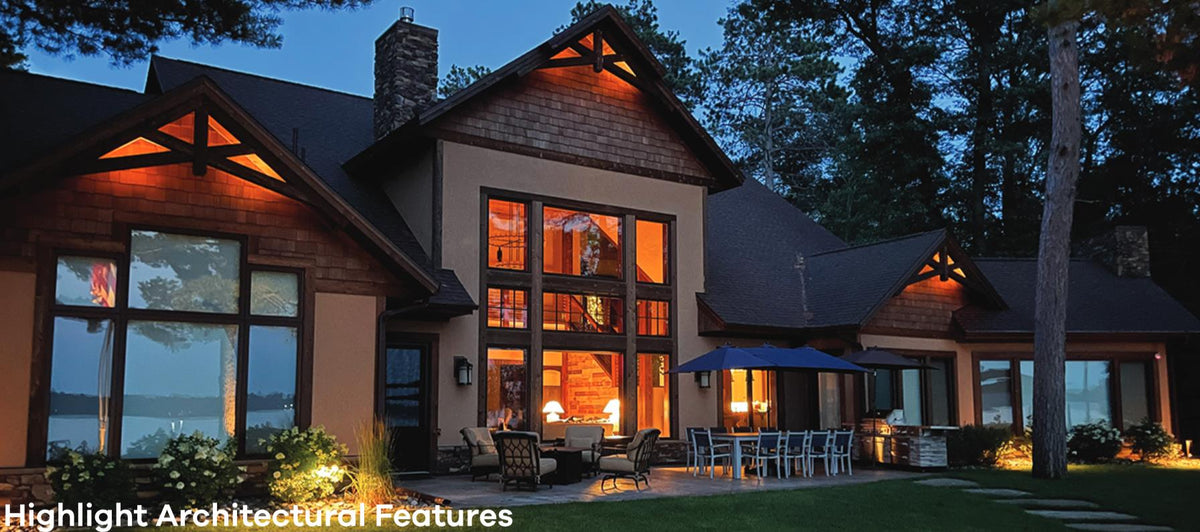

Light the stonework.
