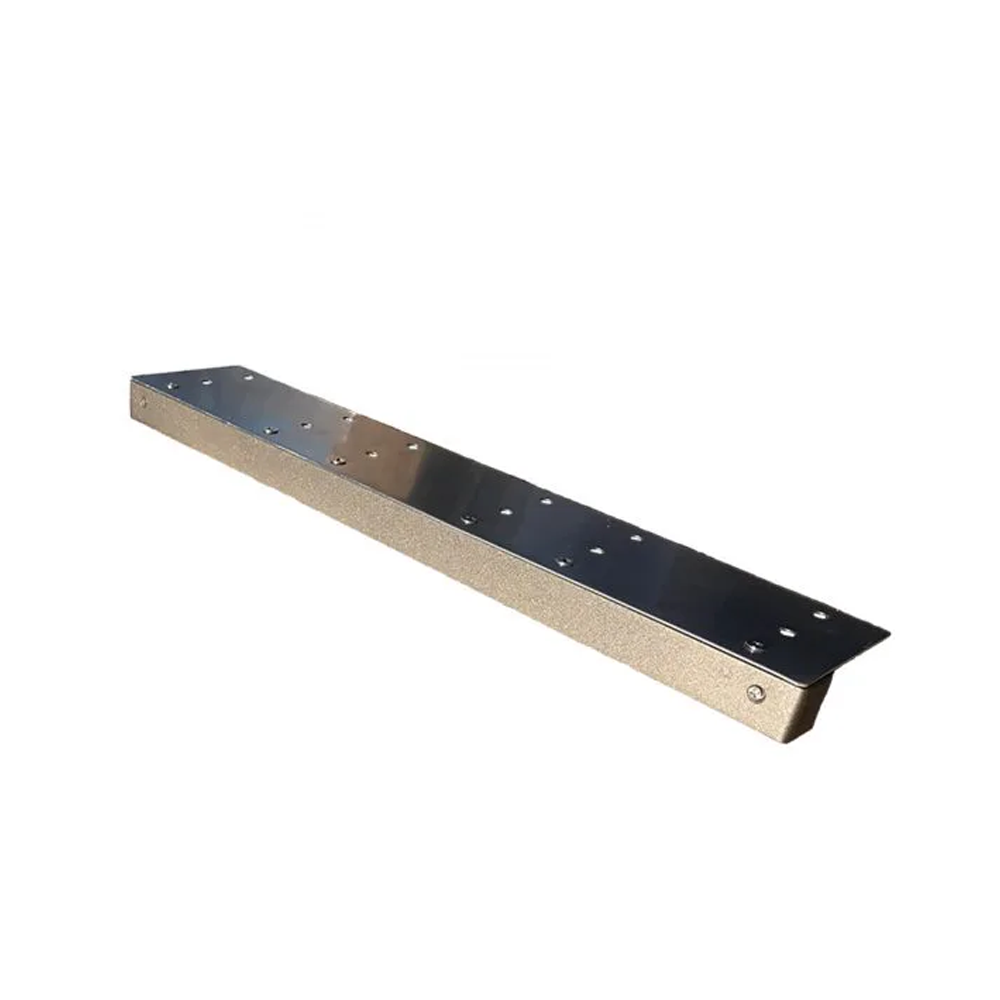

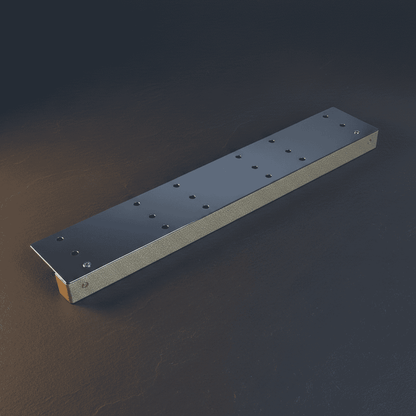

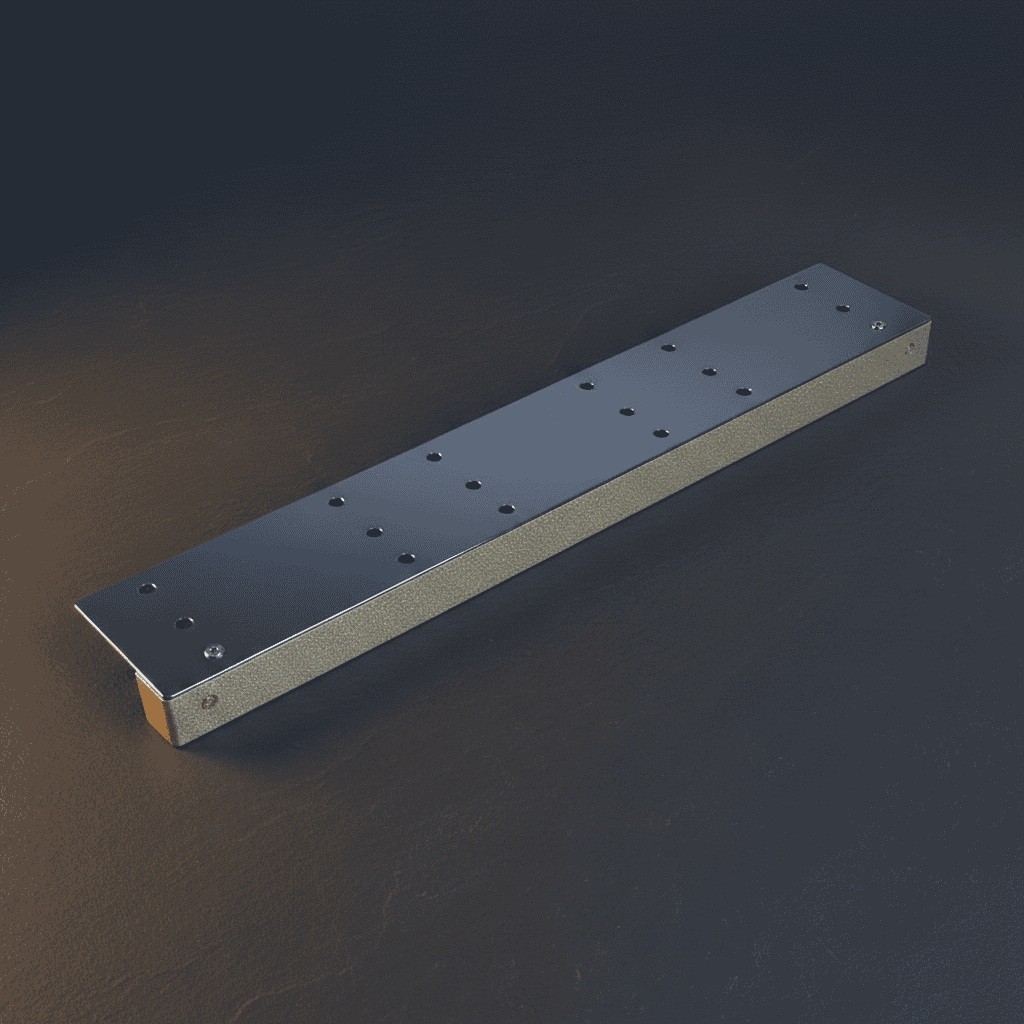

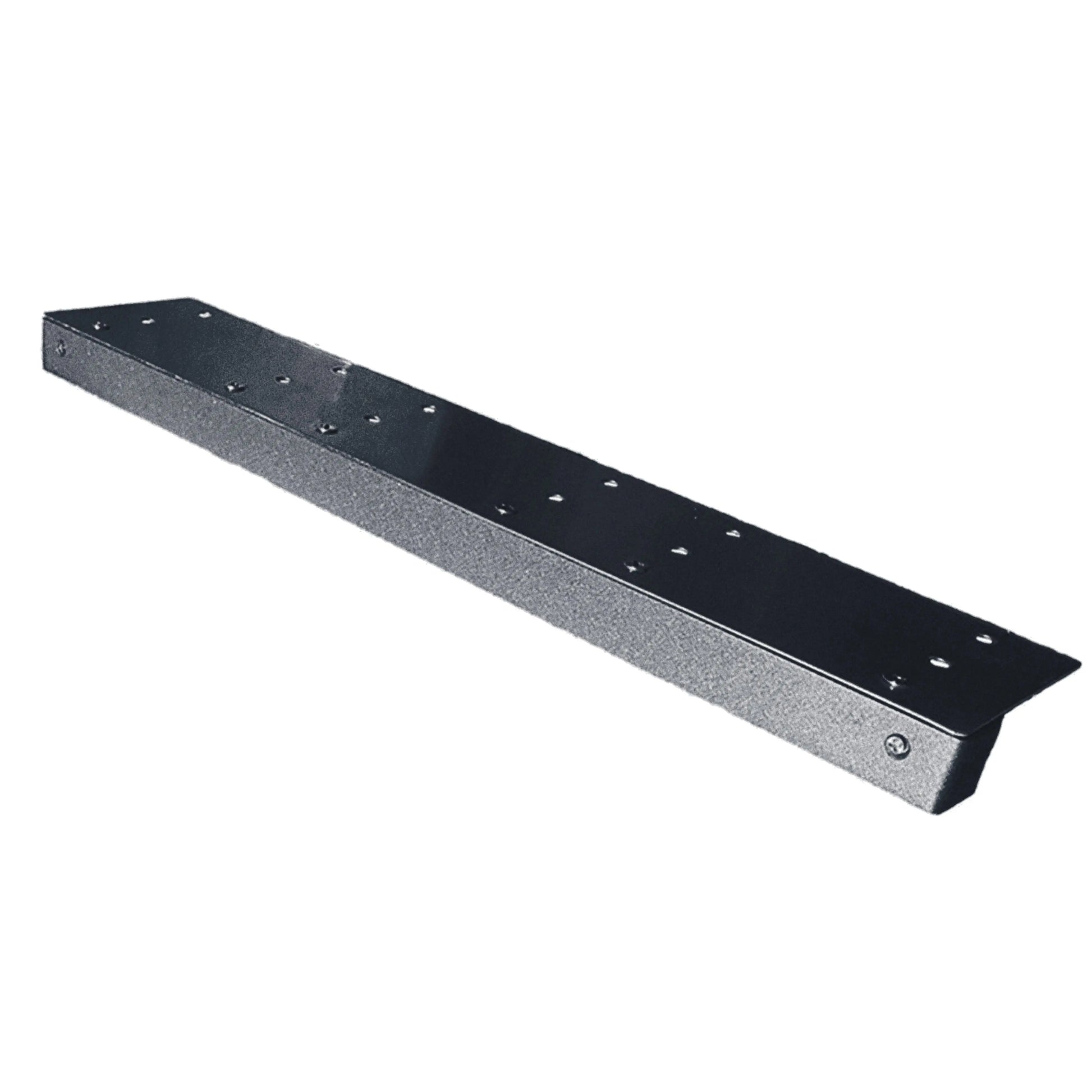

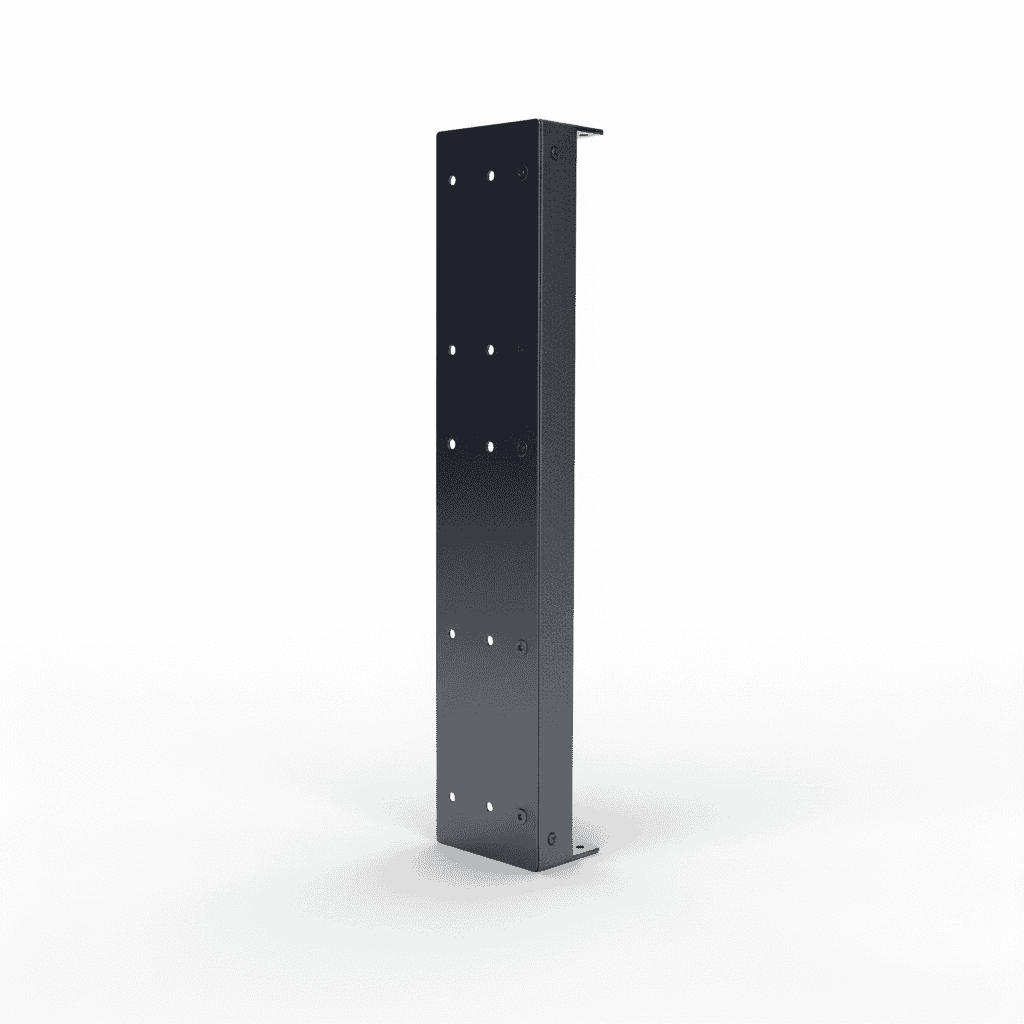

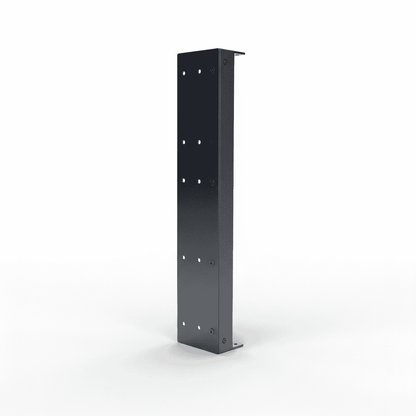

Ledge Series - 15 Inch Commercial Series

Ledge Series - 15 Inch Commercial Series

These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or can be used to downlight addresses, columns, and monuments.

Retail Pricing $219.95
Powdercoat Color: ArchBronze
Color Temperature

Part Number: CDL1511AR2700

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Subtle illumination for hardscape and architecture — full 15-inch format

Our LEDGE, Top Cap, and Rail series surface mounts provide subtle, attractive illumination while enhancing the look of your overall landscape and architectural design. These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or to downlight address numbers, columns, and monuments. A heavy-duty stainless-steel housing makes for a durable fixture, while the raw copper housing option gives it a sophisticated, elegant look.

The 15-inch DL1511 is the largest format in the LEDGE line, packing three integrated 2W G4 ceramic LEDs across a single 15.5-inch housing — engineered for extended top caps, longer step risers, wider column bases, and any architectural element where a single short fixture would leave gaps in coverage.

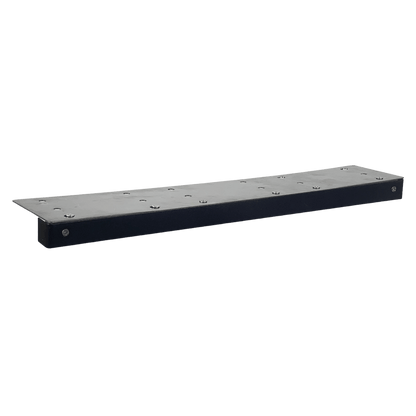

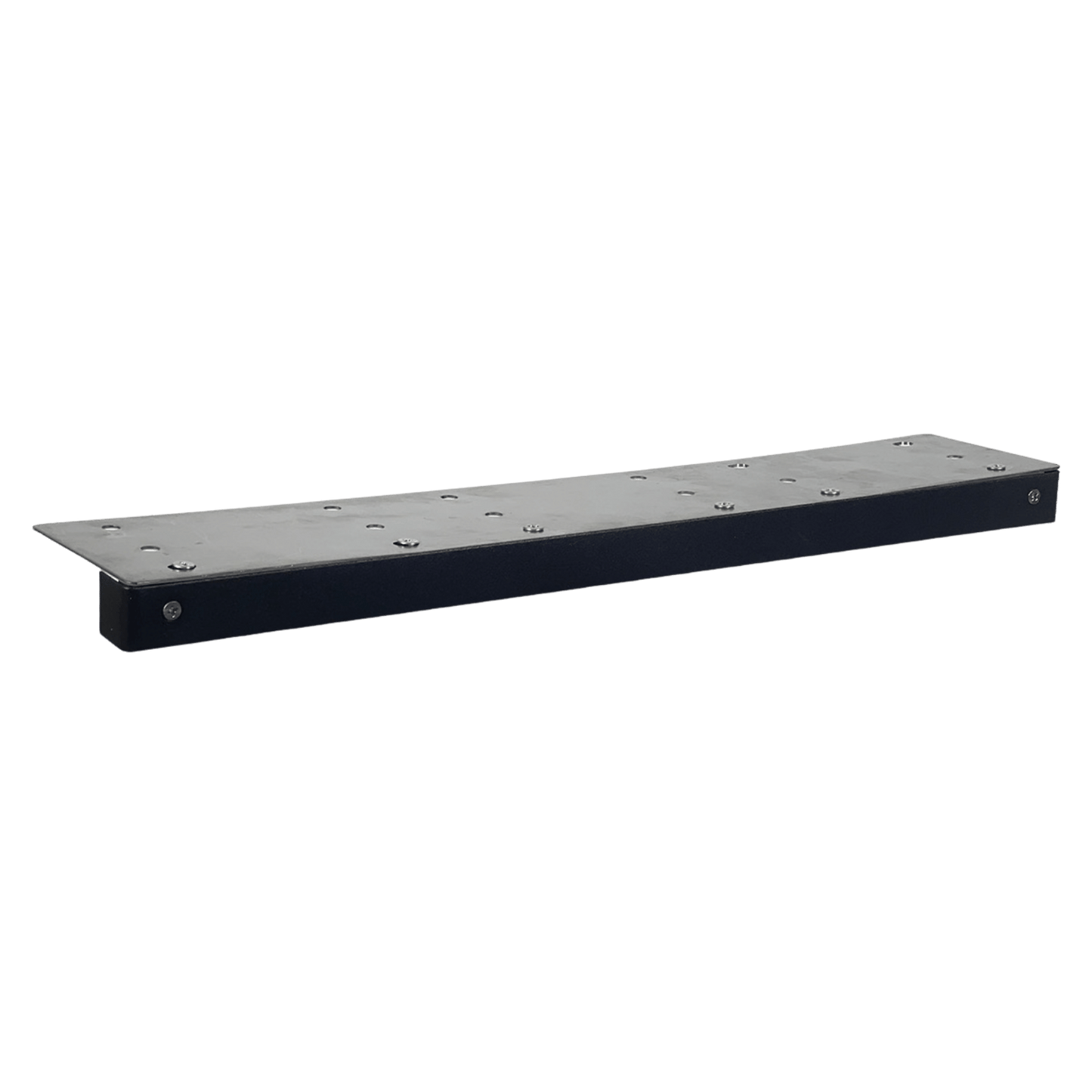

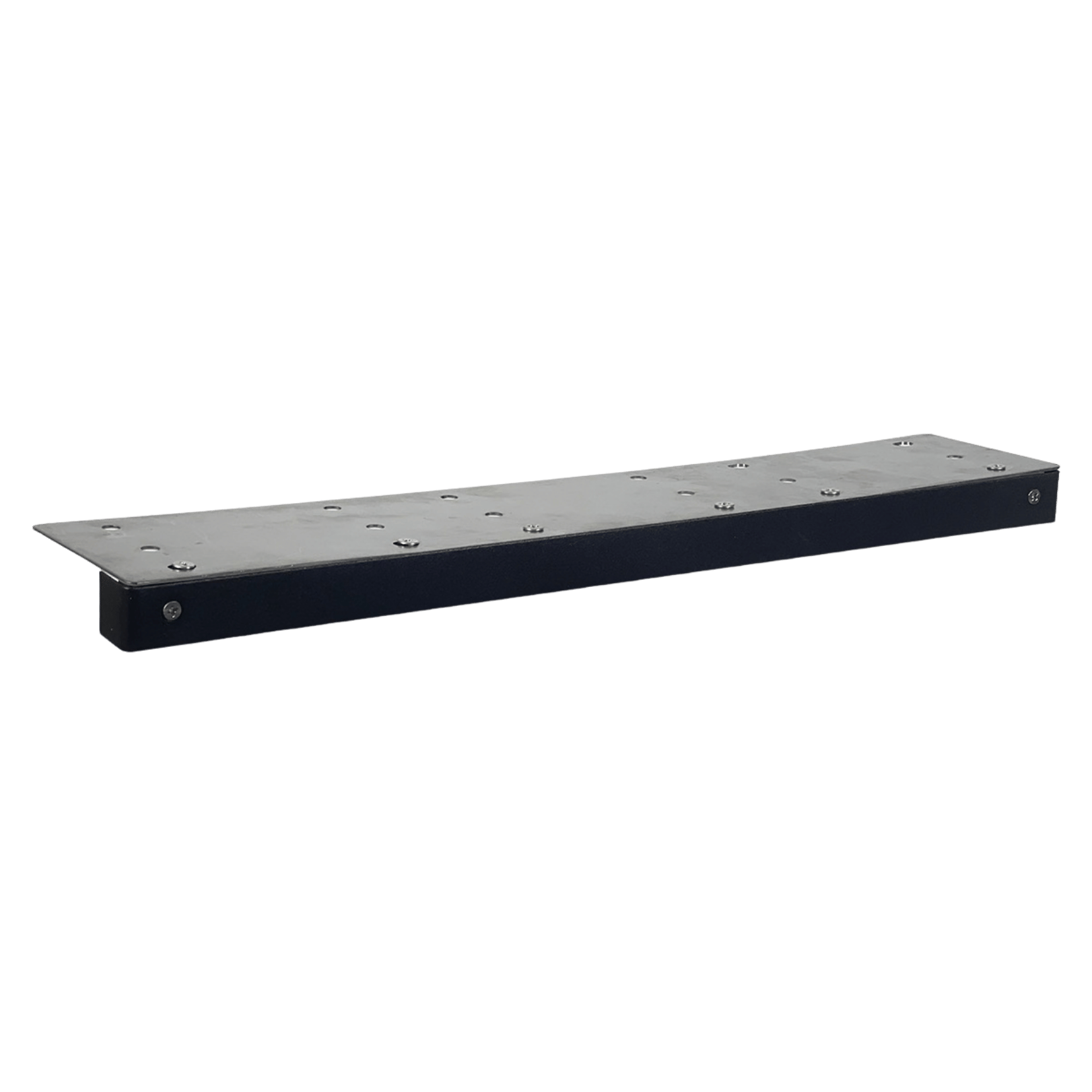

Dimensions: 15.5" W × 4" D × 1" tall

Ledge Surface Mounts — ideal applications:

  • Under masonry top caps
  • Under deck steps and railings

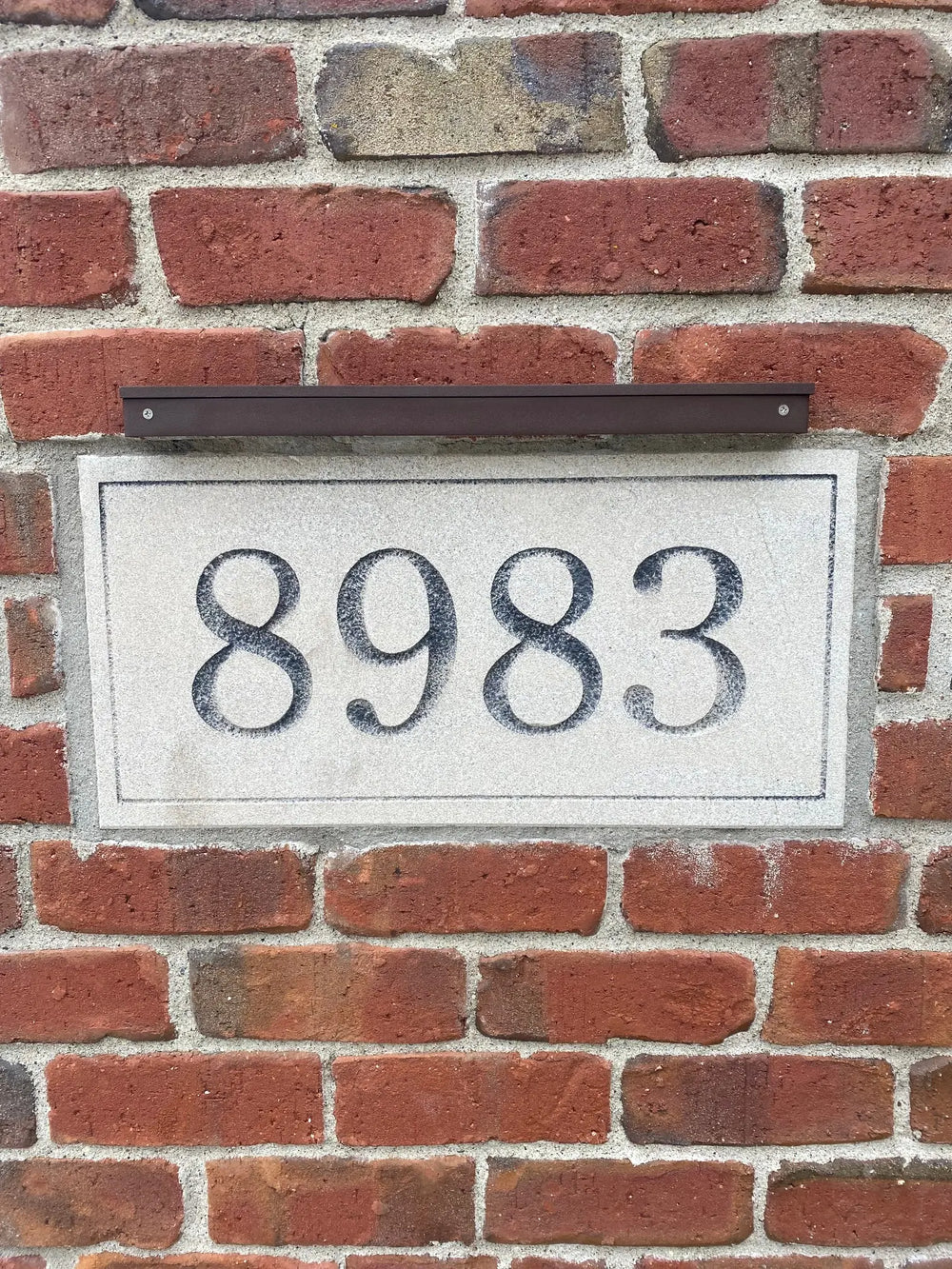

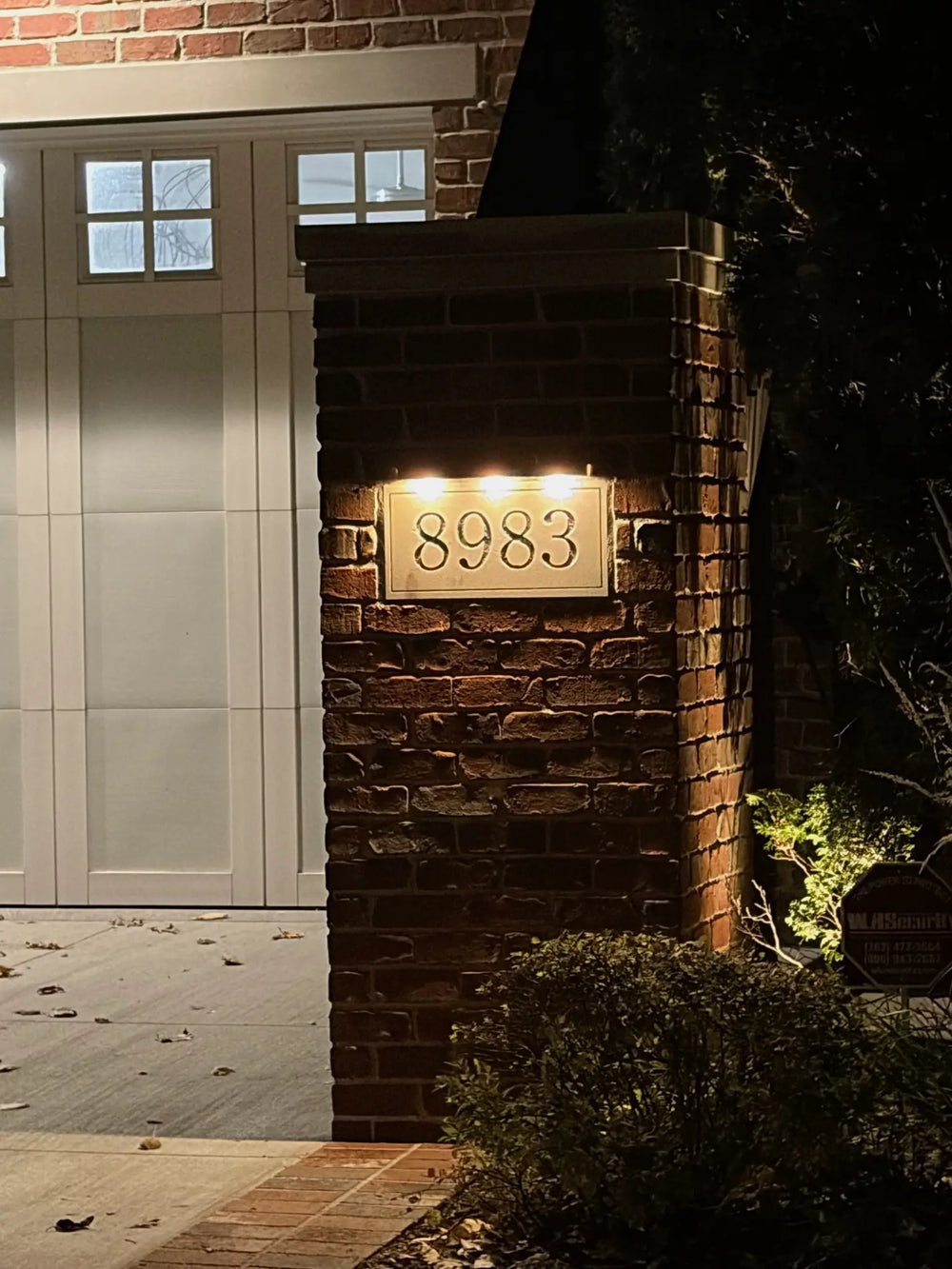

  • Downlight address numbers
  • Downlight columns and monuments

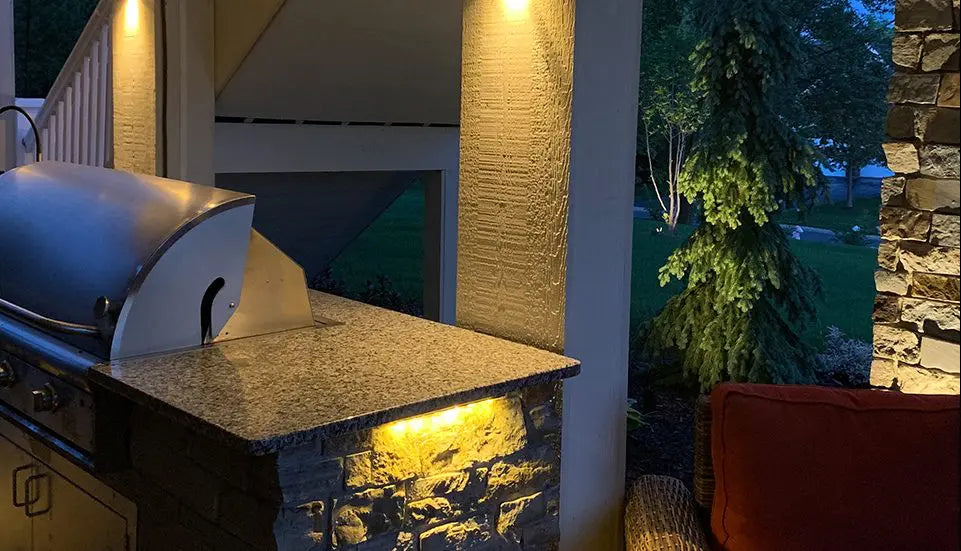

  • Hardscape lighting, deck lighting, and outdoor living areas

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 6W total (3 × 2W G4 ceramic LEDs)
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: ~540 lm total (180 lm per LED × 3)
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool per LED
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Heavy-duty stainless steel or raw copper
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

  • Width: 15.5"
  • Depth: 4"
  • Height: 1"
  • Mounting: Mortar plate, under top cap, or step riser

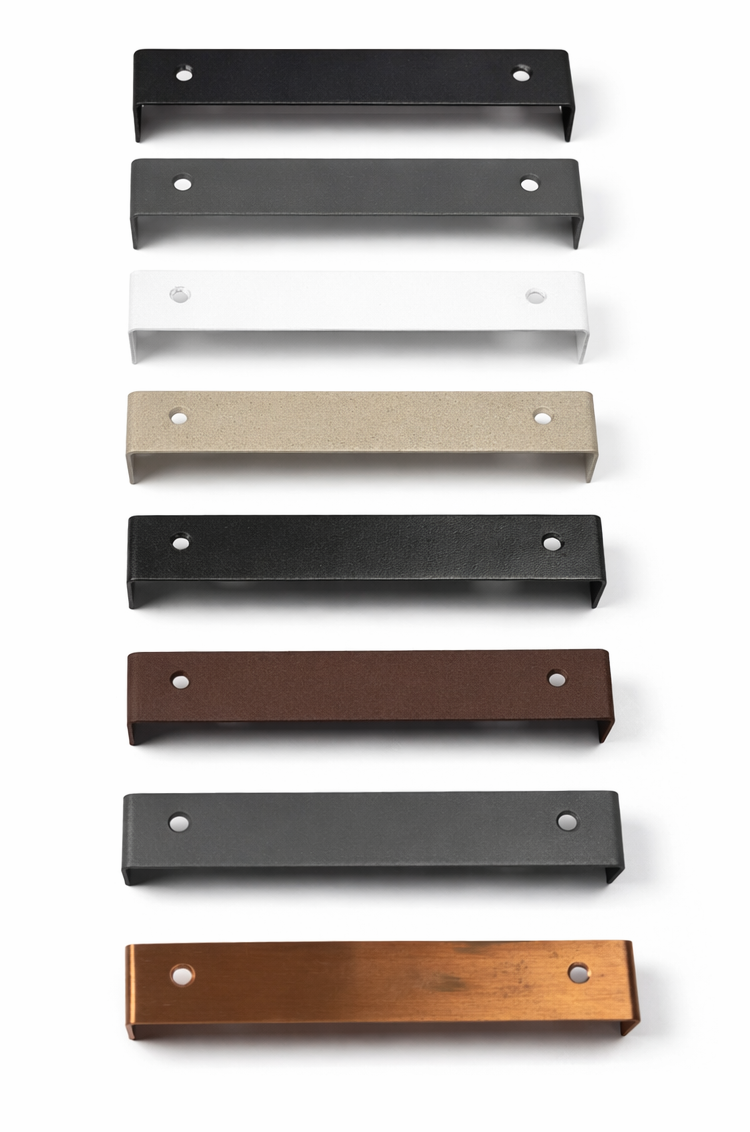

  • Finish options: Stainless steel, raw copper, black patina, or 8+ powder coat colors

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Subtle illumination for hardscape and architecture — full 15-inch format

Our LEDGE, Top Cap, and Rail series surface mounts provide subtle, attractive illumination while enhancing the look of your overall landscape and architectural design. These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or to downlight address numbers, columns, and monuments. A heavy-duty stainless-steel housing makes for a durable fixture, while the raw copper housing option gives it a sophisticated, elegant look.

The 15-inch DL1511 is the largest format in the LEDGE line, packing three integrated 2W G4 ceramic LEDs across a single 15.5-inch housing — engineered for extended top caps, longer step risers, wider column bases, and any architectural element where a single short fixture would leave gaps in coverage.

Dimensions: 15.5" W × 4" D × 1" tall

Ledge Surface Mounts — ideal applications:

  • Under masonry top caps
  • Under deck steps and railings
  • Downlight address numbers
  • Downlight columns and monuments
  • Hardscape lighting, deck lighting, and outdoor living areas

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 6W total (3 × 2W G4 ceramic LEDs)
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: ~540 lm total (180 lm per LED × 3)
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool per LED
  • Lifespan: 50,000 hours

Build & environmental

  • Housing: Heavy-duty stainless steel or raw copper
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

  • Width: 15.5"
  • Depth: 4"
  • Height: 1"
  • Mounting: Mortar plate, under top cap, or step riser
  • Finish options: Stainless steel, raw copper, black patina, or 8+ powder coat colors

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 5 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details

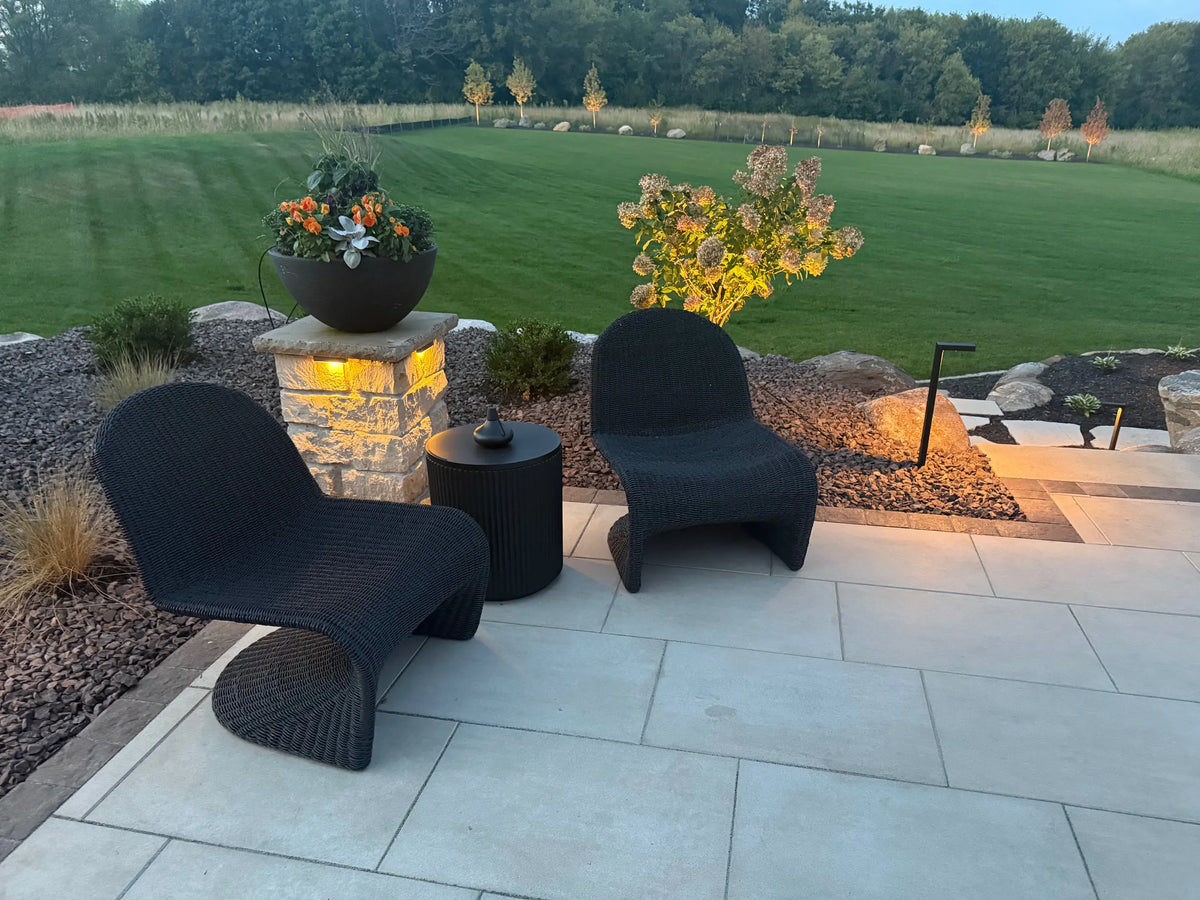

Wide format. Long throw.

FIFTEEN-INCH FORMAT

Wide format. Long throw.

50,000 hrs

LED lifespan

IP64

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

~540 lm

Total output (3 × 2W)

5–8 ft

Light pool per LED

Lifetime housing warranty 5-year LED warranty 3-LED configuration
Light the long edge.

LEDGE 15-INCH COMMERCIAL

Light the long edge.

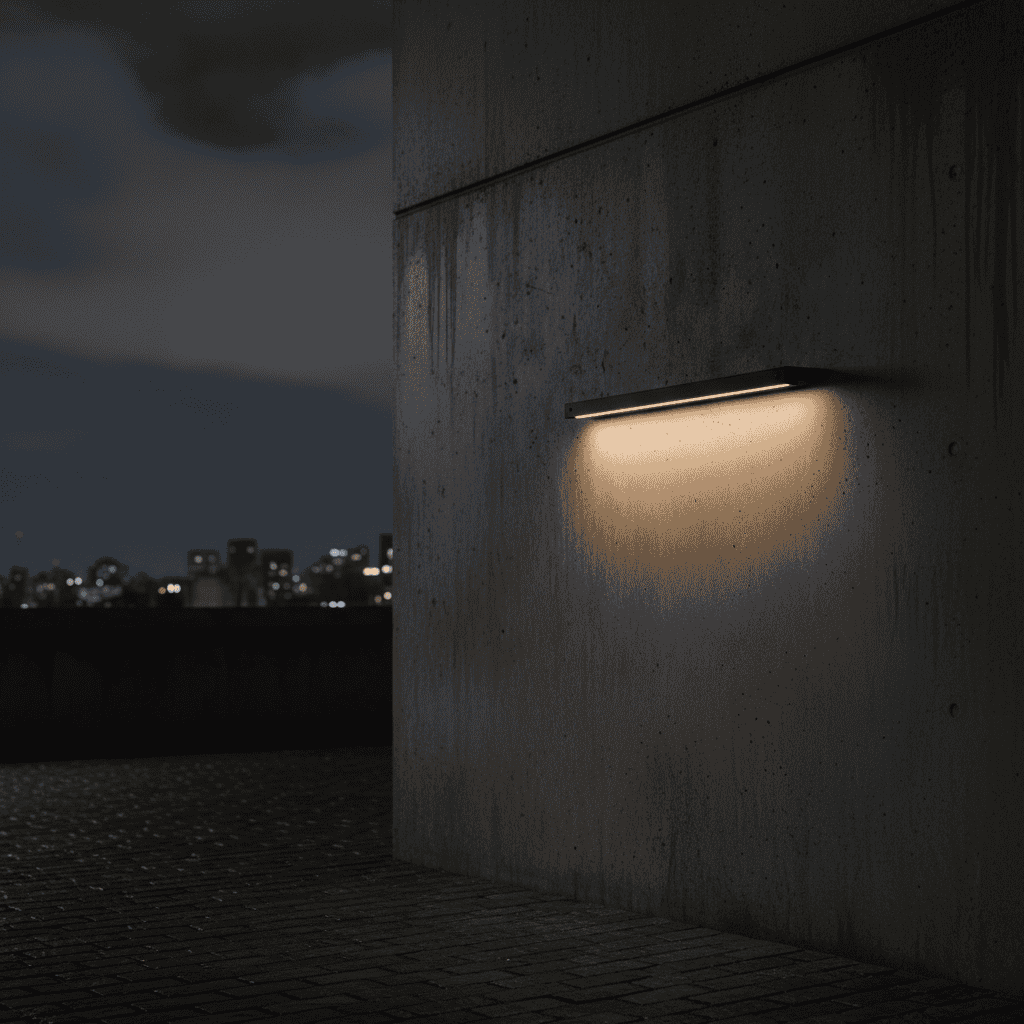

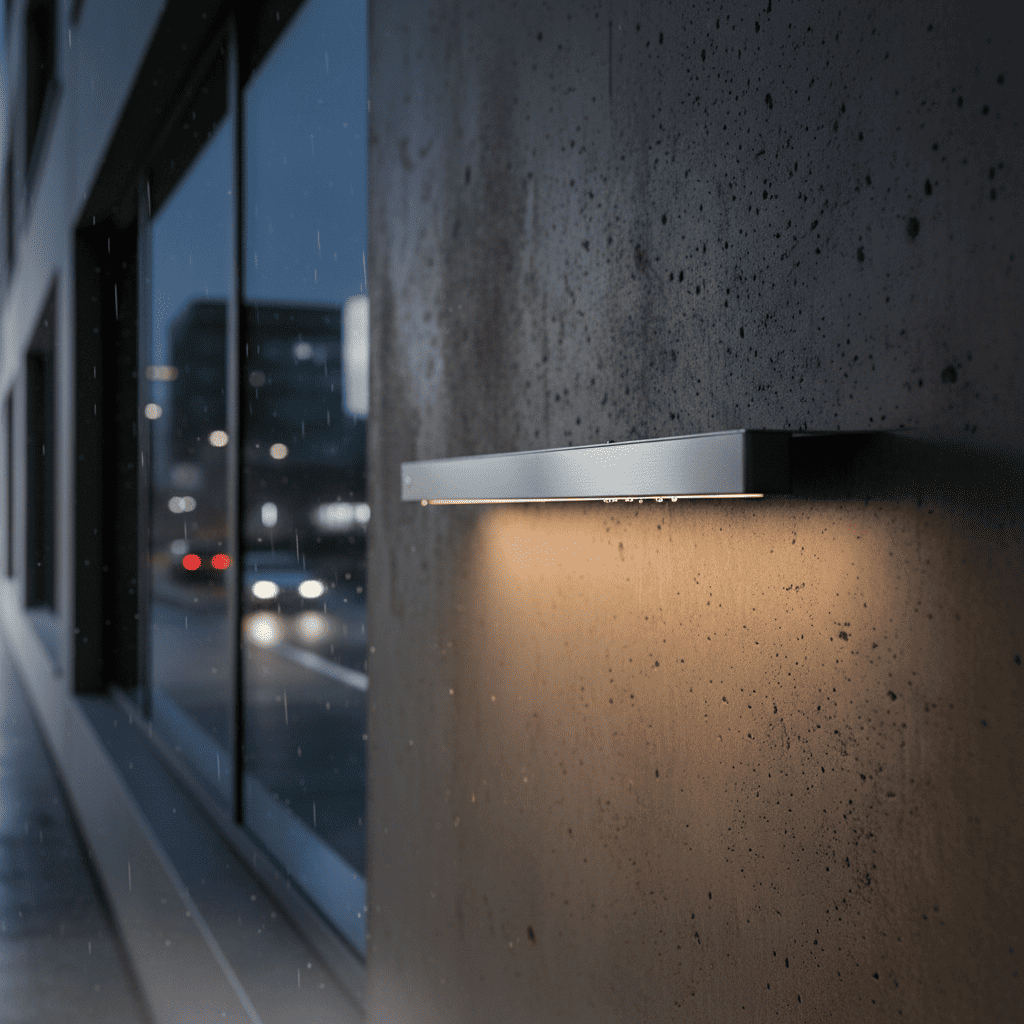

From extended masonry top caps to long step risers and wide column bases — the 15-inch LEDGE delivers low-profile architectural light across longer surfaces with three integrated LEDs in a single 15.5" housing. Stainless steel or raw copper. IP64. Lifetime housing.

~540 lm

Total output

IP64

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
