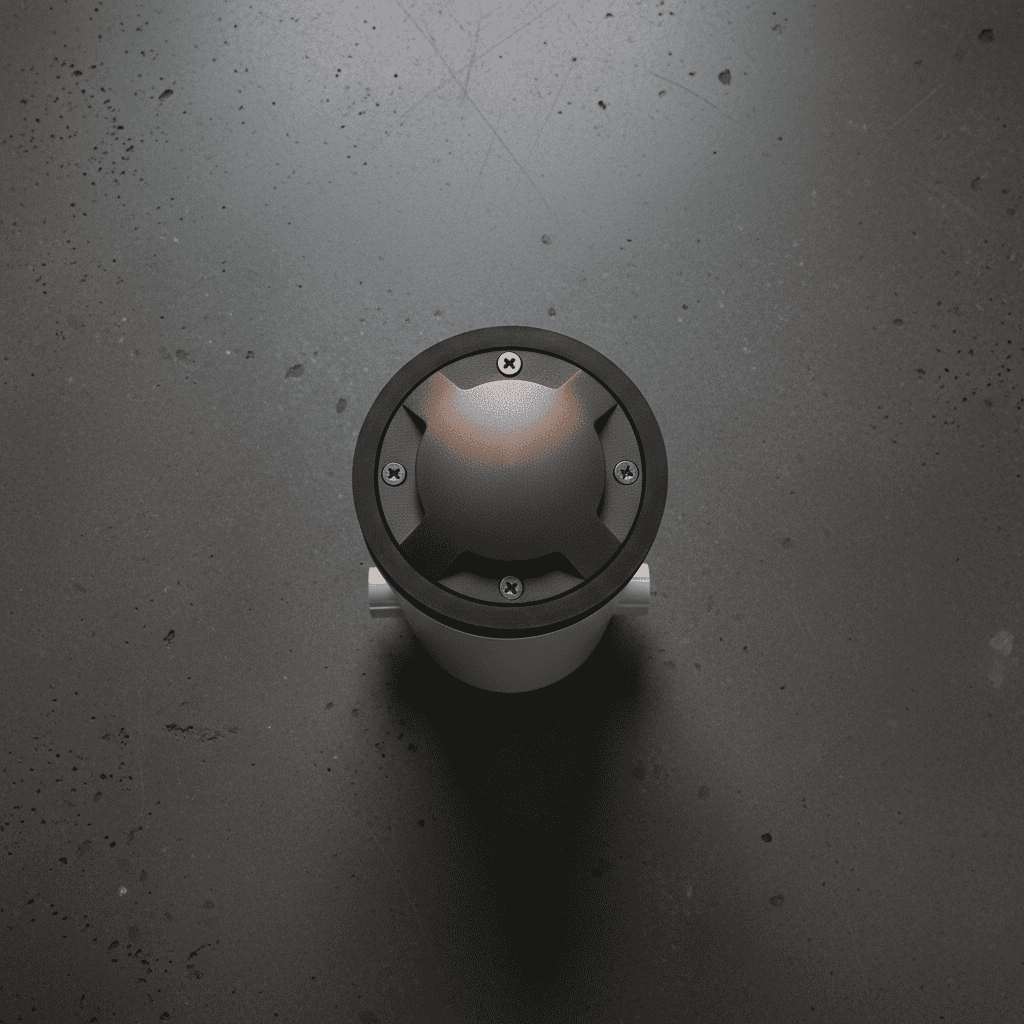

Hardscape Well Domed Commercial Series

Hardscape Well Domed Commercial Series

The hardscape well series fixture allows for a variety of wall washing home architecture, uplighting trees, walkways, driveways, and sculptures. It also allows varied hardscape lighting effects.

Retail Pricing $179.95
Fixture Color: ArchBronze
Bulb Wattage
Color Temperature

Part Number: HS240D-7W-AR4000

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

Drive-over in-ground uplighting with a domed face

The HS240 hardscape WELL series fixture handles a variety of vertical and horizontal lighting techniques — wall washing, architectural grazing, uplighting trees, walkways, driveways, and sculpture, plus varied hardscape lighting effects. Three front-cover shapes let you tune the fixture to the specific lighting need.

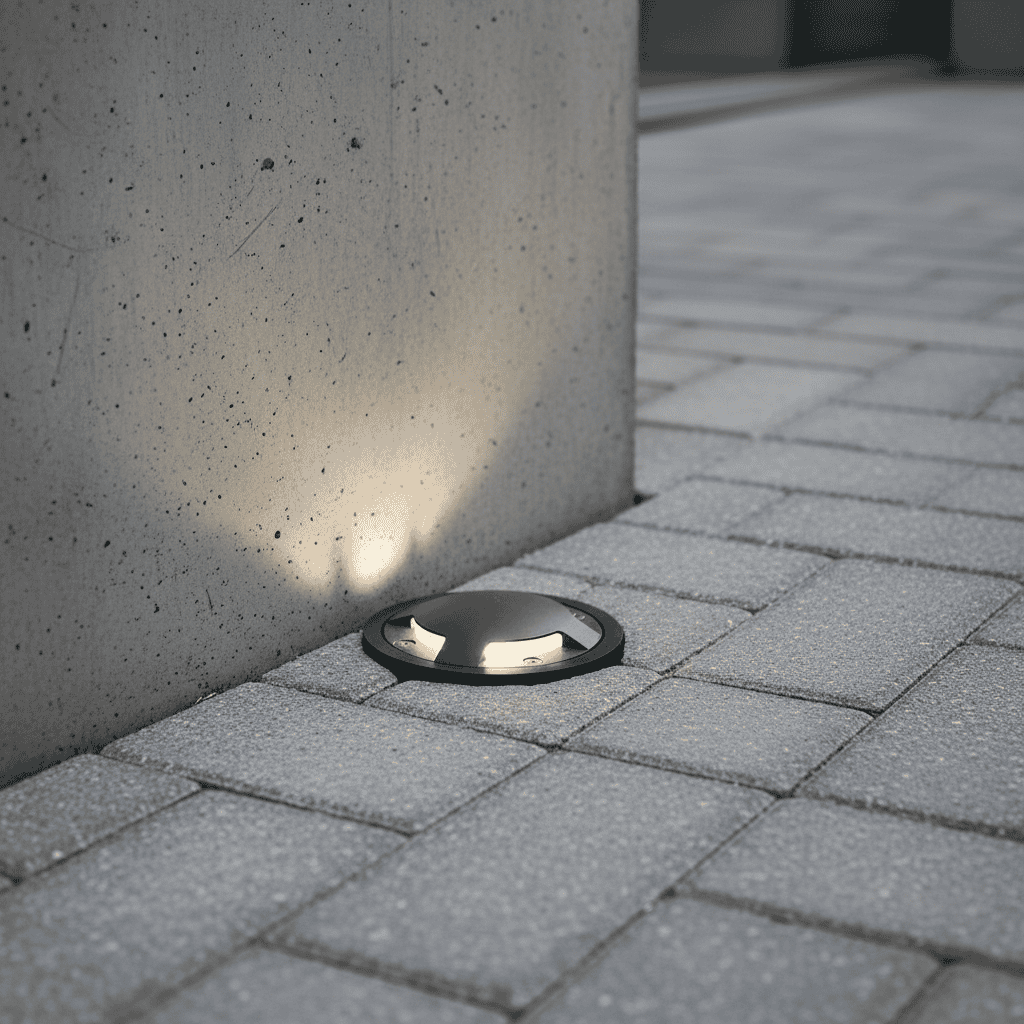

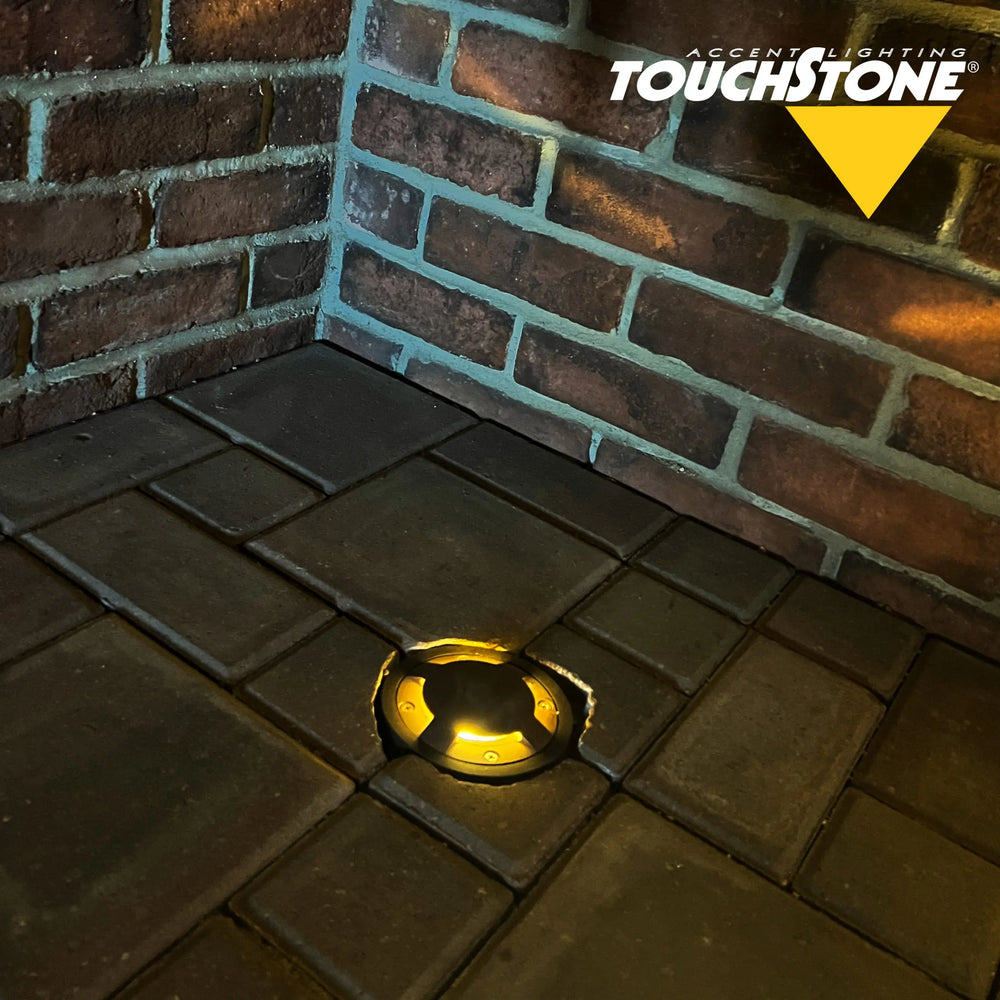

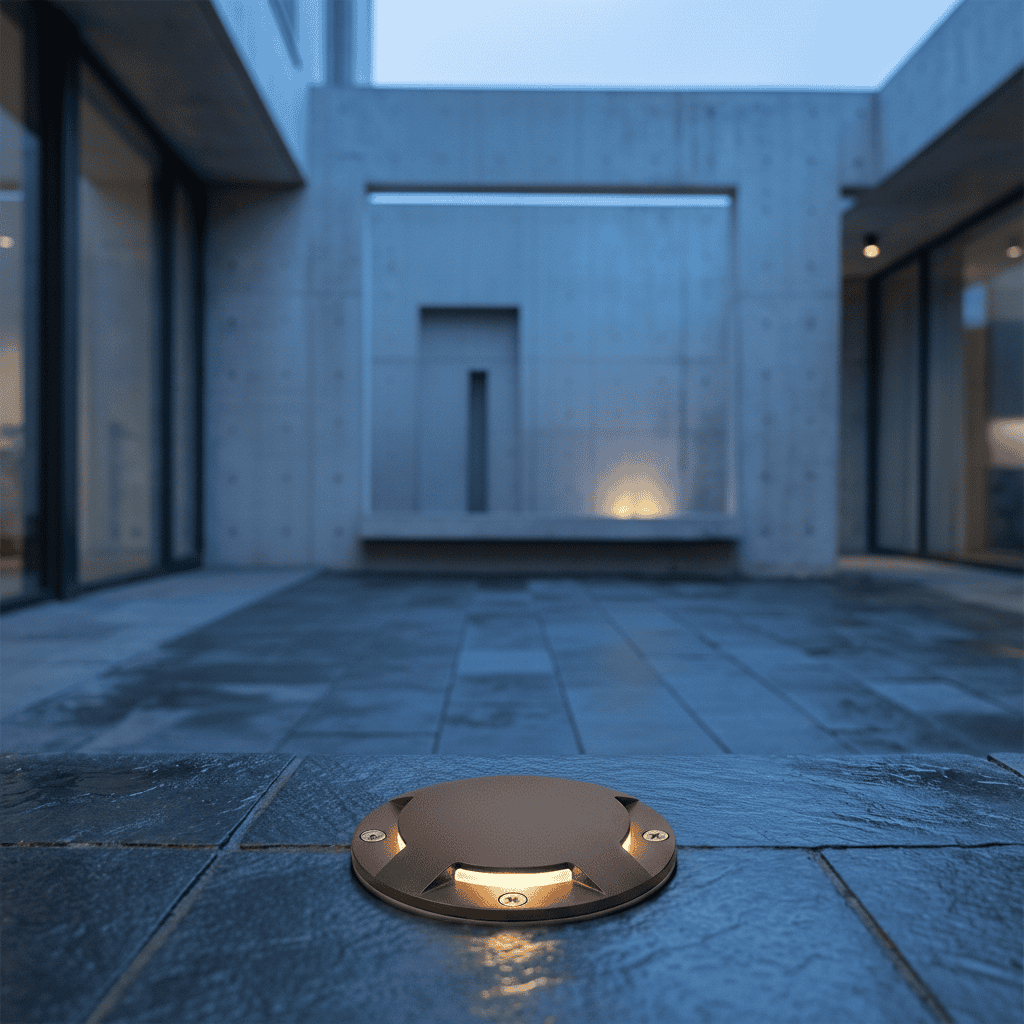

The domed front is purpose-built for traffic locations. Its low-profile dome lets vehicles drive over the fixture without damage, while acting as a visor that controls glare and keeps attention off the light source itself — so you see the lit surface, not the fixture in the ground.

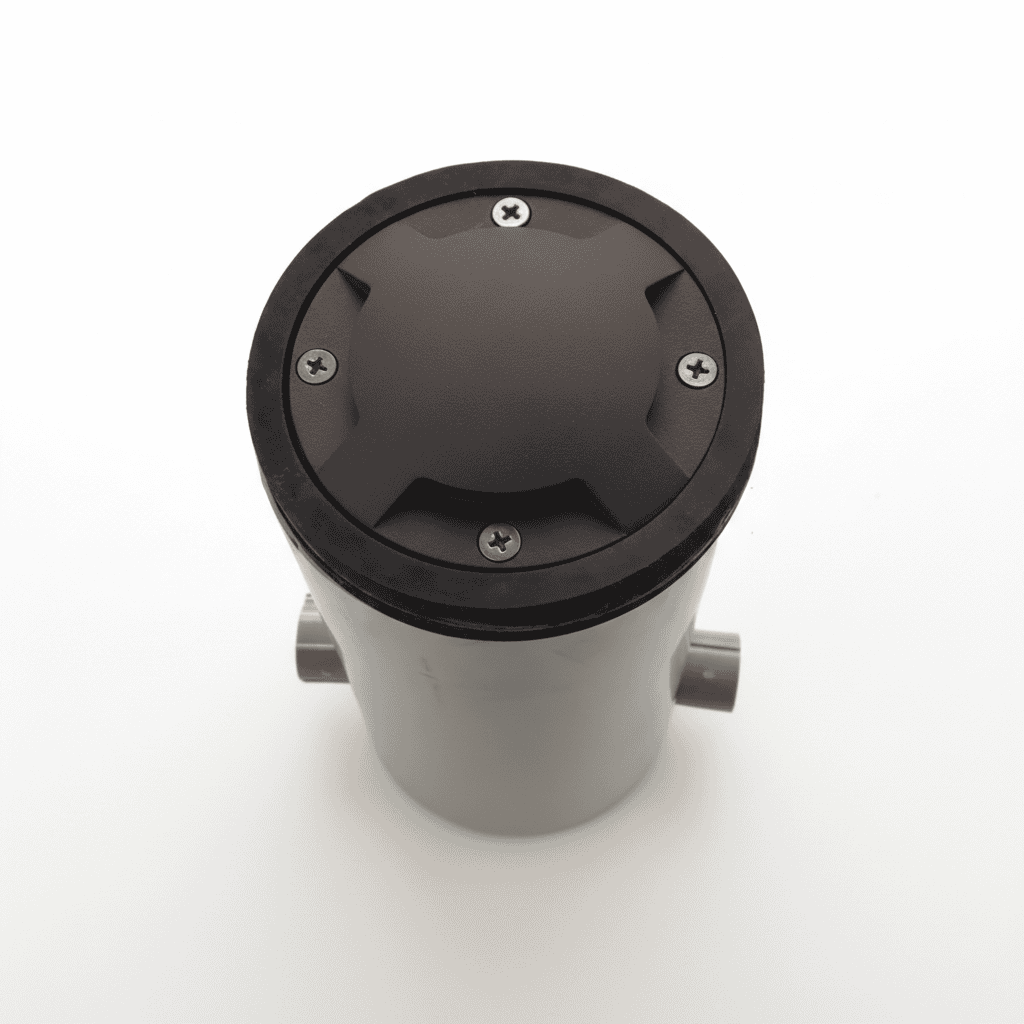

The interchangeable MR16 (or PAR36) LED platform keeps it dialed-in: run 7–17W lamps in 2700K through 6000K, with beam angles from 15° to 100° to tune everything from a tight uplight to a wide wash. A raw brass housing, stainless-steel fasteners, silicone gaskets, rubber expansion ring collar, and IP67 wet-location rating make it ready for buried, drive-over, in-grade installations. The removable fixture body and included hardscape mounting kit make installation, lamp swaps, and service straightforward.

Ideal applications:

  • Driveways, motor courts, and parking aprons
  • Walkways and pedestrian-traffic surfaces
  • Tree-base uplighting in lawn, mulch, or paver beds
  • Architectural facade and feature-wall washing
  • Sign, monument, and sculpture uplighting

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 7–17W (this SKU configured at 7W)
  • LED type: MR16 or PAR36, interchangeable
  • CCT options: 2700K–6000K (this SKU configured at 4000K)
  • Socket/base: GX5.3 bi-pin, porcelain (spade terminals on PAR36)
  • Leads: 25–36 ft, SPT / SJ-W
  • Dimming: N/A

Performance

  • Lumens: 700–1,365 lm (platform range)
  • CRI: 85 (PAR36)
  • Efficacy: ~80–100 lm/W
  • Beam angles: 15°–100°
  • Lifespan: 50,000 hours (PAR36)

Build & environmental

  • Housing: Raw brass

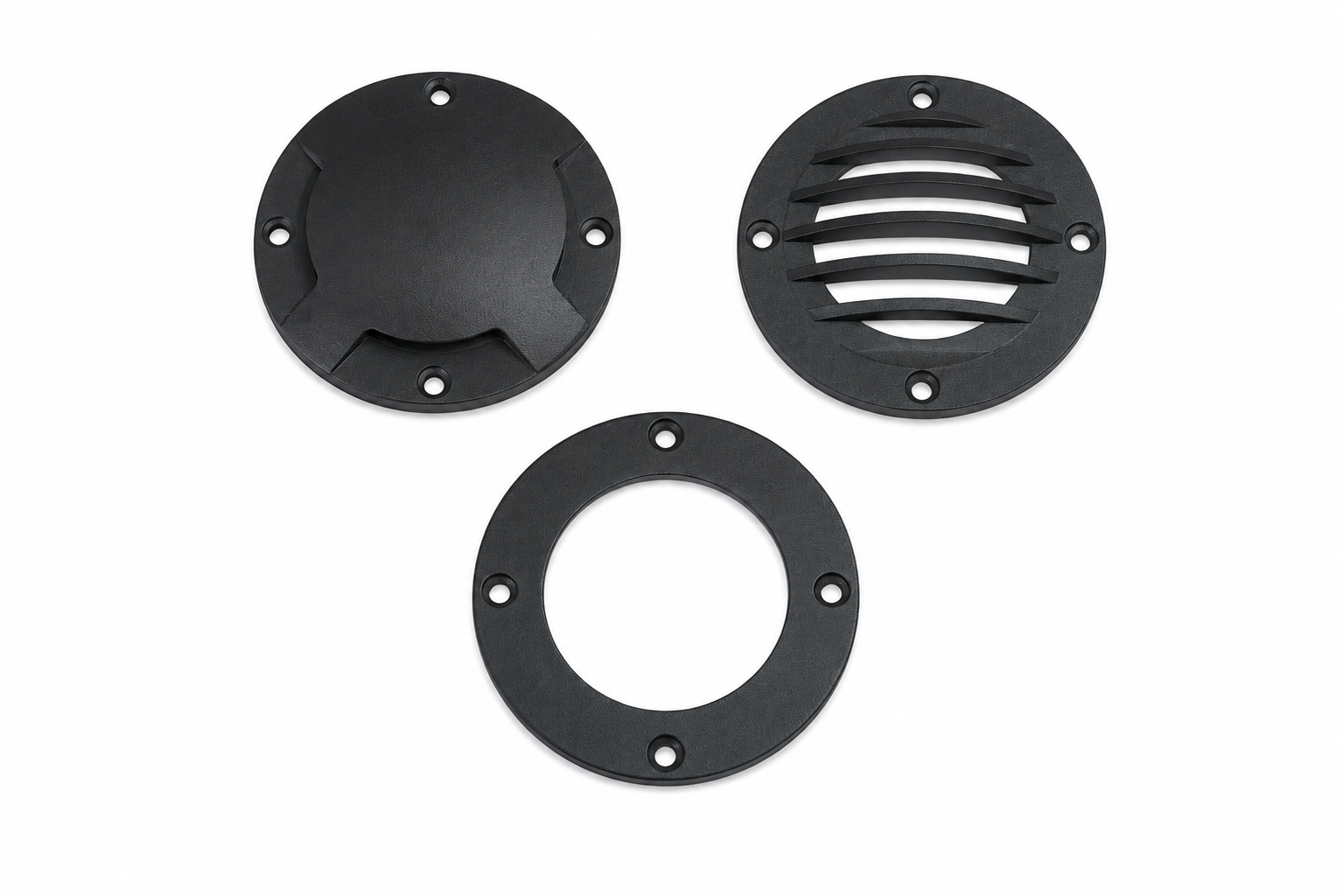

  • Front cover: Domed, drive-over rated (flat and louvered options also available)
  • Lens: Glass
  • Gaskets: Silicone
  • Collar: Rubber expansion ring
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location
  • Certification: ETL

Mounting & dimensions

  • Outside diameter: 4-1/2"
  • Height: 9"

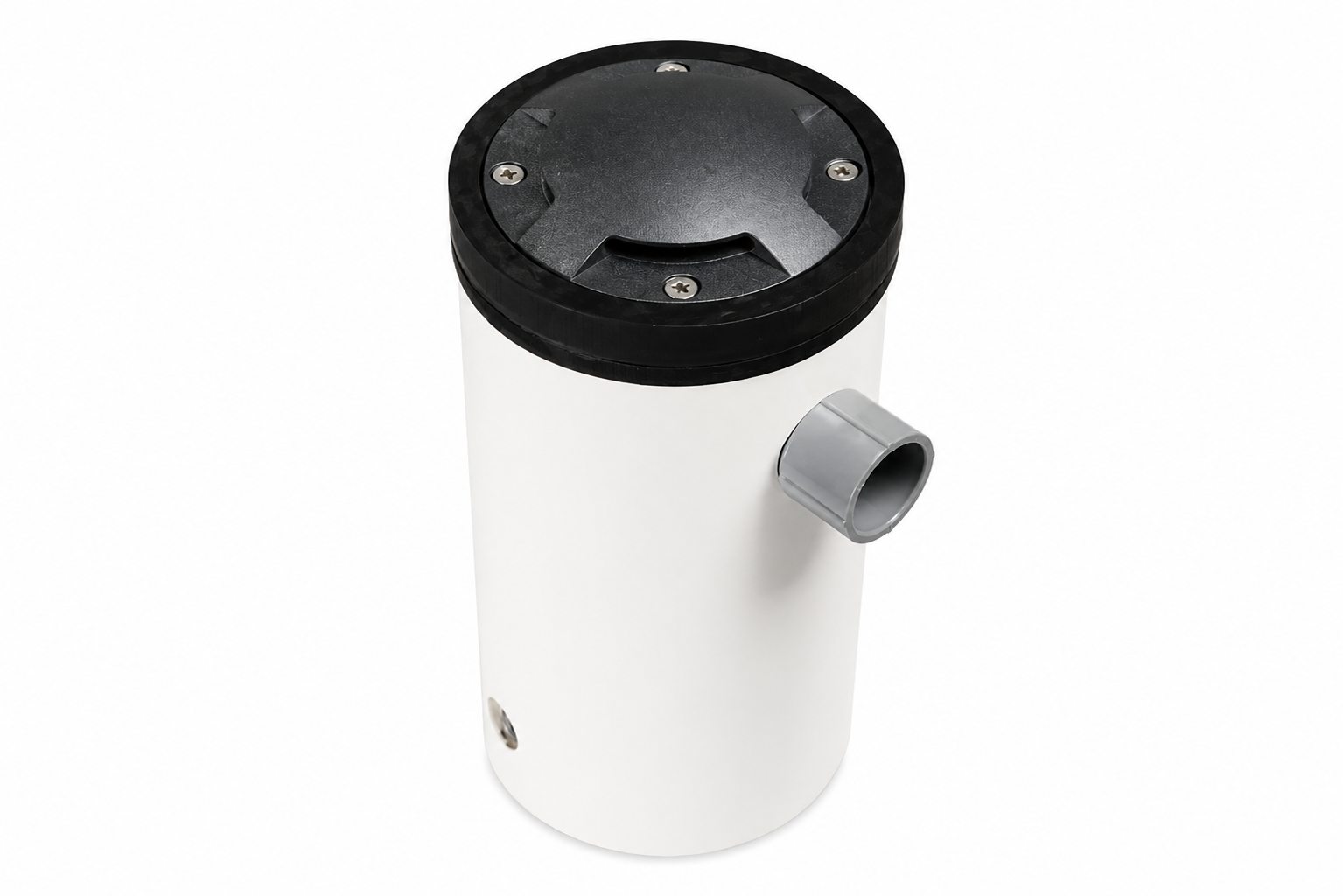

  • Mounting: Hardscape kit, adjustable
  • Accessories: Hardscape mounting kit included
  • Finish: 7 powder coat options

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 3 years
  • Origin: Made in USA
Download Spec Sheet (PDF)

Drive-over in-ground uplighting with a domed face

The HS240 hardscape WELL series fixture handles a variety of vertical and horizontal lighting techniques — wall washing, architectural grazing, uplighting trees, walkways, driveways, and sculpture, plus varied hardscape lighting effects. Three front-cover shapes let you tune the fixture to the specific lighting need.

The domed front is purpose-built for traffic locations. Its low-profile dome lets vehicles drive over the fixture without damage, while acting as a visor that controls glare and keeps attention off the light source itself — so you see the lit surface, not the fixture in the ground.

The interchangeable MR16 (or PAR36) LED platform keeps it dialed-in: run 7–17W lamps in 2700K through 6000K, with beam angles from 15° to 100° to tune everything from a tight uplight to a wide wash. A raw brass housing, stainless-steel fasteners, silicone gaskets, rubber expansion ring collar, and IP67 wet-location rating make it ready for buried, drive-over, in-grade installations. The removable fixture body and included hardscape mounting kit make installation, lamp swaps, and service straightforward.

Ideal applications:

  • Driveways, motor courts, and parking aprons
  • Walkways and pedestrian-traffic surfaces
  • Tree-base uplighting in lawn, mulch, or paver beds
  • Architectural facade and feature-wall washing
  • Sign, monument, and sculpture uplighting

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage range: 7–17W (this SKU configured at 7W)
  • LED type: MR16 or PAR36, interchangeable
  • CCT options: 2700K–6000K (this SKU configured at 4000K)
  • Socket/base: GX5.3 bi-pin, porcelain (spade terminals on PAR36)
  • Leads: 25–36 ft, SPT / SJ-W
  • Dimming: N/A

Performance

  • Lumens: 700–1,365 lm (platform range)
  • CRI: 85 (PAR36)
  • Efficacy: ~80–100 lm/W
  • Beam angles: 15°–100°
  • Lifespan: 50,000 hours (PAR36)

Build & environmental

  • Housing: Raw brass
  • Front cover: Domed, drive-over rated (flat and louvered options also available)
  • Lens: Glass
  • Gaskets: Silicone
  • Collar: Rubber expansion ring
  • Fasteners: Stainless steel
  • IP rating: IP67, wet-location
  • Certification: ETL

Mounting & dimensions

  • Outside diameter: 4-1/2"
  • Height: 9"
  • Mounting: Hardscape kit, adjustable
  • Accessories: Hardscape mounting kit included
  • Finish: 7 powder coat options

Warranty & origin

  • Housing warranty: Lifetime
  • LED warranty: 3 years
  • Origin: Made in USA
Download Spec Sheet (PDF)
View full details

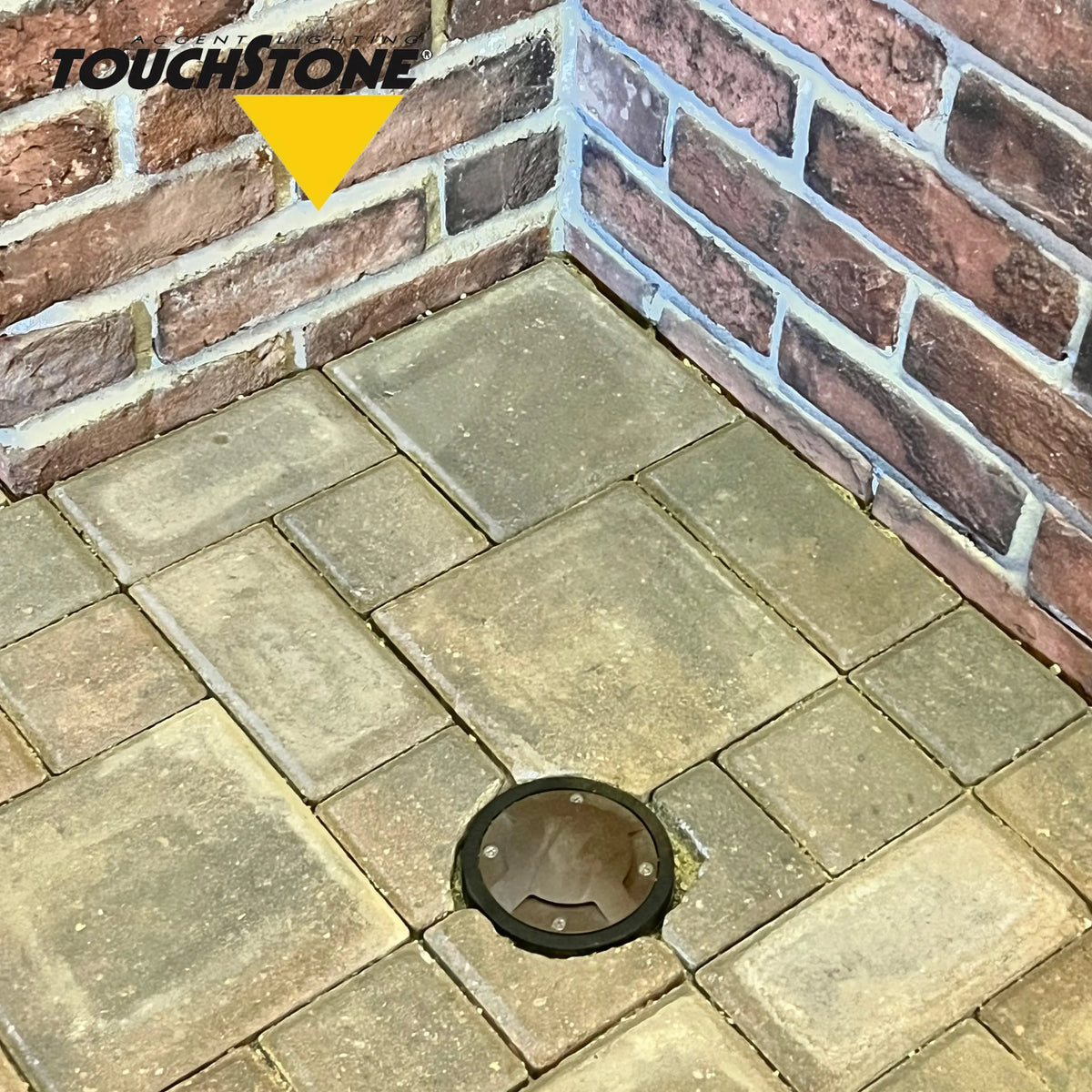

Built to live under traffic.

DOMED. DRIVABLE. DISCREET.

Built to live under traffic.

50,000 hrs

LED lifespan

IP67

Wet-location rated

85 CRI

Color rendering

9–17V

AC/DC voltage range

700–1,365

Lumens (7–17W)

15°–100°

Beam angle range

Lifetime housing warranty 3-year LED warranty Domed drive-over front

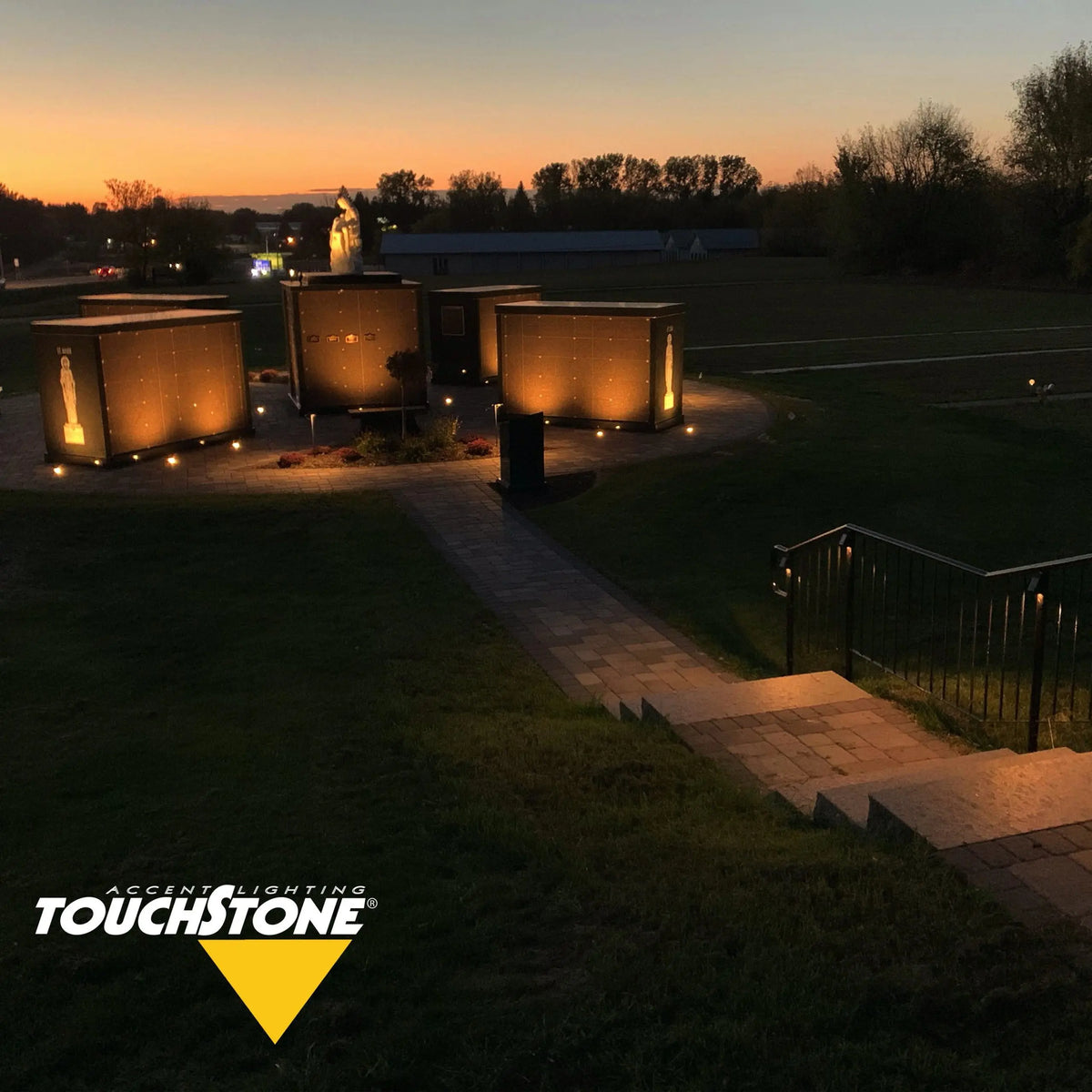

Drive over it. Light through it.

WELLFLOOD DOMED

Drive over it. Light through it.

From driveways to walkways and architectural uplight installations — WELLFlood Domed mounts flush at grade with a low-profile domed cover that lets vehicles drive over it while acting as a visor that controls glare from the light source below. Raw brass. IP67. Lifetime housing.

1,365 lm

Max output

IP67

Wet-location

50,000 hrs

LED lifespan

Lifetime

Housing warranty
