Ledge Series – Hardscape and Deck Lighting

Retail Pricing $89.95

Part Number: CDL511-MP

  • 30-Day Guarantee
  • 3-Year Warranty
  • USA Made

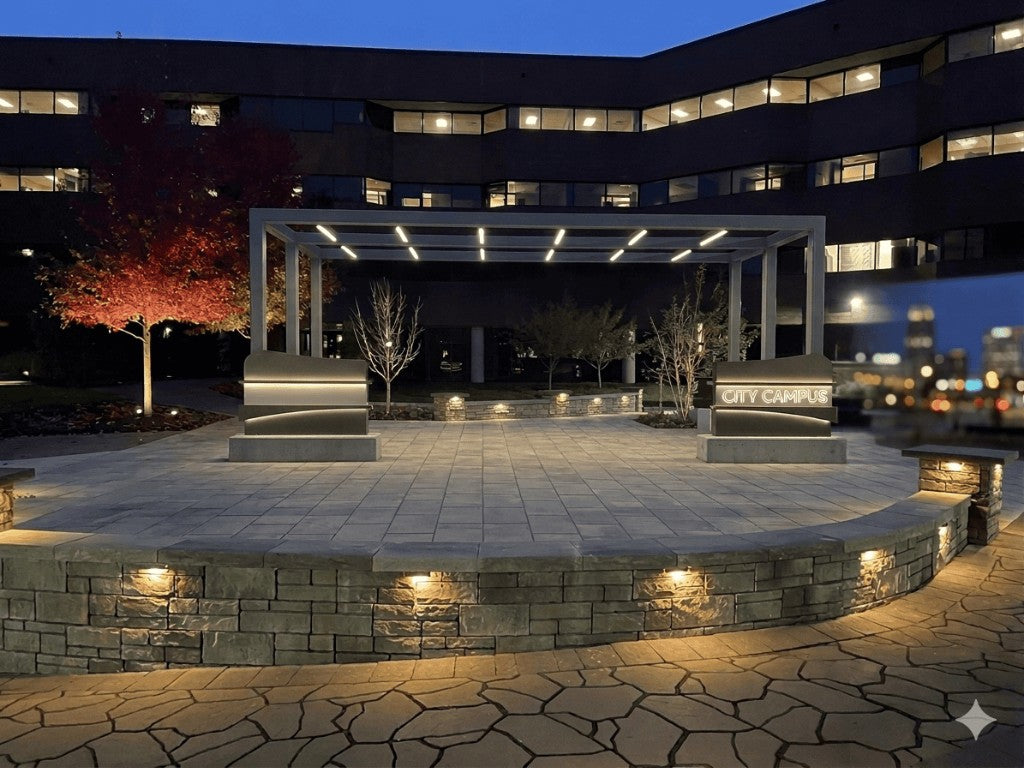

Subtle illumination for hardscape and architecture

Our LEDGE, Top Cap, and Rail series surface mounts provide subtle, attractive illumination while enhancing the look of your overall landscape and architectural design. These versatile fixtures are designed to fit snugly under masonry top caps, under deck steps and railings, or to downlight address numbers, columns, and monuments. A heavy-duty stainless-steel housing makes for a durable fixture, while the raw copper housing option gives it a sophisticated, elegant look.

NEW for 2021: The CDL511-MP is now fabricated with a dual-socket mounting application, allowing the socket to be LEFT or RIGHT mounted for greater installation flexibility.

Dimensions: 5.5" W × 1" D (4" with mortar plate) × 1" tall

Ledge Surface Mounts — ideal applications:

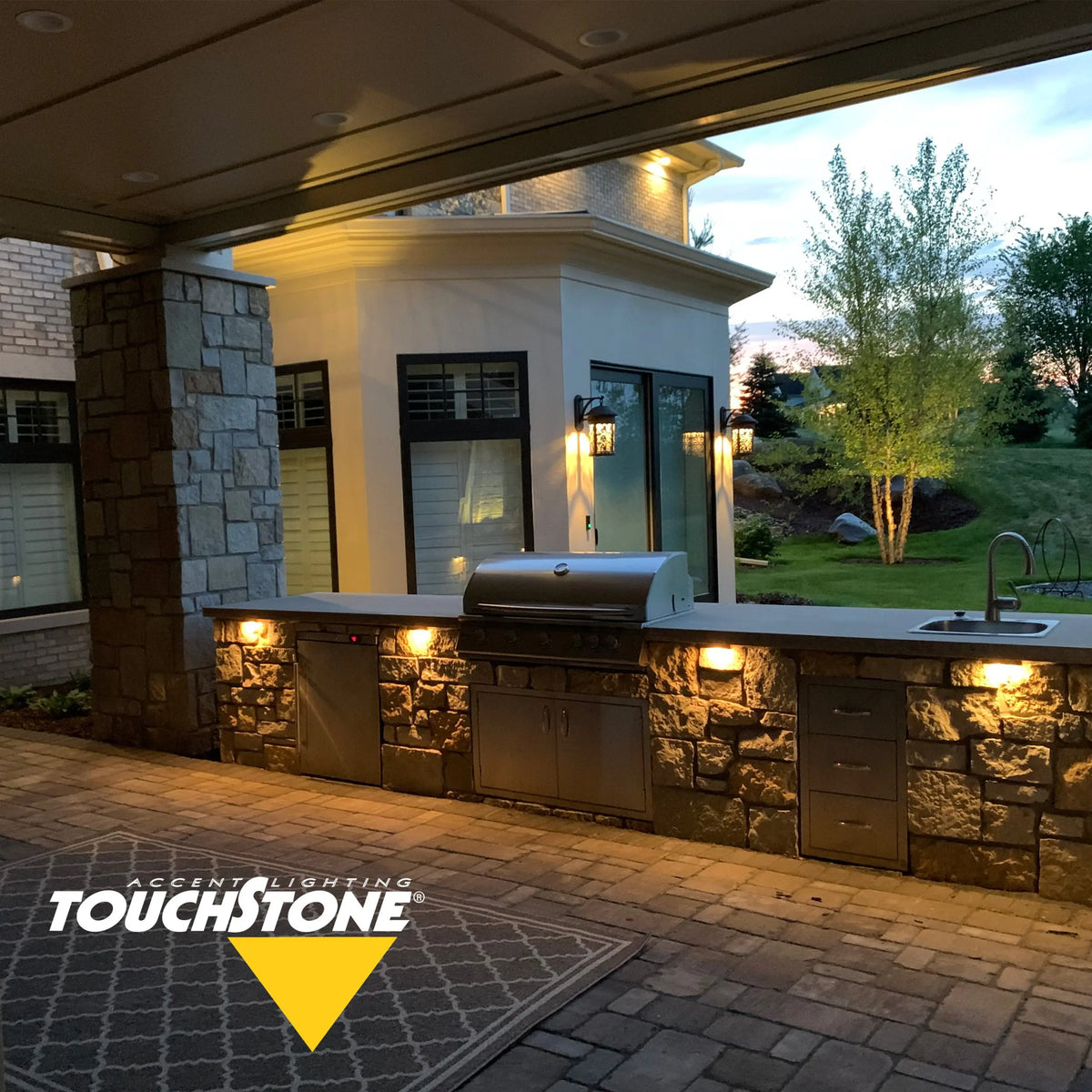

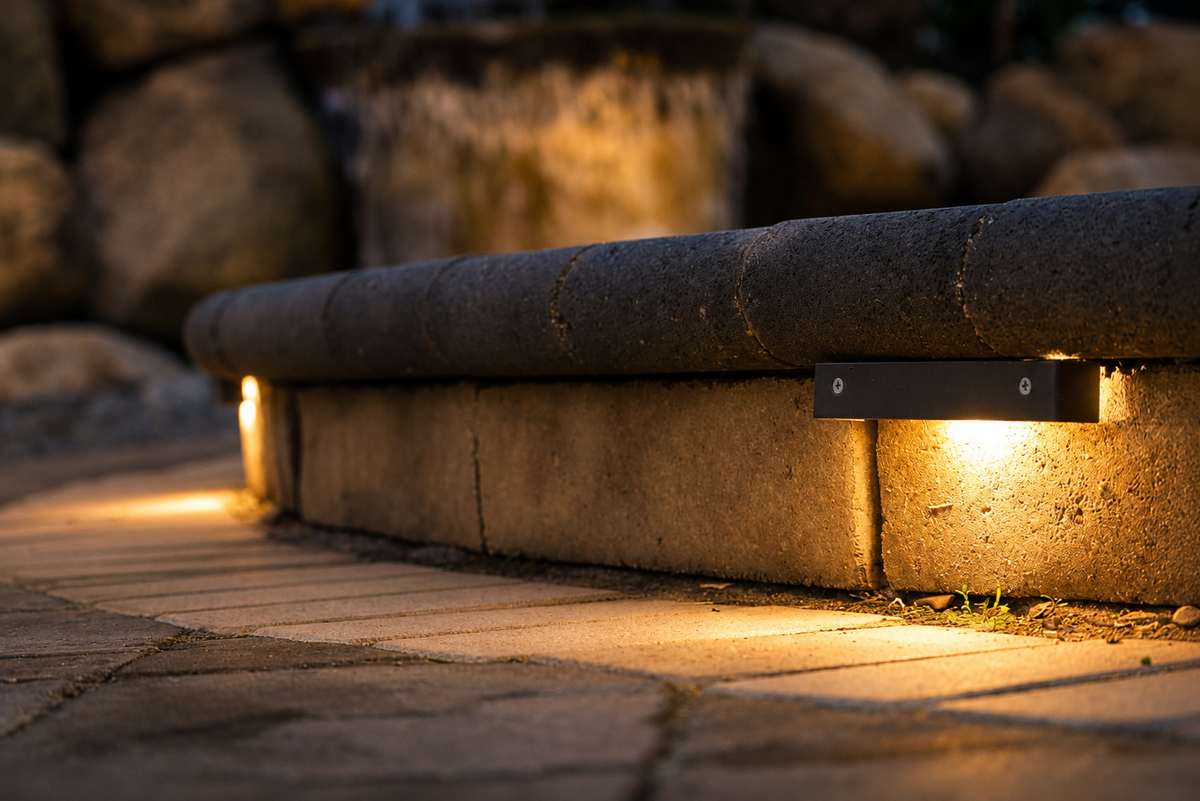

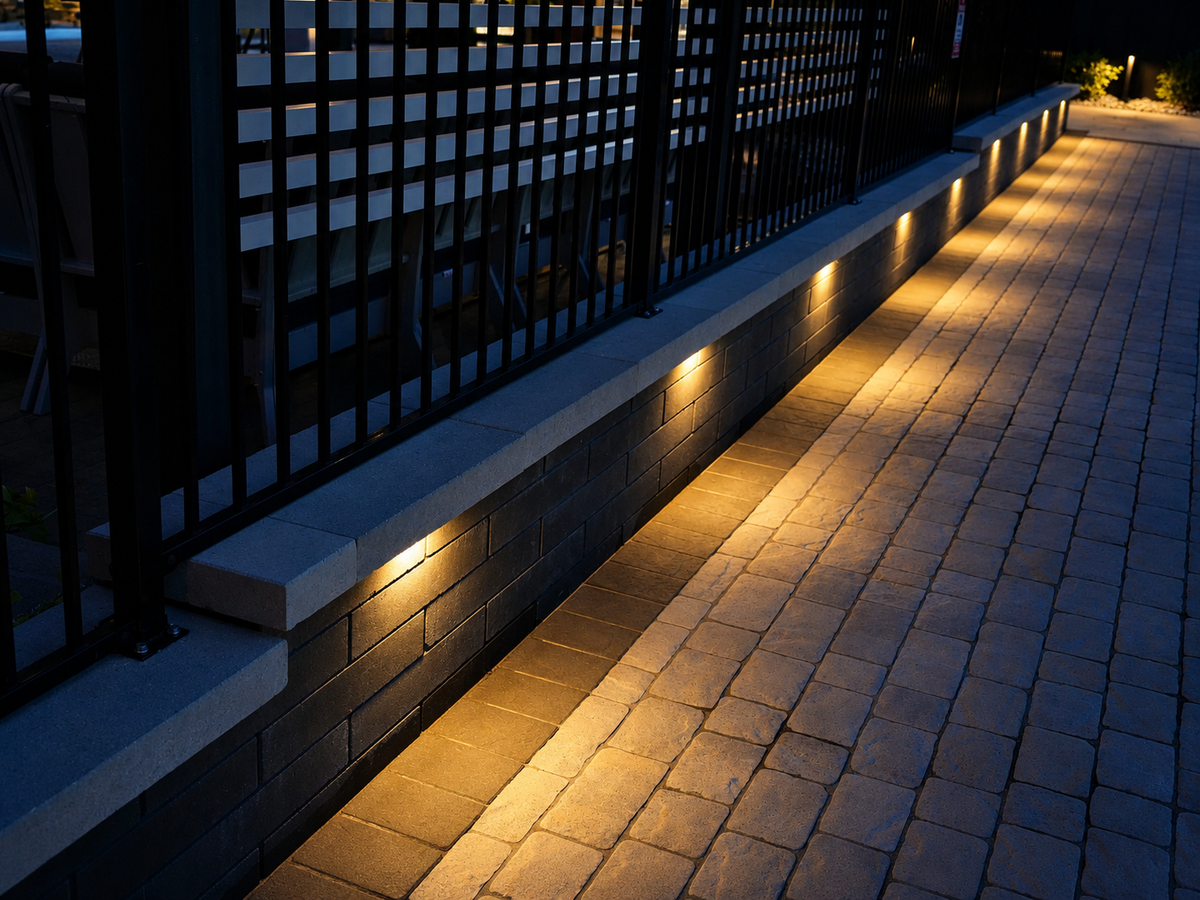

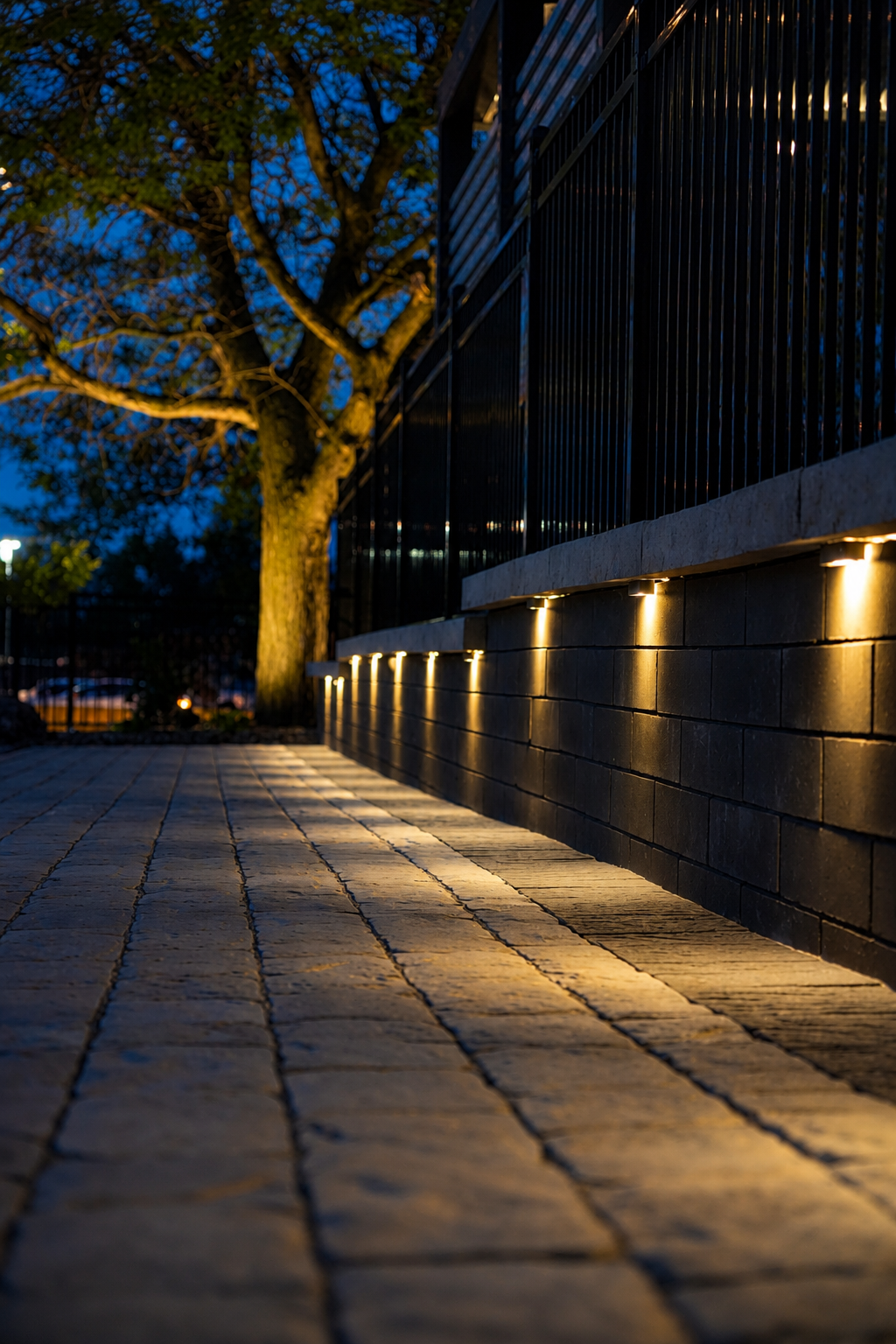

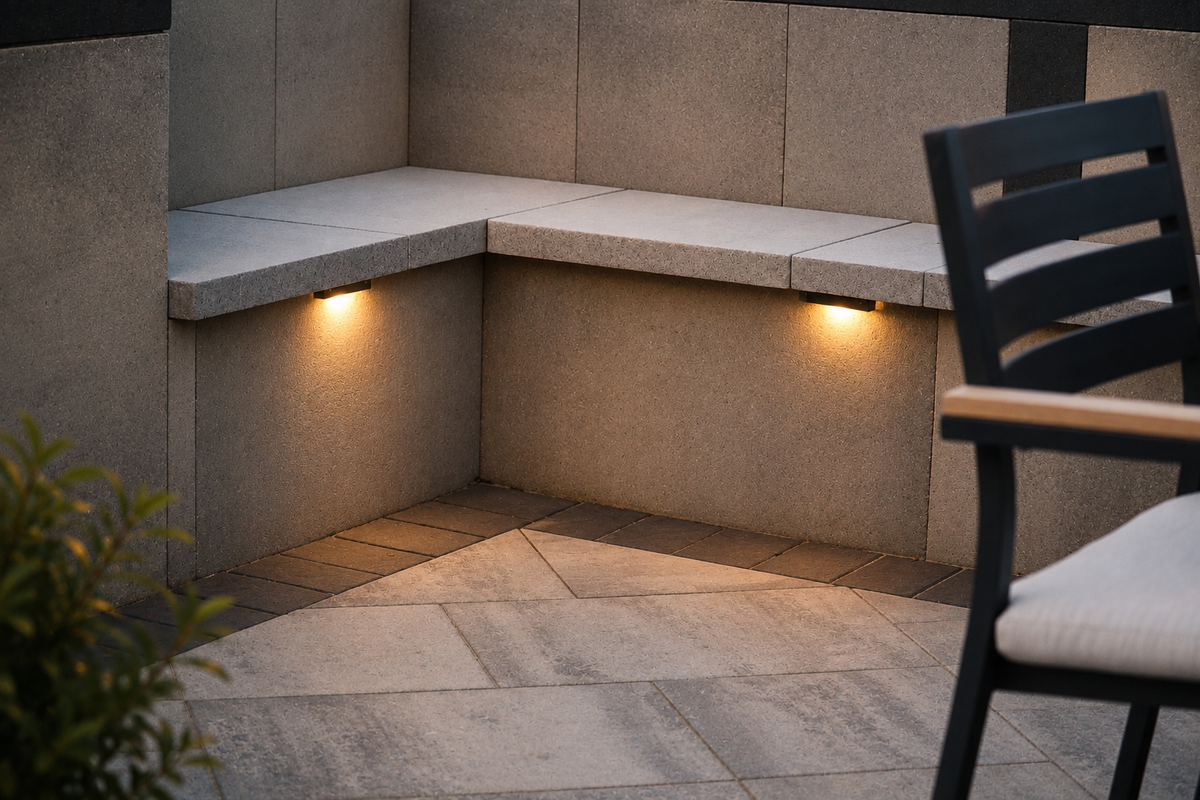

  • Under masonry top caps

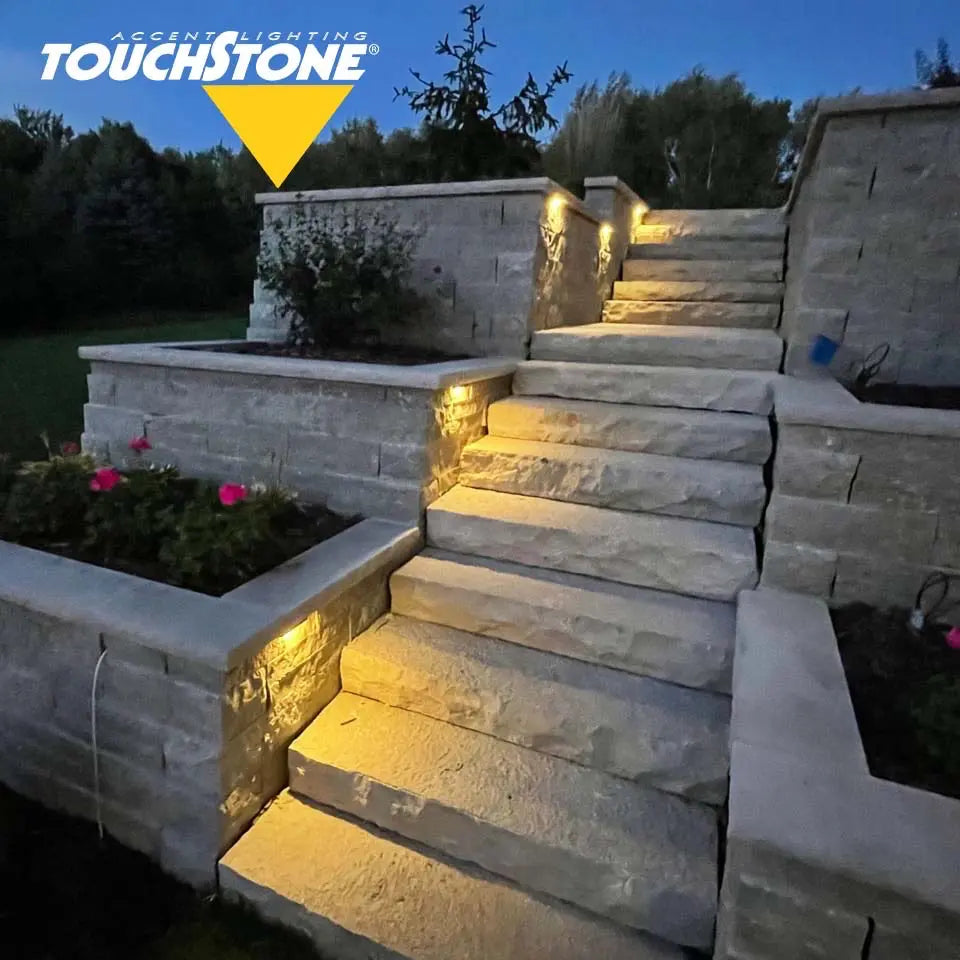

  • Under deck steps and railings

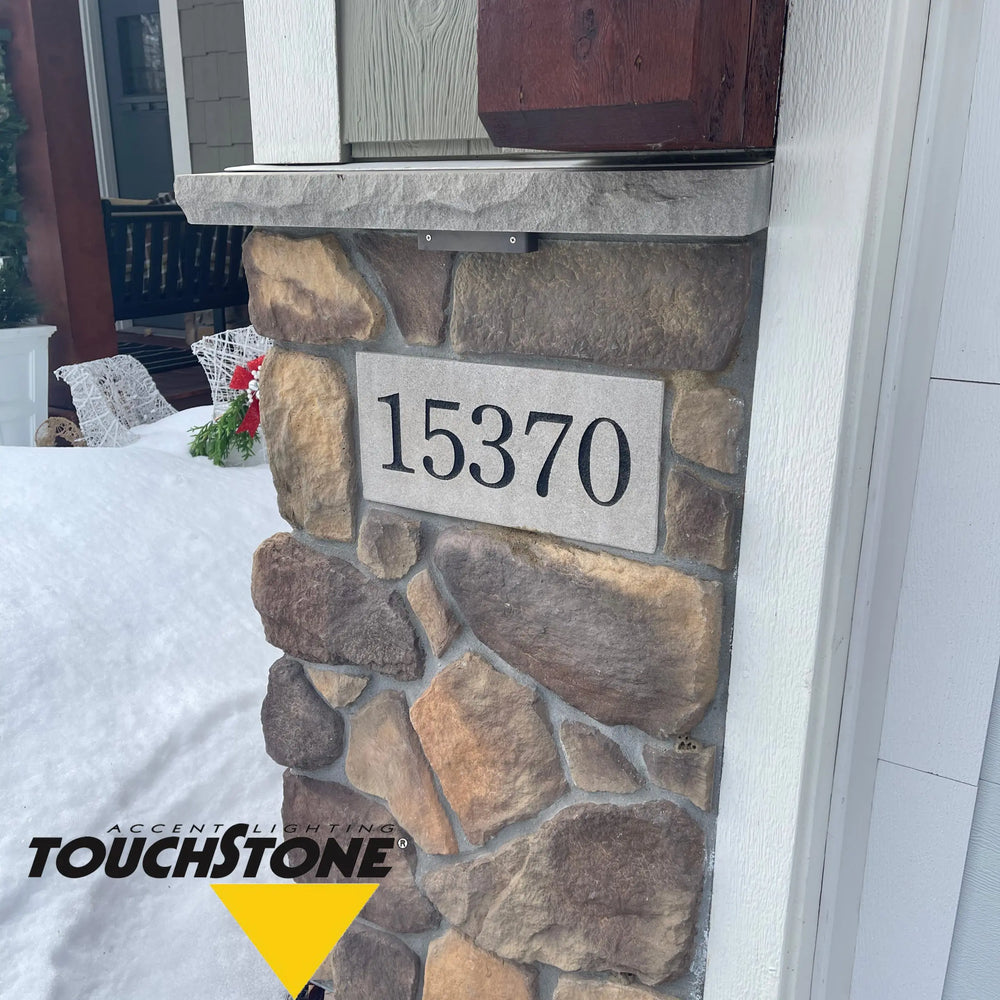

  • Downlight address numbers
  • Downlight columns and monuments

Technical specifications

Electrical

  • Voltage: 9–17V AC/DC
  • Wattage: 2W (single G4 ceramic LED)
  • LED type: G4 ceramic, replaceable
  • CCT options: 2700K / 4000K
  • Socket/base: GX5.3 bi-pin, porcelain — dual-socket mount, LEFT or RIGHT orientation
  • Leads: 60", 18/2 SPT
  • Dimming: N/A

Performance

  • Lumens: 180 lm
  • CRI: 85
  • Efficacy: ~90 lm/W
  • Light pattern: 5–8 ft diameter pool
  • Lifespan: 50,000 hours

Build & environmental

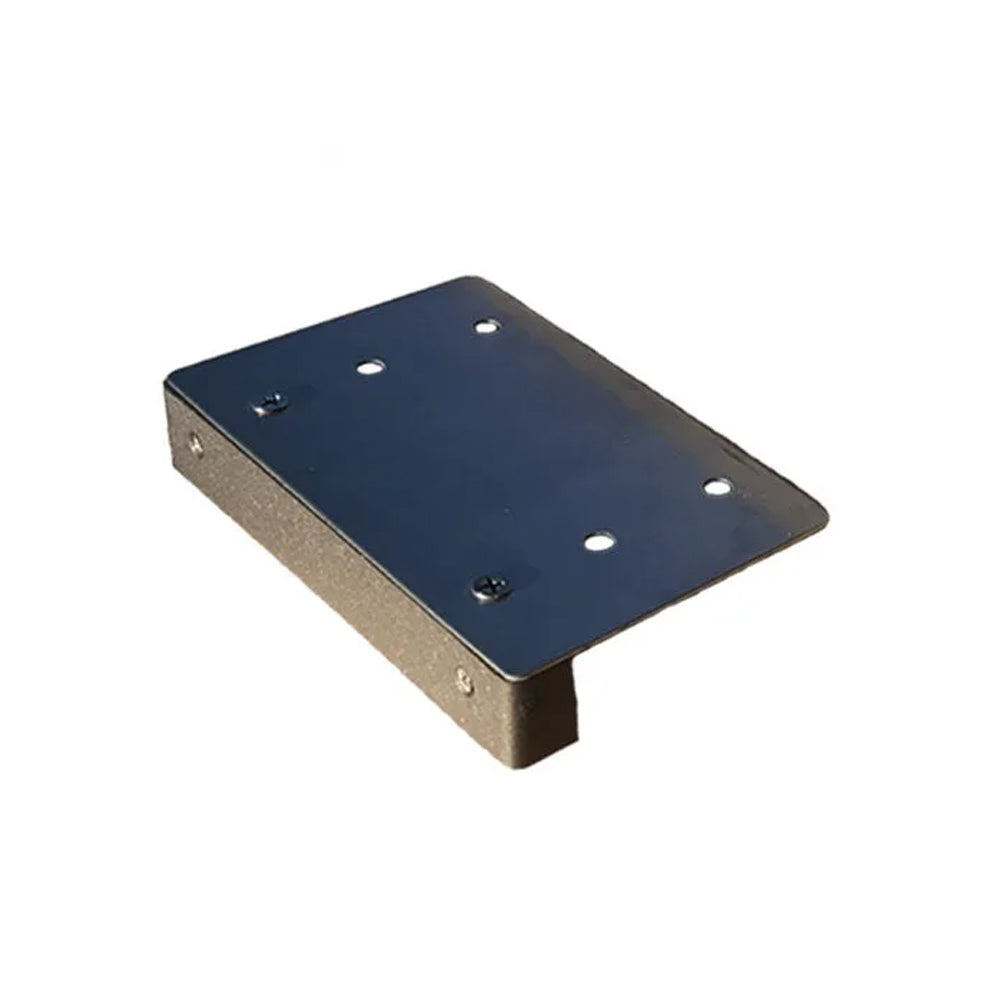

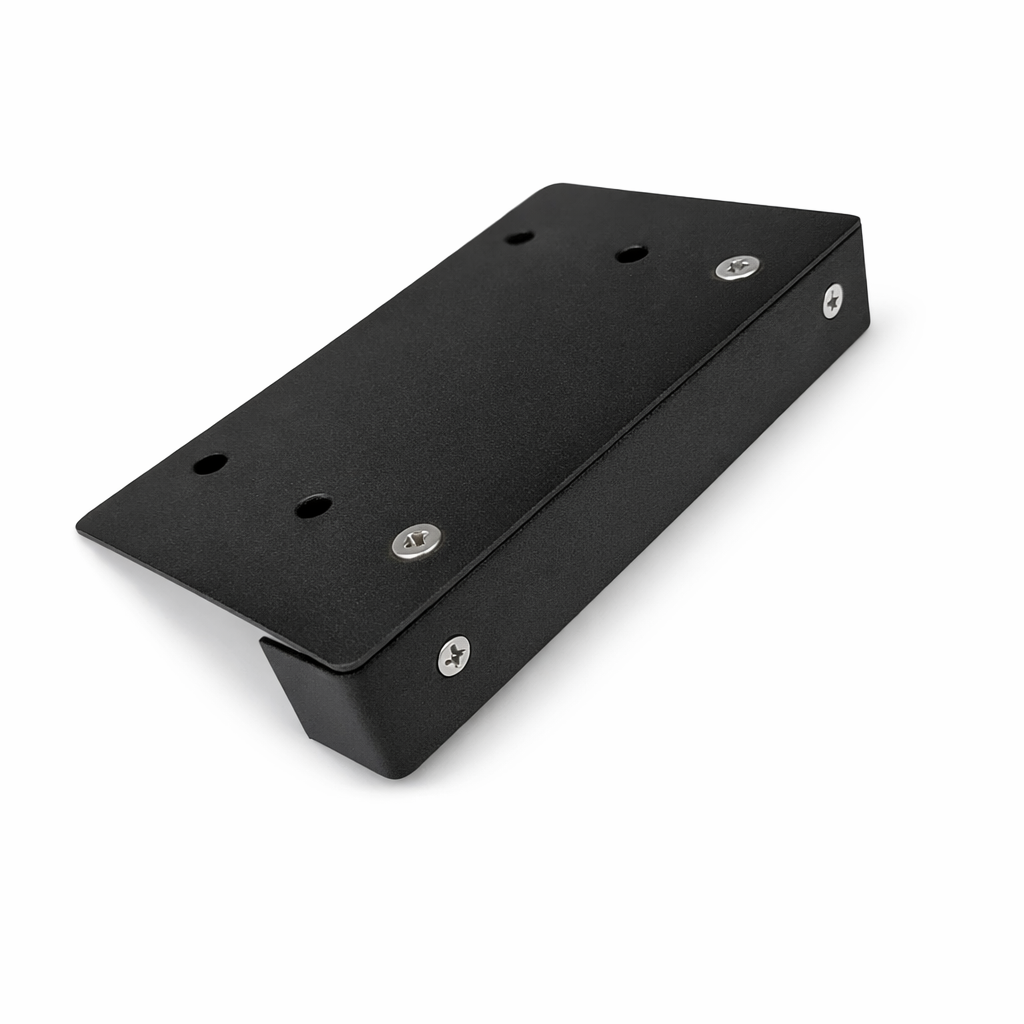

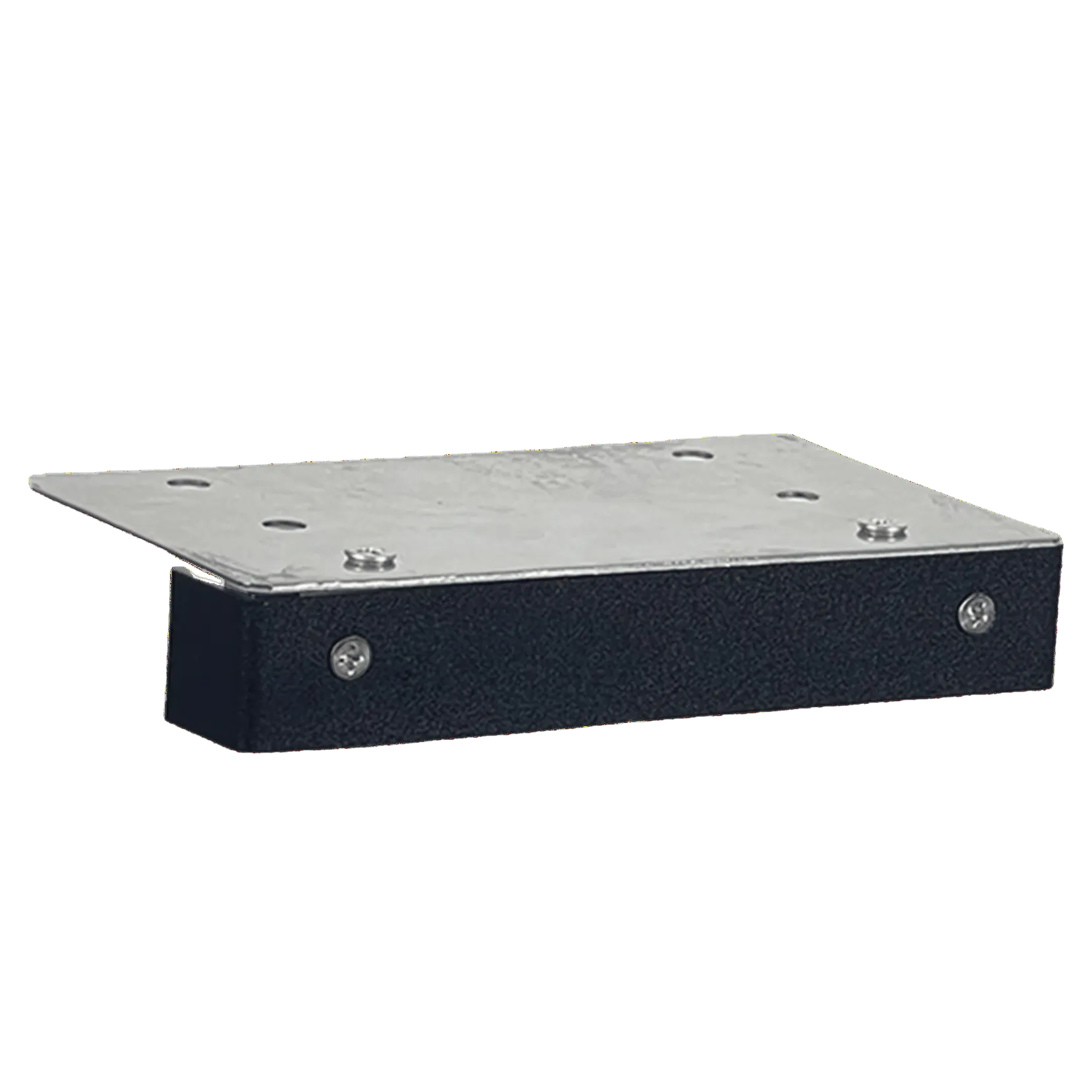

  • Housing: Heavy-duty stainless steel or raw copper
  • Mount plate: Mortar plate
  • Lens: Frosted glass
  • IP rating: IP64, wet-location
  • Certification: ETL

Mounting & dimensions

  • Width: 5.5"
  • Depth: 1" (4" with mortar plate)
  • Height: 1"
  • Mounting: Mortar plate, under top cap, or step riser — dual-socket LEFT/RIGHT orientation
  • Finish options: Stainless steel, raw copper, black patina, or 8+ powder coat colors

Warranty

  • Housing warranty: Lifetime
  • LED warranty: 5 years
Download Spec Sheet (PDF)
